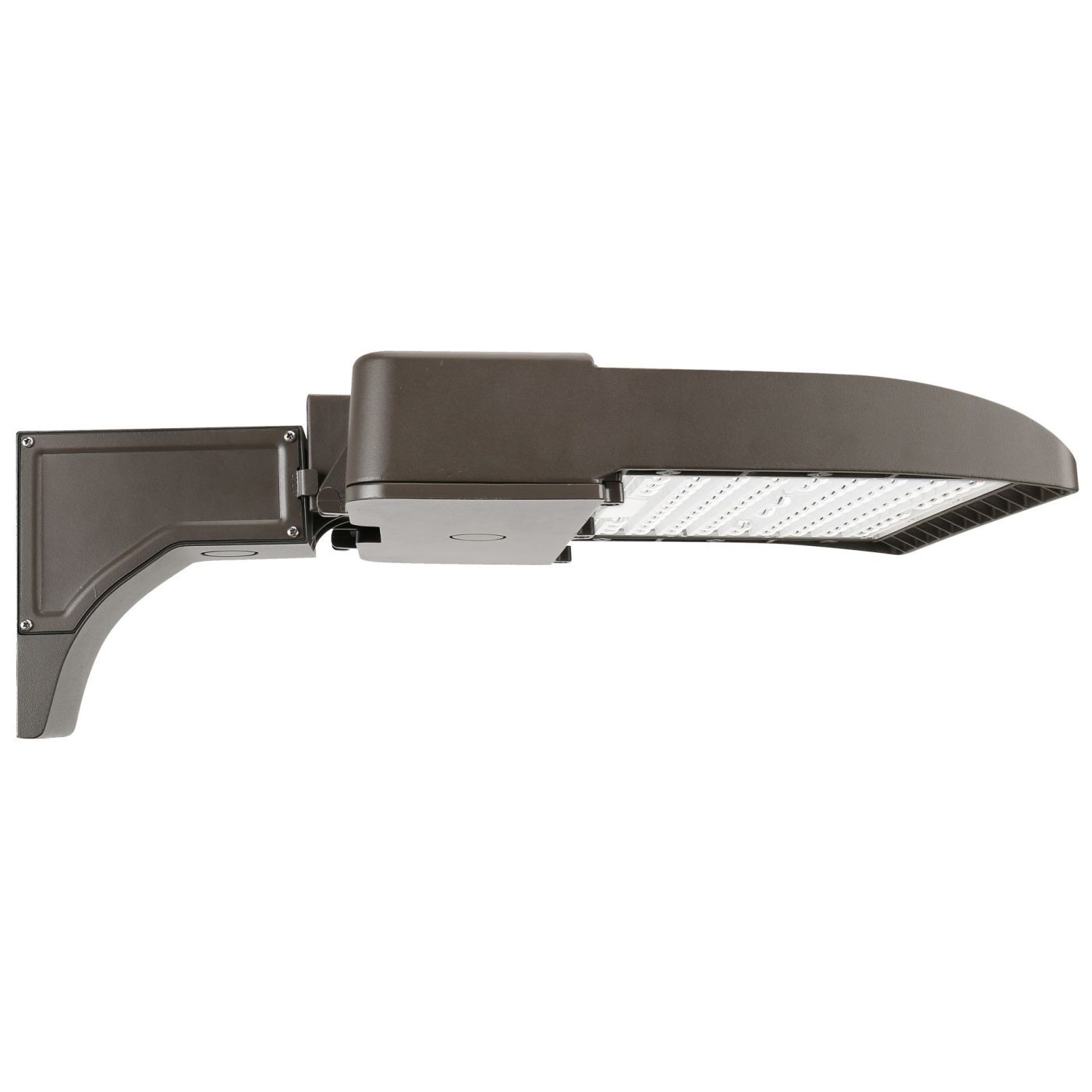

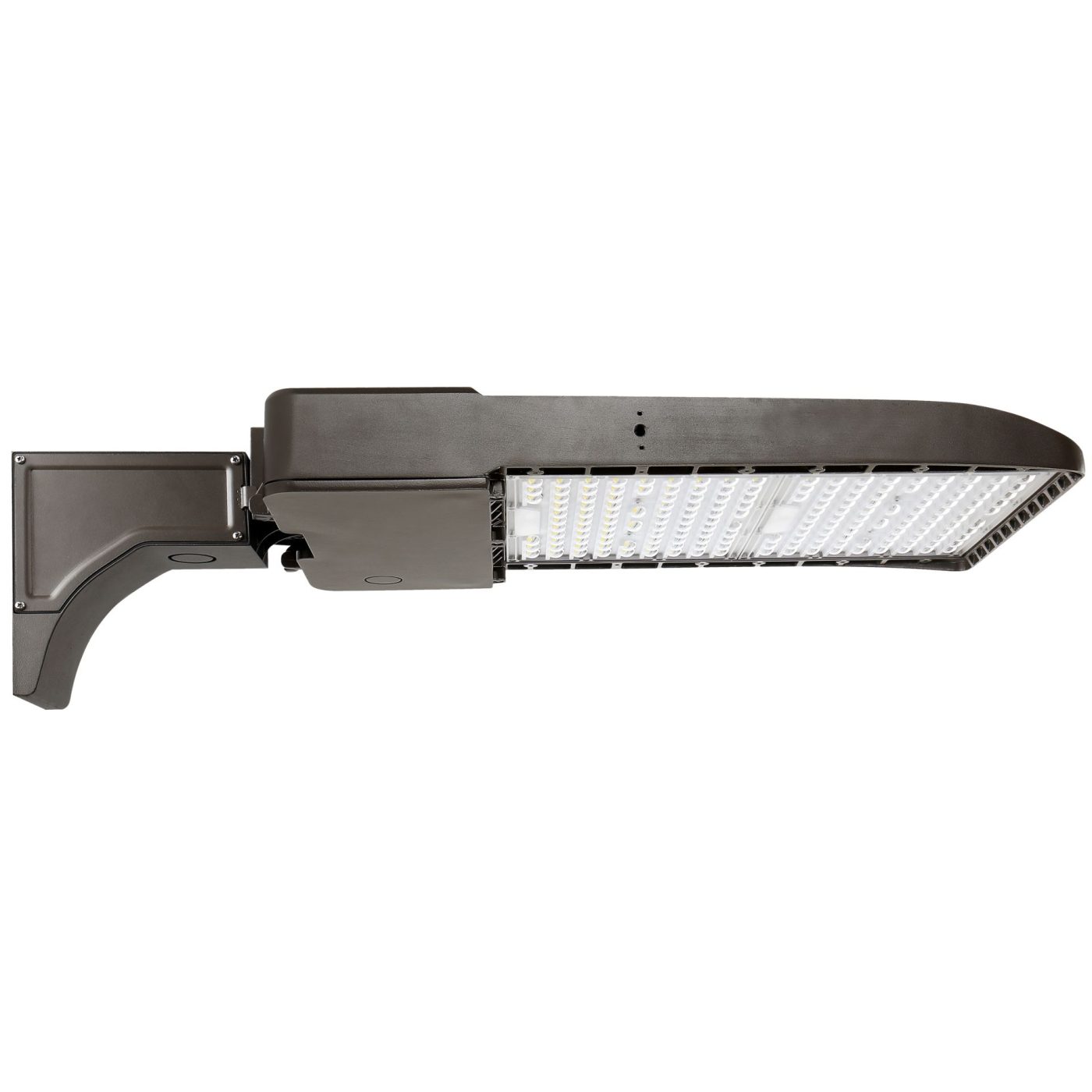

The AL Series Area Light Gen 3 comes in a large size with an output of 34,000 lumens. This versatile luminaire has different mounting options, photocell, and motion sensors for efficiency and greater energy savings.
APPLICATIONS
Auto Dealerships, Parking Lots, Walkways, Roadways, and other Public Areas, etc.
REPLACEMENT
ALM: 400W MH,ALL: 1000W+ MH
| Product Series | Performance | Wattage | 240W |
| Lumen Output | 34000 LM | Correlated Color Temperature (CCT) | 4000K , 5000K |
| Color Rendering Index (CRI) | 70 | Product Distribution Types | T3, T4, T5 |
| Control | Dimmable Motion Sensor | Accessories | Twist-lock Photocell , House Side Shield |
| Mounting Type | Square and Round Pole , Wall Mount , Slipfitter Mount , Trunnion Mount , Yoke Mount | Environment | Outdoor |
| Shape | Rectangle | Listings | UL , DLC Premium , DLC Standard , FCC |
| IP Rating | IP65 | Product Type | Area Light |
| Generation | G3 | Color & Finish | Dark Bronze Polyester Powder |
| Light Source | LED – Static | Voltage Rating | Standard 120-277V ,HVU 347-480V |
| Warranty | 10 Year | Labor Warranty | Yes |
| TYPES | LUMENS | DISTRIBUTION | GENERATION | VOLTAGE | CCT | FINISH | MOUNT | OPTIONS |
|---|---|---|---|---|---|---|---|---|
| Area Light Large | 34000 Lm | NEMA Type III NEMA Type IV NEMA Type V | Gen 3 | 120-277V 347-480V | 4000K 5000K | Dark Bronze Custom | Square and Round Pole Wall Slipfitter Slipfitter w/Photocell Trunnion | No Options Twist-lock Photocell 120-277V Twist-lock Photocell 480V 7-Pin Receptacle No Options No Options |
| Part Number | Description |
|---|---|
| PC- 2 NEMA Twist-lock Photocell 377V-480V |  |
| PC- 1 NEMA Twist-lock Photocell 120V-277V |  |
| PC- 3 7-Pin NEMA Twist-lock Receptacle |  |
| MS-FSP-212 Dimmable Motion Sensor |  |
| MS-FSP-221B Dimmable Motion Sensor |  |
| Square and Round Pole Mount |  |
| Wall Mount |  |
| SPS Pole Accessories |  |
| SS450-02 On-Site Wireless Controller |  |
| SSSK |  |
National LED is focused on being a leader in the LED industry by having the longest lifetime products with the strongest warranty.
