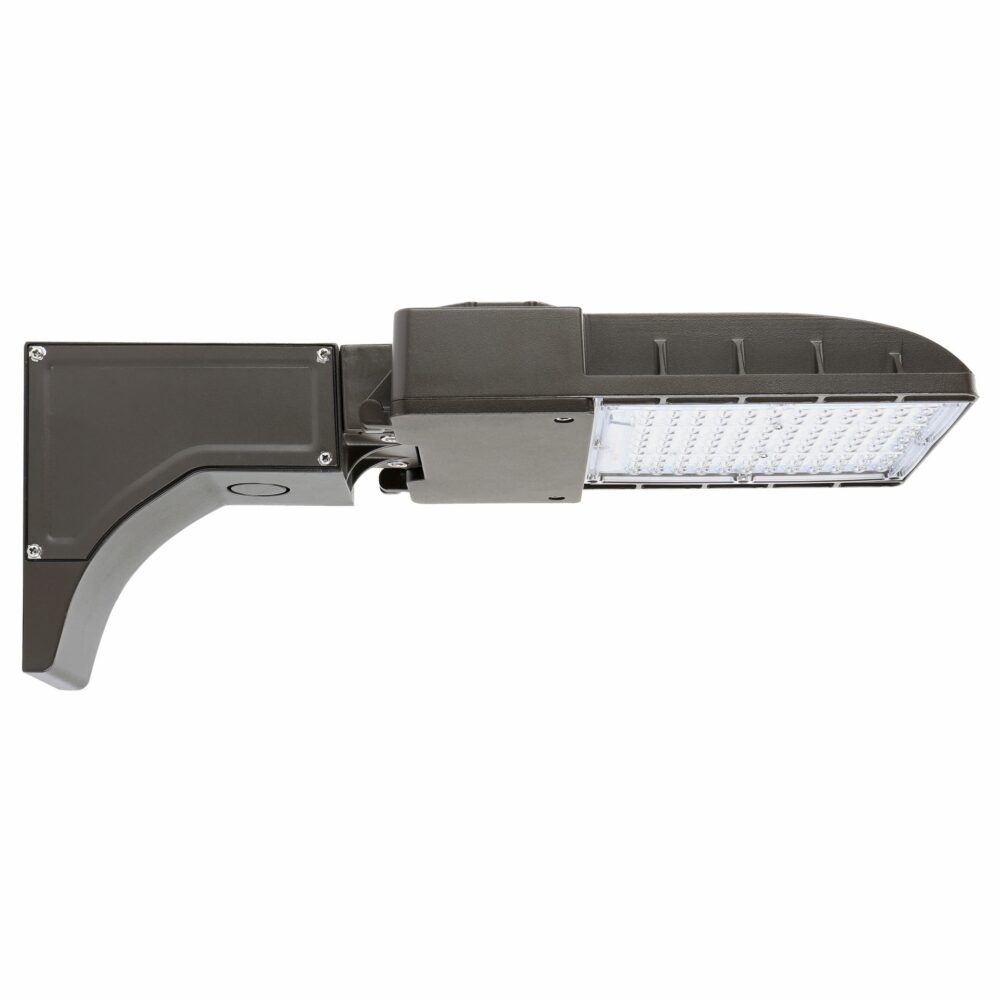

The ALC Area Light Contractor Series Gen 1 comes in three sizes small, medium, and large with a lumen output between 5,500 to 40,200 lumens. This versatile luminaire designed for contractors has different mounting options, photocell, and motion sensors for efficiency and greater energy savings.
APPLICATIONS
Auto Dealerships, Parking Lots, Walkways, Roadways, and other Public Areas, etc.
REPLACEMENT
ALCS: 175W-250W MH
ALCM: 400W MH
ALCL: 750W-1000W+ MH
| Product Series | Contractor | Wattage | 40W , 70W , 100W , 150W , 200W , 250W , 300W |
| Lumen Output | 55000 LM , 9500 LM , 13400 LM , 20100 LM , 25000 LM , 34000 LM , 40200 LM | Correlated Color Temperature (CCT) | 4000K , 5000K |
| Color Rendering Index (CRI) | 70 | Product Distribution Types | T3, T4, T5 |
| Control | Dimmable Motion Sensor | Accessories | Twist-lock Photocell , House Side Shield |
| Mounting Type | Square and Round Pole , Wall Mount , Slipfitter Mount , Trunnion Mount , Yoke Mount | Environment | Outdoor |
| Shape | Rectangle | Listings | UL , DLC Premium , DLC Standard , FCC |
| IP Rating | IP65 | Product Type | Area Light |
| Generation | G1 | Color & Finish | Dark Bronze Polyester Powder |
| Light Source | LED – Static | Voltage Rating | Standard 120-277V, HVU 347-480V |
| Warranty | 5 Year | Labor Warranty | No |
| TYPES | LUMENS | DISTRIBUTION | GENERATION | VOLTAGE | CCT | FINISH | MOUNTS | OPTIONS |
|---|---|---|---|---|---|---|---|---|
| Area Light Small Area Light Medium Area Light Large | 5500 Lm 40W 9500 Lm 70W 13400 Lm 100W 20100 Lm 150W 25000 Lm 200W 34000 Lm 250W 40200 Lm 300W | NEMA Type III NEMA Type IV NEMA Type V | Gen 1 | 120-277V 347-480V | 4000K 5000K | Dark Bronze Custom | Square and Round Pole Wall Slipfitter Slipfitter with Photocell Trunnion | No Options Twist-lock Photocell 120-277V Twist-lock Photocell 347-480V 7-Pin Receptacle No Options No Options |
| Part Number | Description |
|---|---|
| PC- 2 NEMA Twist-lock Photocell 377V-480V |  |
| PC- 1 NEMA Twist-lock Photocell 120V-277V |  |
| PC- 3 7-Pin NEMA Twist-lock Receptacle |  |
| MS-FSP-212 Dimmable Motion Sensor |  |
| MS-FSP-221B Dimmable Motion Sensor |  |
| Square and Round Pole Mount |  |
| Wall Mount |  |
| SPS Pole Accessories |  |
| SS450-02 On-Site Wireless Controller |  |
| SSSK |  |
LEDs can be programmed to create dynamic lighting effects that enhance the game-day experience for everyone involved and can provide superior lighting for playing fields and arenas, improving visibility for athletes and spectators alike.
One of the biggest benefits of commercial LED lighting is the decrease in energy costs. Traditional incandescent and metal-halide lights can use up to four times as much energy as commercial LED lights. This decrease in energy consumption not only saves money, but also helps reduce your facility’s carbon footprint.
Commercial LED lights also last much longer than traditional lighting options. While incandescent bulbs typically only last around 1,000 hours, commercial LED lights can last up to 100,000 hours. This not only reduces maintenance and replacement costs, but also reduces the amount of time your facility needs to be dark while lights are being replaced.
Another key benefit of commercial LED lighting is increased safety. Because commercial LED lights produce ve ry little heat, there is less risk of fire hazards. Additionally, commercial LED lights can be designed with specific light patterns that can help improve visibility for athletes and spectators alike. This improved visibility can help prevent accidents and injuries on the playing field or in the stands.
