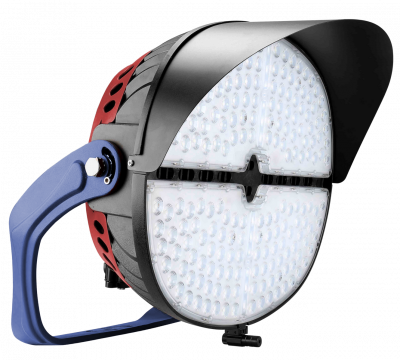

AOK-750WOFSLED Stadium Light

AOK-750WOFSLED Stadium Light National LEDAOK-750WOFSLED Stadium Light National LED

The OFS series is specifically engineered for outdoor sports lighting, offering exceptional performance and high-output illumination. This superior LED flood light boasts remarkable efficiency and showcases a distinctive optical design that effectively eliminates glare while minimizing any negative effects on performance. With a range of flood distributions to choose from, the oFS series is suitable for various lighting applications, including large areas, port and rail centers, and outdoor sports facilities.

Request a Quote

Next Day Shipping

5 Year Warranty Warranty

Expert Installation

Get a data sheet

Download data sheet
Unfortunately, we haven't attached data sheet yet. We'll be in contact with you.
Features

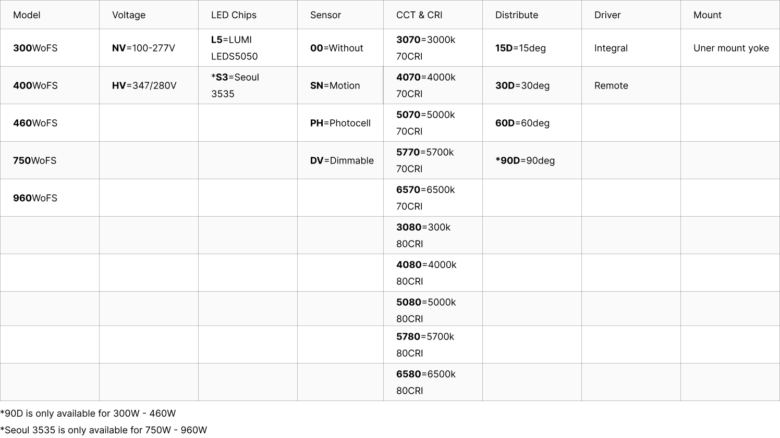

Ordering Information
Product Applications
Product Certification/Approvals

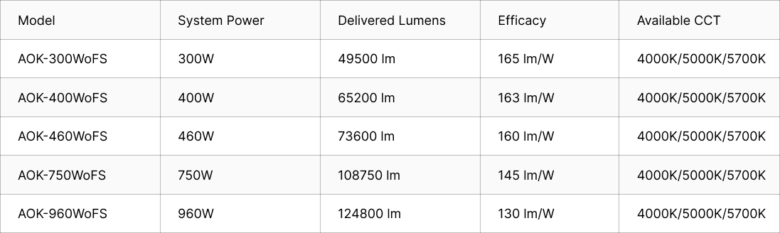

Performance Data

Key Features

  • Up to 165lm/W, power range: 300W-960W.
  • UV stabilized polyester powder paint finish for durability and corrosion resistance.
  • Saving maintenance budget and operating costs
  • Visor (light shield)
  • Tiltable arm
  • Die casting fixture body
  • Driver box cover
  • 0 – ±90° Rotatable bracket





Electrical

  • 0-10V dimming driver device standard
  • Working temperature: -40°C to 50°C (-40°F to 122°F)
  • Voltage option: 100-277VAC, 50/60HZ standard; 347V-480V, 50/60Hz optional.
  • 10KV or 20KV SPD (surge protection device) optional.





Mounting

  • Under Mount Yoke (with or without driver box)





Construction

  • Heavy duty die-cast aluminum housing
  • Driver compartment can be separated from the light fixture, reduced on the gross weight.
  • Light engine is thermally isolated from the driver compartment.
  • UV stabilized polyester powder paint finish.





Optics

  • Professional light distributions to maximize performance: 15°, 30°, 60°, 90° (only for 300W-460W).
  • Lens optics are designed to output a specialized light distribution for optimal performance in specific applications





Warranty

  • Backed by National LED’s industry leading 5 -year warranty (Warranty extension up to 10 years on request)





The OFS Series

It is sturdy, well constructed product that is perfect for outdoor sports lighting. Showcasing a distinctive optical design that effectively eliminates glare while minimizing any negative effects on performance.

It is the perfect choice for any sports, large areas, port and rail centers, and outdoor sports facilities.

  • Truck loading bay
  • Train Station & Port
  • Large outdoor industrial operation area
  • Stadium





The OFS Series

It is sturdy, well constructed product that is perfect for outdoor sports lighting. Showcasing a distinctive optical design that effectively elminates glare while minimizing any negative effects on performance.

It is the perfect choice for any sports, large areas, port and rail centers, and outdoor sports facilities.





  • UL Listed for damp locations
  • FCC compliant
  • RoHs compliant
  • Design Lights Consortium® (DLC) Premium 5.1 qualified product
  • Not all versions of this product may be DLC qualified.





The OFS Series

It is sturdy, well constructed product that is perfect for outdoor sports lighting. Showcasing a distinctive optical design that effectively elminates glare while minimizing any negative effects on performance.

It is the perfect choice for any sports, large areas, port and rail centers, and outdoor sports facilities.









The OFS Series

It is sturdy, well constructed product that is perfect for outdoor sports lighting. Showcasing a distinctive optical design that effectively elminates glare while minimizing any negative effects on performance.

It is the perfect choice for any sports, large areas, port and rail centers, and outdoor sports facilities.





Frequently Asked Questions

LEDs can be programmed to create dynamic lighting effects that enhance the game-day experience for everyone involved and can provide superior lighting for playing fields and arenas, improving visibility for athletes and spectators alike.

One of the biggest benefits of commercial LED lighting is the decrease in energy costs. Traditional incandescent and metal-halide lights can use up to four times as much energy as commercial LED lights. This decrease in energy consumption not only saves money, but also helps reduce your facility’s carbon footprint.

Commercial LED lights also last much longer than traditional lighting options. While incandescent bulbs typically only last around 1,000 hours, commercial LED lights can last up to 100,000 hours. This not only reduces maintenance and replacement costs, but also reduces the amount of time your facility needs to be dark while lights are being replaced.

Another key benefit of commercial LED lighting is increased safety. Because commercial LED lights produce ve ry little heat, there is less risk of fire hazards. Additionally, commercial LED lights can be designed with specific light patterns that can help improve visibility for athletes and spectators alike. This improved visibility can help prevent accidents and injuries on the playing field or in the stands.

Similar Commercial LED Lighting Products

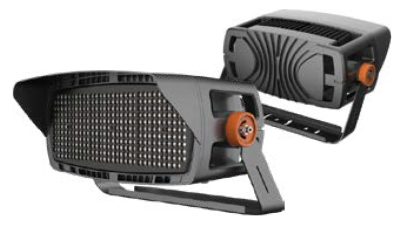

US-LED-PCLS-Sports-Lighter-1 1

Aero Champion LED

Details

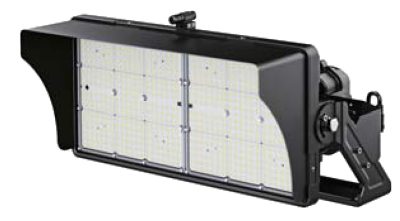

Screenshot 2024-03-24 at 5.05 1

Arena Glow Champion

Details
MSL01-Large Size-Black Top Visor

Arena Bright

Details

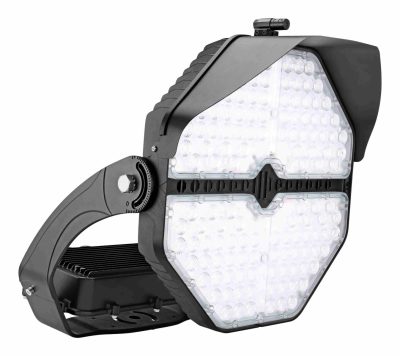

MSL02-Black-Side 01 1 (1)

Victory Glow

Details

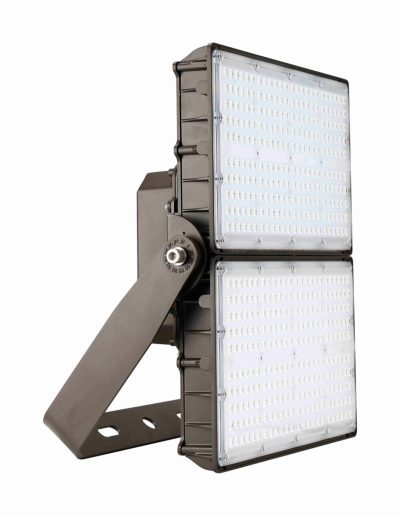

MFD08 250W&350W-Trunnion-Side 1

Bright Force Titan

Details

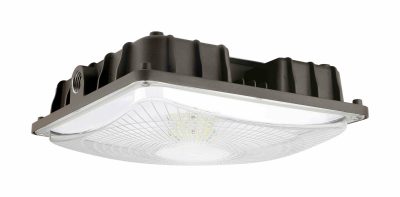

MCP05-pendant-knock-out-1 1 (1)

Sky Shine LED

Details

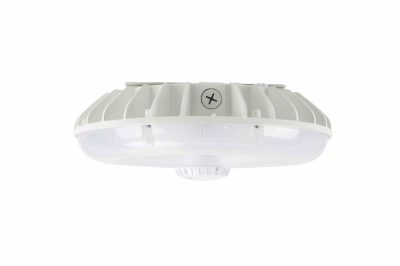

MCP03-White-Sensor-Side 1 1 (1)

FlexCEE

Details

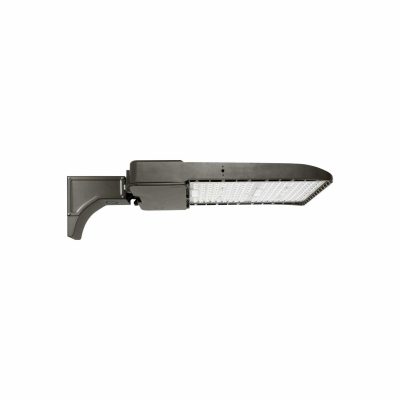

MAL06-Large-Size-Square-Side
