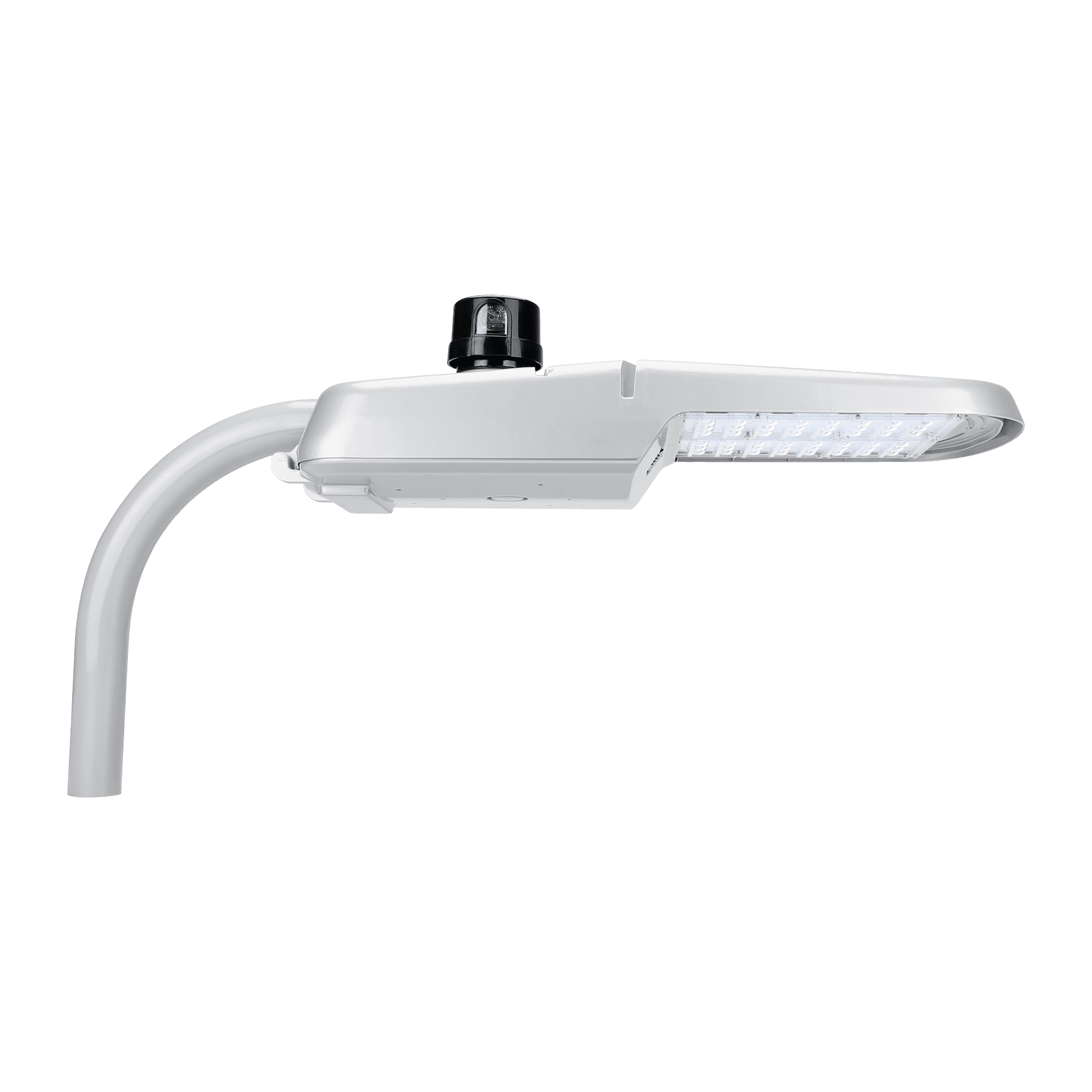

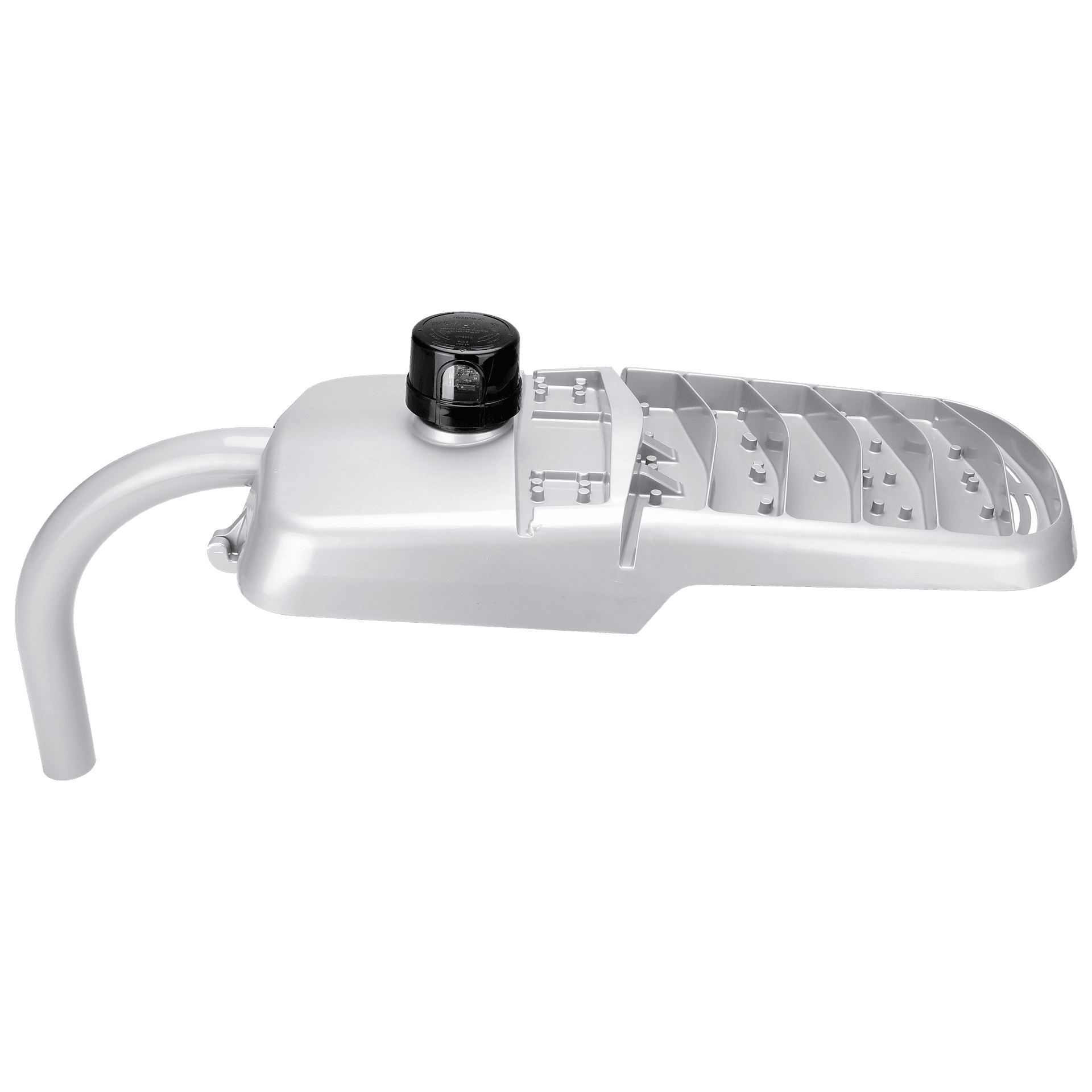

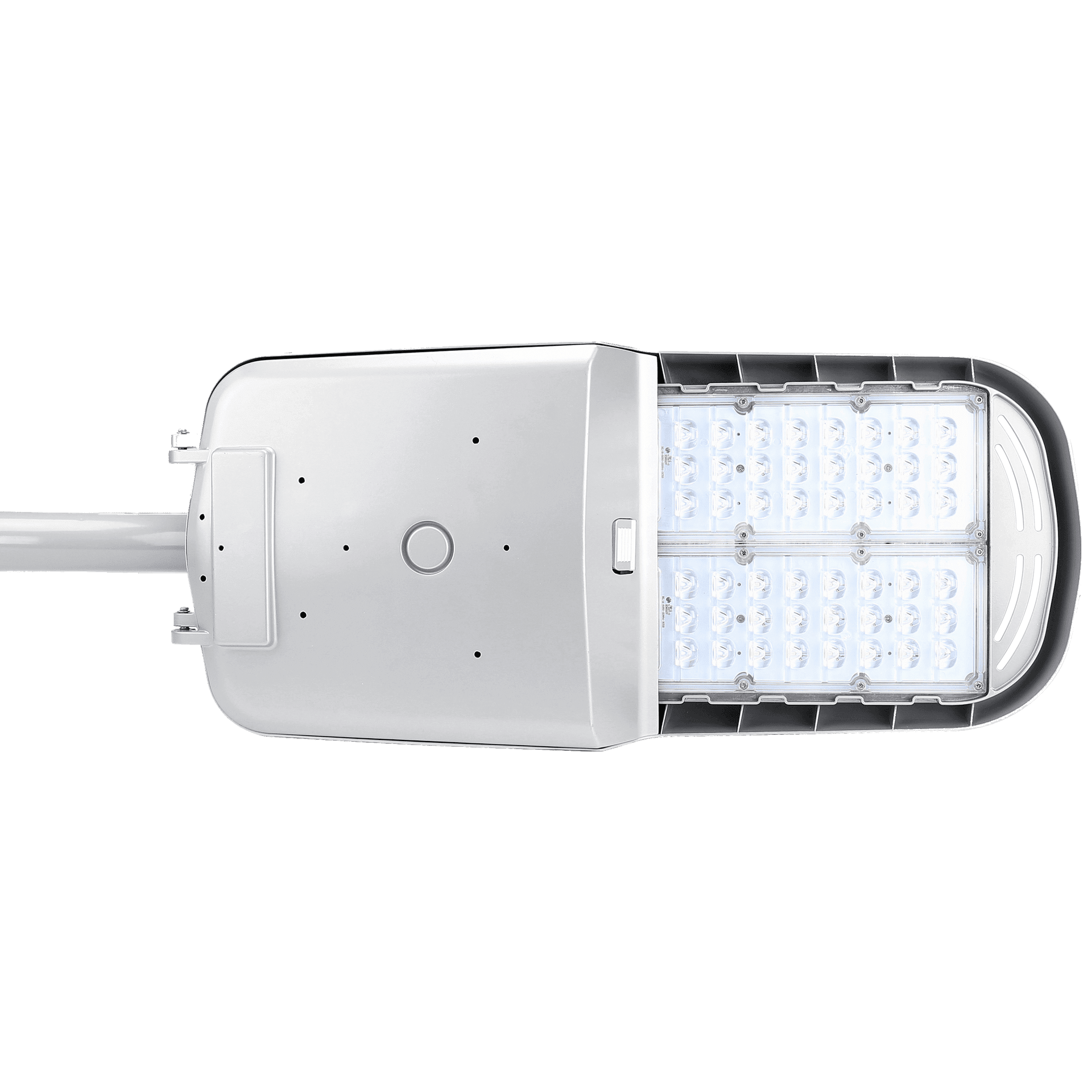

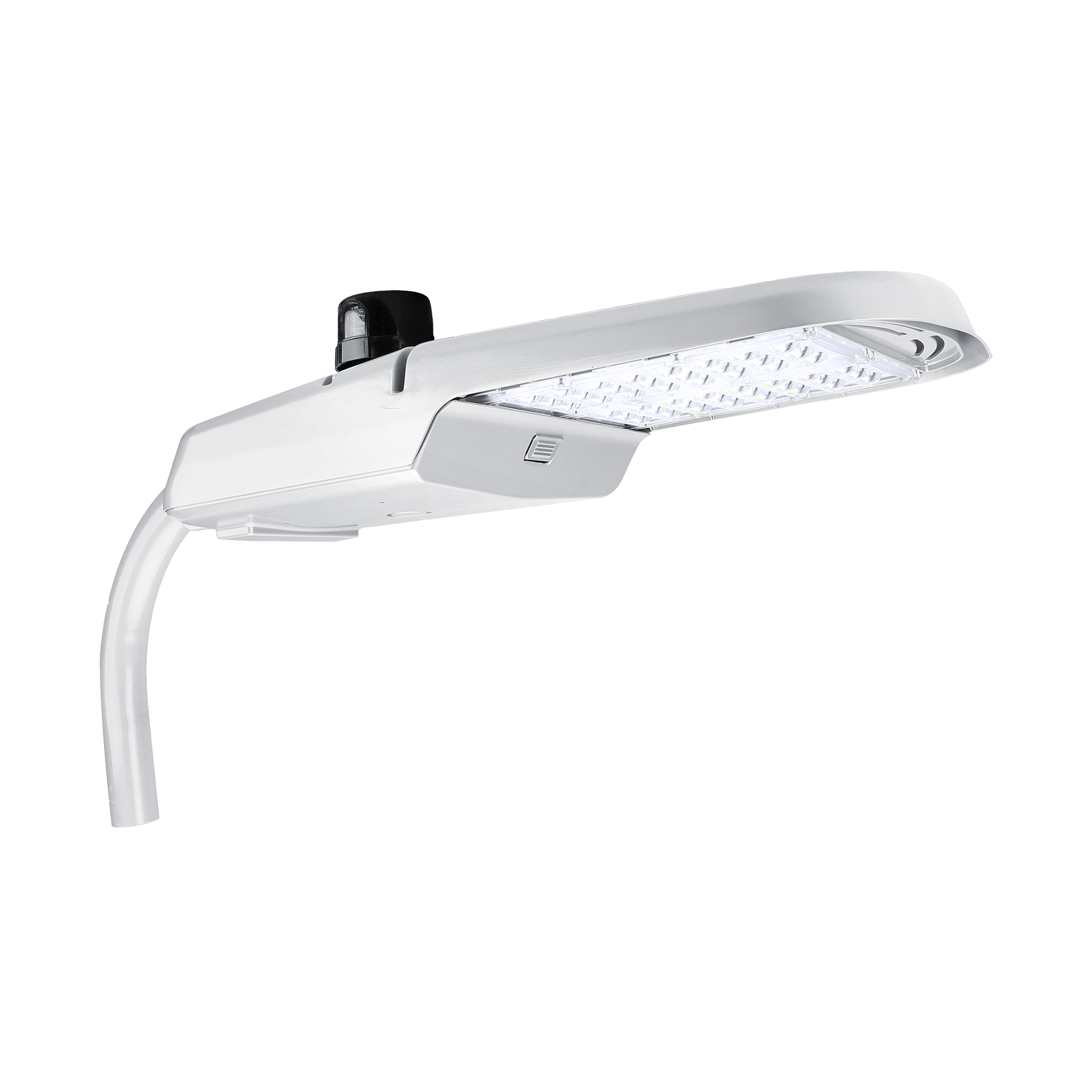

The PathBright Roadway Series Gen 1 luminaire provides superior optical performance and outstanding versatility for a wide variety of area and roadway applications. Features include single latch toolless entry, industry leading surge protection options and high lumen maintenance and performance.
APPLICATIONS
Parking Lots, Walkways, Roadways, Plazas and Campuses
REPLACEMENT
Up to 400W MH
| Product Series | Performance | Wattage | 45W , 70W , 100W , 110W , 150W |
| Lumen Output | 6350 LM , 9400 LM , 13800 LM , 14700 LM , 20000 LM , 20023 LM | Correlated Color Temperature (CCT) | 3000K , 4000K |
| Color Rendering Index (CRI) | 70 | Product Distribution Types | T3 |
| Control | Motion Sensor | Accessories | Motion Sensor |
| Mounting Type | Pole Mount | Environment | Outdoor |
| Shape | Rectangle | Listings | UL , DLC Premium |
| IP Rating | IP65 | Product Type | Roadway Light |
| Generation | G1 | Color & Finish | Polyester Powder Silver Gray Finish |
| Light Source | LED – Static | Voltage Rating | Standard 120-277V , Optional HVU 347-480V |
| Warranty | 10 Year | Labor Warranty | Yes |
| TYPES | LUMENS | DISTRIBUTION | GENERATION | VOLTAGE | CCT | FINISH | PHOTOCELL | OPTIONS |
|---|---|---|---|---|---|---|---|---|
| LED Roadway Light | 6350 Lm 45W 9400 Lm 70W 13800 Lm 100W UNV110W HVU 20000 Lm 150W | NEMA Type III | Gen 1 | 120-277V 347-480V | 4000K 5000K | Silver Gray | 120-277V 347-480V Photocell | No Options Dimmable Motion Sensor W/L3 Lens Dimmable Motion Sensor W/L7 Lens |
| Part Number | Description |
|---|---|
| MS-FSP-212 Dimmable Motion Sensor |  |
| MS-FSP-221B Dimmable Motion Sensor |  |
| SS450-02 On-Site Wireless Controller |  |
| Product Series | Performance | Wattage | 45W , 70W , 100W , 110W , 150W |
| Lumen Output | 6350 LM , 9400 LM , 13800 LM , 14700 LM , 20000 LM , 20023 LM | Correlated Color Temperature (CCT) | 3000K , 4000K |
| Color Rendering Index (CRI) | 70 | Product Distribution Types | T3 |
| Control | Motion Sensor | Accessories | Motion Sensor |
| Mounting Type | Pole Mount | Environment | Outdoor |
| Shape | Rectangle | Listings | UL , DLC Premium |
| IP Rating | IP65 | Product Type | Roadway Light |
| Generation | G1 | Color & Finish | Polyester Powder Silver Gray Finish |
| Light Source | LED – Static | Voltage Rating | Standard 120-277V , Optional HVU 347-480V |
| Warranty | 10 Year | Labor Warranty | Yes |
| TYPES | LUMENS | DISTRIBUTION | GENERATION | VOLTAGE | CCT | FINISH | PHOTOCELL | OPTIONS |
|---|---|---|---|---|---|---|---|---|
| LED Roadway Light | 6350 Lm 45W 9400 Lm 70W 13800 Lm 100W UNV110W HVU 20000 Lm 150W | NEMA Type III | Gen 1 | 120-277V 347-480V | 4000K 5000K | Silver Gray | 120-277V 347-480V Photocell | No Options Dimmable Motion Sensor W/L3 Lens Dimmable Motion Sensor W/L7 Lens |
| Part Number | Description |
|---|---|
| MS-FSP-212 Dimmable Motion Sensor |  |
| MS-FSP-221B Dimmable Motion Sensor |  |
| SS450-02 On-Site Wireless Controller |  |
LEDs can be programmed to create dynamic lighting effects that enhance the game-day experience for everyone involved and can provide superior lighting for playing fields and arenas, improving visibility for athletes and spectators alike.
One of the biggest benefits of commercial LED lighting is the decrease in energy costs. Traditional incandescent and metal-halide lights can use up to four times as much energy as commercial LED lights. This decrease in energy consumption not only saves money, but also helps reduce your facility’s carbon footprint.
Commercial LED lights also last much longer than traditional lighting options. While incandescent bulbs typically only last around 1,000 hours, commercial LED lights can last up to 100,000 hours. This not only reduces maintenance and replacement costs, but also reduces the amount of time your facility needs to be dark while lights are being replaced.
Another key benefit of commercial LED lighting is increased safety. Because commercial LED lights produce ve ry little heat, there is less risk of fire hazards. Additionally, commercial LED lights can be designed with specific light patterns that can help improve visibility for athletes and spectators alike. This improved visibility can help prevent accidents and injuries on the playing field or in the stands.
