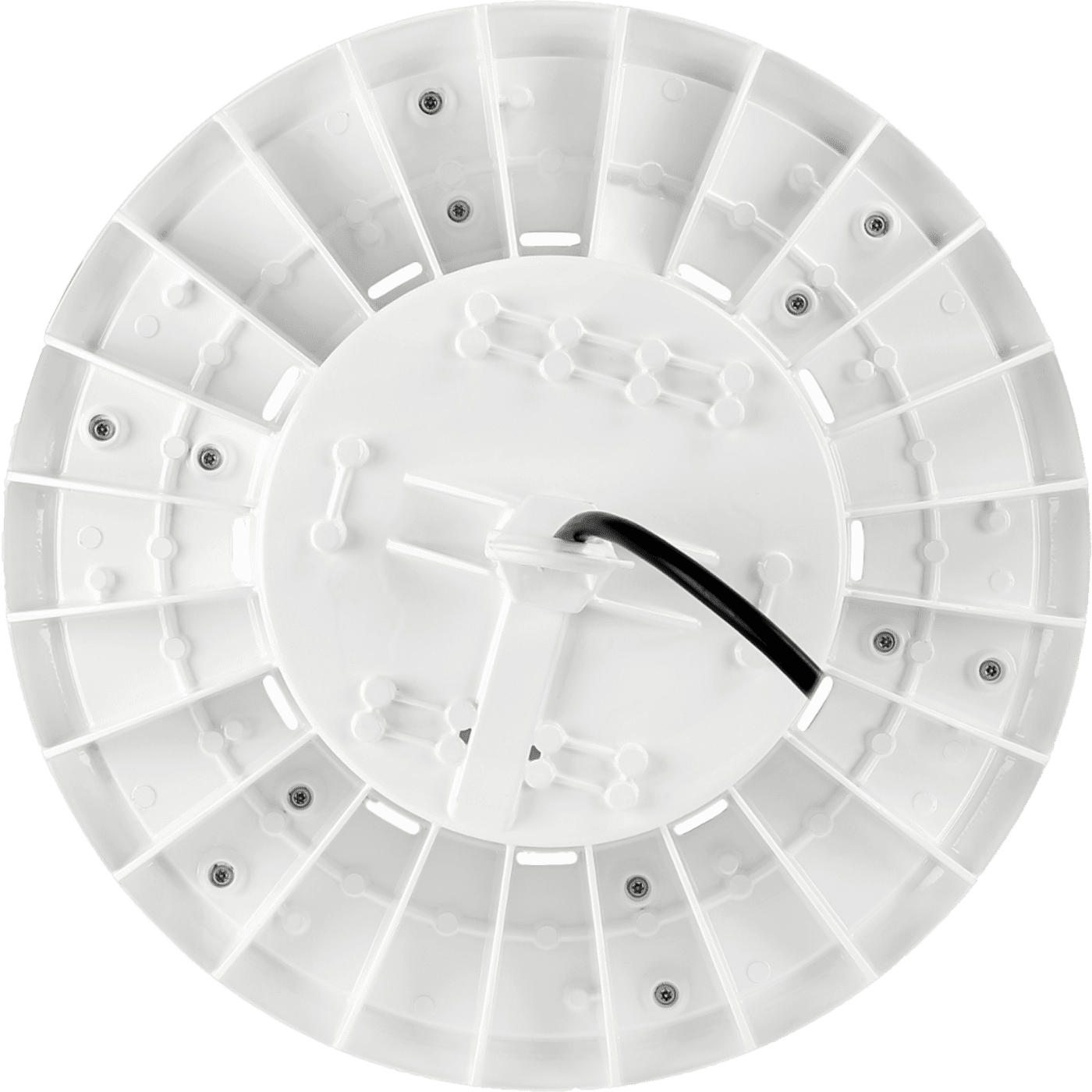

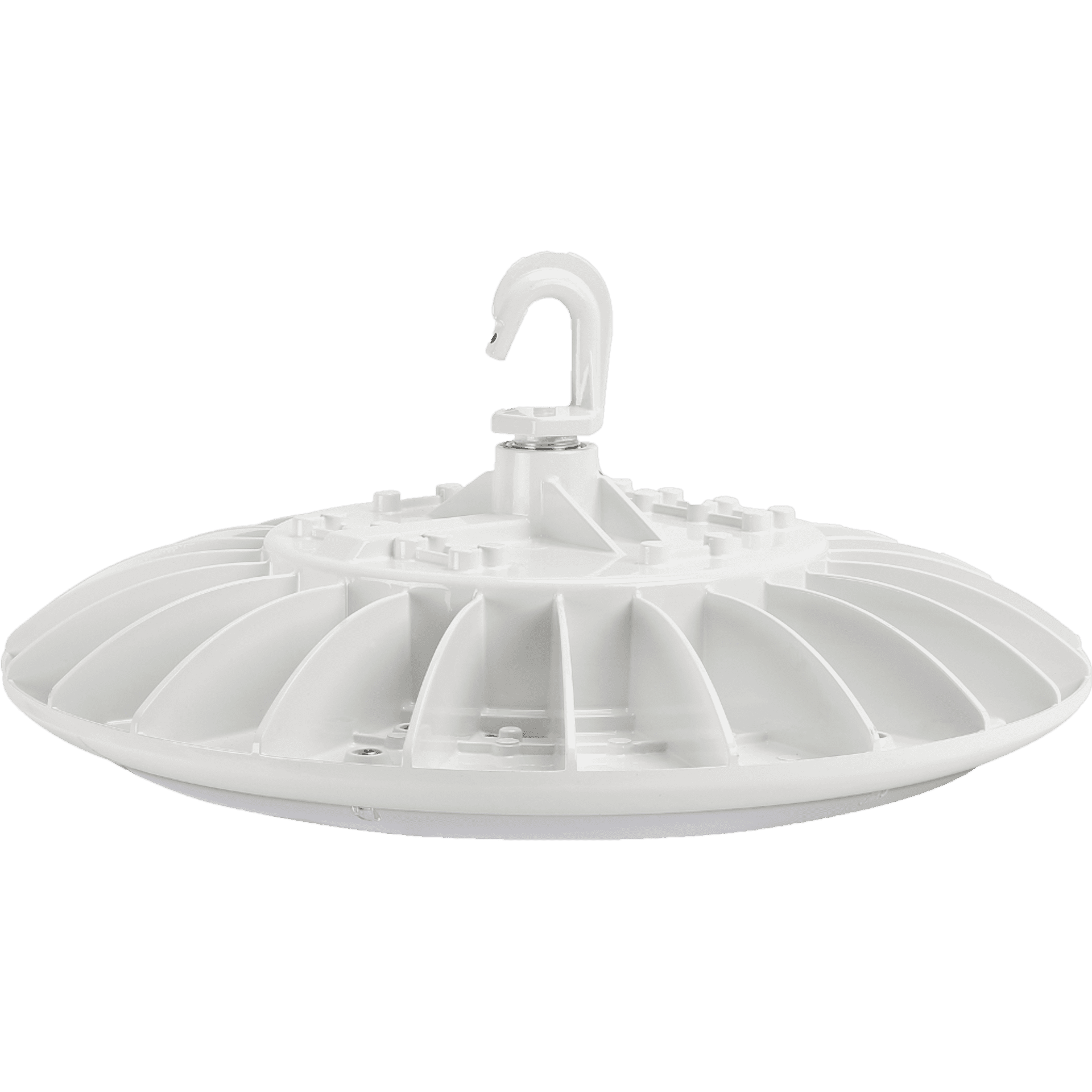

The HC Circular High Bay Series Gen 1 is the ideal choice for replacing 250W to 400W metal halides. With sealed die-cast housing and simple mounting options, this luminaire is suitable for commercial, retail, and institutional applications including gymnasiums, factories, and warehouses.
APPLICATIONS
Commercial, Retail, and Institutional Applications, etc.
REPLACEMENT
250W – 400W MH
| Product Series | Performance | Wattage | 67W, 97W, 140W, 180W |
| Lumen Output | 9400 LM, 13700 LM, 19100 LM, 25000 LM | Correlated Color Temperature (CCT) | 4000K , 5000K |
| Control | Motion Sensor On/Off , High Bay Sensor Cont Dimming | Accessories | Frosted Lens |
| Mounting Type | Hook Mount , Pendent Mount | Environment | Indoor |
| Shape | Circle | Listings | UL , DLC Premium , FCC |
| Product Type | High Bay | Generation | G1 |
| Color & Finish | White Polyester Powder | Light Source | LED – Static |
| Voltage Rating | Standard 120-277V, optional HVU 347-480V on HC 190/250 | Warranty | 10 Year |
| Labor Warranty | Yes |
| TYPES | LUMENS | GENERATION | VOLTAGE | CCT | FINISH | OPTICS | OPTIONS |
|---|---|---|---|---|---|---|---|
| Circular High Bay | 9400 Lm 67W 13700 Lm 97W 19100 Lm 140W 25000 Lm 180W | Gen 1 | 120-277V 347-480V | 4000K 5000K | White | Frosted Lens | No Options Integrated PIR Motion Sensor w/L3 20ft Lens Integrated PIR Motion Sensor w/L3 40ft Lens No Options Emergency Battery Kit No Options 5KA/10KV Surge Protection device single phase 10KA/20KV Surge Protection device single phase No Options 6ft cord Straight Blade Plug 6ft cord Twist-Lock Plug 6ft cord 600V 12/2 MC Solid Cable No Plug 6ft cord 600V SO Black Cord (No Voltage Required) No Plug |
| Part Number | Description |
|---|---|
| MS-FSP-212 Dimmable Motion Sensor |  |
| EL UNV-16 |  |
| SS450-02 On-Site Wireless Controller |  |
| Product Series | Performance | Wattage | 67W, 97W, 140W, 180W |
| Lumen Output | 9400 LM, 13700 LM, 19100 LM, 25000 LM | Correlated Color Temperature (CCT) | 4000K , 5000K |
| Control | Motion Sensor On/Off , High Bay Sensor Cont Dimming | Accessories | Frosted Lens |
| Mounting Type | Hook Mount , Pendent Mount | Environment | Indoor |
| Shape | Circle | Listings | UL , DLC Premium , FCC |
| Product Type | High Bay | Generation | G1 |
| Color & Finish | White Polyester Powder | Light Source | LED – Static |
| Voltage Rating | Standard 120-277V, optional HVU 347-480V on HC 190/250 | Warranty | 10 Year |
| Labor Warranty | Yes |
| TYPES | LUMENS | GENERATION | VOLTAGE | CCT | FINISH | OPTICS | OPTIONS |
|---|---|---|---|---|---|---|---|
| Circular High Bay | 9400 Lm 67W 13700 Lm 97W 19100 Lm 140W 25000 Lm 180W | Gen 1 | 120-277V 347-480V | 4000K 5000K | White | Frosted Lens | No Options Integrated PIR Motion Sensor w/L3 20ft Lens Integrated PIR Motion Sensor w/L3 40ft Lens No Options Emergency Battery Kit No Options 5KA/10KV Surge Protection device single phase 10KA/20KV Surge Protection device single phase No Options 6ft cord Straight Blade Plug 6ft cord Twist-Lock Plug 6ft cord 600V 12/2 MC Solid Cable No Plug 6ft cord 600V SO Black Cord (No Voltage Required) No Plug |
| Part Number | Description |
|---|---|
| MS-FSP-212 Dimmable Motion Sensor |  |
| EL UNV-16 |  |
| SS450-02 On-Site Wireless Controller |  |
LEDs can be programmed to create dynamic lighting effects that enhance the game-day experience for everyone involved and can provide superior lighting for playing fields and arenas, improving visibility for athletes and spectators alike.
One of the biggest benefits of commercial LED lighting is the decrease in energy costs. Traditional incandescent and metal-halide lights can use up to four times as much energy as commercial LED lights. This decrease in energy consumption not only saves money, but also helps reduce your facility’s carbon footprint.
Commercial LED lights also last much longer than traditional lighting options. While incandescent bulbs typically only last around 1,000 hours, commercial LED lights can last up to 100,000 hours. This not only reduces maintenance and replacement costs, but also reduces the amount of time your facility needs to be dark while lights are being replaced.
Another key benefit of commercial LED lighting is increased safety. Because commercial LED lights produce ve ry little heat, there is less risk of fire hazards. Additionally, commercial LED lights can be designed with specific light patterns that can help improve visibility for athletes and spectators alike. This improved visibility can help prevent accidents and injuries on the playing field or in the stands.
