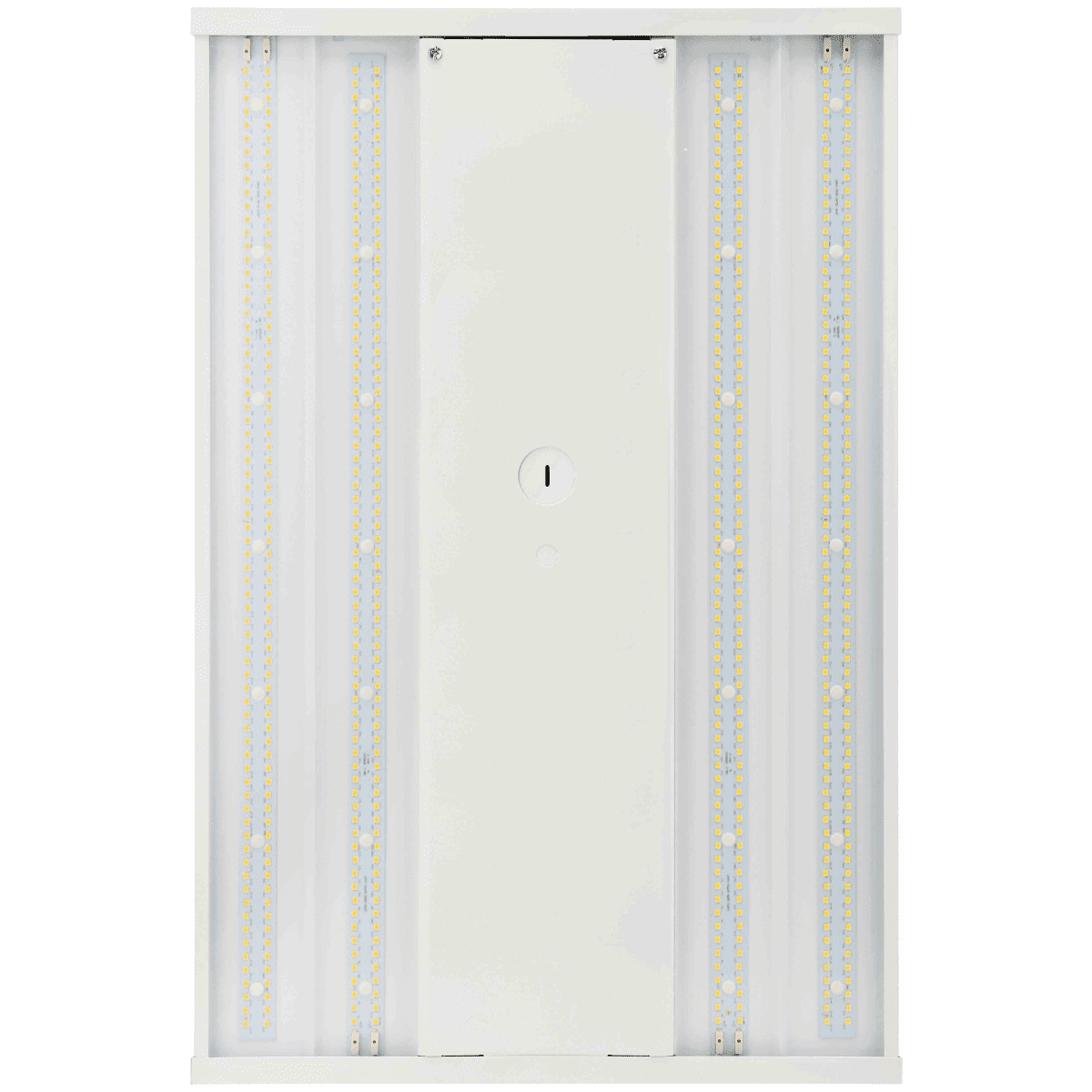

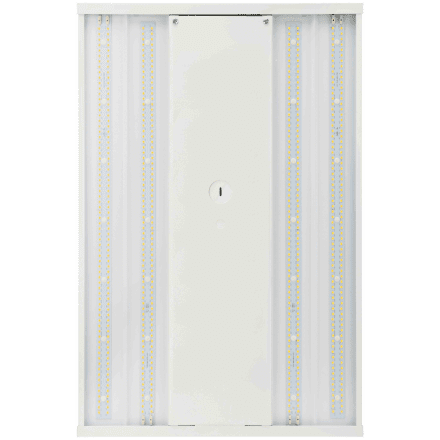

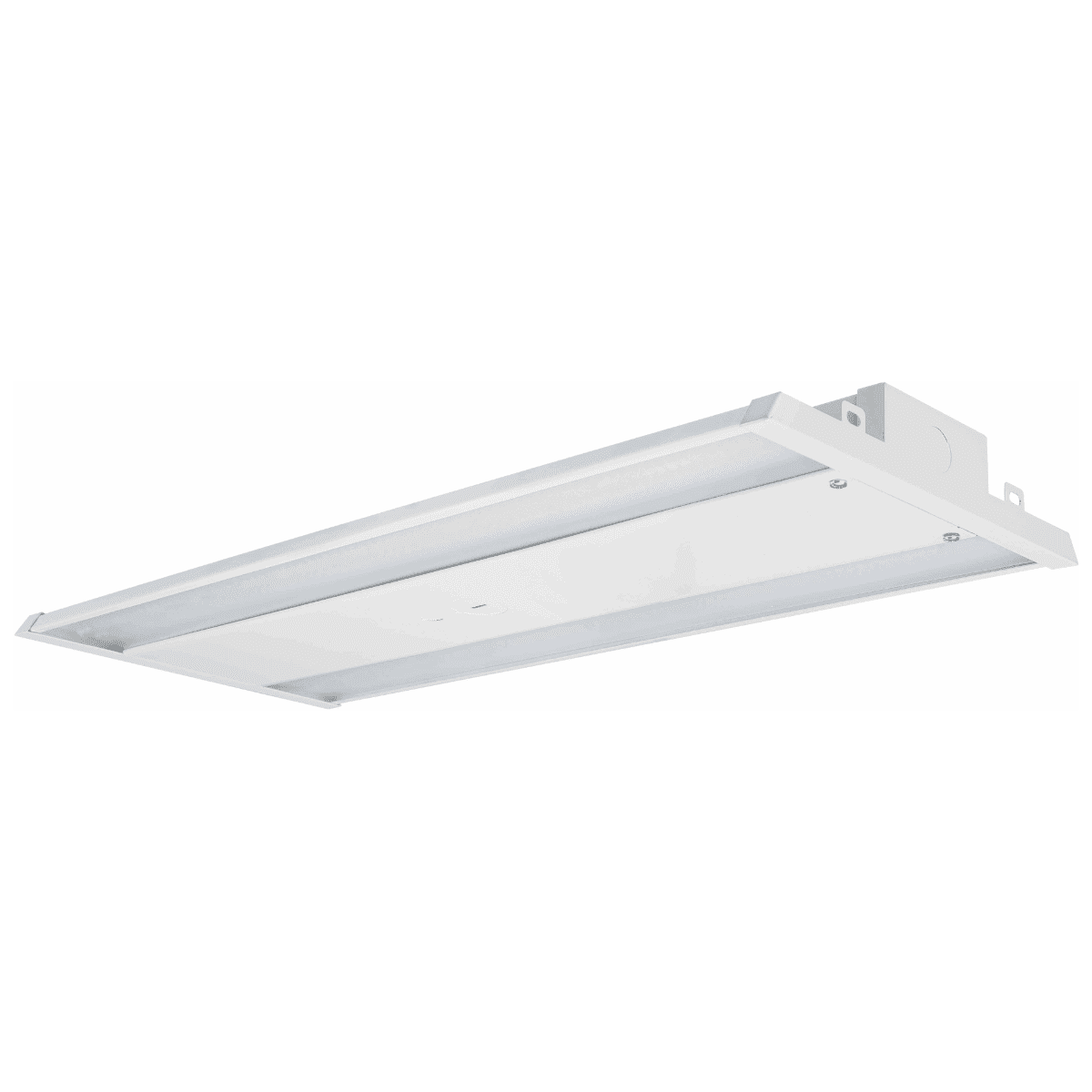

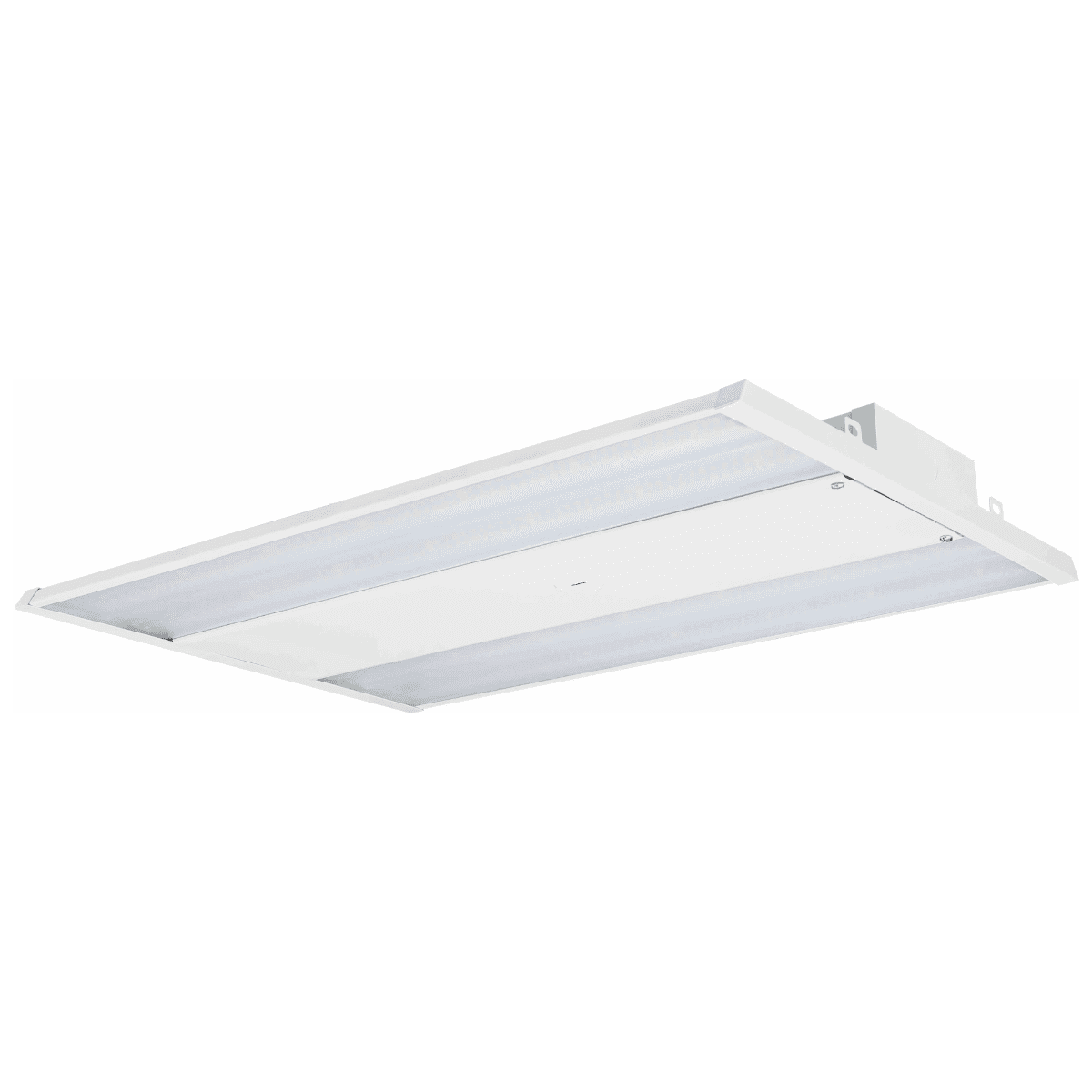

The HE Series High Bay 2 provides high lumen output and efficiency in three sizes, 1’ x 2’, 2’ x 2’, and 2’ x 4’. This luminaire has high-temperature polycarbonate lens to reduce yellowing and directs light to desired locations.
APPLICATIONS
Industrial, Education, and Retail applications, etc.
REPLACEMENT
4 LampT8 32W, 4 Lamp T5HO 54W, 6 Lamp T5HO 54W, 8 Lamp T5HO 54W, 10 Lamp T5HO 54W, 12 Lamp T5HO 54W
| Product Series | Performance | Wattage | 90W, 130W, 180W, 210W, 270W, 300W, 370W |
| Lumen Output | 12200 LM, 12400 LM, 17400 LM, 17600 LM, 24200 LM, 24500 LM, 28200 LM, 28500 LM, 35500 LM, 36000 LM, 39500 LM, 40000 LM, 49500 LM, 50350 LM | Correlated Color Temperature (CCT) | 4000K , 5000K |
| Color Rendering Index (CRI) | 80 | Control | Motion Sensor On/Off , High Bay Sensor Cont Dimming, Avion |
| Accessories | Emergency Battery Kit | Mounting Type | Aircraft cable included or Pendent mount |
| Environment | Indoor | Shape | Rectangle |
| Listings | UL , DLC Premium , FCC, RoHS | Product Type | High Bay |
| Generation | G2 | Color & Finish | White Polyester Powder |
| Light Source | LED – Static | Voltage Rating | Standard 120-277V, HVU 347-480V |
| Warranty | 10 Year | Labor Warranty | Yes |
| TYPES | LUMENS | OPTICS | GENERATION | VOLTAGE | CCT | FINISH | OPTIONS |
|---|---|---|---|---|---|---|---|
| Lensed High Bay | 12200 Lm 90W 17400 Lm 130W 24200 Lm 180W 28200 Lm 210W 35500 Lm 270W 39500 Lm 300W 49500 Lm 370W |
Frosted Lens | Gen 2 | 120-277V 347-480V |
4000K 5000K |
White | No Options Motion Sensor w/L3 20ft Lens Motion Sensor w/L3 40ft Lens High/Low-Bay PIR On/Off Sensor PIR Motion Sensor with 360° L3 Lens 12V DC Single Channel Bluetooth Controller Bluetooth Controller with occupancy and daylight sensor Bluetooth Controller with Relay No Options 8W Emergency Battery Kit 16W Emergency Battery Kit No Options 5KA/10KV Surge Protection device single phase 10KA/20KV Surge Protection device single phase No Options 6 ft power cord Straight Cord 18 gauge 3 conductors Black 6 ft power cord Twist-Lock Plug Type 3 conductors Black Optional with L5-15P L5-20P L6-15P L7-15P L7-20P L8-20P 6ft cord 600V 12/2 MC Solid Cable No Plug 6ft cord 600V SO Black Cord No Voltage Required No Plug 3.5 ft power cord 18 Gauge 5 conductors Black No Plug No Options Wire Guard for 1’ X 2’ Wire Guard for 2’ X 2’ Wire Guard for 2’ X 4’ No Options Pendant Monopoint Splice Box Pendant Monopoint Splice Box |
| Part Number | Description |
|---|---|
| HBP-212-L7-W High Bay Sensor, Cont Dimming |  |
| MS-FSP-212 Dimmable Motion Sensor |  |
| EL UNV-8 Emergency Battery Kit |  |
| SS450-02 On-Site Wireless Controller |  |
