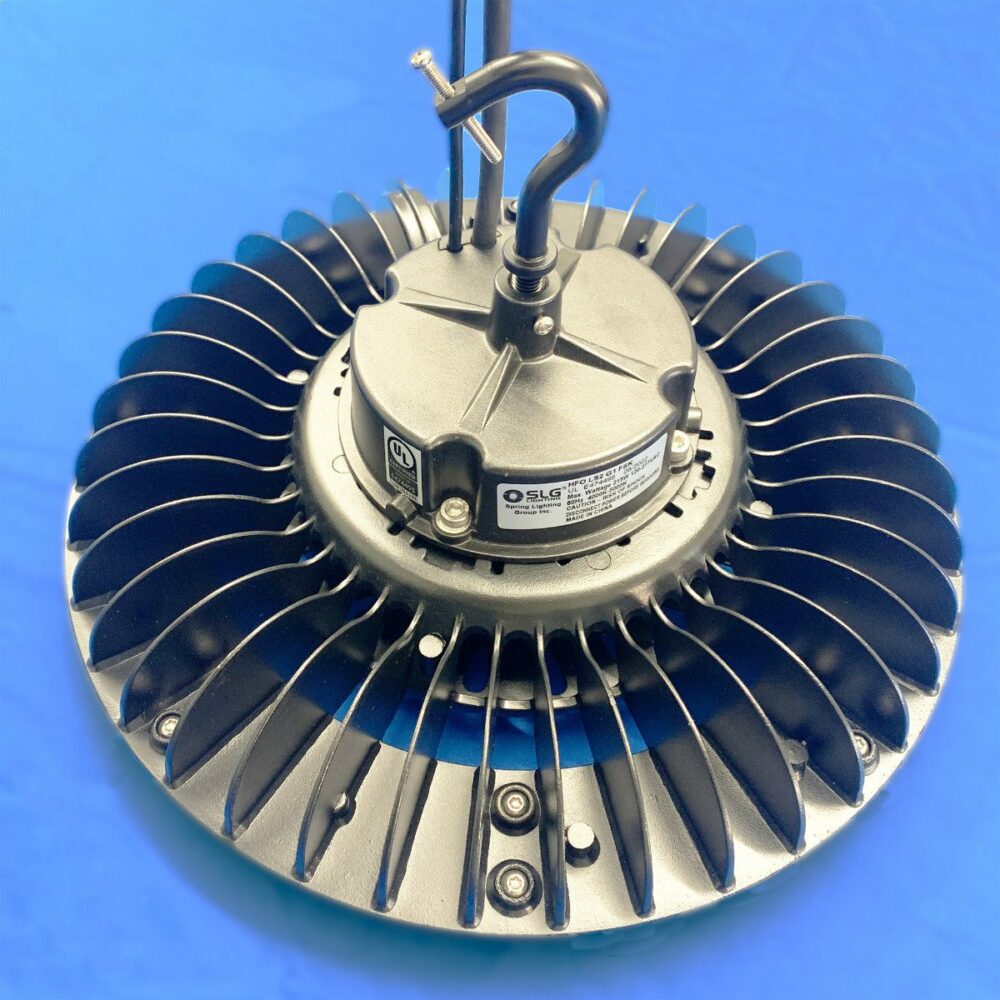

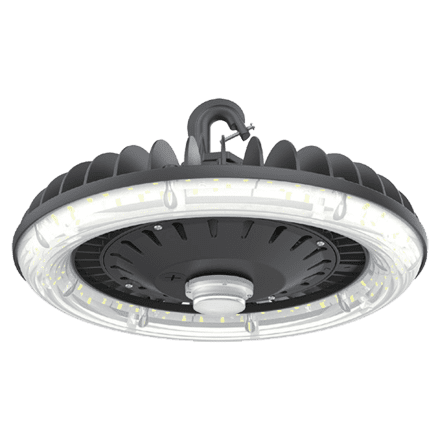

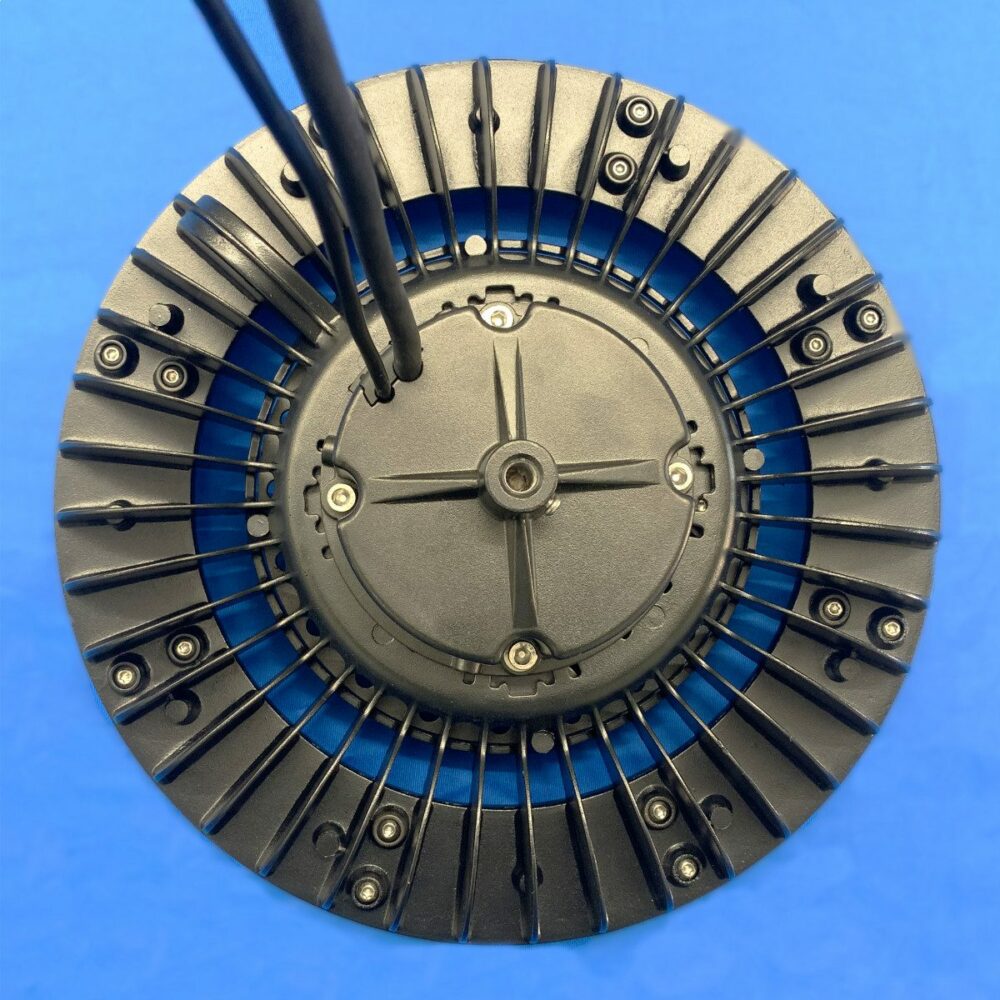

The HFO Select is a SKU saving LED round high bay featuring 4 selectable lumen outputs and 2 selectable CCT color outputs. This budget friendly, contractor series LED high bay saves on installation time with “quick-access” plugs for both selectable switches and sensor plugin along with included safe and secure mounting hook, shipped in an anti-crush advanced box.
Selectable lumen range: 13,500 – 30,500 lm
Selectable CCT range: 4000K – 5000K
Replaces: 175W – 400W MH
Ceiling Heights: 15′ – 40′.
| Wattage | 85W/128W/170W/215W Selectable | Lumen Output | 13700/20000/25000/30500 Lm Selectable |
| Correlated Color Temperature (CCT) | 4000K , 5000K | Color Rendering Index (CRI) | 80 |
| Product Lens | Clear Diffuser | Control | PIR Motion Sensor On/Off |
| Accessories | Optional Emergency Battery Kit and PIR Motion Sensor. Battery and PIR cannot be combined. | Mounting Type | Hook Mount |
| Environment | Indoor | Operating Temperature | -40°C to 45°C (-40°F to 113°F) |
| Shape | Round | Product Sizes | 13.1″ Diameter, 7.1″ Height with hook mount |
| Listings | UL , DLC Standard Pending | IP Rating | IP65 |
| Product Type | High / Low Bay | Generation | G1 |
| Color & Finish | Polyester Powder Black finish | Housing | profile, fit for indoor and outdoor purposes |
| Light Source | LED – Selectable | Voltage Rating | Standard 120-277V |
| Warranty | 5 Year | Labor Warranty | No |
| TYPES | LUMENS/WATTS | GENERATION | VOLTAGE | CCT | FINISH | OPTIONS |
|---|---|---|---|---|---|---|
| Round UFO High Bay | Selectable Values : 13700 Lm/85W 20000 Lm/128W 25000 Lm/170W 30500 Lm/215W | Gen 1 | 120-277V | 4000K/5000K Selectable | Black | No Options Emergency Battery Kit (do not use if ordering MS-ANT-6-4T Sensor) |
| Part Number | Description |
|---|---|
| EL UNV-25W Emergency Battery Kit |  |
| MS-ANT-6-4T |  |
| RC-100 |  |
| Wattage | 85W/128W/170W/215W Selectable | Lumen Output | 13700/20000/25000/30500 Lm Selectable |
| Correlated Color Temperature (CCT) | 4000K , 5000K | Color Rendering Index (CRI) | 80 |
| Product Lens | Clear Diffuser | Control | PIR Motion Sensor On/Off |
| Accessories | Optional Emergency Battery Kit and PIR Motion Sensor. Battery and PIR cannot be combined. | Mounting Type | Hook Mount |
| Environment | Indoor | Operating Temperature | -40°C to 45°C (-40°F to 113°F) |
| Shape | Round | Product Sizes | 13.1″ Diameter, 7.1″ Height with hook mount |
| Listings | UL , DLC Standard Pending | IP Rating | IP65 |
| Product Type | High / Low Bay | Generation | G1 |
| Color & Finish | Polyester Powder Black finish | Housing | profile, fit for indoor and outdoor purposes |
| Light Source | LED – Selectable | Voltage Rating | Standard 120-277V |
| Warranty | 5 Year | Labor Warranty | No |
| TYPES | LUMENS/WATTS | GENERATION | VOLTAGE | CCT | FINISH | OPTIONS |
|---|---|---|---|---|---|---|
| Round UFO High Bay | Selectable Values : 13700 Lm/85W 20000 Lm/128W 25000 Lm/170W 30500 Lm/215W | Gen 1 | 120-277V | 4000K/5000K Selectable | Black | No Options Emergency Battery Kit (do not use if ordering MS-ANT-6-4T Sensor) |
| Part Number | Description |
|---|---|
| EL UNV-25W Emergency Battery Kit |  |
| MS-ANT-6-4T |  |
| RC-100 |  |
LEDs can be programmed to create dynamic lighting effects that enhance the game-day experience for everyone involved and can provide superior lighting for playing fields and arenas, improving visibility for athletes and spectators alike.
One of the biggest benefits of commercial LED lighting is the decrease in energy costs. Traditional incandescent and metal-halide lights can use up to four times as much energy as commercial LED lights. This decrease in energy consumption not only saves money, but also helps reduce your facility’s carbon footprint.
Commercial LED lights also last much longer than traditional lighting options. While incandescent bulbs typically only last around 1,000 hours, commercial LED lights can last up to 100,000 hours. This not only reduces maintenance and replacement costs, but also reduces the amount of time your facility needs to be dark while lights are being replaced.
Another key benefit of commercial LED lighting is increased safety. Because commercial LED lights produce ve ry little heat, there is less risk of fire hazards. Additionally, commercial LED lights can be designed with specific light patterns that can help improve visibility for athletes and spectators alike. This improved visibility can help prevent accidents and injuries on the playing field or in the stands.
