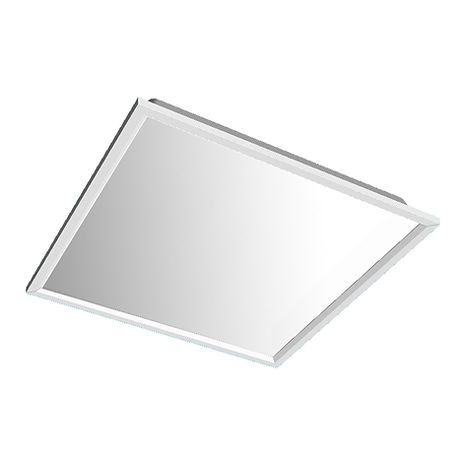

L-Grid Series Edge Xtreme XL Select – Indoor LED Lighting

LED Recessed Back-Lit Flat Panel with Selectable CCT & Wattage

L-Grid Series Edge Xtreme XL Select - <em>Indoor LED Lighting</em> National LEDL-Grid Series Edge Xtreme XL Select - <em>Indoor LED Lighting</em> National LEDL-Grid Series Edge Xtreme XL Select - <em>Indoor LED Lighting</em> National LEDL-Grid Series Edge Xtreme XL Select - <em>Indoor LED Lighting</em> National LEDL-Grid Series Edge Xtreme XL Select - <em>Indoor LED Lighting</em> National LED





The L-Grid® Edge Xtreme XL Select is a versatile and easy to use indoor led lighting system for any project. They offer several different wattages as well as temperatures so you can find the perfect setting no matter what your needs may be, whether it’s an office building or retail store with high traffic thoroughfares that need extra illumination – these backlit panels have got everything covered! With their slim profile design, they won’t take up much space either; just one box per panel should do all but largest projects without problem.

Get a data sheet

Unfortunately, we haven't attached data sheet yet. We'll be in contact with you.
Key Features
Construction
Electrical
Optics
Mounting
Warranty
Specs
  • Energy-efficient LED replacement for existing recessed fluorescent luminaires.

  • Select wattage and correlated color temperature (CCT) via a switch in the field.

  • Recessed or surface mounted with accessory.

  • Bi-level microwave sensor available to integrate with the luminaire.

  • Extruded aluminum frame with steel backing prevents light leak and is built for superior strength and durability.

  • Frosted white lens offers complete shielding and uniform light distribution that’s glare-free.

  • Low-profile design provides flexibility for installing in low plenum areas (non-IC rated).

  • 120-277VAC 50/60Hz input.

  • Power Factor: >0.9; THD: <20%

  • 0-10V dimming standard.

  • Operating temperature: -30°C to +45°C (-22°F to +113°F).

  • Uniform illumination with no visible bright spots or pixelation.

  • Industry-leading LEDs with selectable CCT via switch in the field: 3500K, 4000K, and 5000K CCT (minimum 80 CRI).

  • Lumen Maintenance: >50,000 hours (L70)

  • Integral T-bar clips included for mounting in a recessed ceiling application.

  • Flange kit accessory available (consult factory).

  • Backed by US LED’s Five-Year Warranty.

Color Temperatures: 3500K, 4000K, 5000K, Selectable CCT
Max Lumens: 7189
Voltage: 120-277V
Wattage: 26W, 32W, 40W, 50W, Selectable Wattage
Additional Options: Battery Backup, Microwave Sensor
Accessories: Surface Mount Kit, Wall Control Dimmer

Frequently Asked Questions

LEDs can be programmed to create dynamic lighting effects that enhance the game-day experience for everyone involved and can provide superior lighting for playing fields and arenas, improving visibility for athletes and spectators alike.

One of the biggest benefits of commercial LED lighting is the decrease in energy costs. Traditional incandescent and metal-halide lights can use up to four times as much energy as commercial LED lights. This decrease in energy consumption not only saves money, but also helps reduce your facility’s carbon footprint.

Commercial LED lights also last much longer than traditional lighting options. While incandescent bulbs typically only last around 1,000 hours, commercial LED lights can last up to 100,000 hours. This not only reduces maintenance and replacement costs, but also reduces the amount of time your facility needs to be dark while lights are being replaced.

Another key benefit of commercial LED lighting is increased safety. Because commercial LED lights produce ve ry little heat, there is less risk of fire hazards. Additionally, commercial LED lights can be designed with specific light patterns that can help improve visibility for athletes and spectators alike. This improved visibility can help prevent accidents and injuries on the playing field or in the stands.
