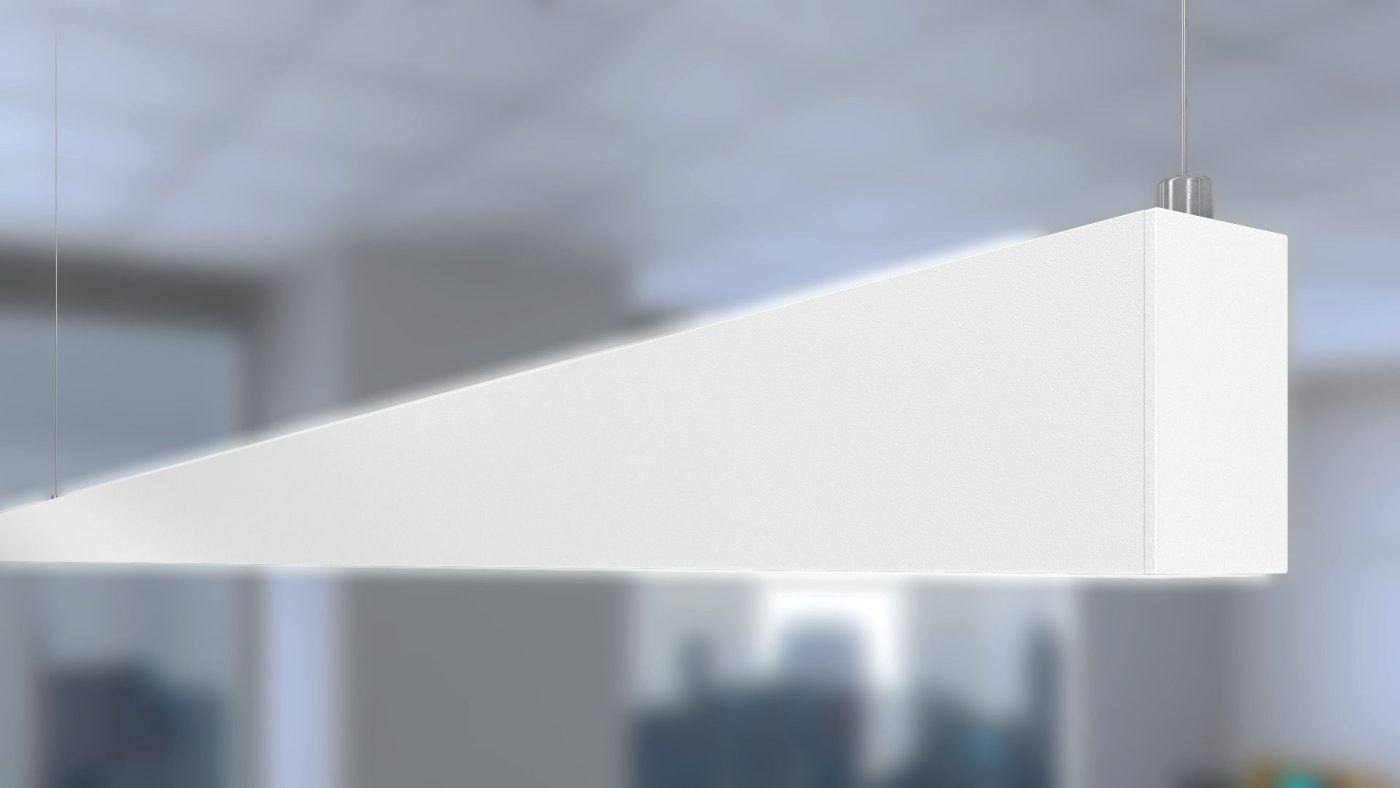

SALP 2.3” Slim Architectural Linear Pendant Mount
The SALP 2.3” Slim Architectural Linear Pendant Mount is an ultra-sleek lighting solution that is fully customizable to meet the unique needs of each application. The lengths come in 2 ft, 4 ft, and 8 ft with selectable color temperature, wattage, and distributions.The minimalist and elegant aesthetic paired with brilliant illumination and even distribution will elevate your space in a range of applications, including offices, lobbies, and retail spaces. This versatile architectural luminaire possesses unlimited design potential for endless design pattern possibilities.
Applications:
Commercial, Retail, Hospitality, Education, Airport, Medical, and any open spaces that require a unique and elegant architectural lighting design.
| Wattage | 10W per ft, selectable 50%/75%/100% | Lumen Output | 500Lm/750Lm/1000lm per ft |
| Correlated Color Temperature (CCT) | 3000K, 3500K, 4000K Selectable | Color Rendering Index (CRI) | 80 |
| Product Distribution Types | 100% up, 90% down/10%up, 75% down/25% up, 50% down/50% up, 25% down/75% up, 10% down/90% up, 100% down | Product Lens | Flat lens |
| Control | Wireless Zone Controller available | Accessories | Emergency Backup Kit |
| Mounting Type | Pendant Mount, with optional Drywall Ceiling or T-Grid mounting hardware. Cable lengths of 60″, 144″ and 240″ available. | Environment | Indoor |
| Shape | Linear | Product Sizes | 2ft, 4ft, 8ft |
| Listings | UL Listed for damp locations | Product Type | Architectural |
| Generation | G1 | Color & Finish | Standard White and Black in stock. Custom finishes available. |
| Housing | Anodized Aluminum | Light Source | LED – Static |
| Voltage Rating | 120V for connections up to 40ft, 277V for connections up to 100ft | Warranty | 5 Year |
| Labor Warranty | No |
| TYPES | SIZE | LENGTH | LUMENS | DRIVER | LENS | GENERATION | CCT | FINISH | CEILING | SUSPENSION | OPTIONS |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Slim Architectural Linear | Medium 2.3 | 2′ 4′ 8′ |
500/750/1000 Lm per ft | Internal driver with selectable distributions | Flat Lens | Gen 1 | 3000K/3500K/4000K Selectable | White Black Custom |
Dry Wall J-Box 9/16” and 15/16” Flat Drop Ceiling 9/16” Slot Drop Ceiling 15/16” Slot Drop Ceiling |
60” Aircraft Cable with 48” Power Cord 144” Aircraft Cable with 144” Power Cord 240” Aircraft Cable with 240” Power Cord |
No Options Wireless Circuit Load Controller No Options 25W Emergency Backup |
| Part Number | Description |
|---|---|
| AVI-XPPG1 |  |
| EMH-25W Emergency Driver 25W, Commercial Downlight |  |
