Selectable Linear Slot Panel Gen 1

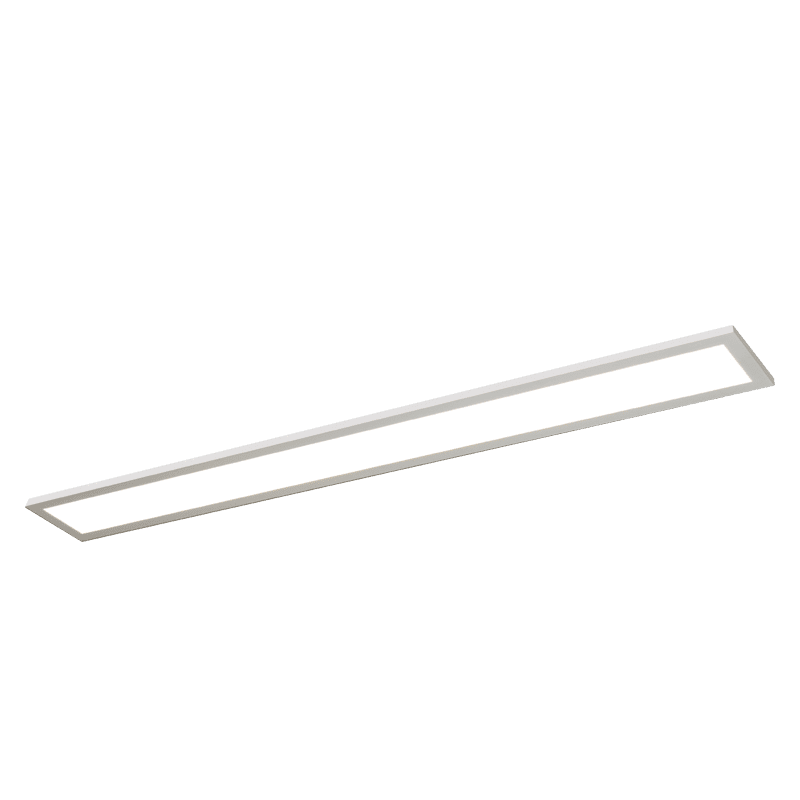

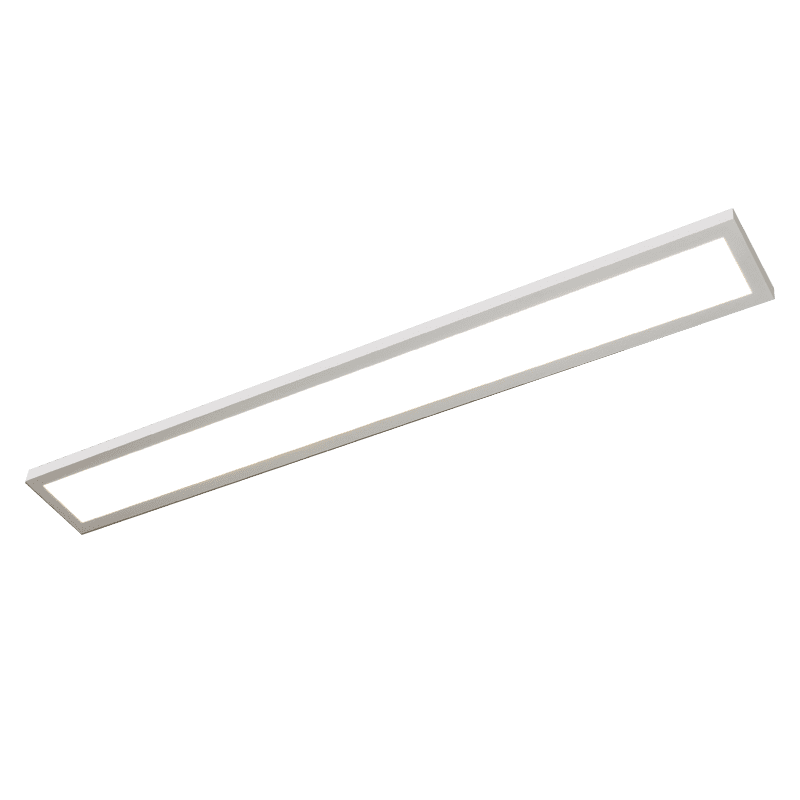

The SLS Selectable Linear Slot Panel Gen 1 is an edge-lit panel that offers balanced illumination and greater control with Selectable CCT and Lumen Adjustable features. This simple and stylistic luminaire with frosted polystyrene lens provides even and diffused ambient lighting that is glare-free. This luminaire is available in 4” by 4’ and 6” by 4’ sizes with an internal driver for surface mount, wall mount, and recessed mount (recessed mounting kit sold separately).
Applications:
Commercial, Educational, Healthcare Facilities, Medical, Offices, and Retail, etc.
Replacement:
Up to 4 lamp F32T8 or 4 lamp F28T5
Product Series | Design | Wattage | 20W, 30W, 40W |
Lumen Output | 1600 LM , 1900 LM, 2400 LM, 2850 LM, 3200 LM, 3800 LM | Correlated Color Temperature (CCT) | 3000K, 3500K, 4000K Selectable |
Color Rendering Index (CRI) | 80 | Mounting Type | Surface mount, recessed mount, wall mount |
Environment | Indoor | Shape | Rectangle |

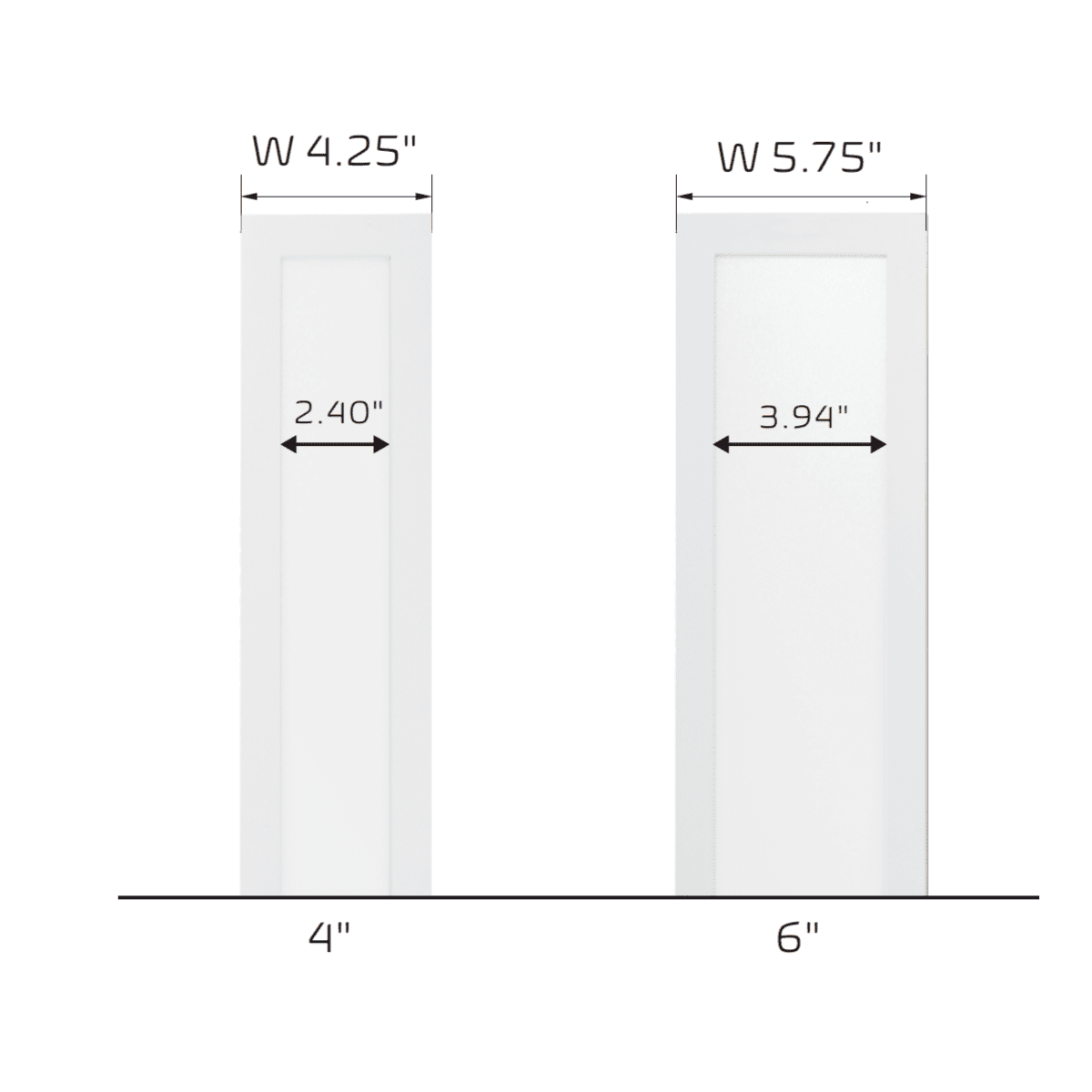

Product Sizes | 4’ x 4”, 4’ x 6” | Listings | UL, FCC, RoHS |
Product Type | Panel | Generation | G1 |
Color & Finish | Polyester Powder White Finish | Light Source | LED – Static |
Voltage Rating | Standard 120-277V | Warranty | 5 Year |
Labor Warranty | No |
TYPES | WIDTH | SIZE | LUMENS | GENERATION | VOLTAGE | CCT | FINISH | OPTIONS |
---|---|---|---|---|---|---|---|---|
Selectable Linear Slot Panel | 4 inch 6 inch |
4 ft | 1600/2400/3200 Lm 20W/30W/40W 1900/2850/3800 Lm 20W/30W/40W |
Gen 1 | 120-277V | 3000K/3500K/4000K Selectable | White | No Options Recessed Mount J-Box |
