Solar Pole

LED Area/Site Lighting

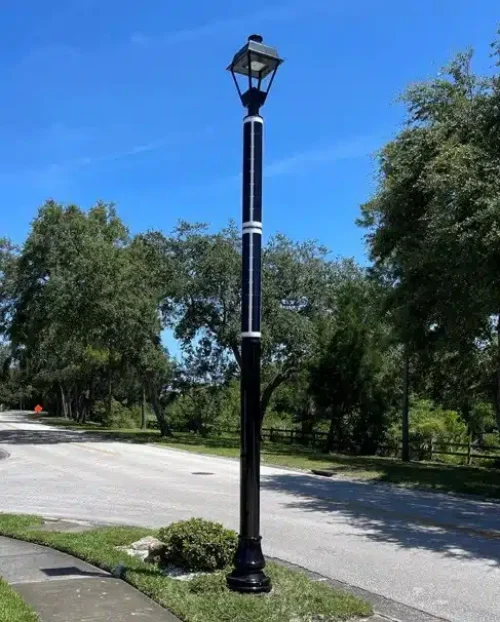

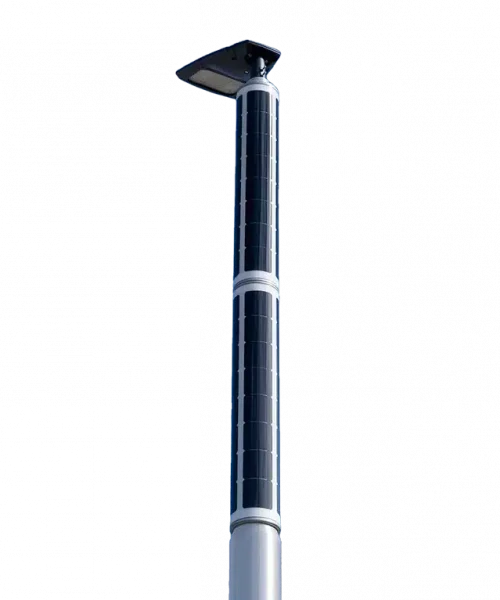

Solar Pole National LEDSolar Pole National LEDSolar Pole National LED





National LED’s Solar Lighting Pole is a modern marvel in solar lighting technology. The pole has been designed to be completely independent of any power source other than natural sunlight. It even generates enough energy stored within its high-quality lithium batteries during the day to run LEDs along with other attachments requiring juice!

Constructed like conventional panels but unlike anything else on display today, these cells are directly laminated onto scratch resistant glass exteriors, preventing dirt accumulation between module components and ensuring maximum efficiency no matter the lighting conditions. Now you can have bright, beautiful, and sustainable lighting without ever having to worry about the electric bill again!

Request a Quote

Get a data sheet

Download data sheet
Unfortunately, we haven't attached data sheet yet. We'll be in contact with you.
Overview
Solar Module
Electrical
Battery
Pole
Features
Connectivity
  • Height: 13 – 40 Feet
  • Column Material: Aluminum
  • Luminaire Power: Up To 120 W
  • Operating Temperature: -4° to 140°F
  • Solar Technology: Monocrystalline Silicon Solar Cells
  • Solar Modules Per Pole: 1-3 Modules
  • Cell Efficiency: > 23%
  • Total Power: Up To > 330 Wp (Watts Peak)
  • Maximum Power Point Tracking Channels: Up To 12
  • Front Sheet: Material Borosilicate Glass
  • Solar Module Backsheet Color: White (Optional Black Backsheet)
  • Dimensions Per Module: 7.8 in x to 43.7 in
  • Weight Per Module: 15.4 lbs.

  • 120-277V or 347-480V available.

  • 0-10V dimming standard.

  • 10KV surge protection standard.

  • System power factor >90% and THD <20%.

  • Operating temperature: -30°C to 40°C (-30°F to 104°F).

  • Battery Technology: Lithium (NMC)
  • Battery Capacity: Up To 1200 Wh (Watt Hours)
  • Service Life: -10 years
  • Location of Battery: Behind Integrated Flush Door
  • Turn Around Charge Efficiency: 99.5%
  • Temperature Range: -4 to 140°F
  • Pole Size: Up To 8 Inches Diameter With Lengths Up To 40 Feet.
  • Pole Material: Aluminum
  • Lighting technology: LED
  • Time and Date Setting: Astronomical Clock
  • Lighting Scheme: Automatic Adaption To Sunset And Sunrise
  • Dimming Scheme: Seasonal Dynamic Dimming Scheme Optimizes Energy Input (=Solar
    Irradiation) And Energy Output (=Lighting) According To Past

    Performances, System State, Weather Expectations And More. Fully
    Automatic And Self-Learning.

  • Wireless Connectivity: GSM, 4G / LTE
  • SIM Card: Yes – Global M2M
  • Positioning System: GPS (And Similar BeiDou, Galileo, GLONASS, QZSS). This Allows Easy
    Management (Location Is Known) And Accurate Time And Date (For
    Sunrise / Sunset).
  • Over-the-Air Updates: Everywhere In The World, Via 4G / LTE Network
  • Remote Monitoring: Everywhere In The World, Via Web Interface

The curves of our design make it better


If you compare curved glass to flat panels from competitors, we allow full use and enjoyment with no loss because when they’re shaded in the sun’s rays—you capture none! Scratches on plastic can lead moisture which shortens its life cycle as well causing higher maintenance costs over time-but not for us since rain will keep everything clean without any scrubbing needed at all.

The Future of Street Lighting

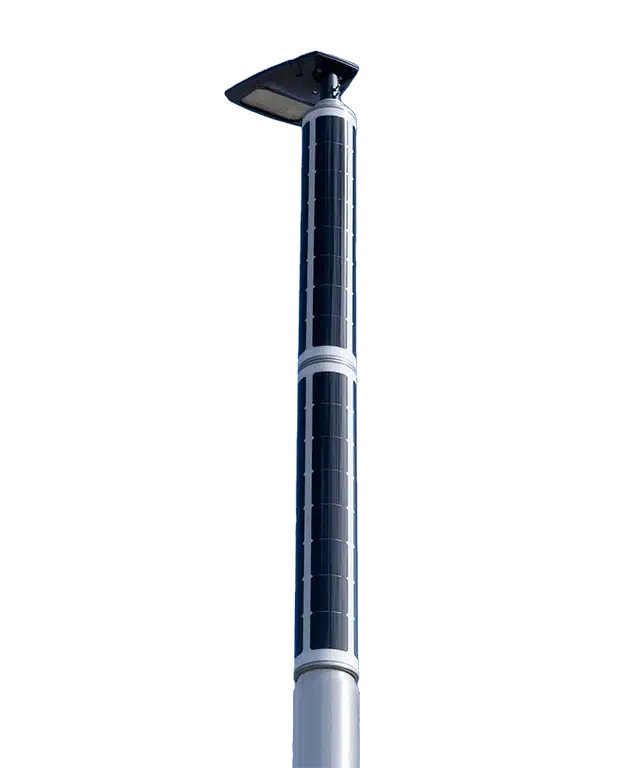

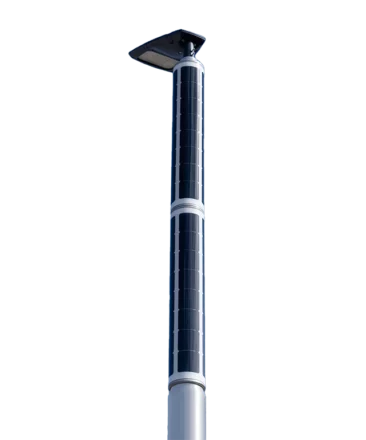

Hollow Solar Wrap
These sleek, cylinder-shaped solar panels give off an elegant appearance while providing 360 degree coverage for power generation.

Self-Contained Control and Power
The sleek design of a solar panel makes it look more appealing and professional. They can be installed on top rods, giving an elegant appearance while also offering 360-degree coverage for power generation.

Autonomous System
The control unit is equipped with network connectivity and a GPS transponder, which allows each individual pole to get an accurate Lat/Long position fix. This provides the system live dusk/dawn times; it automatically knows when to turn on or off your lights!

Sustained Lighting
The control unit is outfitted with a GPS transponder that allows it to get an exact Lat/Long fix and monitor itself in real time. This means any potential issues can be viewed remotely as they happen, which makes for efficient preventive maintenance practices.

Typical Luminaire Power Output
Nominal luminaire wattage values are 60W for (1) solar module, 80watts if you have two modules installed and 120 watts from the third. However your specific needs may dictate that outputs exceed these numbers so contact us before buying!

Grid Connectivity
The solar panels on your roof are an excellent and sustainable way to provide power for you home. You can also choose whether or not they should be connected with the existing grid, giving you even more options!

Easy, Plug-and-Play Installation
With all of the cables needed to connect your system together and quick connects for easy installation, you can have a fully working surveillance system in less than an hour. The entire process is simple with labeled connectors that match up based on what’s being connected–just make sure they’re lined up correctly!







National LD’s Solar Poles are not only designed to provide lighting, but can also be used to power accessories such as cameras, sensors, wi-fi hotspots and safety help buttons. This makes them an ideal choice for use in Smart Cities, where these extra features can be used to make life easier and more efficient for residents and visitors. The solar panels on the poles mean that they are completely self-sufficient, and maintenance costs are minimal. In addition, the poles can be customised to match the style of the city, making them a stylish and practical choice.


Frequently Asked Questions

Can I customize or program LED lights to create lighting effects?
LEDs can be programmed to create dynamic lighting effects that enhance the game-day experience for everyone involved and can provide superior lighting for playing fields and arenas, improving visibility for athletes and spectators alike.
One of the biggest benefits of commercial LED lighting is the decrease in energy costs. Traditional incandescent and metal-halide lights can use up to four times as much energy as commercial LED lights. This decrease in energy consumption not only saves money, but also helps reduce your facility’s carbon footprint.
Commercial LED lights also last much longer than traditional lighting options. While incandescent bulbs typically only last around 1,000 hours, commercial LED lights can last up to 100,000 hours. This not only reduces maintenance and replacement costs, but also reduces the amount of time your facility needs to be dark while lights are being replaced.
Another key benefit of commercial LED lighting is increased safety. Because commercial LED lights produce ve ry little heat, there is less risk of fire hazards. Additionally, commercial LED lights can be designed with specific light patterns that can help improve visibility for athletes and spectators alike. This improved visibility can help prevent accidents and injuries on the playing field or in the stands.
