  • Product Details
    Key Features
    • The best-in-class EV charging station for commercial properties that need a flexible plug-and-play solution for rising demand.
    • Wall or pedestal mounting configurations work within your circuit capacity to reduce installation costs and maximize efficiency.
    • Reliable indoor or outdoor performance with virtually no maintenance.
    • Stylish, ergonomic design that integrates well with existing architecture.
    Construction
    • Enclosure protects internal components from environmental conditions (NEMA 3R).

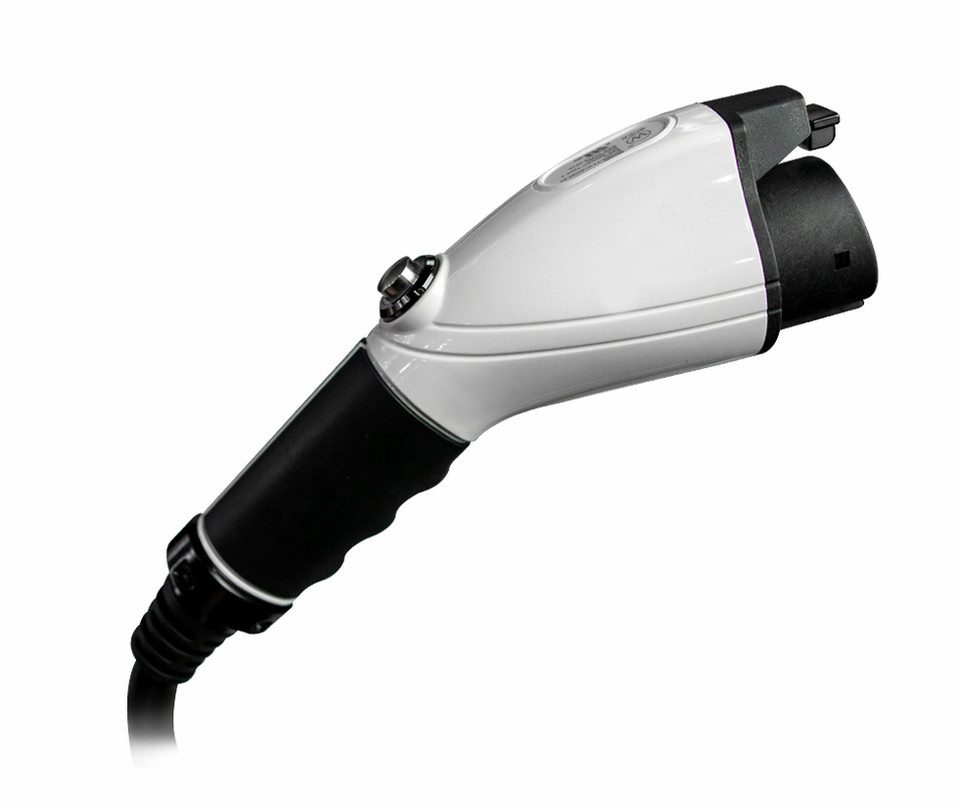

    • SAE J1772™ (Type 1) Electric Vehicle Conductive Charge Coupler.
    • Dimensions: 10.2 in. x 3.9 in. x 11 in.
    • Weight: ≤ 11 lbs.
    • Cable Length: 16 ft.
    Electrical
    • 200-240VAC Single Phase; 50Hz/60Hz.
    • 32A Maximum Input/Output Current.
    • OTP, Relay Welding Detection, CCID Self-Test, MCU Function Fault Detection
    • Input Side: UVP, OVP, Surge, Ground Fault.
    • Output Side: OCP, Pilot Fault, Residual Current Protection.
    • Operating Temperature: -30°C to 50°C (-22°F to +122°F).
    Communication
    • Interface: RFID (ISO/IEC 14443A/B, ISO/IEC 15693, FeliCa™ 1, NFC, Mifare).
    • External: LAN, LAN+4G or Wi-Fi
    • Internal: OCPP 1.6 JSON Compliant
    • Optional OCPP-compliant back-end management software available.
    Mounting
    • Wall mounted or pedestal. Consult factory for more information on installation.
    Warranty
    • Backed by NationalLED’s Two-Year Warranty.
    Note: TurboEVC products are made to order for every project and are subject to lead times.
