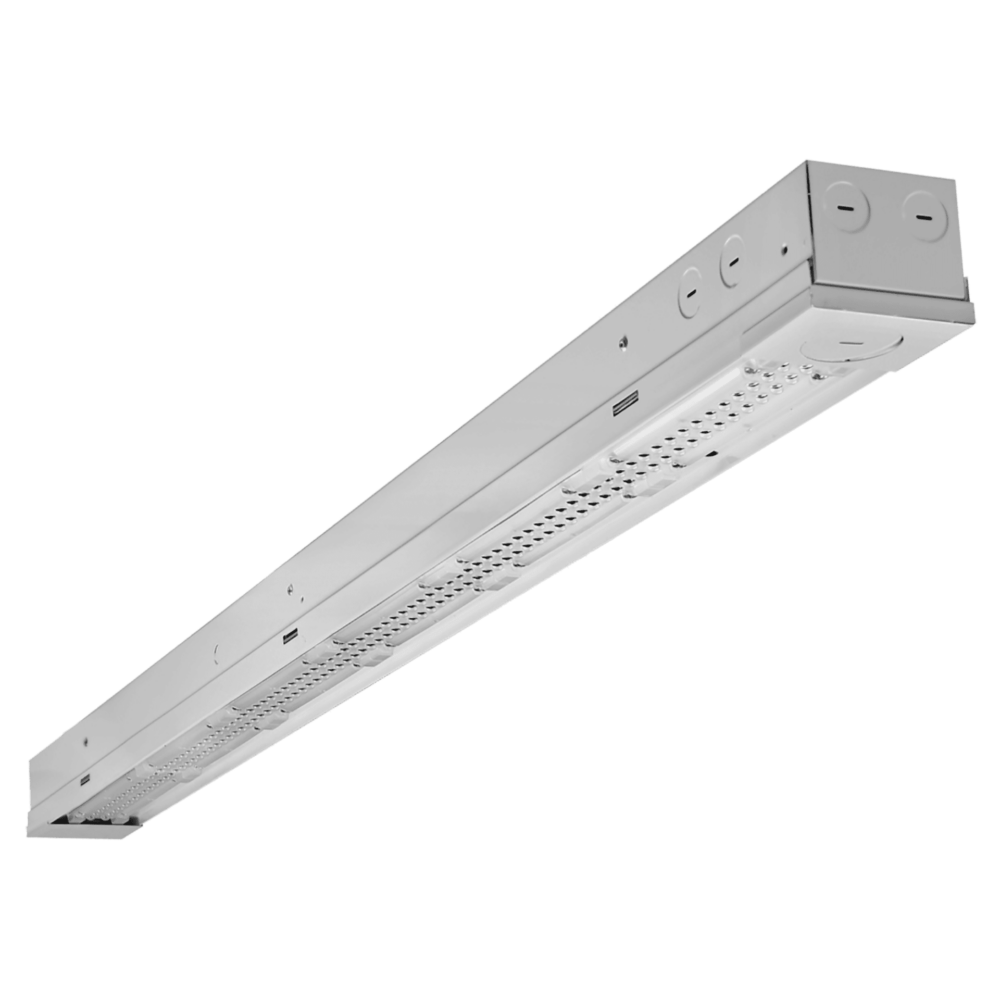

The TZ Square Industrial Strip Series Gen 1 is easy to install and versatile for
warehouses, supermarkets, and fabrication areas. This luminaire can be mounted together to create a row of linear illumination. For applications where precise control is required, lights optics can be placed to direct the light to its desired location.
APPLICATIONS
Commercial, Industrial, and Retail, etc.
REPLACEMENT
3 Lamp T8 32W and 4 Lamp T8 32W
| Product Series | Performance | Wattage | 40W , 80W |
| Lumen Output | 5450 LM , 11100 LM | Correlated Color Temperature (CCT) | 4000K , 5000K |
| Color Rendering Index (CRI) | 80 | Control | Motion Sensors |
| Accessories | Motion Sensor , Emergency Backup Kit | Mounting Type | Surface Mount , Chain Mount , T-Bar Mount , Pendant Mount |
| Environment | Indoor | Shape | Linear |
| Listings | UL , FCC | Product Type | Troffer |
| Generation | G1 | Color & Finish | Polyester Powder White Finish |
| Light Source | LED – Static | Voltage Rating | Standard 120-277V |
| Warranty | 10 Year | Labor Warranty | Yes |
| TYPES | SIZE | LUMENS | GENERATION | VOLTAGE | CCT | FINISH | OPTIONS |
|---|---|---|---|---|---|---|---|
| Industrial Strip | 4 ft | 11100 Lm 80W | Gen 1 | 120-277V | 4000K 5000K | White | No Options PIR Dimming Motion/Photo Sensor w/L1 Lens PIR Dimming Motion/Photo Sensor w/L2 Lens PIR On/Off Sensor No Options |
| Part Number | Description |
|---|---|
| HBP-212-L7-W High Bay Sensor, Cont Dimming |  |
| HBP-112-L7-OEM High/Low-Bay PIR On/Off Sensor |  |
| EL UNV 1 Emergency Battery Kit |  |
| Product Series | Performance | Wattage | 40W , 80W |
| Lumen Output | 5450 LM , 11100 LM | Correlated Color Temperature (CCT) | 4000K , 5000K |
| Color Rendering Index (CRI) | 80 | Control | Motion Sensors |
| Accessories | Motion Sensor , Emergency Backup Kit | Mounting Type | Surface Mount , Chain Mount , T-Bar Mount , Pendant Mount |
| Environment | Indoor | Shape | Linear |
| Listings | UL , FCC | Product Type | Troffer |
| Generation | G1 | Color & Finish | Polyester Powder White Finish |
| Light Source | LED – Static | Voltage Rating | Standard 120-277V |
| Warranty | 10 Year | Labor Warranty | Yes |
| TYPES | SIZE | LUMENS | GENERATION | VOLTAGE | CCT | FINISH | OPTIONS |
|---|---|---|---|---|---|---|---|
| Industrial Strip | 4 ft | 11100 Lm 80W | Gen 1 | 120-277V | 4000K 5000K | White | No Options PIR Dimming Motion/Photo Sensor w/L1 Lens PIR Dimming Motion/Photo Sensor w/L2 Lens PIR On/Off Sensor No Options |
| Part Number | Description |
|---|---|
| HBP-212-L7-W High Bay Sensor, Cont Dimming |  |
| HBP-112-L7-OEM High/Low-Bay PIR On/Off Sensor |  |
| EL UNV 1 Emergency Battery Kit |  |
LEDs can be programmed to create dynamic lighting effects that enhance the game-day experience for everyone involved and can provide superior lighting for playing fields and arenas, improving visibility for athletes and spectators alike.
One of the biggest benefits of commercial LED lighting is the decrease in energy costs. Traditional incandescent and metal-halide lights can use up to four times as much energy as commercial LED lights. This decrease in energy consumption not only saves money, but also helps reduce your facility’s carbon footprint.
Commercial LED lights also last much longer than traditional lighting options. While incandescent bulbs typically only last around 1,000 hours, commercial LED lights can last up to 100,000 hours. This not only reduces maintenance and replacement costs, but also reduces the amount of time your facility needs to be dark while lights are being replaced.
Another key benefit of commercial LED lighting is increased safety. Because commercial LED lights produce ve ry little heat, there is less risk of fire hazards. Additionally, commercial LED lights can be designed with specific light patterns that can help improve visibility for athletes and spectators alike. This improved visibility can help prevent accidents and injuries on the playing field or in the stands.
