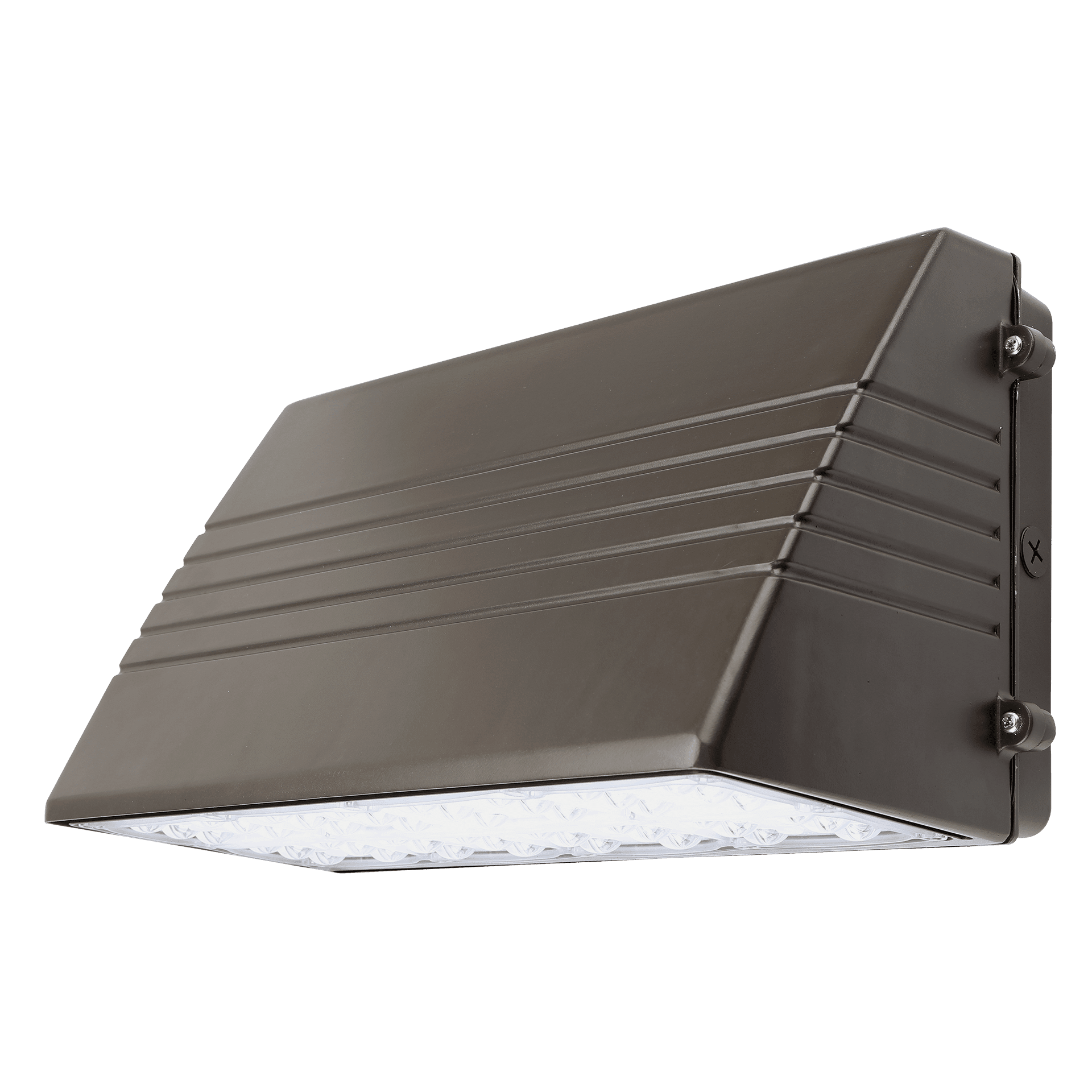

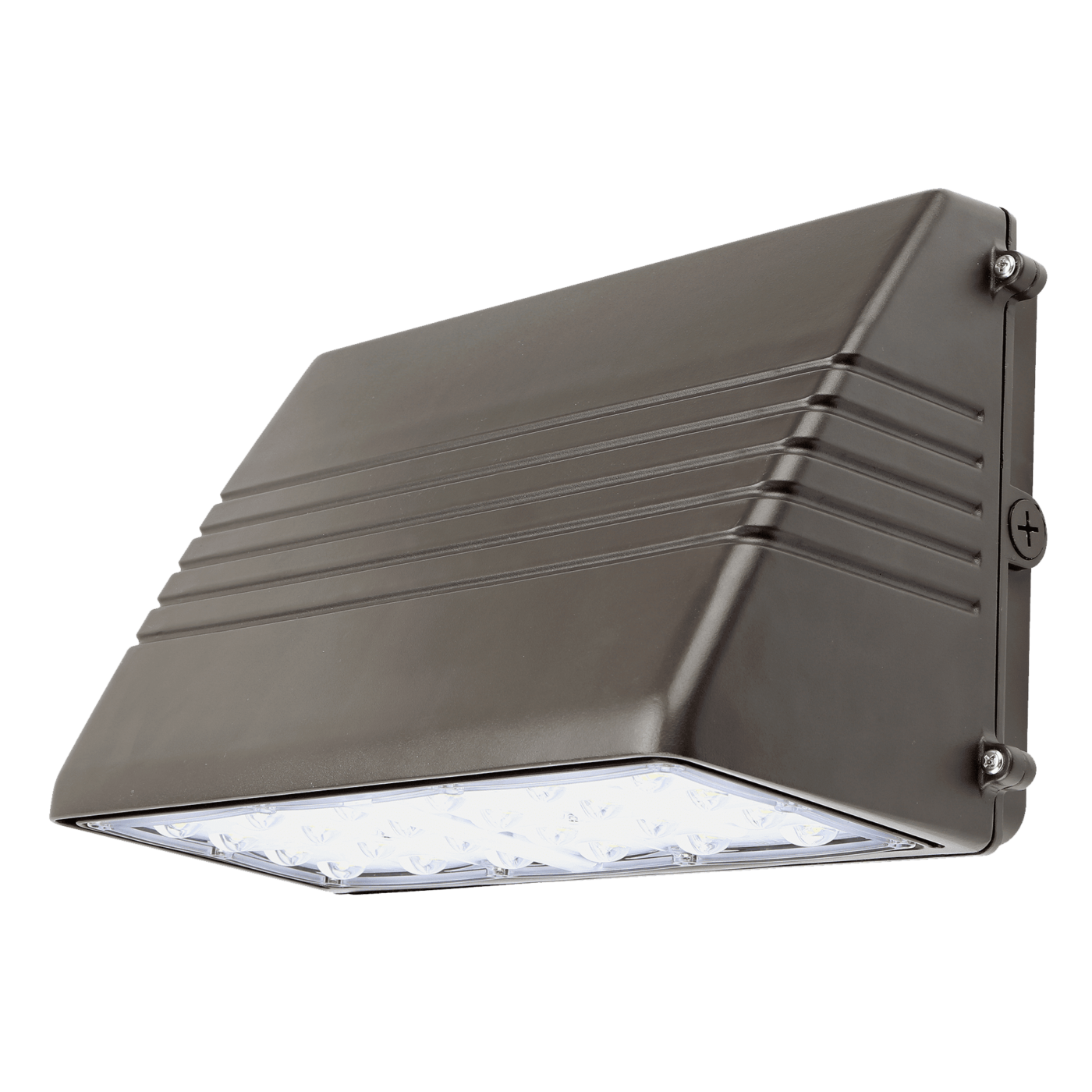

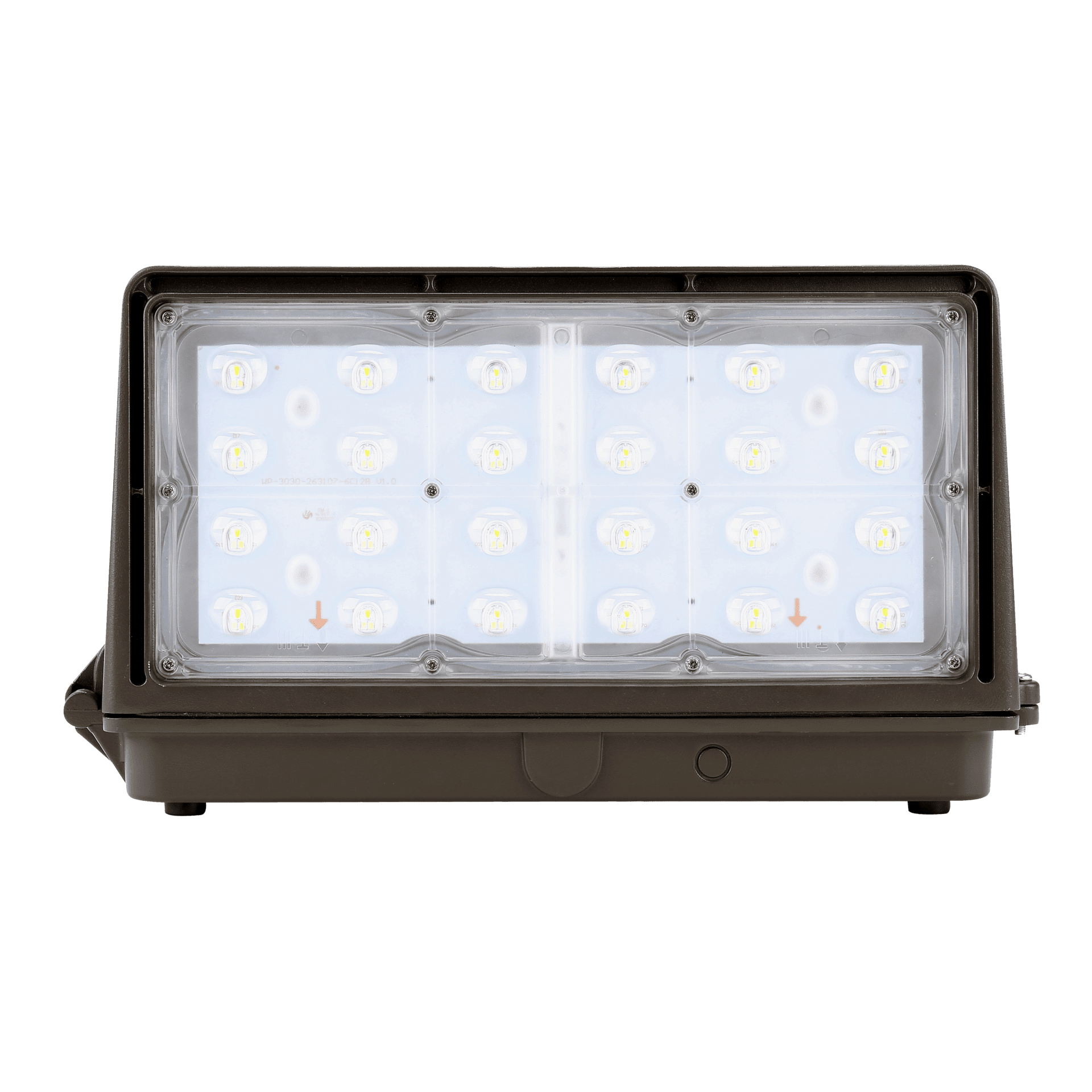

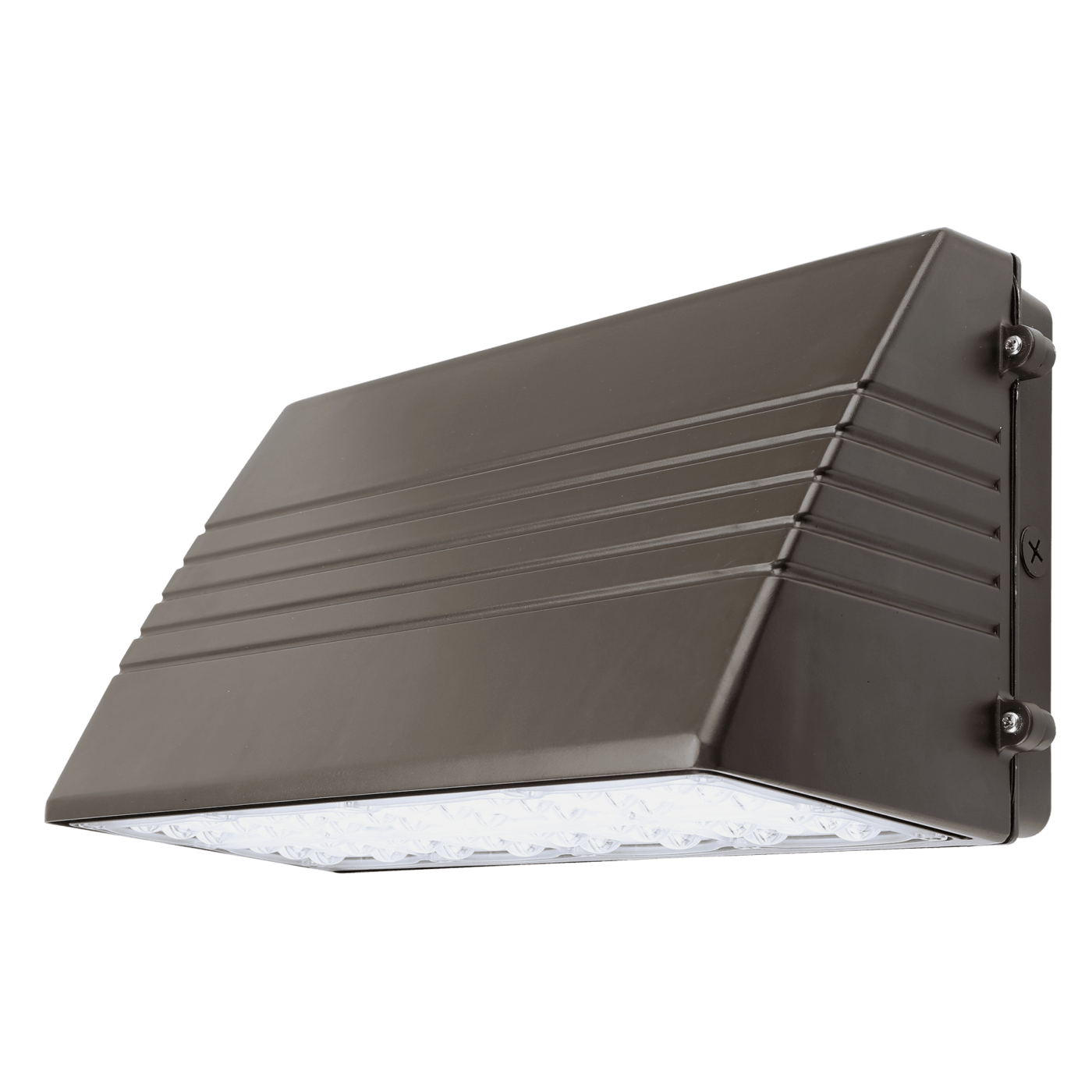

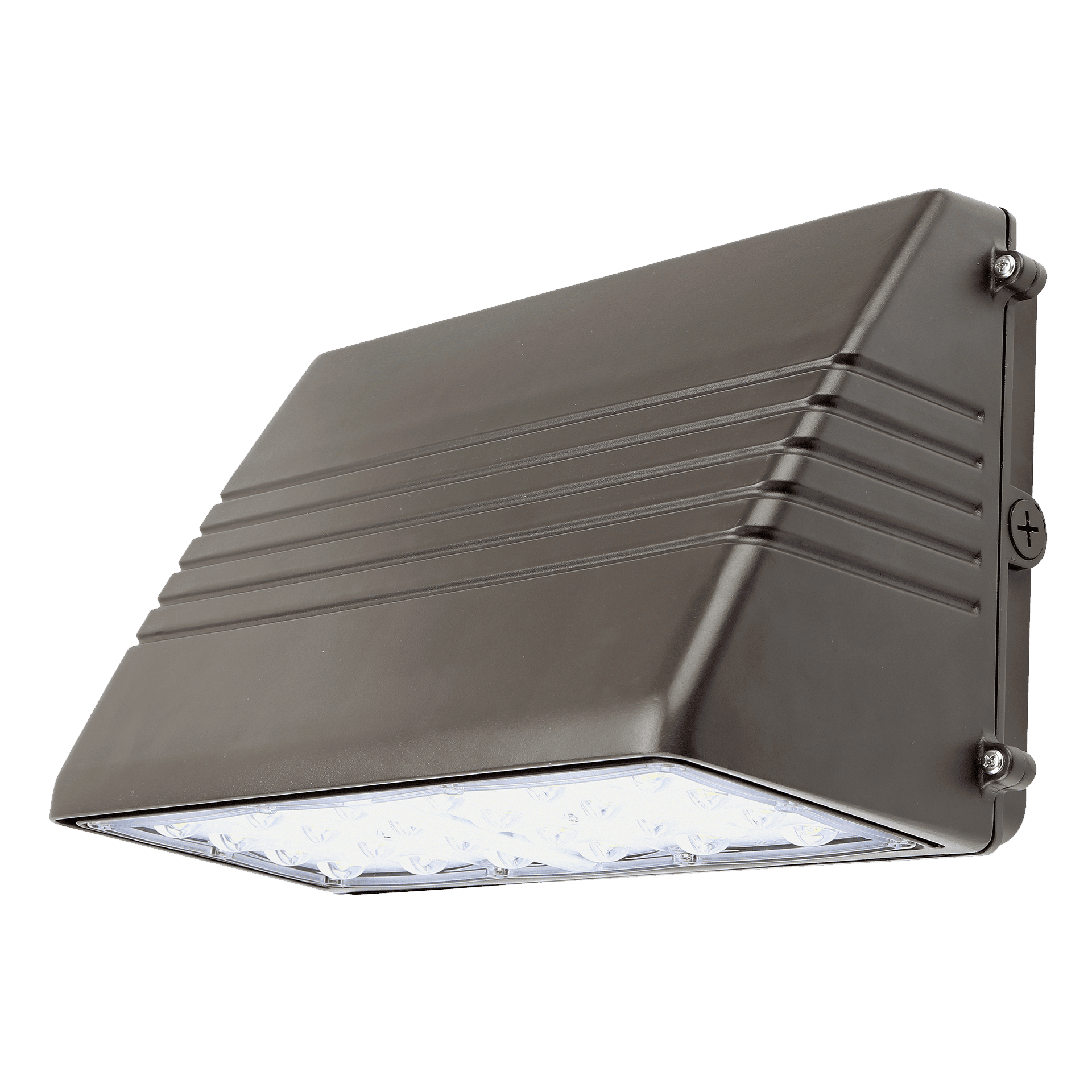

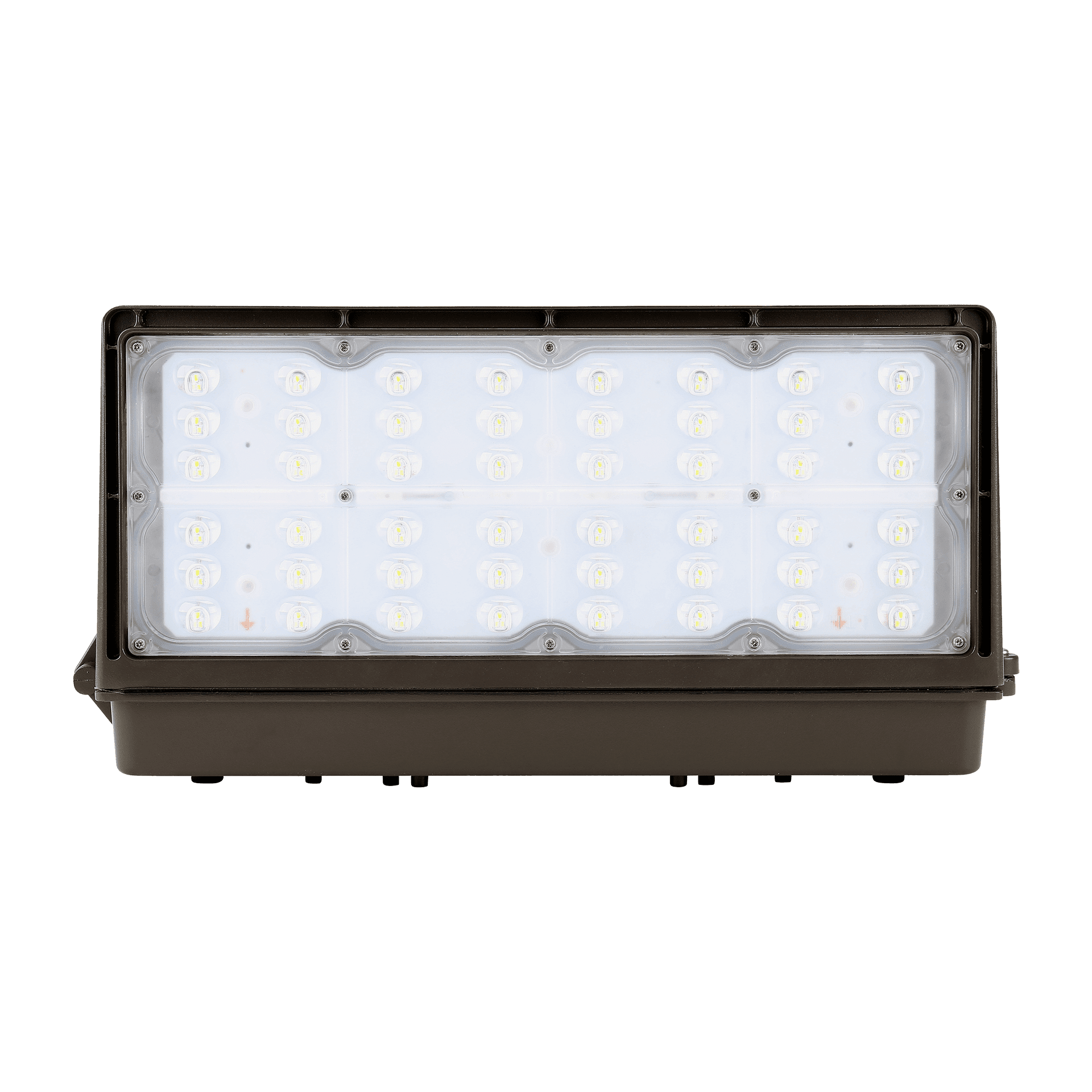

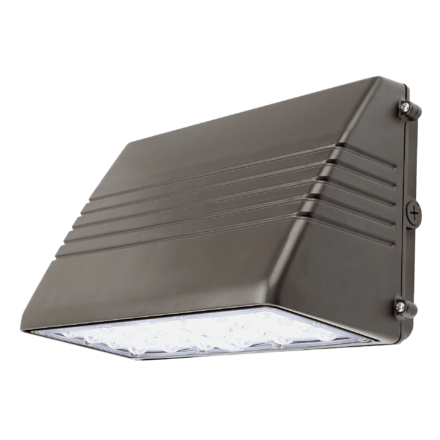

The next generation CutoffX Wall Pack Series Gen 3 comes with newly designed optics for increased beam angle and illumination. This versatile luminaire provides excellent uniformity and full cutoff light distribution and is available in medium and large for varied mounting heights. This can be used in a variety of Commercial, Industrial, and Security applications.
APPLICATIONS
Security Lighting, Perimeter Lighting, Building Entrances, Walkways, etc.
REPLACEMENT
150W – 400W MH
| Product Series | Performance | Wattage | 27W , 45W , 70W , 90W ,135W |
| Lumen Output | 3950 LM , 6450 LM , 9900 LM , 12200 LM , 18000 LM | Correlated Color Temperature (CCT) | 4000K , 5000K |
| Control | Motion Sensor , Photocell | Accessories | Motion Sensor , Button Photocell , Emergency Backup Kit |
| Mounting Type | Wall Mount | Environment | Outdoor |
| Shape | Rectangle | Listings | DLC Premium , UL , FCC , RoHS |
| Product Type | Wall Pack | Generation | G3 |
| Color & Finish | Polyester Powder Dark Bronze Finish | Light Source | LED – Static |
| Voltage Rating | Standard 120-277V , Optional HVU 347-480V | Warranty | 10 Year |
| Labor Warranty | Yes |
| TYPES | LUMENS | GENERATION | VOLTAGE | CCT | FINISH | OPTIONS |
|---|---|---|---|---|---|---|
| Medium Full Cutoff Wall Pack Large Full Cutoff Wall Pack | 3800 Lm 27W 6300 Lm 45W 9750 Lm 70W 12300 Lm 90W 18000 Lm 135W | Gen 3 | 120-277V 347-480V | 4000K 5000K | Dark Bronze Custom | No Options Button Photocell No Options |
| Part Number | Description |
|---|---|
| PC UNV B3 Button Photocell |  |
| MS-FSP-212 Dimmable Motion Sensor |  |
| EL UNV-8 Emergency Battery Kit |  |
| SS450-02 On-Site Wireless Controller |  |
| Product Series | Performance | Wattage | 27W , 45W , 70W , 90W ,135W |
| Lumen Output | 3950 LM , 6450 LM , 9900 LM , 12200 LM , 18000 LM | Correlated Color Temperature (CCT) | 4000K , 5000K |
| Control | Motion Sensor , Photocell | Accessories | Motion Sensor , Button Photocell , Emergency Backup Kit |
| Mounting Type | Wall Mount | Environment | Outdoor |
| Shape | Rectangle | Listings | DLC Premium , UL , FCC , RoHS |
| Product Type | Wall Pack | Generation | G3 |
| Color & Finish | Polyester Powder Dark Bronze Finish | Light Source | LED – Static |
| Voltage Rating | Standard 120-277V , Optional HVU 347-480V | Warranty | 10 Year |
| Labor Warranty | Yes |
| TYPES | LUMENS | GENERATION | VOLTAGE | CCT | FINISH | OPTIONS |
|---|---|---|---|---|---|---|
| Medium Full Cutoff Wall Pack Large Full Cutoff Wall Pack | 3800 Lm 27W 6300 Lm 45W 9750 Lm 70W 12300 Lm 90W 18000 Lm 135W | Gen 3 | 120-277V 347-480V | 4000K 5000K | Dark Bronze Custom | No Options Button Photocell No Options |
| Part Number | Description |
|---|---|
| PC UNV B3 Button Photocell |  |
| MS-FSP-212 Dimmable Motion Sensor |  |
| EL UNV-8 Emergency Battery Kit |  |
| SS450-02 On-Site Wireless Controller |  |
