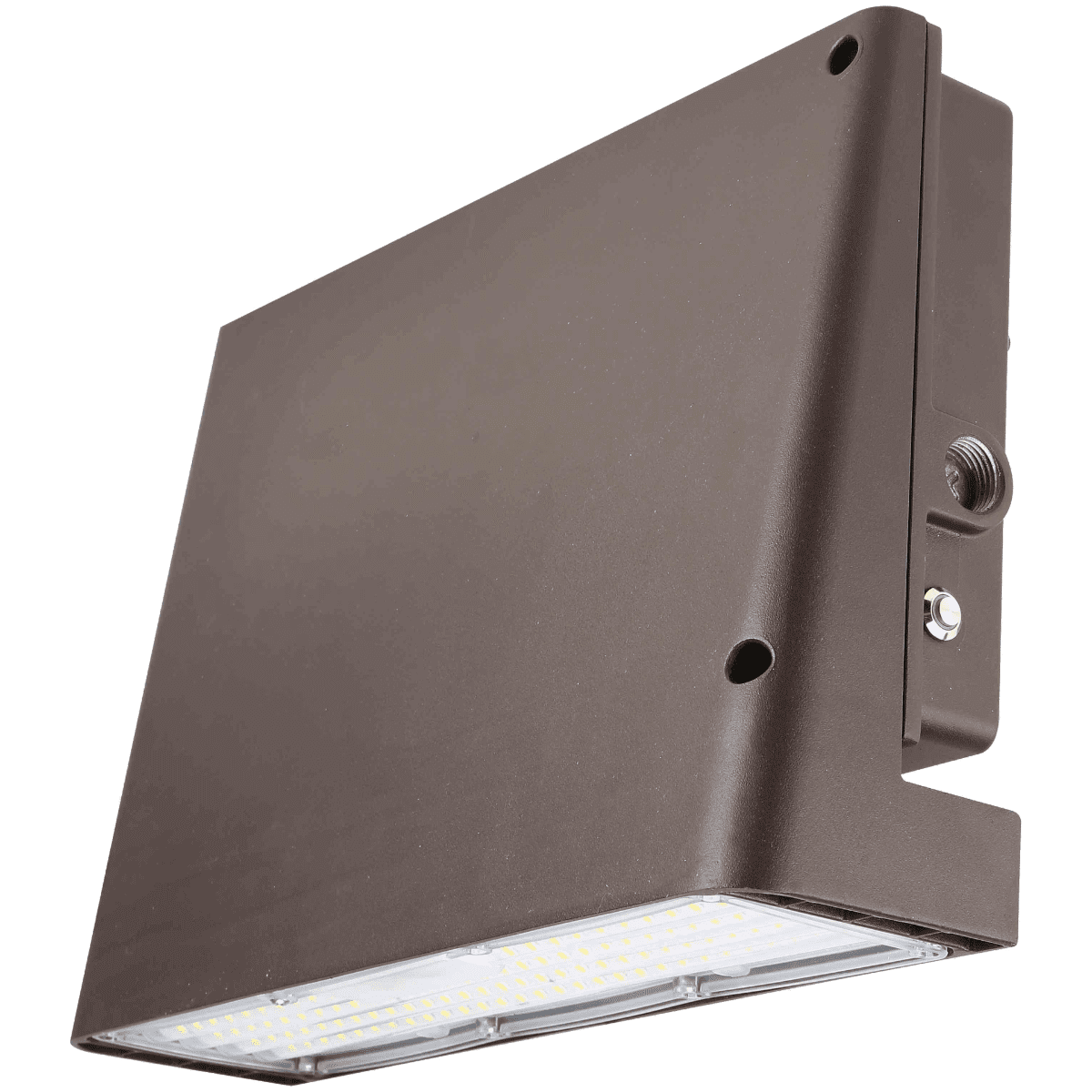

Selectable Full Cutoff Wall Pack - Contractor Series Gen 1
The WFC is a SKU saving LED full cutoff wall pack featuring 4 selectable lumen outputs and 3 selectable CCT color outputs. This budget friendly, contractor experience LED wall pack features a pre-installed, low-voltage photocell installed directly to the driver, additional heat-sink fins just for the LED module – increasing the total performance lifespan, and shipped in an “anti-crush” advanced box. Selectable lumen range: 4,100 – 9,900 lm Selectable CCT range: 3000K – 5000K Replaces: HID 175W – 250W – 400W
Installation footprint: Covers the footprint of a typical HID wall pack
Product Series | Contractor | Wattage | 23W/35W/49W/65W Selectable |
Lumen Output | 4000/5700/7800/9800 Lm Selectable | Correlated Color Temperature (CCT) | 3500K/4000K/5000K Selectable |
Product Lens | Anti-UV prismatic translucent lens | Control | Photocell |
Accessories | Emergency Backup Kit | Mounting Type | Wall or Junction Box |
Environment | Outdoor | Product Weight | 5.09 Lbs |
Shape | Rectangle | Product Sizes | 13.1″x9.6″x3.8″ |
Listings | DLC Premium, UL Listed | IP Rating | IP65 |
Product Type | Wall Pack | Generation | G1 |

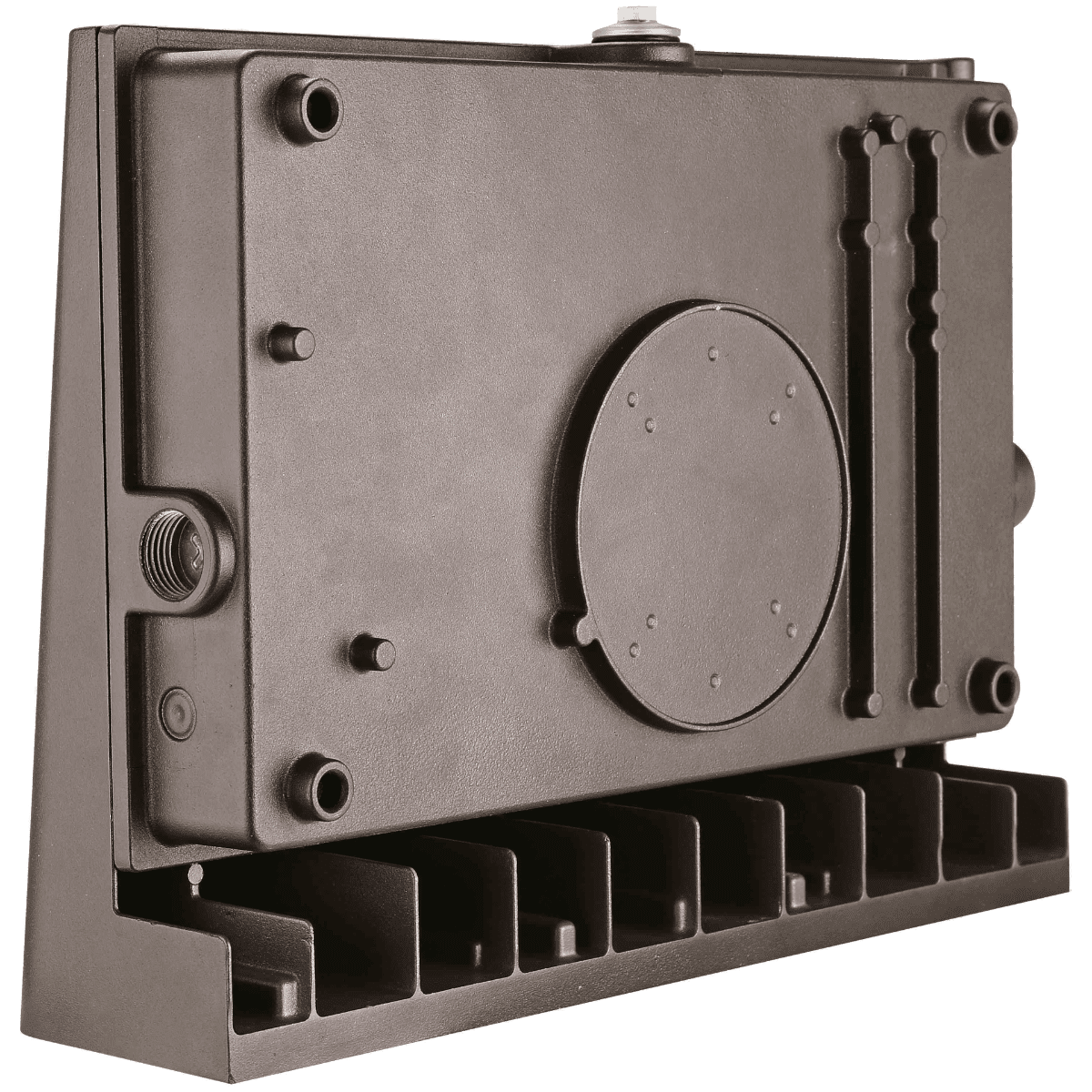

Color & Finish | Dark bronze | Housing | Two-piece die-cast aluminum housing, thermally conductive LED panel and electrical chamber, heat-sink fins for LED module |
Light Source | LED – Selectable | Voltage Rating | 120-277V, 50/60Hz constant current |
Warranty | 5 Year | Labor Warranty | Yes |
TYPES | LUMENS | GENERATION | VOLTAGE | CCT | FINISH | OPTIONS |
---|---|---|---|---|---|---|
Wall Pack Full Cutoff | 4000 Lm/23W 5700 Lm/35W 7800 Lm/49W 9800 Lm/65W |
Gen 1 | 120-277V | 3000K 4000K 5000K Selectable | Dark Bronze | No Options 8W Emergency Backup |
Part Number | Description |
---|---|
EL UNV-8W AIO |
