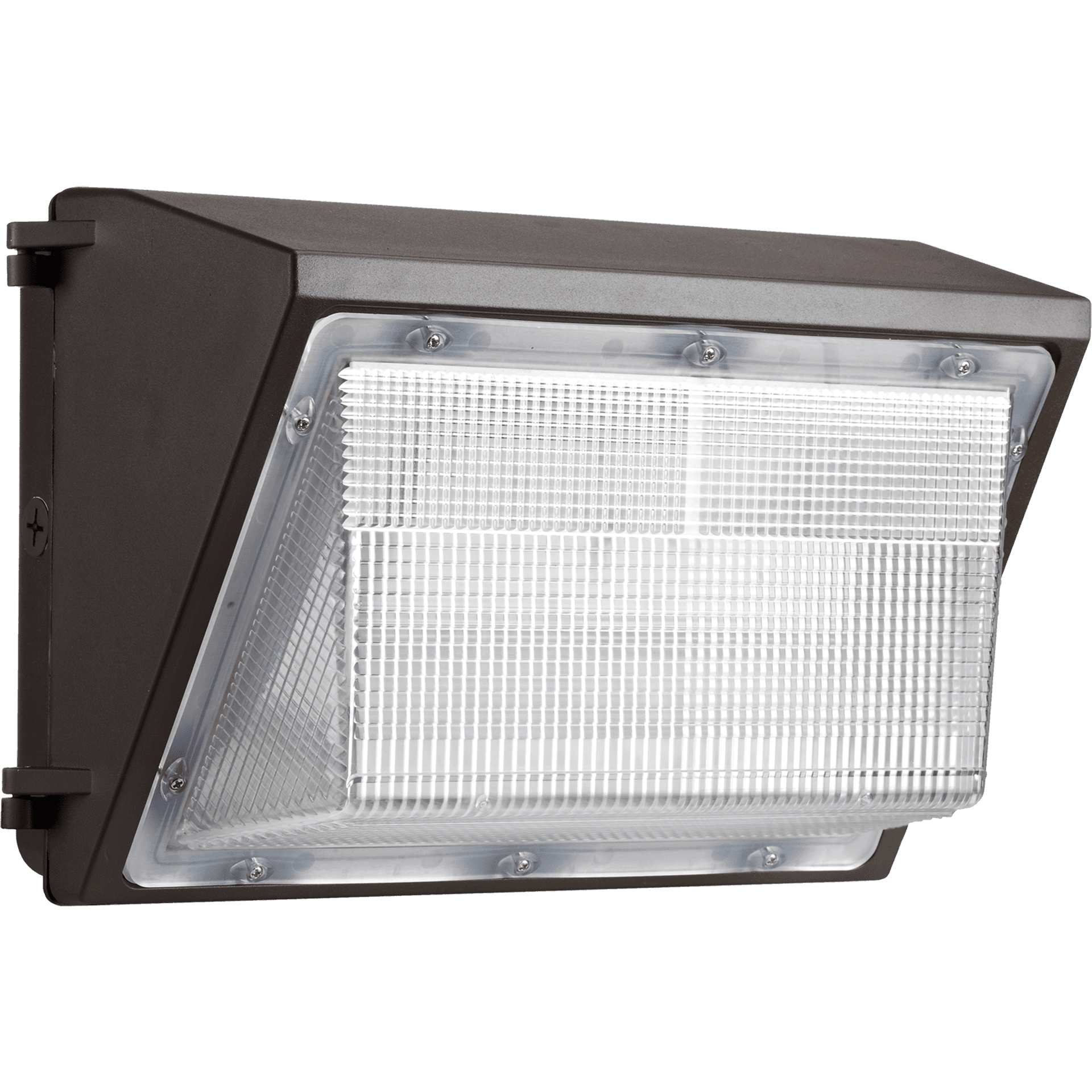

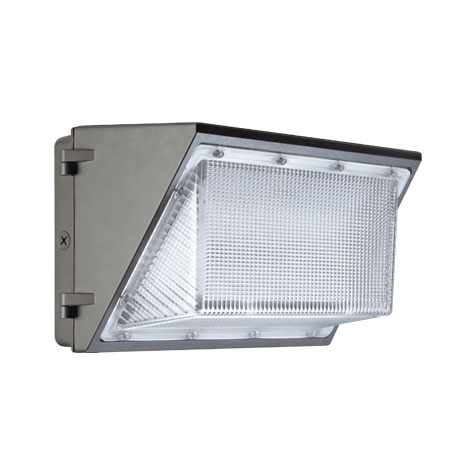

The LumeScale Small, Medium, and Large Wall Pack Series Gen 1 offers maximum light output for general purpose area and security lighting. This wall pack series efficiently delivers lumens while consuming less energy than traditional wall mount technologies.
APPLICATIONS
Security Lighting, Perimeter Lighting, Building Entrances, Walkways,
etc.
REPLACEMENT
WS: 150W MH
WM: 175W-250W MH
WL: 320W – 400W MH
| Product Series | Performance | Wattage | 30W , 45W , 70W , 90W , 135W |
| Lumen Output | 4050 LM , 5300 LM , 8100 LM , 11200 LM , 16400 LM | Correlated Color Temperature (CCT) | 4000K , 5000K |
| Color Rendering Index (CRI) | 70 | Control | Motion Sensor, Photocell |
| Accessories | Button Photocell , Emergency Backup Kit | Mounting Type | Wall Mount |
| Environment | Outdoor | Shape | Rectangle |
| Listings | UL , FCC , RoHS | Product Type | Wall Pack |
| Generation | G1 | Color & Finish | Polyester Powder Dark Bronze Finish |
| Light Source | LED – Static | Voltage Rating | Standard 120-277V , Optional HVU 347-480V |
| Warranty | 10 Year | Labor Warranty | Yes |
| TYPES | LUMENS | GENERATION | VOLTAGE | CCT | FINISH | OPTIONS |
|---|---|---|---|---|---|---|
| Small Wall Pack Medium Wall Pack Large Wall Pack | 4050 Lm 30W 5300 Lm 45W 8100 Lm 70W 11200 Lm 90W 16400 Lm 135W | Gen 1 | 120-277V 347-480V | 4000K 5000K | Dark Bronze Custom | No Options Button Photocell No Options |
| Part Number | Description |
|---|---|
| PC UNV B3 Button Photocell |  |
| MS-FSP-212 Dimmable Motion Sensor |  |
| EL UNV-8 Emergency Battery Kit |  |
| SS450-02 On-Site Wireless Controller |  |
| Product Series | Performance | Wattage | 30W , 45W , 70W , 90W , 135W |
| Lumen Output | 4050 LM , 5300 LM , 8100 LM , 11200 LM , 16400 LM | Correlated Color Temperature (CCT) | 4000K , 5000K |
| Color Rendering Index (CRI) | 70 | Control | Motion Sensor, Photocell |
| Accessories | Button Photocell , Emergency Backup Kit | Mounting Type | Wall Mount |
| Environment | Outdoor | Shape | Rectangle |
| Listings | UL , FCC , RoHS | Product Type | Wall Pack |
| Generation | G1 | Color & Finish | Polyester Powder Dark Bronze Finish |
| Light Source | LED – Static | Voltage Rating | Standard 120-277V , Optional HVU 347-480V |
| Warranty | 10 Year | Labor Warranty | Yes |
| TYPES | LUMENS | GENERATION | VOLTAGE | CCT | FINISH | OPTIONS |
|---|---|---|---|---|---|---|
| Small Wall Pack Medium Wall Pack Large Wall Pack | 4050 Lm 30W 5300 Lm 45W 8100 Lm 70W 11200 Lm 90W 16400 Lm 135W | Gen 1 | 120-277V 347-480V | 4000K 5000K | Dark Bronze Custom | No Options Button Photocell No Options |
| Part Number | Description |
|---|---|
| PC UNV B3 Button Photocell |  |
| MS-FSP-212 Dimmable Motion Sensor |  |
| EL UNV-8 Emergency Battery Kit |  |
| SS450-02 On-Site Wireless Controller |  |
LEDs can be programmed to create dynamic lighting effects that enhance the game-day experience for everyone involved and can provide superior lighting for playing fields and arenas, improving visibility for athletes and spectators alike.
One of the biggest benefits of commercial LED lighting is the decrease in energy costs. Traditional incandescent and metal-halide lights can use up to four times as much energy as commercial LED lights. This decrease in energy consumption not only saves money, but also helps reduce your facility’s carbon footprint.
Commercial LED lights also last much longer than traditional lighting options. While incandescent bulbs typically only last around 1,000 hours, commercial LED lights can last up to 100,000 hours. This not only reduces maintenance and replacement costs, but also reduces the amount of time your facility needs to be dark while lights are being replaced.
Another key benefit of commercial LED lighting is increased safety. Because commercial LED lights produce ve ry little heat, there is less risk of fire hazards. Additionally, commercial LED lights can be designed with specific light patterns that can help improve visibility for athletes and spectators alike. This improved visibility can help prevent accidents and injuries on the playing field or in the stands.
