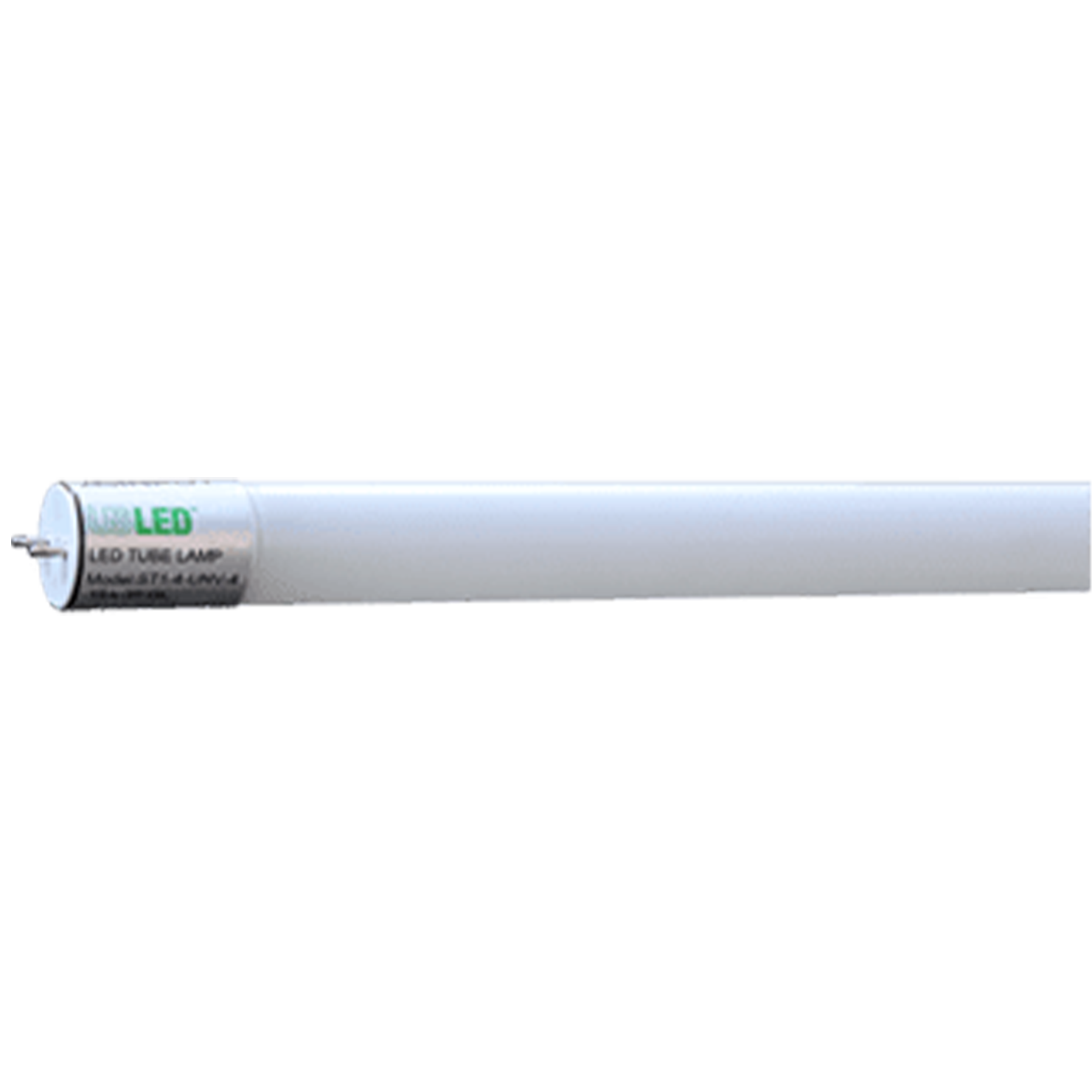

National LED’s T10 LED Lamps have become widely accepted as the fluorescent retrofit standard for their high lumen output, 80+ CRI and a 200,000-hour life time. The return on investment for these tubes in compared to none other when looking at the lifetime and efficiency!
| Spec Type | Data |
|---|---|
| Dimensions | 47.75″ x 1.25″ |
| Units/Carton | 25 |
| Net Weight | 0.75 lbs. |
| Environmental Rating | Damp |
| Spec Type | 3500K | 4000K | 5000K |
|---|---|---|---|
| Input Voltage (VAC) | 120-277 | 120-277 | 120-277 |
| System Level Power (W) | 15.9 | 15.9 | 15.9 |
| Delivered Lumens (Lm) | 2,730 | 2,720 | 2,750 |
| Efficacy (Lm/W) | 172 | 171 | 173 |
| Color Temperature (K) | 3500 | 4000 | 5000 |
| Color Rendering Index (CRI) | 80 min | 80 min | 80 min |
| L70 Calculated Life (Hrs.)1 | 200,000 | 200,000 | 200,000 |
| Operating Temperature (°C) | -20 to 45 | -20 to 45 | -20 to 45 |
| Series | Variant | Voltage | Length | Wattage | CCT | Diffuser | Power Location |
|---|---|---|---|---|---|---|---|
| ST1 | 4 | UNV – 120-277V | 4 – 4′ | 15A – 15.9W | 35 – 3500K 40 – 4000K 50 – 5000K | GL – Glass | Blank – Single Ended DE – Double Ended |
Example: ST1-4-UNV-4-15A-35-GL
| Part Number | Description |
|---|---|
| LS-1-4 | LoneStar, 1 Tube Strip Fixture Housing |
| LS-2-4 | LoneStar Tandem, 8′ Single Strip Housing |
| TWS1 | TwinStar, 2 Tube Strip Fixture Housing |
| TWS1-T | TwinStar Tandem, 8′ Double Strip Housing |
| TWS1-1 | TwinStar, 2 Tube Strip Fixture Housing with Accommodations for an Occupancy Sensor |
| TR-3-4 | TriStar, 3 Tube Strip Fixture Housing |
| USQS-44 | QuadStar, 4 Tube Wide Body Strip Housing |
| HBT1 | SixShooter, 6 Tube High Bay Fixture Housing |
| HBT1-1 | SixShooter, 6 Tube High Bay Fixture Housing with Accommodations for an Occupancy Sensor |
| UCLL-24 | 2×4 Housing with Ribbed Lens – Ceiling Mounted |
| UCLLS-24 | 2×4 Housing with Ribbed Lens – Surface Mounted |
| LS-WG-48 | Wireguard Protection for LoneStar Strip Fixture Housing |
| BCK-8-2-US | 1×8 Two Lamp Retrofit |
| BCK-8-4-US | 1×8 Four Lamp Retrofit |
| RKSR-232TAN-WINST | 8′ to 4′ Conversion Kit |
| USVT-24 | 4′ VaporTight Housing |
| USVT-44 | 8′ VaporTight Housing |
| Spec Type | Data |
|---|---|
| Dimensions | 47.75″ x 1.25″ |
| Units/Carton | 25 |
| Net Weight | 0.75 lbs. |
| Environmental Rating | Damp |
| Spec Type | 3500K | 4000K | 5000K |
|---|---|---|---|
| Input Voltage (VAC) | 120-277 | 120-277 | 120-277 |
| System Level Power (W) | 15.9 | 15.9 | 15.9 |
| Delivered Lumens (Lm) | 2,730 | 2,720 | 2,750 |
| Efficacy (Lm/W) | 172 | 171 | 173 |
| Color Temperature (K) | 3500 | 4000 | 5000 |
| Color Rendering Index (CRI) | 80 min | 80 min | 80 min |
| L70 Calculated Life (Hrs.)1 | 200,000 | 200,000 | 200,000 |
| Operating Temperature (°C) | -20 to 45 | -20 to 45 | -20 to 45 |
| Series | Variant | Voltage | Length | Wattage | CCT | Diffuser | Power Location |
|---|---|---|---|---|---|---|---|
| ST1 | 4 | UNV – 120-277V | 4 – 4′ | 15A – 15.9W | 35 – 3500K 40 – 4000K 50 – 5000K | GL – Glass | Blank – Single Ended DE – Double Ended |
Example: ST1-4-UNV-4-15A-35-GL
| Part Number | Description |
|---|---|
| LS-1-4 | LoneStar, 1 Tube Strip Fixture Housing |
| LS-2-4 | LoneStar Tandem, 8′ Single Strip Housing |
| TWS1 | TwinStar, 2 Tube Strip Fixture Housing |
| TWS1-T | TwinStar Tandem, 8′ Double Strip Housing |
| TWS1-1 | TwinStar, 2 Tube Strip Fixture Housing with Accommodations for an Occupancy Sensor |
| TR-3-4 | TriStar, 3 Tube Strip Fixture Housing |
| USQS-44 | QuadStar, 4 Tube Wide Body Strip Housing |
| HBT1 | SixShooter, 6 Tube High Bay Fixture Housing |
| HBT1-1 | SixShooter, 6 Tube High Bay Fixture Housing with Accommodations for an Occupancy Sensor |
| UCLL-24 | 2×4 Housing with Ribbed Lens – Ceiling Mounted |
| UCLLS-24 | 2×4 Housing with Ribbed Lens – Surface Mounted |
| LS-WG-48 | Wireguard Protection for LoneStar Strip Fixture Housing |
| BCK-8-2-US | 1×8 Two Lamp Retrofit |
| BCK-8-4-US | 1×8 Four Lamp Retrofit |
| RKSR-232TAN-WINST | 8′ to 4′ Conversion Kit |
| USVT-24 | 4′ VaporTight Housing |
| USVT-44 | 8′ VaporTight Housing |
LED tubes come in several versions:
Your choice depends on the age of your ballasts, your long-term goals, and whether you want the simplest install or the highest efficiency.
Yes. LED tubes are designed to retrofit into most T8 and T12 fluorescent housings. Type A tubes plug in directly with the existing ballast, while Type B and Type C tubes require minor rewiring. This makes upgrades quick and cost-effective without replacing the fixture body.
Most customers save 40 to 60 percent in energy compared to fluorescent tubes. You also eliminate ballast replacement costs, buzzing, flickering, and dim output. LED tubes maintain higher brightness for longer periods with far less maintenance.
Yes. Modern LED tubes produce higher lumens per watt, meaning you get more usable light with less power. They also provide a more consistent, flicker-free output, which improves visibility in offices, warehouses, and schools.
Common options include:
Choose based on the atmosphere you want and the tasks performed in the space.
LED tubes typically last 50,000 hours or more, far longer than fluorescent tubes. They require very little maintenance. If you choose Type B or Type C, you also remove the ballast, which eliminates one of the biggest failure points in the fixture.
