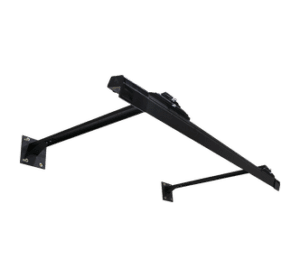

LinearStar

Name: LinearStar | Outdoor Sign Light And Wall Washer
Brand: National LED
Availability: InStock
Rating: 5 (43 reviews)

Outdoor Sign Lighting and Wall Washer

Linear Led Sign Lighting for Outdoor Use

Introducing the LinearStar from National LED – an outdoor-rated linear LED fixture that is perfect for accent lighting signs or wall washing applications. Available in 1′ and 4′ sections, the LinearStar is a versatile solution for cove lighting, signage lighting or general lighting applications.

The LinearStar is a versatile and durable signage lighting solution that is perfect for any business. Its easy installation and reliable performance make it the ideal choice for all your outdoor lighting needs. It is constructed from durable materials that are designed to withstand the elements. its LED lights are specifically designed to show your sign in the best light possible. With its easy installation and reliable performance, the LinearStar is the ideal solution for all your outdoor lighting needs.

Get a data sheet

Download data sheet

Unfortunately, we haven't attached data sheet yet. We'll be in contact with you.

Features

Certifications

Ordering Information

Specifications

Energy Data

Driver Ordering Information

Driver Loading Specifications

Power Cable Ordering Information

Mount Arm Ordering Information

Outdoor linear fixture that evenly illuminates flat and embossed surfaces
Special refractive optics allow close proximity placement of the fixture to the target surface
Powered by remote 100W Class 2 outdoor rated LED driver(s)
Linearly scalable and available in 1′ and 4′ sections
Easily serviceable – intermediate units replaceable without disturbing adjacent units
Mounts above target illuminating surface facing down
Adjustable swivel head to optimize illumination to target surface or fixed head for installation simplicity
Full cut-off operation with 18°, 22°, and 27° preset angles
5-year warranty
LED light must face down for warranty to be applicable

UL Recognized (E324062)

Series	Variant	Power	Mount Color	Length	CCT	CRI	Location
SKT1	1 – Standard Fixture	37	BK – Black SL – Silver	1 – 1 foot 4 – 4 feet	50 – 5000K	80 – 80 min	L – Left R – Right C – Center S – Single²

Example: SKT1-1-37-BK-1-50-80-L

Spec Type	1-Ft	4-Ft
Dimensions	12″ x 3″ x 2″	48″ x 3″ x 2″
Units/Carton	1	1
Net Weight	0.3 lbs.	1.20 lbs.
Environmental Rating	Wet	Wet

Spec Type	1-Ft	4-Ft
Input Voltage (VDC)	120-277	120-277
System Level Power (W)	4.2	16.8
Module Level Power (W)	3.7	14.8
Delivered Lumens (Lm)	340	1,350
Module Efficacy (Lm/W)	92	92
Color Temperature (K)	5,000	5,000
Color Rendering Index (CRI)	80 min	80 min
L70 Calculated Life (Hrs.)¹	163,000	163,000
L85 Calculated Life (Hrs.)¹	82,000	82,000
Operating Temperature (Degrees C)	-40 to 45	-40 to 45

Part Number	Description
PSH1-1-A-O-W-4	White outdoor 100W LED driver

Maximum Feet Per 100W Driver
Maximum of 25 feet per single 100W LED driver, powered at one end
Maximum of 50 feet per two 100W LED drivers, powered at both ends

Part Number	Description
PSC1-2-B-10	10-ft outdoor rated power cable
PSC1-2-B-20	20-ft outdoor rated power cable

Series	Variant	Mount Color	Angle
SMT1	1– Standard Mount	BK – Black SL – Silver	18 – 18 Degrees [6′ to 10′] 22 – 22 Degrees [4′ to less than 6′] 27 – 27 Degrees [2′ to less than 4′] V – (Variable) [2′ to 10′]

Features

Outdoor linear fixture that evenly illuminates flat and embossed surfaces
Special refractive optics allow close proximity placement of the fixture to the target surface
Powered by remote 100W Class 2 outdoor rated LED driver(s)
Linearly scalable and available in 1′ and 4′ sections
Easily serviceable – intermediate units replaceable without disturbing adjacent units
Mounts above target illuminating surface facing down
Adjustable swivel head to optimize illumination to target surface or fixed head for installation simplicity
Full cut-off operation with 18°, 22°, and 27° preset angles
5-year warranty
LED light must face down for warranty to be applicable

Get a data sheet

Download data sheet

Unfortunately, we haven't attached data sheet yet. We'll be in contact with you.

Certifications

UL Recognized (E324062)

Get a data sheet

Download data sheet

Unfortunately, we haven't attached data sheet yet. We'll be in contact with you.

Ordering Information

Series	Variant	Power	Mount Color	Length	CCT	CRI	Location
SKT1	1 – Standard Fixture	37	BK – Black SL – Silver	1 – 1 foot 4 – 4 feet	50 – 5000K	80 – 80 min	L – Left R – Right C – Center S – Single²

Example: SKT1-1-37-BK-1-50-80-L

Get a data sheet

Download data sheet

Unfortunately, we haven't attached data sheet yet. We'll be in contact with you.

Specifications

Spec Type	1-Ft	4-Ft
Dimensions	12″ x 3″ x 2″	48″ x 3″ x 2″
Units/Carton	1	1
Net Weight	0.3 lbs.	1.20 lbs.
Environmental Rating	Wet	Wet

Get a data sheet

Download data sheet

Unfortunately, we haven't attached data sheet yet. We'll be in contact with you.

Energy Data

Spec Type	1-Ft	4-Ft
Input Voltage (VDC)	120-277	120-277
System Level Power (W)	4.2	16.8
Module Level Power (W)	3.7	14.8
Delivered Lumens (Lm)	340	1,350
Module Efficacy (Lm/W)	92	92
Color Temperature (K)	5,000	5,000
Color Rendering Index (CRI)	80 min	80 min
L70 Calculated Life (Hrs.)¹	163,000	163,000
L85 Calculated Life (Hrs.)¹	82,000	82,000
Operating Temperature (Degrees C)	-40 to 45	-40 to 45

Get a data sheet

Download data sheet

Unfortunately, we haven't attached data sheet yet. We'll be in contact with you.

Driver Ordering Information

Part Number	Description
PSH1-1-A-O-W-4	White outdoor 100W LED driver

Get a data sheet

Download data sheet

Unfortunately, we haven't attached data sheet yet. We'll be in contact with you.

Driver Loading Specifications

Maximum Feet Per 100W Driver
Maximum of 25 feet per single 100W LED driver, powered at one end
Maximum of 50 feet per two 100W LED drivers, powered at both ends

Get a data sheet

Download data sheet

Unfortunately, we haven't attached data sheet yet. We'll be in contact with you.

Power Cable Ordering Information

Part Number	Description
PSC1-2-B-10	10-ft outdoor rated power cable
PSC1-2-B-20	20-ft outdoor rated power cable

Get a data sheet

Download data sheet

Unfortunately, we haven't attached data sheet yet. We'll be in contact with you.

Mount Arm Ordering Information

Series	Variant	Mount Color	Angle
SMT1	1– Standard Mount	BK – Black SL – Silver	18 – 18 Degrees [6′ to 10′] 22 – 22 Degrees [4′ to less than 6′] 27 – 27 Degrees [2′ to less than 4′] V – (Variable) [2′ to 10′]

Get a data sheet

Download data sheet

Unfortunately, we haven't attached data sheet yet. We'll be in contact with you.

Download data sheet

Frequently Asked Questions

Can I customize or program LED lights to create lighting effects?

LEDs can be programmed to create dynamic lighting effects that enhance the game-day experience for everyone involved and can provide superior lighting for playing fields and arenas, improving visibility for athletes and spectators alike.

What are some benefits of switching from traditional incandescent and metal-halide lights to LED?

One of the biggest benefits of commercial LED lighting is the decrease in energy costs. Traditional incandescent and metal-halide lights can use up to four times as much energy as commercial LED lights. This decrease in energy consumption not only saves money, but also helps reduce your facility’s carbon footprint.

How much longer do commercial LED lights last?

Commercial LED lights also last much longer than traditional lighting options. While incandescent bulbs typically only last around 1,000 hours, commercial LED lights can last up to 100,000 hours. This not only reduces maintenance and replacement costs, but also reduces the amount of time your facility needs to be dark while lights are being replaced.

How can switching to commercial LED lighting increase safety?

Another key benefit of commercial LED lighting is increased safety. Because commercial LED lights produce ve ry little heat, there is less risk of fire hazards. Additionally, commercial LED lights can be designed with specific light patterns that can help improve visibility for athletes and spectators alike. This improved visibility can help prevent accidents and injuries on the playing field or in the stands.
