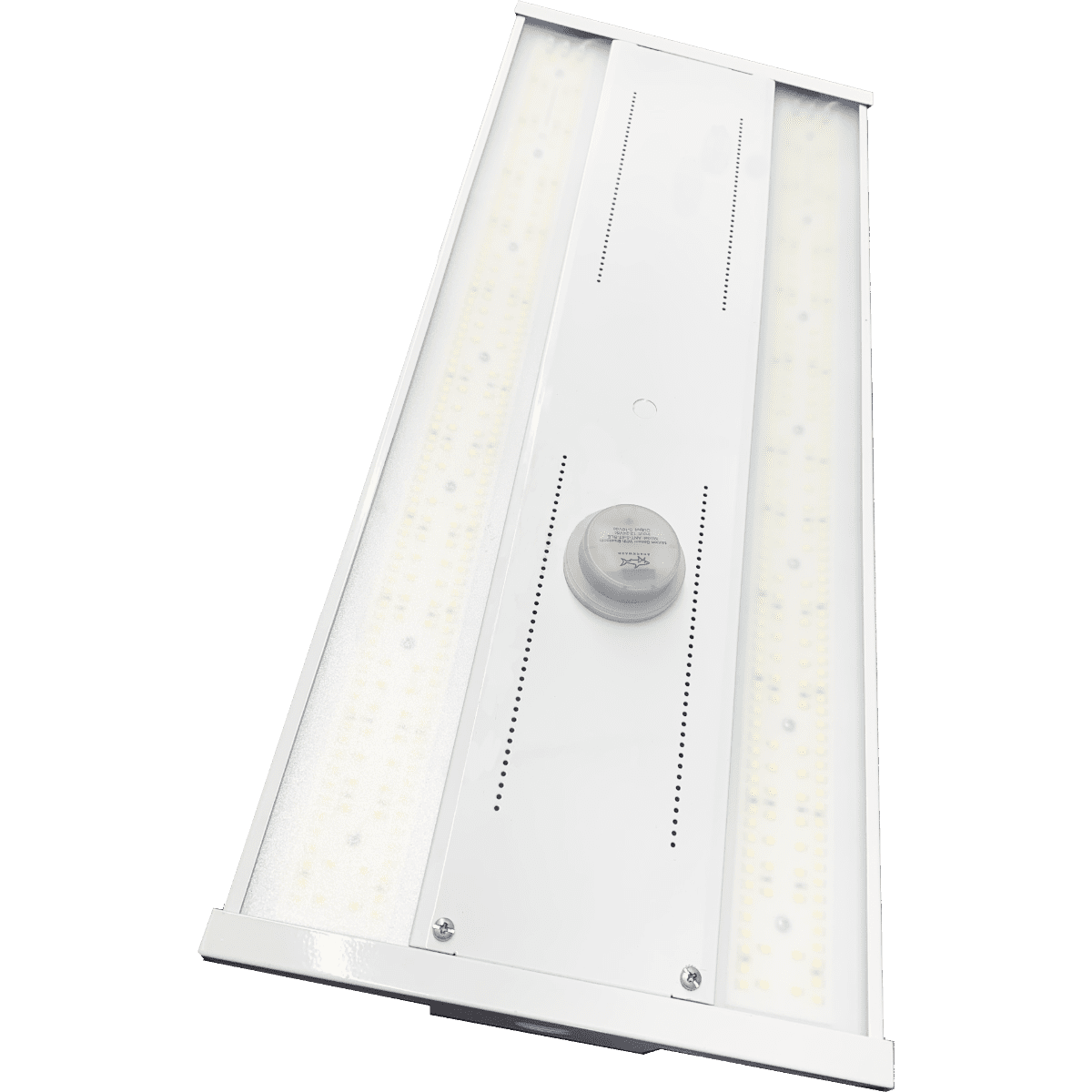

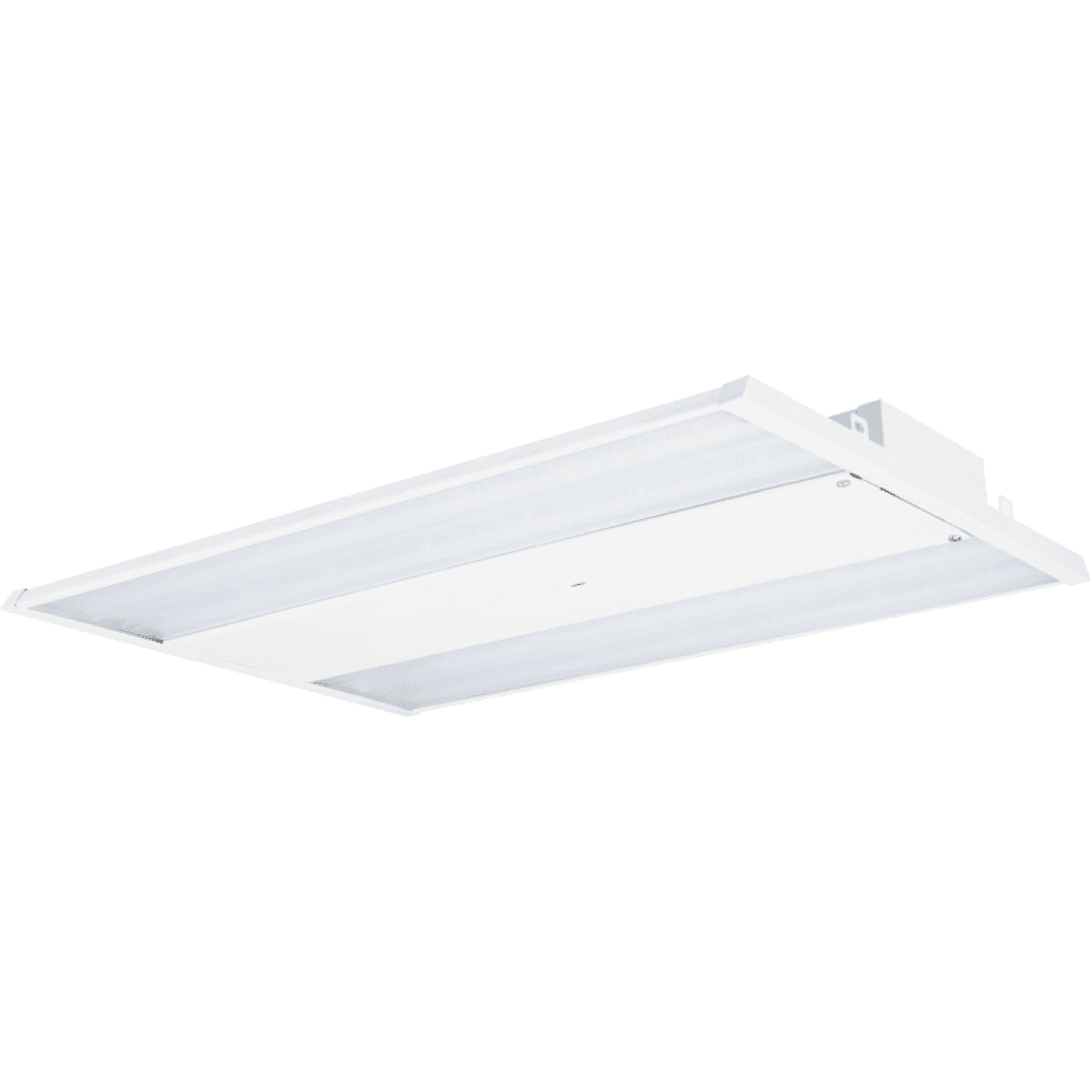

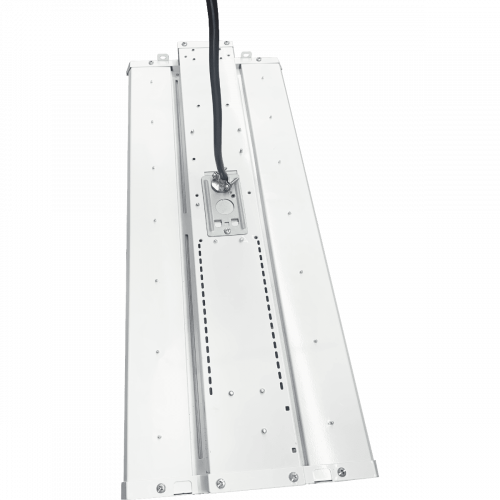

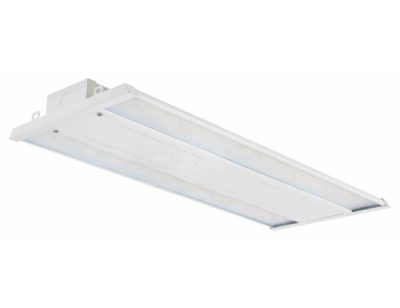

Contractor Selectable Linear High Bay Gen 1
The HEC LED linear high bay is a contractor friendly selectable linear high bay featuring 4 selectable lumen outputs and 2 selectable CCT color outputs. This budget friendly, contractor experience LED high bay features a unique range of lumen outputs for ceiling heights from 15 – 40 feet for a range of lighting applications – increasing the SKU-saving capabilities, saving installation time, and shipped in an “anti-crush” box.
Selectable lumen range: 12,000 – 30,000 Lm
Selectable CCT range: 4000K – 5000K
Replaces: 4 Lamps T8 – 8 Lamps T5HO
Standard Option: 120-277V
HVU Option: 347-480V
Product Series | Contractor | Wattage | 86W/129W/172W/210W Selectable |
Lumen Output | 12000/18000/24000/30000 Lm Selectable | Correlated Color Temperature (CCT) | 4000K/5000K CCT Selectable |
Product Distribution Types | Aisle | Product Lens | Frosted |

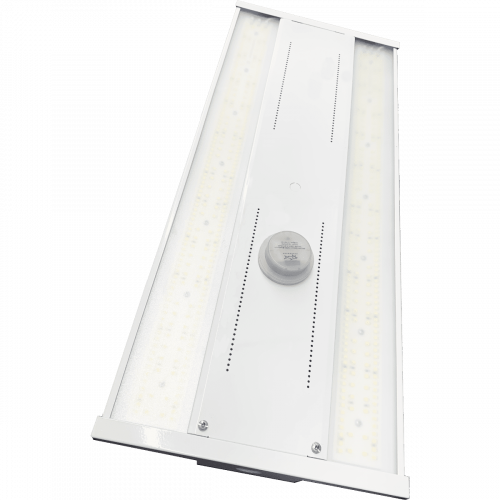

Control | Optional PIR Motion Sensor On/Off | Accessories | Emergency Battery Kit, Pendant Mount |

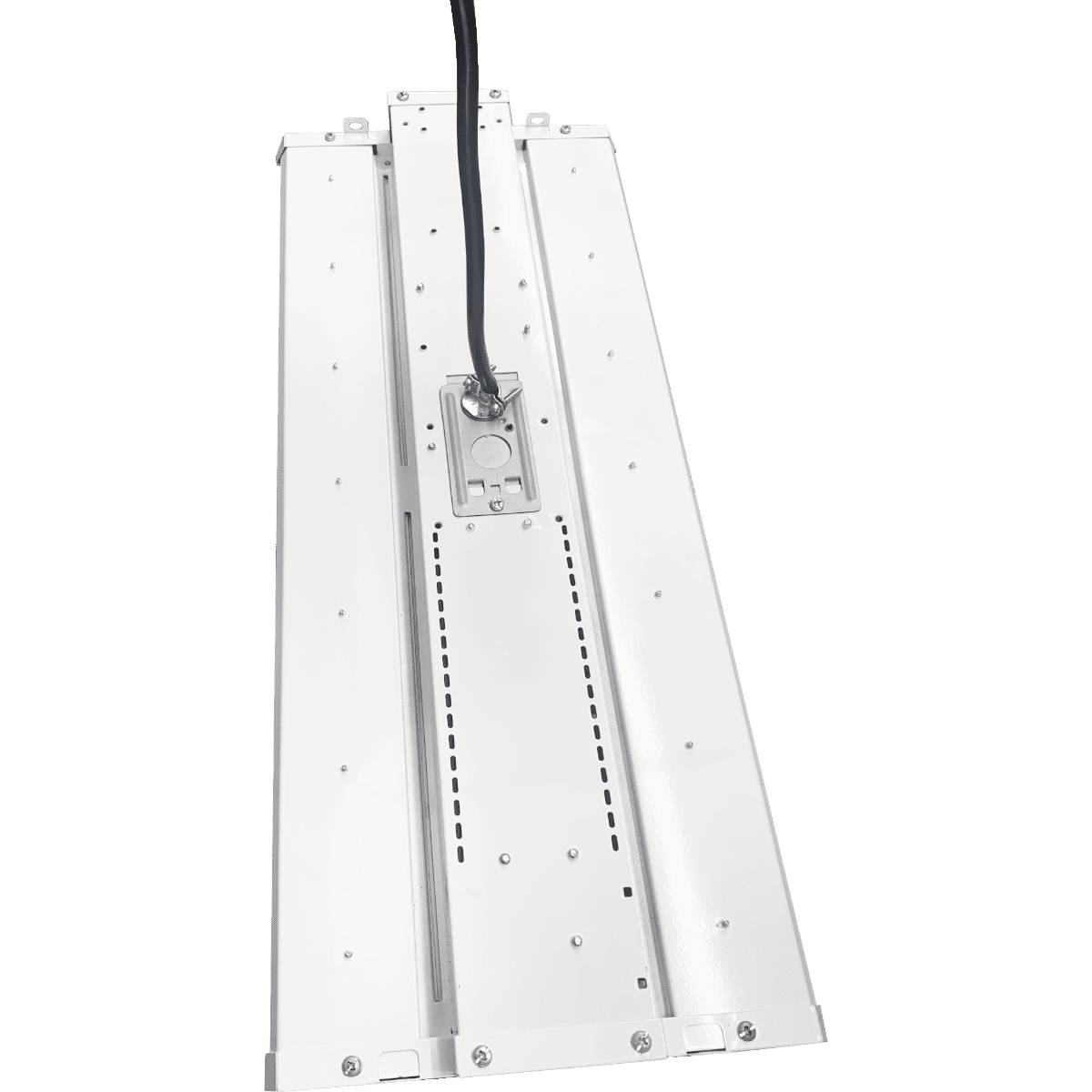

Mounting Type | Standard aircraft cable mounting, optional Pendant mount | Environment | Indoor |

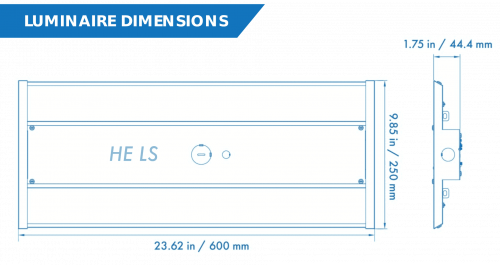

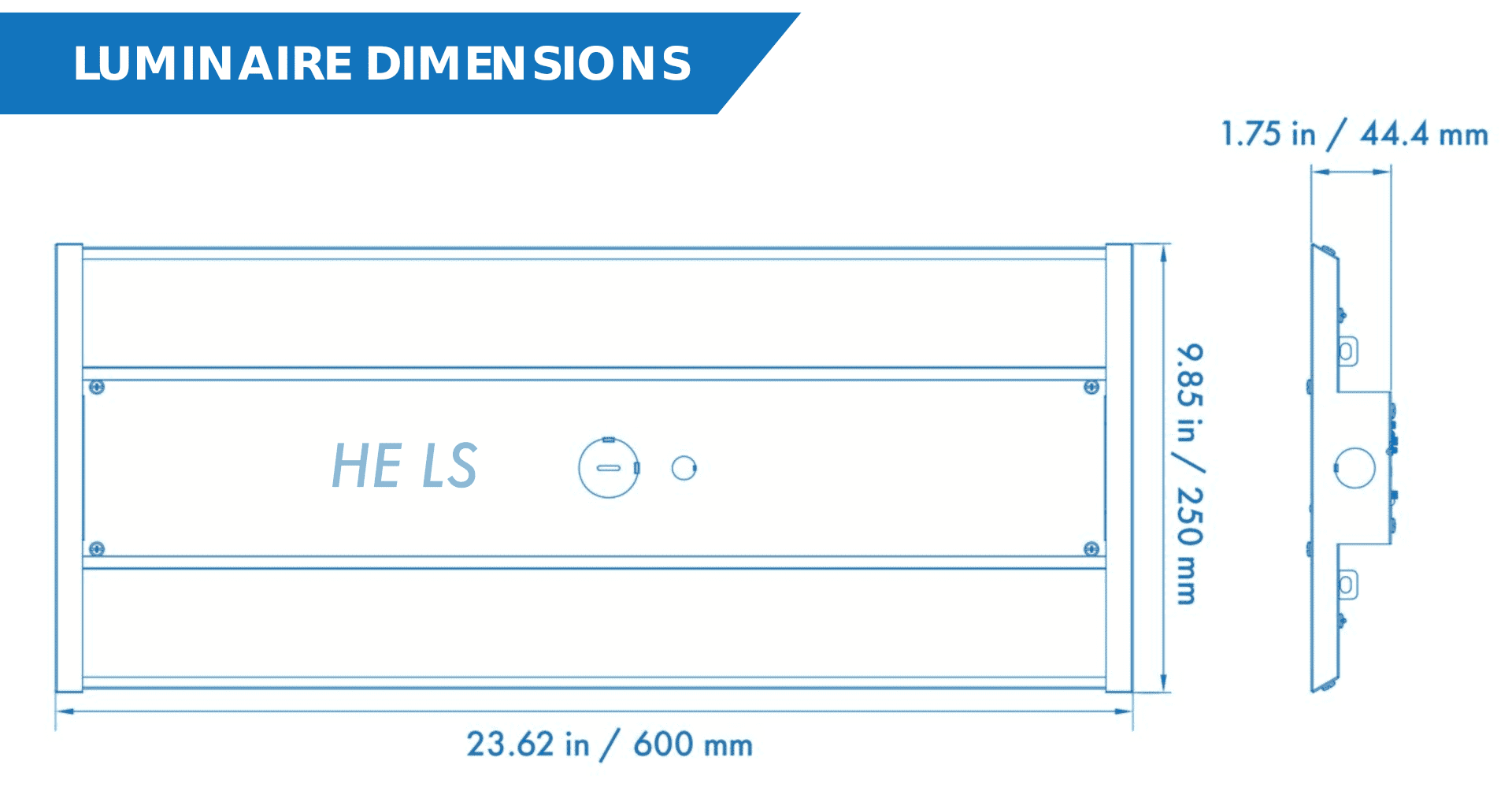

Shape | Rectangle | Product Sizes | 1×4, 23.62″x9.85″x1.75″ |
Listings | UL , DLC Standard | Product Type | High Bay |
Generation | G1 | Color & Finish | White Polyester Finish |
Housing | Aluminum alloy with advanced thermal management | Light Source | LED – Selectable |
Voltage Rating | Standard 120-277V, HVU 347-480V | Warranty | 5 Year |
Labor Warranty | No |
TYPES | LUMENS/WATTS | GENERATION | VOLTAGE | CCT | FINISH | OPTIONS |
---|---|---|---|---|---|---|
Selectable Linear High Bay | Selectable Values 12000 Lm/86W 18000 Lm/129W 24000 Lm/172W 30000 Lm/210W |
Gen 1 | 120-277V 347-480V |
4000K/5000K Selectable | White | No Options Bi-level Motion Sensor For High Bay Emergency Battery Kit No Options Pendant Hanger Monopoint Splice Box No Options Wire Guard for HEC |
Part Number | Description |
---|---|
MS-ANT-6-4T | |
RC-100 | |
EL UNV-15W-LH-HEC | |
WG-HE12 | |

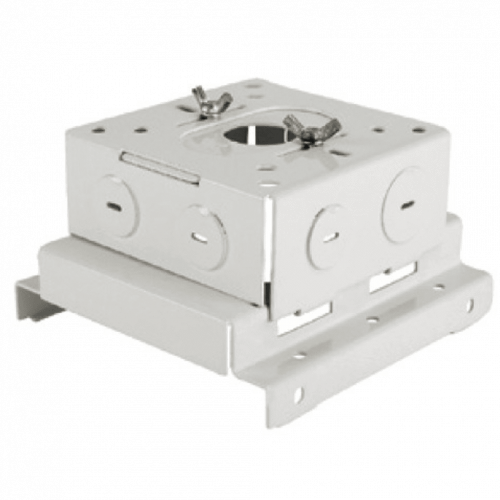

HEC PM |
