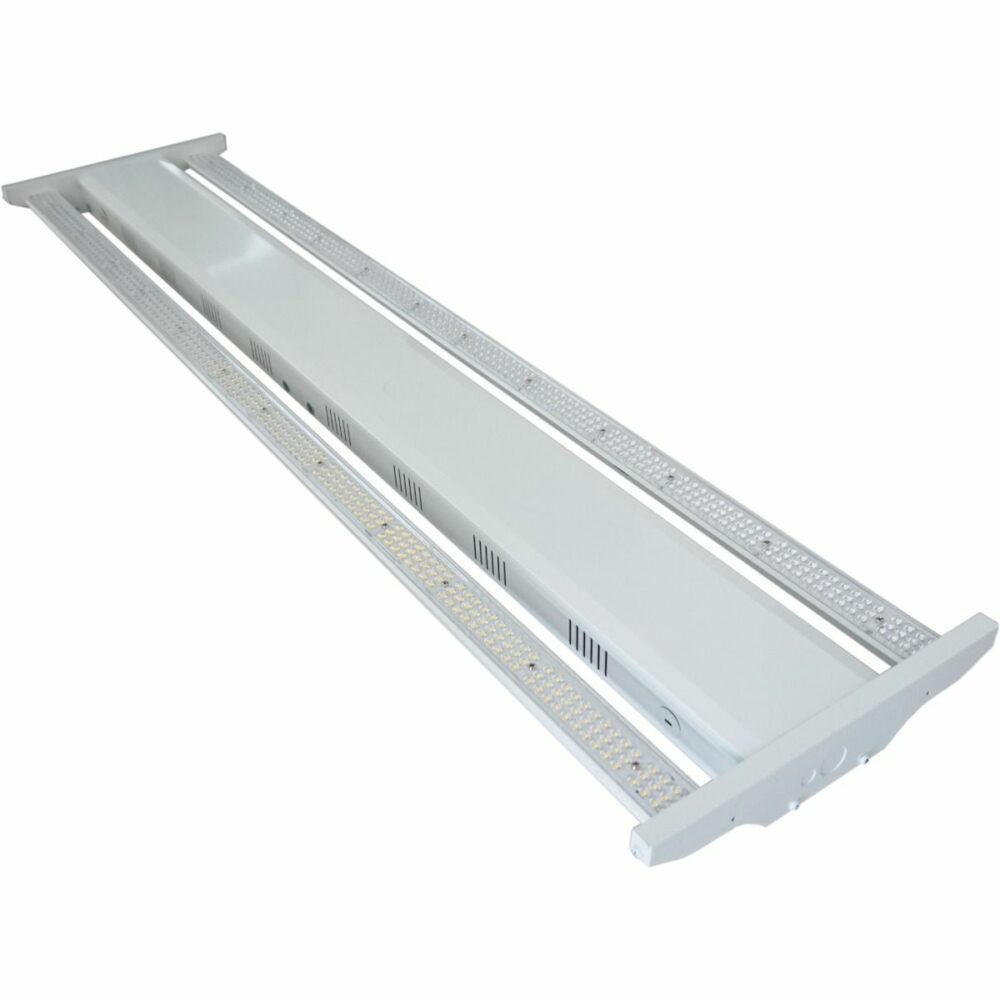

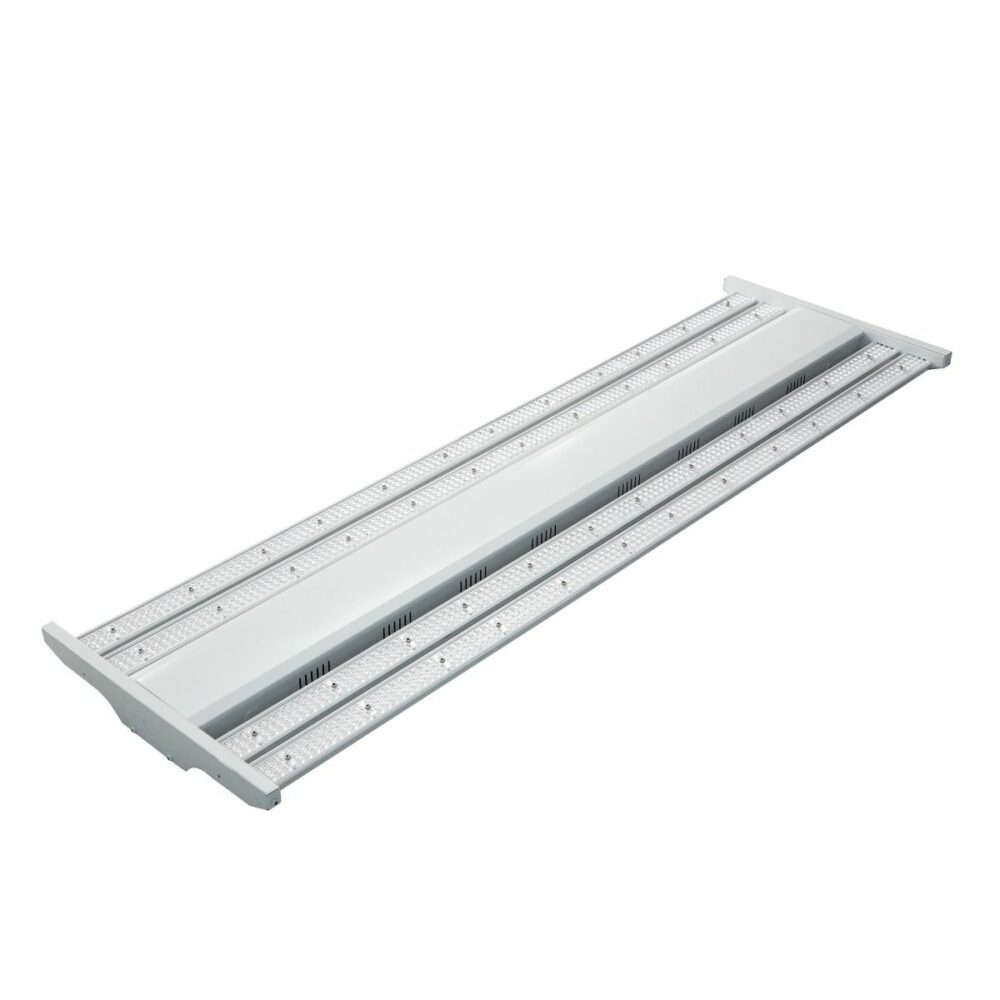

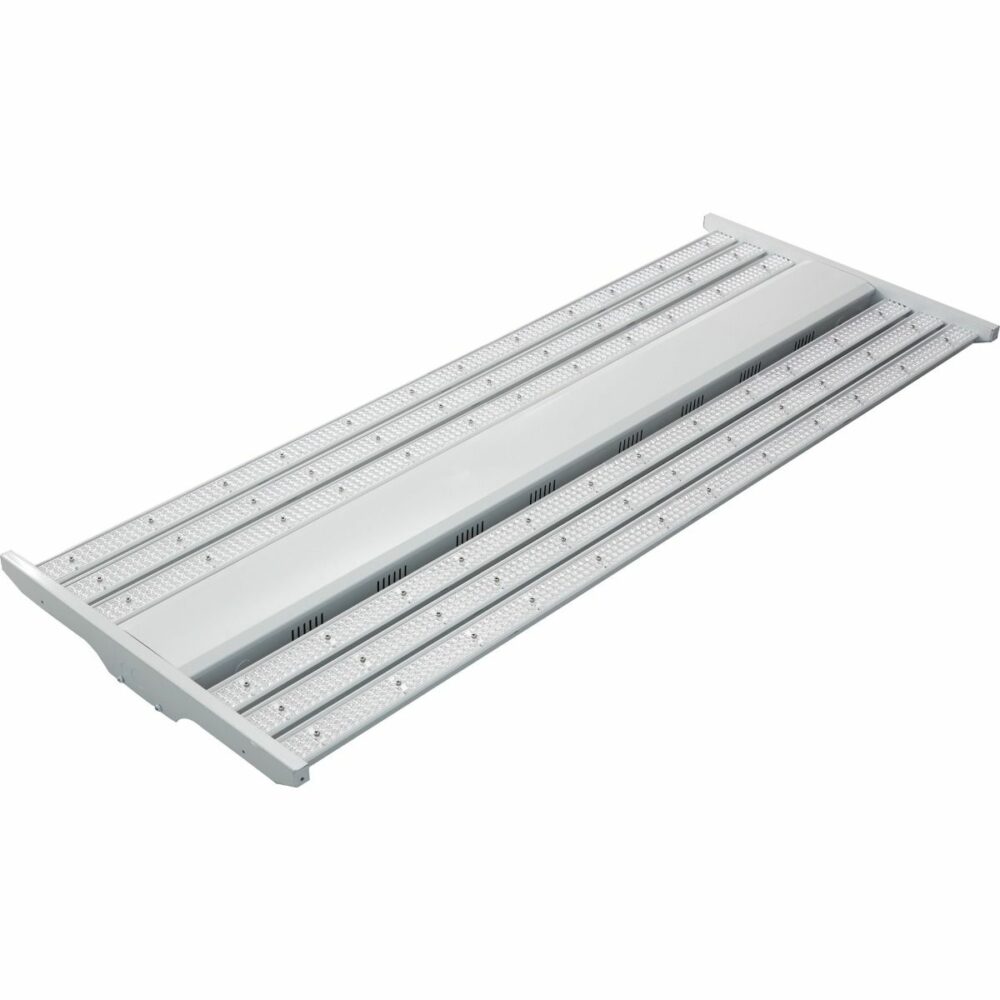

The HL Linear High Bay Series Gen 3 comes in lumen outputs between 18,000 and 60,000 lumens with Suspended, Surface, and Pendant mounting. The narrow body design features an aisle distribution that improves vertical illumination where desired. This industrial LED luminaire is ideal for lighting large indoor spaces.
APPLICATIONS
Parking Garages, Walkways, Warehouses, etc.
REPLACEMENT
4 Lamp T5HO 54W, 6 Lamp T5HO 54W, 8-10 Lamp T5HO 54W
| Product Series | Performance | Wattage | 120W , 160W , 200W , 240W , 320W , 400W |
| Lumen Output | 18000 LM , 24000 LM , 30000 LM , 36000 LM , 48000 LM , 60000 LM | Correlated Color Temperature (CCT) | 5000K |
| Color Rendering Index (CRI) | 85 | Product Lens | Frosted Lens, Aisle Lens |
| Control | Motion Sensor, Wireless Controller | Accessories | Emergency Battery Kit, Surge Protection |
| Mounting Type | Standard V-hook Mount, Optional Surface and Pendant Mount | Environment | Indoor |
| Shape | Rectangle | Product Sizes | 3 Sizes – 12in x 48in, 15in x 48in, 19in x 48in |
| Listings | UL Listed for damp locations , DLC Premium , FCC, RoHs | Product Type | High Bay |
| Generation | G3 | Color & Finish | White Polyester Gloss finish with less than 91% reflectivity |
| Housing | Aluminum alloy | Light Source | LED – Static |
| Voltage Rating | Standard 120-277V, HVU 347-480V | Warranty | 10 Year |
| Labor Warranty | Yes |
| TYPES | LUMENS | OPTICS | GENERATION | VOLTAGE | CCT | FINISH | OPTIONS |
|---|---|---|---|---|---|---|---|
| Linear High Bay | 18000 Lm 120W 1×4 4000 Lm 160W 1×4 30000 Lm 200W 1×4 36000 Lm 240W 1×4 48000 Lm 320W 1.5×4 60000 Lm 400W 2×4 | Aisle Lens Frosted Lens | Gen 3 | 120-277V 347-480V | 5000K | White | No Options External On/Off Sensor Remote Configurable Dimming Sensor w/L3 Lens Remote Configurable Dimming Sensor w/L7 Lens Standard Dimming Sensor w/L3 Lens Standard Dimming Sensor w/L7 Lens Economic Dimming Sensor Bluetooth Controller Bluetooth Controller with Occupancy and Daylight Sensor No Options 25W Emergency Battery No Options 5KA/10KV Surge Protection device single phase 10KA/20KV Surge Protection device single phase Standard 5 ft Aircraft Cable 6 ft Power Cord Straight Cord 18 Gauge 3 Conductors Black 6 ft Power Cord Twist-lock Plug Type 3 Conductors Black 6 ft Power Cord 12 Gauge 3 Conductors MC Solid Cable No Plug 6 ft Power Cord 16 Gauge 3 Conductors SO Black Cord No Plug 3.5 ft Power Cord 18 Gauge 5 Conductors Black Cord No Plug |
| Part Number | Description |
|---|---|
| EL UNV-25W Emergency Battery Kit |  |
| HBP-112-L7-OEM |  |
| MS-FSP-212 Dimmable Motion Sensor |  |
| AVI-LVFA G1 |  |
| AVI-2301-PIR |  |
| Product Series | Performance | Wattage | 120W , 160W , 200W , 240W , 320W , 400W |
| Lumen Output | 18000 LM , 24000 LM , 30000 LM , 36000 LM , 48000 LM , 60000 LM | Correlated Color Temperature (CCT) | 5000K |
| Color Rendering Index (CRI) | 85 | Product Lens | Frosted Lens, Aisle Lens |
| Control | Motion Sensor, Wireless Controller | Accessories | Emergency Battery Kit, Surge Protection |
| Mounting Type | Standard V-hook Mount, Optional Surface and Pendant Mount | Environment | Indoor |
| Shape | Rectangle | Product Sizes | 3 Sizes – 12in x 48in, 15in x 48in, 19in x 48in |
| Listings | UL Listed for damp locations , DLC Premium , FCC, RoHs | Product Type | High Bay |
| Generation | G3 | Color & Finish | White Polyester Gloss finish with less than 91% reflectivity |
| Housing | Aluminum alloy | Light Source | LED – Static |
| Voltage Rating | Standard 120-277V, HVU 347-480V | Warranty | 10 Year |
| Labor Warranty | Yes |
| TYPES | LUMENS | OPTICS | GENERATION | VOLTAGE | CCT | FINISH | OPTIONS |
|---|---|---|---|---|---|---|---|
| Linear High Bay | 18000 Lm 120W 1×4 4000 Lm 160W 1×4 30000 Lm 200W 1×4 36000 Lm 240W 1×4 48000 Lm 320W 1.5×4 60000 Lm 400W 2×4 | Aisle Lens Frosted Lens | Gen 3 | 120-277V 347-480V | 5000K | White | No Options External On/Off Sensor Remote Configurable Dimming Sensor w/L3 Lens Remote Configurable Dimming Sensor w/L7 Lens Standard Dimming Sensor w/L3 Lens Standard Dimming Sensor w/L7 Lens Economic Dimming Sensor Bluetooth Controller Bluetooth Controller with Occupancy and Daylight Sensor No Options 25W Emergency Battery No Options 5KA/10KV Surge Protection device single phase 10KA/20KV Surge Protection device single phase Standard 5 ft Aircraft Cable 6 ft Power Cord Straight Cord 18 Gauge 3 Conductors Black 6 ft Power Cord Twist-lock Plug Type 3 Conductors Black 6 ft Power Cord 12 Gauge 3 Conductors MC Solid Cable No Plug 6 ft Power Cord 16 Gauge 3 Conductors SO Black Cord No Plug 3.5 ft Power Cord 18 Gauge 5 Conductors Black Cord No Plug |
| Part Number | Description |
|---|---|
| EL UNV-25W Emergency Battery Kit |  |
| HBP-112-L7-OEM |  |
| MS-FSP-212 Dimmable Motion Sensor |  |
| AVI-LVFA G1 |  |
| AVI-2301-PIR |  |
