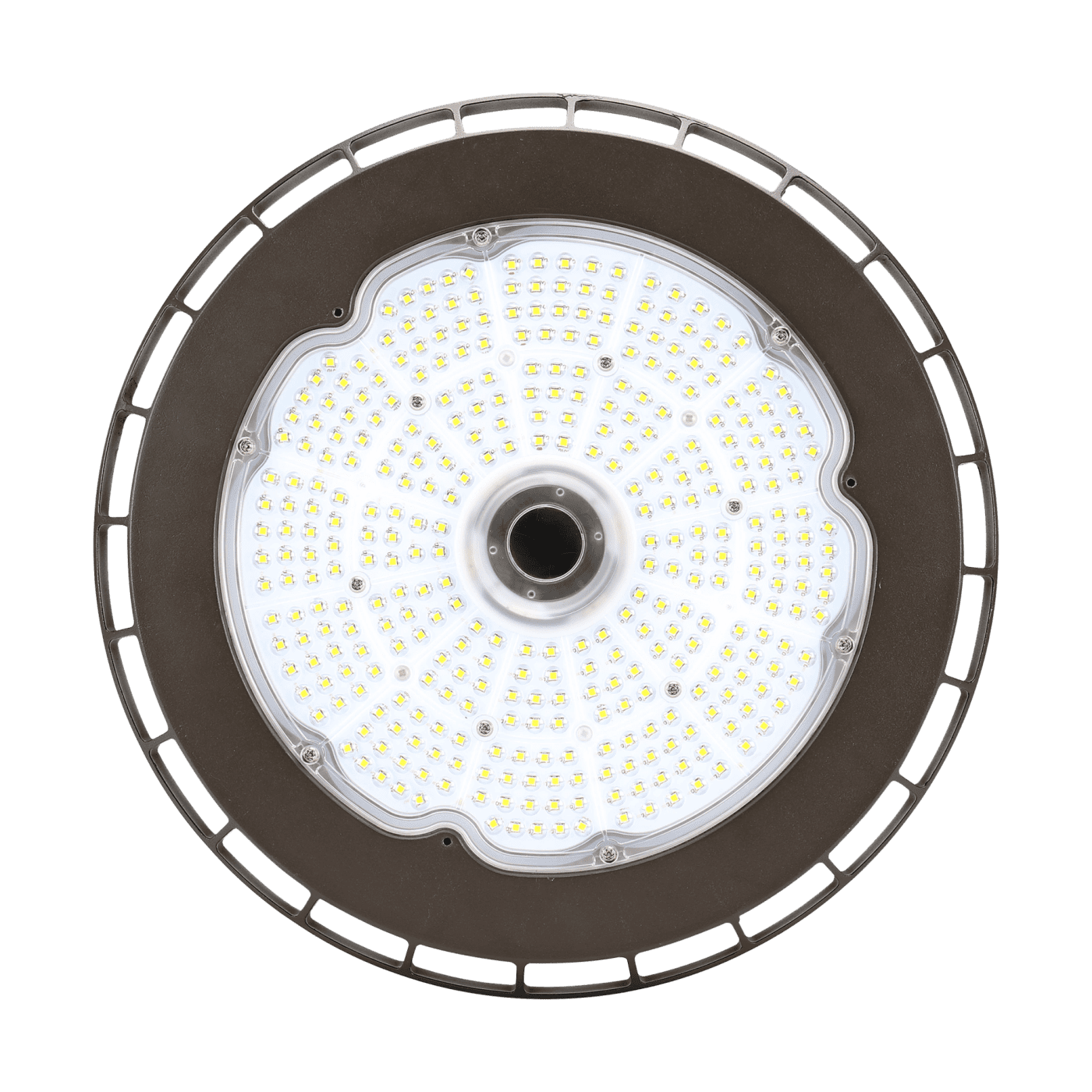

The High Bay Round Series Gen 3 is a one-for-one replacement for HID high bay luminaires that is designed to withstand harsh environments with its robust cast aluminum housing. This powerful luminaire produces as much as 29,000 lumens and offers 120 degree beam angle depending on the reflector used.
APPLICATIONS
Commercial, Retail and Institutional Applications, etc.
REPLACEMENT
250W – 400W MH
| Product Series | Performance | Wattage | 100W, 135W , 175W , 200W |
| Lumen Output | 19200 LM , 25000 LM , 29000 LM | Correlated Color Temperature (CCT) | 4000K , 5000K |
| Color Rendering Index (CRI) | 72 | Control | Motion Sensor On/Off |
| Accessories | Emergency Battery Kit | Mounting Type | Pendent Mount , Hook Mount |
| Environment | Indoor | Shape | Round |
| Listings | UL , DLC Standard , FCC | Product Type | High Bay |
| Generation | G3 | Color & Finish | Dark Bronze Polyester Powder |
| Light Source | LED – Static | Voltage Rating | Standard 120-277V, HVU 347-480V |
| Warranty | 10 Year | Labor Warranty | Yes |
| TYPES | LUMENS | OPTICS | GENERATION | VOLTAGE | CCT | REFLECTOR | FINISH | OPTIONS |
|---|---|---|---|---|---|---|---|---|
| Round High Bay | 14000 Lm 100W 19200 Lm 135W 25000 Lm 175W 29000 LM 200W | Medium Lens 90° Wide Lens 120° | Gen 3 | 120-277V 347-480V | 4000K 5000K | No Reflector 16in Acrylic Shallow Reflector 16in Acrylic Shallow Reflector with Conical Drop Lens 16in Acrylic Shallow Reflector with Tapered Drop Lens Aluminum Reflector Open Bottom | Dark Bronze | No Options Fixture Integrated PIR Outdoor Motion/Photo sensor w/L3 Lens Fixture Integrated PIR Outdoor Motion/Photo sensor w/L7 Lens No Options Emergency Battery No Options 5KA/10KV Surge Protection device single phase 10KA/20KV Surge Protection device single phase Standard 3ft power cord 18 gauge with 3 conductors 6 ft power cord Straight Cord 18 gauge 3 conductors Black 6 ft power cord Twist-Lock Plug Type 3 conductors Black Optional with L5-15P L5-20P L6-15P L7-15P L7-20P L8-20P 6 ft power cord 12 Gauge 3 conductors MC Solid Cable No Plug 6 ft power cord 16 Gauge 3 conductors SO Black Cord No Plug 3.5 ft power cord 18 Gauge 5 conductors Black No Plug |
| Part Number | Description |
|---|---|
| MS-FSP-212 Dimmable Motion Sensor |  |
| EL UNV-16 |  |
| SS450-02 On-Site Wireless Controller |  |
| Product Series | Performance | Wattage | 100W, 135W , 175W , 200W |
| Lumen Output | 19200 LM , 25000 LM , 29000 LM | Correlated Color Temperature (CCT) | 4000K , 5000K |
| Color Rendering Index (CRI) | 72 | Control | Motion Sensor On/Off |
| Accessories | Emergency Battery Kit | Mounting Type | Pendent Mount , Hook Mount |
| Environment | Indoor | Shape | Round |
| Listings | UL , DLC Standard , FCC | Product Type | High Bay |
| Generation | G3 | Color & Finish | Dark Bronze Polyester Powder |
| Light Source | LED – Static | Voltage Rating | Standard 120-277V, HVU 347-480V |
| Warranty | 10 Year | Labor Warranty | Yes |
| TYPES | LUMENS | OPTICS | GENERATION | VOLTAGE | CCT | REFLECTOR | FINISH | OPTIONS |
|---|---|---|---|---|---|---|---|---|
| Round High Bay | 14000 Lm 100W 19200 Lm 135W 25000 Lm 175W 29000 LM 200W | Medium Lens 90° Wide Lens 120° | Gen 3 | 120-277V 347-480V | 4000K 5000K | No Reflector 16in Acrylic Shallow Reflector 16in Acrylic Shallow Reflector with Conical Drop Lens 16in Acrylic Shallow Reflector with Tapered Drop Lens Aluminum Reflector Open Bottom | Dark Bronze | No Options Fixture Integrated PIR Outdoor Motion/Photo sensor w/L3 Lens Fixture Integrated PIR Outdoor Motion/Photo sensor w/L7 Lens No Options Emergency Battery No Options 5KA/10KV Surge Protection device single phase 10KA/20KV Surge Protection device single phase Standard 3ft power cord 18 gauge with 3 conductors 6 ft power cord Straight Cord 18 gauge 3 conductors Black 6 ft power cord Twist-Lock Plug Type 3 conductors Black Optional with L5-15P L5-20P L6-15P L7-15P L7-20P L8-20P 6 ft power cord 12 Gauge 3 conductors MC Solid Cable No Plug 6 ft power cord 16 Gauge 3 conductors SO Black Cord No Plug 3.5 ft power cord 18 Gauge 5 conductors Black No Plug |
| Part Number | Description |
|---|---|
| MS-FSP-212 Dimmable Motion Sensor |  |
| EL UNV-16 |  |
| SS450-02 On-Site Wireless Controller |  |
LEDs can be programmed to create dynamic lighting effects that enhance the game-day experience for everyone involved and can provide superior lighting for playing fields and arenas, improving visibility for athletes and spectators alike.
One of the biggest benefits of commercial LED lighting is the decrease in energy costs. Traditional incandescent and metal-halide lights can use up to four times as much energy as commercial LED lights. This decrease in energy consumption not only saves money, but also helps reduce your facility’s carbon footprint.
Commercial LED lights also last much longer than traditional lighting options. While incandescent bulbs typically only last around 1,000 hours, commercial LED lights can last up to 100,000 hours. This not only reduces maintenance and replacement costs, but also reduces the amount of time your facility needs to be dark while lights are being replaced.
Another key benefit of commercial LED lighting is increased safety. Because commercial LED lights produce ve ry little heat, there is less risk of fire hazards. Additionally, commercial LED lights can be designed with specific light patterns that can help improve visibility for athletes and spectators alike. This improved visibility can help prevent accidents and injuries on the playing field or in the stands.
