L-Grid Edge Xtreme XL - Edge-Lit Flat Panel Troffer Series
L-Grid Edge Xtreme XL - Edge-Lit Flat Panel Troffer Series
L-Grid Edge Xtreme XL - Edge-Lit Flat Panel Troffer Series

EdgeBeam XL

Edge-Lit Flat Panel Troffer Series
L-Grid Edge Xtreme XL - Edge-Lit Flat Panel Troffer Series
L-Grid Edge Xtreme XL - Edge-Lit Flat Panel Troffer Series
L-Grid Edge Xtreme XL - Edge-Lit Flat Panel Troffer Series
EdgeBeam XL National LEDEdgeBeam XL National LEDEdgeBeam XL National LEDEdgeBeam XL National LEDEdgeBeam XL National LED

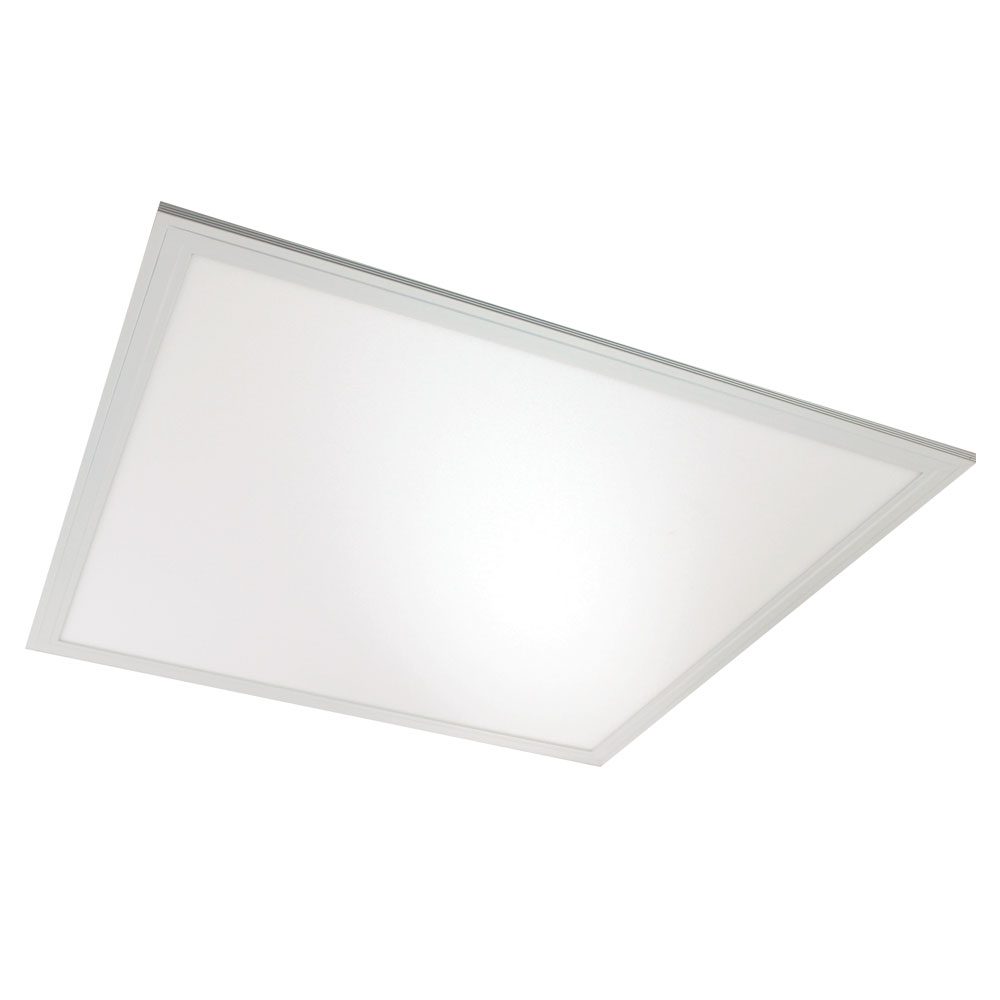

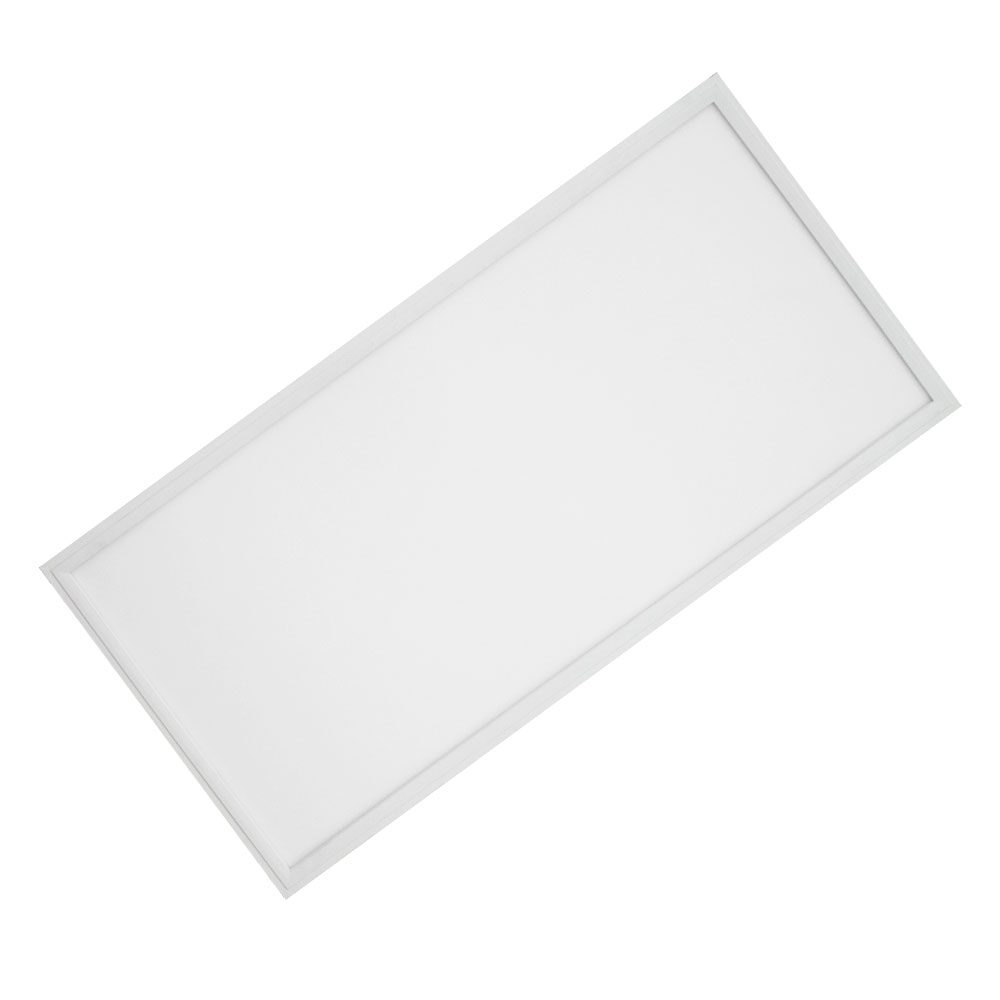

For a T-Grid new construction or retrofit application, the EdgeBeam XL LED troffer light stands ready. The EdgeBeam XL troffer is the total solution, providing an appealing and unobtrusive luminaire presence while simultaneously delivering extraordinary light through a flat, frosted lens. With convenient installation options available, integrating this luminaire into your workplace will be simple and straight-forward, regardless of the application.

  • Energy-efficient LED replacement for existing recessed fluorescent luminaires.

  • Available in 1×4, 2×2 & 2×4 models with lumen packages up to 5,180L.

  • Recessed or surface mounted.

Request a Quote

Next Day Shipping

10 Year Minimum Warranty

Expert Installation

Get a data sheet

Download data sheet
Features
Certifications
Ordering Information
Specifications
Energy Data
Accessories
Driver Ordering Information
  • 1×4, 2×2 & 2×4 Flat Panel (edge lit) Fixture
  • Type Non-IC Fixture
  • Class 2 compliant design (120-277V, limited power)
  • Fixture dimmable via Mark 7 (0-10V) dimming interface
  • 10-year warranty
  • L-Grid Edge Xtreme XL
  • UL Listed (# E344008)
Series Size CCT CRI
FTR1 14 – 1×4
22 – 2×2
24 – 2×4		 35 – 3500K
40 – 4000K
50 – 5000K		 80 – 80 min

Example: FTR1-14-35-80

1×4 Troffer 2×2 Troffer 2×4 Troffer
Dimensions (in.) 47.7″ x 11.7″ x 1.75″ 23.7″ x 23.7″ x 1.75″ 47.7″ x 23.7″ x 1.75″
Units/Carton 1 1 1
Net Weight (lbs.) 8.5 8 17
Environmental Rating Dry Dry Dry
1×4 Troffer 2×2 Troffer 2×4 Troffer
Energy Data 3500K 4000K 5000K 3500K 4000K 5000K 3500K 4000K 5000K
Input Voltage (VAC) 120-277 120-277 120-277 120-277 120-277 120-277 120-277 120-277 120-277
System Level Power (W) 40.5 40.5 40.5 40.5 40.5 40.5 40.5 40.5 40.5
Delivered Lumens (L) 4,450 4,500 4,550 4,750 5,000 5,000 6,000 6,100 6,200
System Efficacy (L/W) 110 111 112 113 119 119 118 120 122
Color Temperature (K) 3500 4000 5000 3500 4000 5000 3500 4000 5000
Color Rendering Index (CRI) 80 min 80 min 80 min 80 min 80 min 80 min 80 min 80 min 80 min
L70 Calculated Life (Hrs.)* >200,000 >200,000 >200,000 >200,000 >200,000 >200,000 >200,000 >200,000 >200,000
L85 Calculated Life (Hrs.)* 168,000 168,000 168,000 168,000 168,000 168,000 168,000 168,000 168,000
Operating Temperature (°C) -30 to 45 -30 to 45 -30 to 45 -30 to 45 -30 to 45 -30 to 45 -30 to 45 -30 to 45 -30 to 45
Ordering Part Number Description
FPSM1-14-Kit 1×4 Flat Panel Surface Mount Kit
ILB-CP12-A IOTA Battery Backup
Series Voltage Current
FTU UNV2 – 120-277V 1050 – 1050mA

Features

  • 1×4, 2×2 & 2×4 Flat Panel (edge lit) Fixture
  • Type Non-IC Fixture
  • Class 2 compliant design (120-277V, limited power)
  • Fixture dimmable via Mark 7 (0-10V) dimming interface
  • 10-year warranty
  • L-Grid Edge Xtreme XL

Certifications

  • UL Listed (# E344008)

Ordering Information

Series Size CCT CRI
FTR1 14 – 1×4
22 – 2×2
24 – 2×4		 35 – 3500K
40 – 4000K
50 – 5000K		 80 – 80 min

Example: FTR1-14-35-80

Specifications

1×4 Troffer 2×2 Troffer 2×4 Troffer
Dimensions (in.) 47.7″ x 11.7″ x 1.75″ 23.7″ x 23.7″ x 1.75″ 47.7″ x 23.7″ x 1.75″
Units/Carton 1 1 1
Net Weight (lbs.) 8.5 8 17
Environmental Rating Dry Dry Dry

Energy Data

1×4 Troffer 2×2 Troffer 2×4 Troffer
Energy Data 3500K 4000K 5000K 3500K 4000K 5000K 3500K 4000K 5000K
Input Voltage (VAC) 120-277 120-277 120-277 120-277 120-277 120-277 120-277 120-277 120-277
System Level Power (W) 40.5 40.5 40.5 40.5 40.5 40.5 40.5 40.5 40.5
Delivered Lumens (L) 4,450 4,500 4,550 4,750 5,000 5,000 6,000 6,100 6,200
System Efficacy (L/W) 110 111 112 113 119 119 118 120 122
Color Temperature (K) 3500 4000 5000 3500 4000 5000 3500 4000 5000
Color Rendering Index (CRI) 80 min 80 min 80 min 80 min 80 min 80 min 80 min 80 min 80 min
L70 Calculated Life (Hrs.)* >200,000 >200,000 >200,000 >200,000 >200,000 >200,000 >200,000 >200,000 >200,000
L85 Calculated Life (Hrs.)* 168,000 168,000 168,000 168,000 168,000 168,000 168,000 168,000 168,000
Operating Temperature (°C) -30 to 45 -30 to 45 -30 to 45 -30 to 45 -30 to 45 -30 to 45 -30 to 45 -30 to 45 -30 to 45

Accessories

Ordering Part Number Description
FPSM1-14-Kit 1×4 Flat Panel Surface Mount Kit
ILB-CP12-A IOTA Battery Backup

Driver Ordering Information

Series Voltage Current
FTU UNV2 – 120-277V 1050 – 1050mA

Frequently Asked Questions

What is the difference between an LED troffer and an LED flat panel?

A troffer has a traditional recessed housing that fits into T-bar ceilings and usually replaces older fluorescent troffers. A flat panel is a slim, edge-lit or back-lit LED panel that offers a modern look with very even light distribution. Panels are thinner and lighter, while troffers maintain a more traditional fixture structure.

Can troffers and panels replace my old fluorescent fixtures?

Yes. Both options are ideal for replacing 2×2, 1×4, and 2×4 fluorescent troffers. They improve efficiency, eliminate ballast maintenance, and provide brighter, flicker-free illumination. Many retrofit kits let you keep your existing housing if needed.

How energy efficient are LED troffers and panels compared to fluorescent lighting?

LED troffers and panels typically reduce energy use by 40 to 70 percent, depending on the model. They also last much longer, reducing service calls and eliminating ballast and lamp replacements.

Do troffers and panels support dimming or control systems?

Yes. Most models include 0–10V dimming and can connect to control options like:

  • Occupancy sensors
  • Daylight harvesting
  • Wireless lighting control systems
  • Building automation platforms

Controls help meet modern energy codes and improve comfort in offices and schools.

Are LED panels and troffers good for offices, schools, and medical facilities?

They are some of the most common choices for these applications because they offer:

  • Soft, evenly diffused illumination
  • Low glare for screens and whiteboards
  • High CRI for accurate color
  • Quiet, flicker-free operation

They also help reduce eye strain in long workday environments.

How long do LED troffers and panels last and what maintenance is required?

Most fixtures last 50,000 to 100,000 hours, depending on driver quality and heat management. Because they use integrated LEDs instead of tubes, there are no lamps or ballasts to replace. Occasional dusting or lens cleaning is usually all that’s needed.
