Troffer Luminaire Series

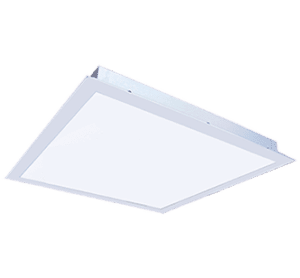

For T-Grid new construction or one-for-one replacement applications, the L-Grid®2EH 2×2 troffer stands ready. It is the total solution, providing an appealing and unobtrusive luminaire presence while simultaneously delivering extraordinary light through a flat, frosted lens. With convenient installation options available, integrating this luminaire into your workplace will be simple and straight-forward, regardless of the application.
Series | Size | CCT | CRI | Voltage | Flux Level | Air Return | Lens |
---|---|---|---|---|---|---|---|
GTR2 | 22EH | 35 – 3500K 40 – 4000K 50 – 5000K |
80 – 80 min | UNV2 – 120-277V | B – Base S – Standard M – Medium H – High |
A – Air Return N – No Air Return |
F – Frosted |
GTR2-22EH-35-80-UNV2-B-A-F
Spec Type | Base Flux | Standard Flux | Medium Flux | High Flux2 |
---|---|---|---|---|
Color Temperature (K) | 3,500 | 4,000 | 5,000 | ,500 | 4,000 | 5,000 | ,500 | 4,000 | 5,000 | 5,000 |
Input Voltage (VAC) | 120-277 | 120-277 | 120-277 | 120-277 |
System Level Power (W) | 27.6 | 42.5 | 64.6 | 195.7 |
Delivered Lumens (Lm) | 3,120 | 3,245 | 3,400 | 4,505 | 4,765 | 5,010 | 6,120 | 6,500 | 6,840 | 21,480 |
System Efficacy (Lm/W) | 113 | 118 | 123 | 106 | 112 | 118 | 95 | 101 | 106 | 110 |
Color Rendering Index (CRI) | 80 min | 80 min | 80 min | 80 min |
L70 Calculated Life (Hrs.)1 | 200,000 | 200,000 | 200,000 | 181,000 |
L85 Calculated Life (Hrs.)1 | 115,000 | 115,000 | 115,000 | 81,000 |
Operating Temperature (°C) | -40 to 45 | -40 to 45 | -40 to 45 | -40 to 30 |
Spec Type | Data |
---|---|
Dimensions | 23.7″ x 23.7″ x 3.8″ |
Units/Carton | 1 |
Net Weight | 15 lbs. |
Environmental Rating | Dry |
Part Number | Description |
---|---|
DW-22TX | 2×2 Troffer Drywall Flange Kit |
ILB-CP12-A | IOTA Battery Backup | Low Voltage |
CMR-10-ADC | Occupancy Sensor | 360° | Dimming | 120-277V | Ceiling Mount |
IP710-LFZ | Leviton Dimmer | 120/277VAC | 0-10V | Single-Pole & 3-Way |
