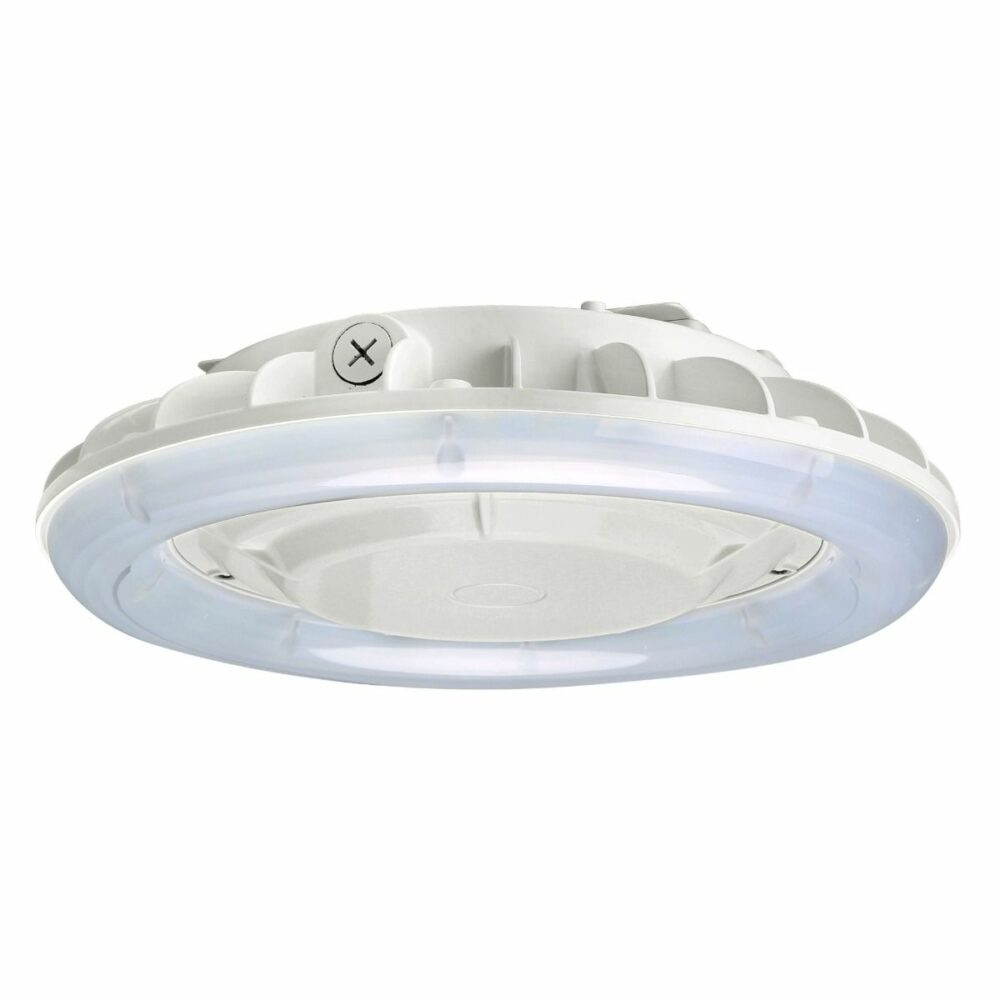

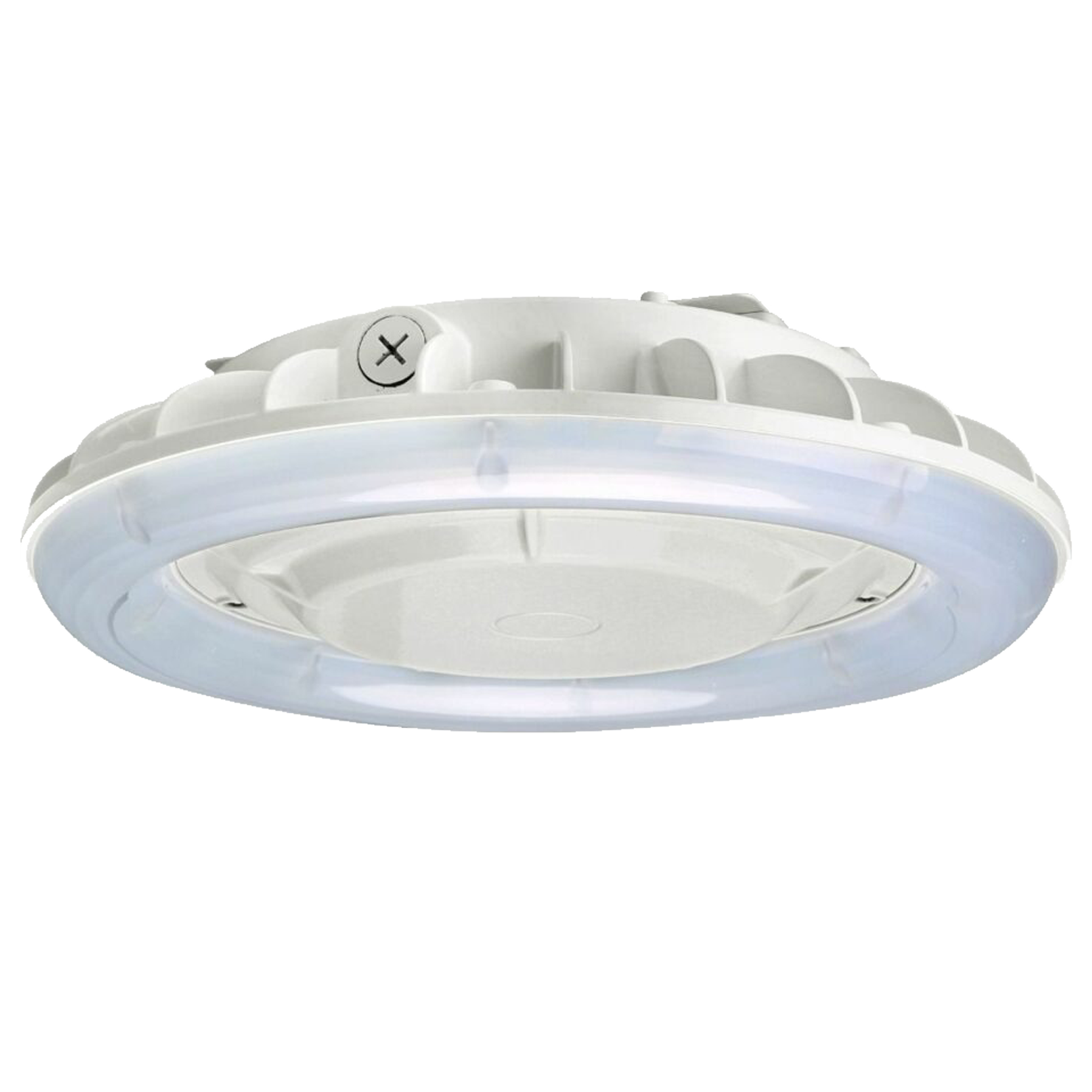

The ClearPark Pro Parking Garage Gen 2 Series offers lumen packages ranging from 3,550 to 11,600 lumens. An innovative lens design provides smooth and even distribution and directs the light to desired locations.
APPLICATIONS:
Parking Structures, Storage Areas, Entryways, and Low-Level Security Lighting.
REPLACEMENT:
100W – 250W MH
| Product Series | Performance | Wattage | 27W, 45W, 60W, 90W, |
| Lumen Output | 3550 LM , 5500 LM, 6000LM, 7600 LM, 11600 LM | Correlated Color Temperature (CCT) | 4000K , 5000K |
| Color Rendering Index (CRI) | 70 | Control | Motion Sensor |
| Accessories | Motion Sensor , Emergency Backup Kit | Mounting Type | Surface Mount, Pendant Mount |
| Environment | Outdoor | Shape | Circle |
| Listings | DLC Premium Pending , UL , FCC | Product Type | Garage Light |
| Generation | G2 | Color & Finish | Polyester Powder White Finish |
| Light Source | LED – Static | Voltage Rating | Standard 120-277V, HVU 347-480V some models |
| Warranty | 10 Year | Labor Warranty | Yes |
| TYPES | LUMENS | GENERATION | VOLTAGE | CCT | FINISH | OPTIONS |
|---|---|---|---|---|---|---|
| Round Parking Garage | 3500 Lm 27W 5500 Lm 45W 7500 Lm 60W 11500 Lm 90W | Gen 2 | 120-277V 347-480V | 4000K 5000K | White | No Options PIR Motion Sensor w/L2 Lens PIR Motion Sensor w/L3 Lens No Options |
| Part Number | Description |
|---|---|
| MS-FSP-202 Dimmable Motion Sensor |  |
| EL UNV-8 Emergency Battery Kit |  |
| Product Series | Performance | Wattage | 27W, 45W, 60W, 90W, |
| Lumen Output | 3550 LM , 5500 LM, 6000LM, 7600 LM, 11600 LM | Correlated Color Temperature (CCT) | 4000K , 5000K |
| Color Rendering Index (CRI) | 70 | Control | Motion Sensor |
| Accessories | Motion Sensor , Emergency Backup Kit | Mounting Type | Surface Mount, Pendant Mount |
| Environment | Outdoor | Shape | Circle |
| Listings | DLC Premium Pending , UL , FCC | Product Type | Garage Light |
| Generation | G2 | Color & Finish | Polyester Powder White Finish |
| Light Source | LED – Static | Voltage Rating | Standard 120-277V, HVU 347-480V some models |
| Warranty | 10 Year | Labor Warranty | Yes |
| TYPES | LUMENS | GENERATION | VOLTAGE | CCT | FINISH | OPTIONS |
|---|---|---|---|---|---|---|
| Round Parking Garage | 3500 Lm 27W 5500 Lm 45W 7500 Lm 60W 11500 Lm 90W | Gen 2 | 120-277V 347-480V | 4000K 5000K | White | No Options PIR Motion Sensor w/L2 Lens PIR Motion Sensor w/L3 Lens No Options |
| Part Number | Description |
|---|---|
| MS-FSP-202 Dimmable Motion Sensor | |
| EL UNV-8 Emergency Battery Kit | |
Garage lights are engineered for low ceilings, tight beam control, and wide angles to avoid shadows that can interfere with cars, pedestrians, and cameras. They also minimize glare to improve driver visibility.
Look for low-profile design, impact-resistant lenses, wide-distribution optics, flicker-free output, and high CRI for security cameras.
Instant-on LEDs remove the dark warm-up period of HID lighting. They improve camera clarity, eliminate shadows, and evenly illuminate parking spaces and drive aisles.
Many garage lights include IP65 ratings, surge protection, and corrosion-resistant housings to withstand moisture, car exhaust, and dust.
Yes. Bi-level dimming allows lights to dim to a low level when the garage is empty, then brighten when motion is detected. This is a major energy saver in low-traffic structures.

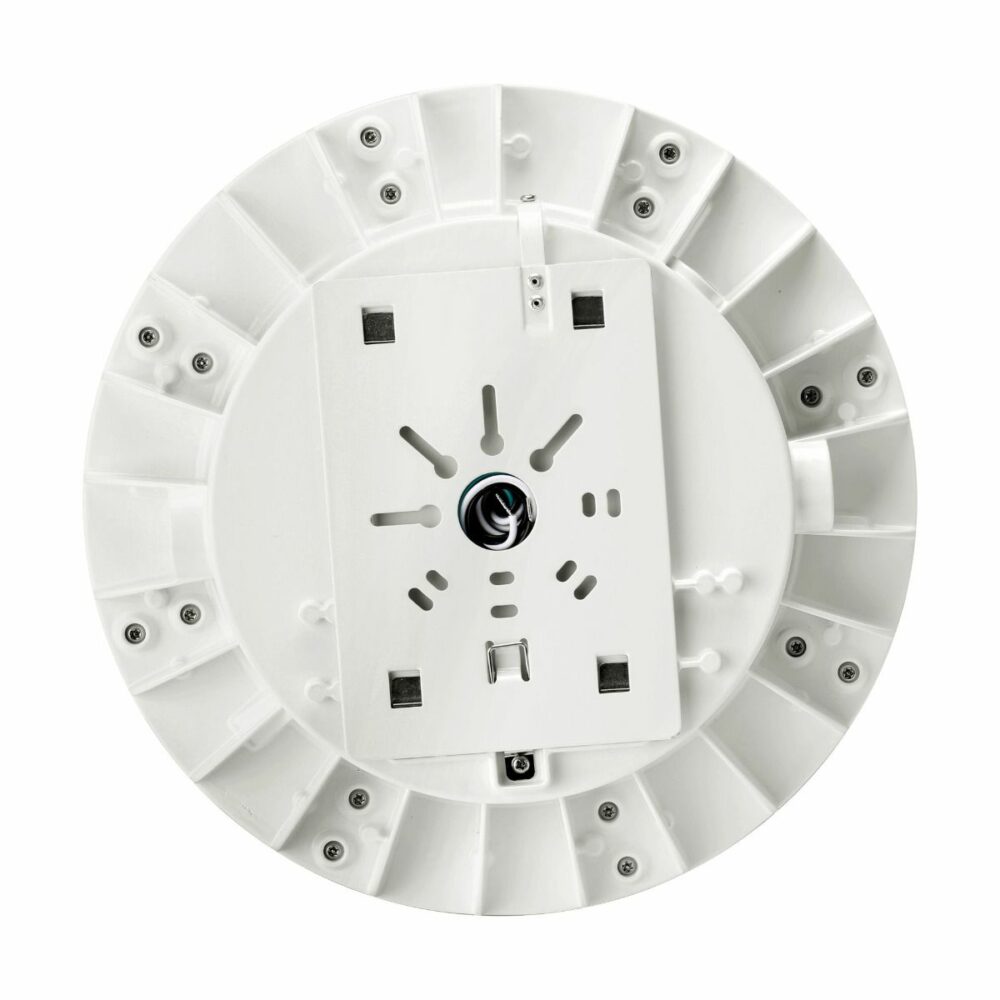

Most garage fixtures mount to standard junction boxes, making retrofits simple with minimal wiring changes.
