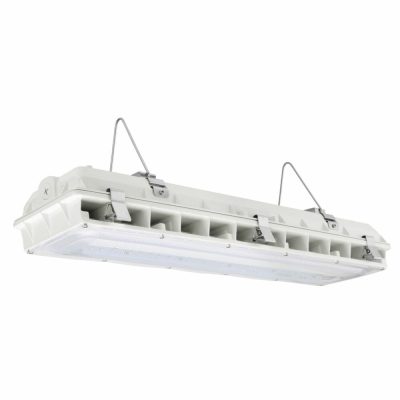

The ClearLine Parking Garage Linear Series Gen 1 is designed to provide powerful lighting in extreme environments. Fixtures are available in 2’ and 4’ lengths with motion sensor option. They are designed to replace 2 to 3 Lamp T8 32W and 2 to 3 T8 Lamp 17W.
APPLICATIONS
Warehouse, Cold Storage, Food Processing, Parking Garage
applications, etc.
REPLACEMENT
2 Lamp T8 32W, 3 Lamp T8 32W,
2 Lamp T8 17W, 3 Lamp T8 17W
| Product Series | Performance | Wattage | 30W , 40W , 45W , 60W |
| Lumen Output | 3430 LM , 4350 LM , 4950 LM , 6350 LM | Correlated Color Temperature (CCT) | 4000K , 5000K |
| Color Rendering Index (CRI) | 70 | Control | Motion Sensors |
| Accessories | Motion Sensor , Emergency Backup Kit | Mounting Type | Surface Mount , Chain Mount |
| Environment | Outdoor | Shape | Linear |
| Listings | DLC , NSF , FCC | Product Type | Garage Light |
| Generation | G1 | Color & Finish | Polyester Powder White Finish |
| Light Source | LED – Static | Voltage Rating | Standard 120-277V |
| Warranty | 10 Year | Labor Warranty | Yes |
| TYPES | SIZE | LUMENS | GENERATION | VOLTAGE | CCT | FINISH | OPTIONS |
|---|---|---|---|---|---|---|---|
| Gasketed Parking Garage | 2 ft 4 ft | 3430 Lm 30W 4350 Lm 40W 4950 Lm 45W 6350 Lm 60W | Gen 1 | 120-277V | 4000K 5000K | White Custom | No Options LOS-502S-E-C On/Off Motion Sensor HBP-212-L7-W Dimming Motion Sensor No Options |
| Part Number | Description |
|---|---|
| LOS-502S-E-C Motion Sensor On/Off |  |
| HBP-212-L7-W High Bay Sensor, Cont Dimming | |
| EL UNV-8 Emergency Battery Kit |  |
| SS450-02 On-Site Wireless Controller | |
| Product Series | Performance | Wattage | 30W , 40W , 45W , 60W |
| Lumen Output | 3430 LM , 4350 LM , 4950 LM , 6350 LM | Correlated Color Temperature (CCT) | 4000K , 5000K |
| Color Rendering Index (CRI) | 70 | Control | Motion Sensors |
| Accessories | Motion Sensor , Emergency Backup Kit | Mounting Type | Surface Mount , Chain Mount |
| Environment | Outdoor | Shape | Linear |
| Listings | DLC , NSF , FCC | Product Type | Garage Light |
| Generation | G1 | Color & Finish | Polyester Powder White Finish |
| Light Source | LED – Static | Voltage Rating | Standard 120-277V |
| Warranty | 10 Year | Labor Warranty | Yes |
| TYPES | SIZE | LUMENS | GENERATION | VOLTAGE | CCT | FINISH | OPTIONS |
|---|---|---|---|---|---|---|---|
| Gasketed Parking Garage | 2 ft 4 ft | 3430 Lm 30W 4350 Lm 40W 4950 Lm 45W 6350 Lm 60W | Gen 1 | 120-277V | 4000K 5000K | White Custom | No Options LOS-502S-E-C On/Off Motion Sensor HBP-212-L7-W Dimming Motion Sensor No Options |
| Part Number | Description |
|---|---|
| LOS-502S-E-C Motion Sensor On/Off | |
| HBP-212-L7-W High Bay Sensor, Cont Dimming | |
| EL UNV-8 Emergency Battery Kit | |
| SS450-02 On-Site Wireless Controller | |
Garage lights are engineered for low ceilings, tight beam control, and wide angles to avoid shadows that can interfere with cars, pedestrians, and cameras. They also minimize glare to improve driver visibility.
Look for low-profile design, impact-resistant lenses, wide-distribution optics, flicker-free output, and high CRI for security cameras.
Instant-on LEDs remove the dark warm-up period of HID lighting. They improve camera clarity, eliminate shadows, and evenly illuminate parking spaces and drive aisles.
Many garage lights include IP65 ratings, surge protection, and corrosion-resistant housings to withstand moisture, car exhaust, and dust.
Yes. Bi-level dimming allows lights to dim to a low level when the garage is empty, then brighten when motion is detected. This is a major energy saver in low-traffic structures.
Most garage fixtures mount to standard junction boxes, making retrofits simple with minimal wiring changes.
