SafeLot

Area Light
SafeLot National LED
SafeLot 6
SafeLot National LED
SafeLot 7
SafeLot National LED
SafeLot 8
SafeLot National LED
SafeLot 9
SafeLot National LED
SafeLot 10

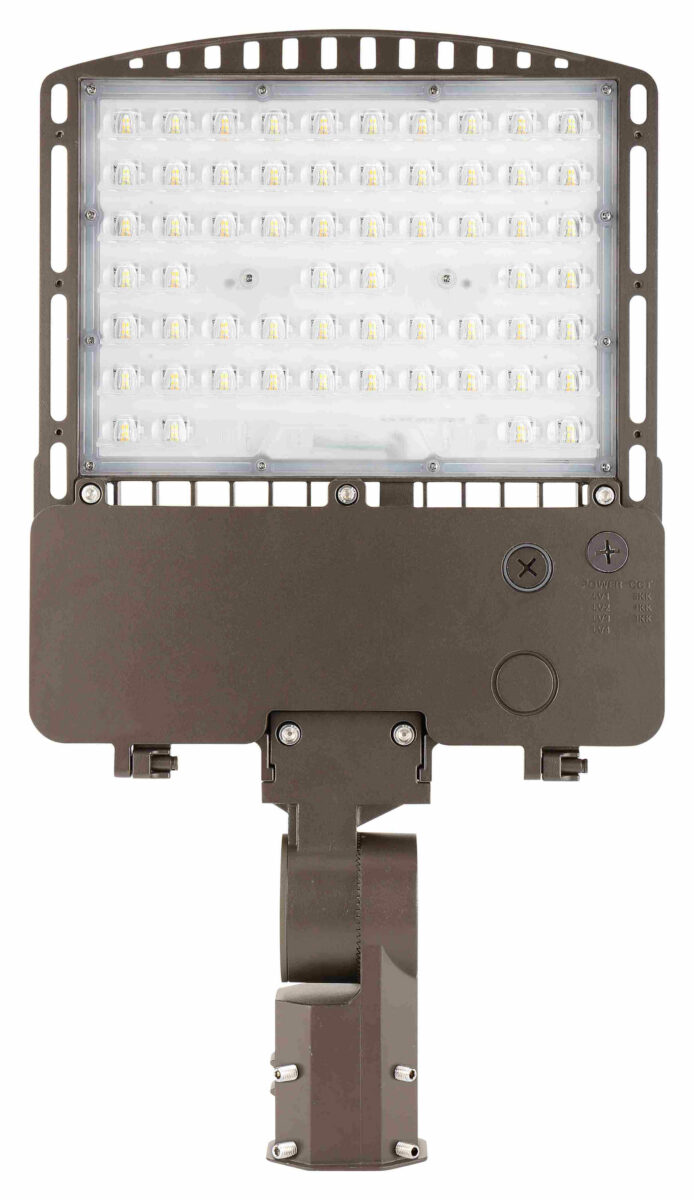

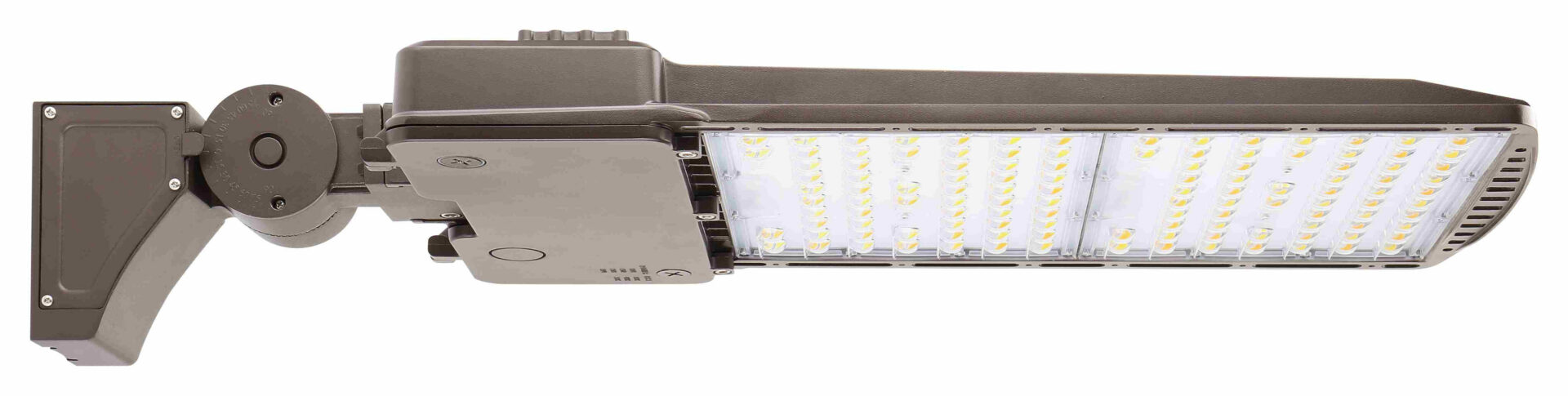

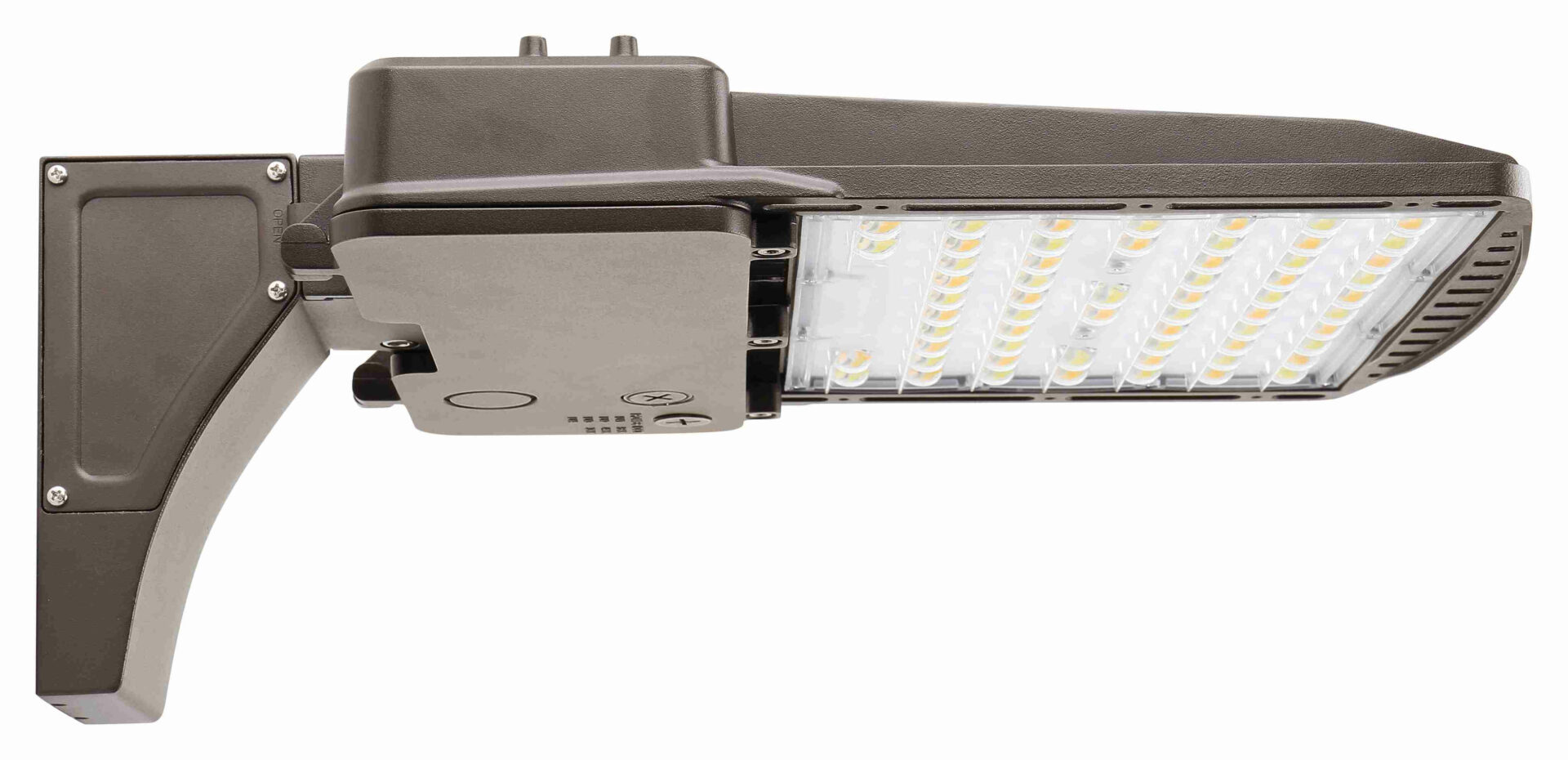

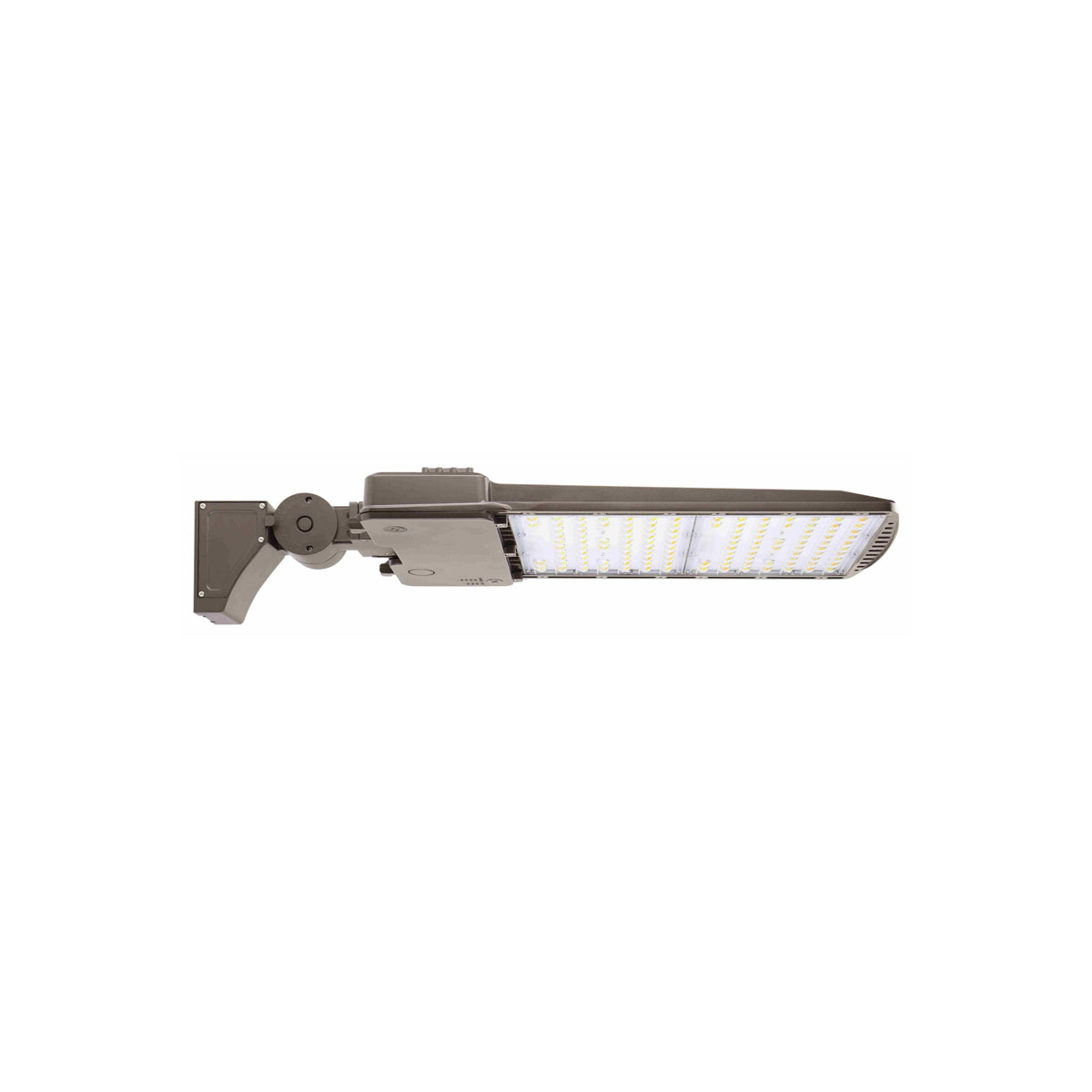

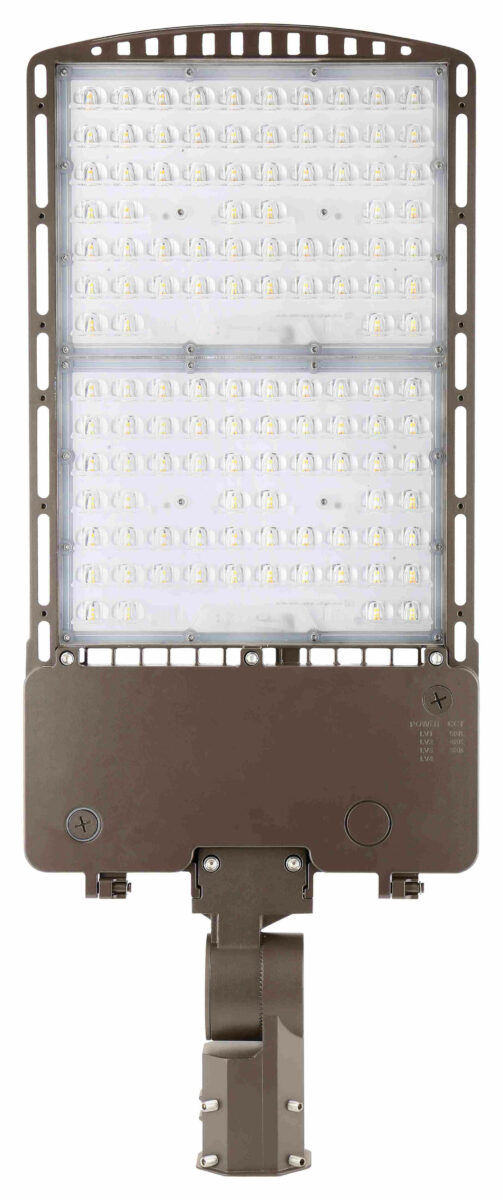

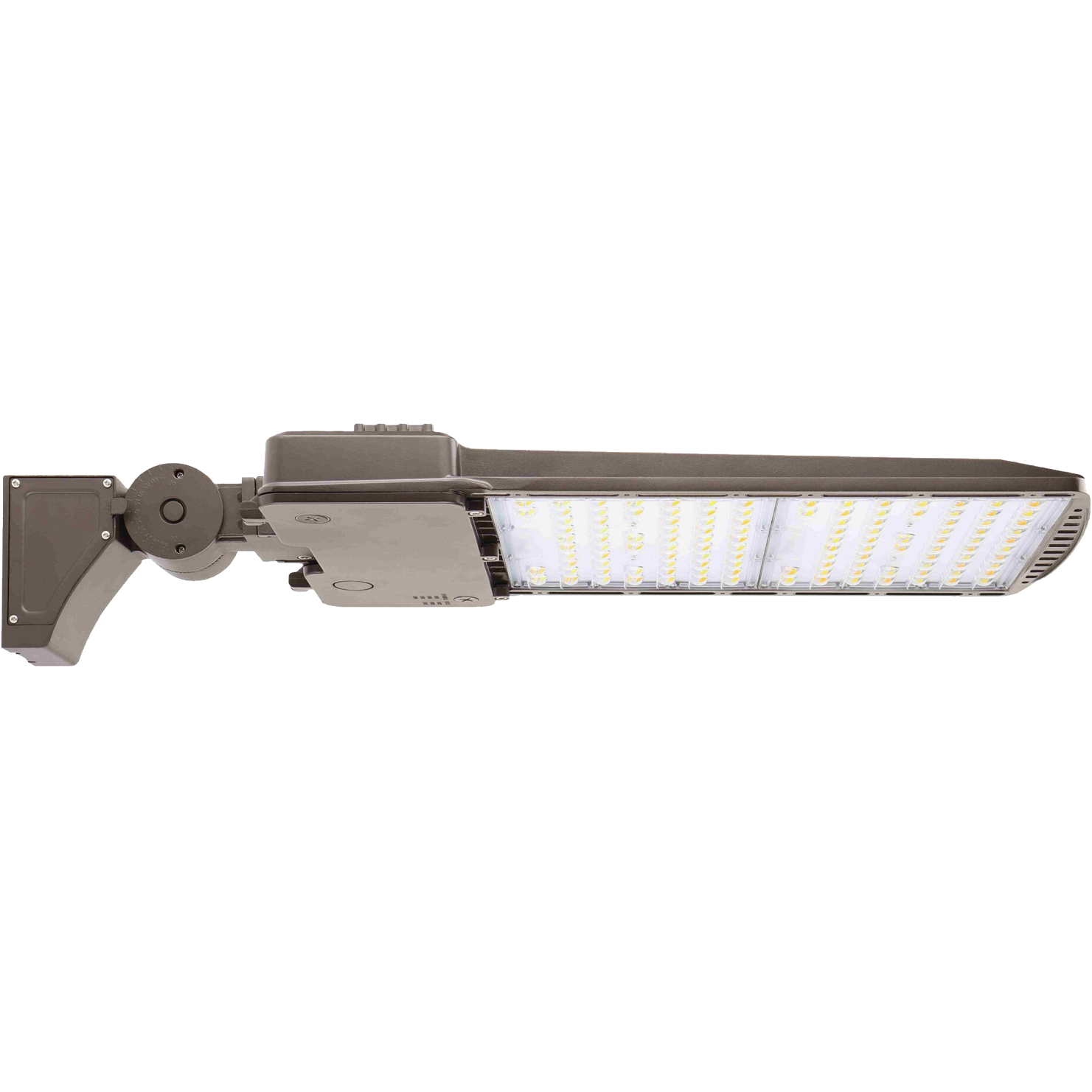

Our National LED boasts a modern design for easy integration into any setting. Its slim housing enhances heat management, while advanced LED technology ensures top-notch performance and efficiency. With adjustable power and color temperature settings, it meets diverse customer needs while reducing inventory pressure.

Next Day Shipping

5 Minimum Warranty

Expert Installation

Get a data sheet

Features
Product Applications
Product Certification/Approvals

Features

  • Efficiencies from 145 to 175 LM/W
  • Lumens from 6400 to 61000
  • Color selectable – 3000K, 4000K, 5000K and 4 level power adjustable.
  • Estimated 100,000+ hour lifespan, and is recognized for its quality with UL cUL wet location listing and DesignLights Consortium™ qualification.

Electrical

  • 120-277 VAC or 347-480 VAC input voltage options
  • 0-10V dimming standard for a dimming range of 100% to 10%.
  • Operating temperature is -40°F to 113°F

Mounting

  • Arm Mount, Slipfitter Mount, Wall Mount, and Yoke Mount

Construction

  • Durable, one-piece die-cast aluminum housing features a complete heat sink hat optimizes heat dissipation through convection cooling management.
  • Low profile, 3G vibration rated compact design minimizes wind load requirements.
  • Housing is completely sealed against moisture and environmental contaminants.
  • MAL08
  • Auto Dealerships
  • Parking Lots
  • Walkways
  • Roadways
  • Airport and Transportation Hubs



  • Campuses
  • Facade Lighting
  • Grocery Stores
  • Other Public Areas
  • Manufacturing and Industrial Facilities
  • DesignLights Consortium™ Qualified.
  • UL cUL wet location listed.

Features

Features

  • Efficiencies from 145 to 175 LM/W
  • Lumens from 6400 to 61000
  • Color selectable – 3000K, 4000K, 5000K and 4 level power adjustable.
  • Estimated 100,000+ hour lifespan, and is recognized for its quality with UL cUL wet location listing and DesignLights Consortium™ qualification.

Electrical

  • 120-277 VAC or 347-480 VAC input voltage options
  • 0-10V dimming standard for a dimming range of 100% to 10%.
  • Operating temperature is -40°F to 113°F

Mounting

  • Arm Mount, Slipfitter Mount, Wall Mount, and Yoke Mount

Construction

  • Durable, one-piece die-cast aluminum housing features a complete heat sink hat optimizes heat dissipation through convection cooling management.
  • Low profile, 3G vibration rated compact design minimizes wind load requirements.
  • Housing is completely sealed against moisture and environmental contaminants.
  • MAL08

Product Applications

  • Auto Dealerships
  • Parking Lots
  • Walkways
  • Roadways
  • Airport and Transportation Hubs



  • Campuses
  • Facade Lighting
  • Grocery Stores
  • Other Public Areas
  • Manufacturing and Industrial Facilities

Product Certification/Approvals

  • DesignLights Consortium™ Qualified.
  • UL cUL wet location listed.

Frequently Asked Questions

What are area lights designed to accomplish?

Area lights provide even, wide-coverage illumination for exterior spaces. They are engineered to reduce shadows, improve pedestrian and vehicle visibility, and offer security lighting for large properties such as campuses, industrial yards, parking lots, and retail centers.

How do beam patterns (Type II, III, IV, V) affect performance?

Beam patterns determine how light is shaped:

  • Type II: walkways and narrow streets
  • Type III: parking lots and general areas
  • Type IV: perimeters or edges of lots
  • Type V: large, open areas needing symmetrical coverage

Choosing the right optic prevents wasted light and reduces fixture count.

What factors determine the correct pole height?

Pole height depends on the required light levels, spacing between poles, the area being illuminated, and the optic of the fixture. Taller poles reduce shadows and improve uniformity but require higher wattage and stronger wind-load ratings.

How do area lights address dark-sky compliance?

Full-cutoff LEDs redirect all light downward. This reduces sky-glow, improves neighborhood relations, and helps meet local lighting ordinances.

Are LEDs more cost-effective than HID area lights?

LED area lights reduce energy use by up to 75 percent and eliminate re-lamp cycles. Most customers see an ROI within 12 to 24 months.

What options exist for controls and smart lighting integration?

Motion sensors, networked controls, wireless nodes, photocells, and scheduling allow for daylight matching, dimming, and energy trimming without onsite adjustments.
