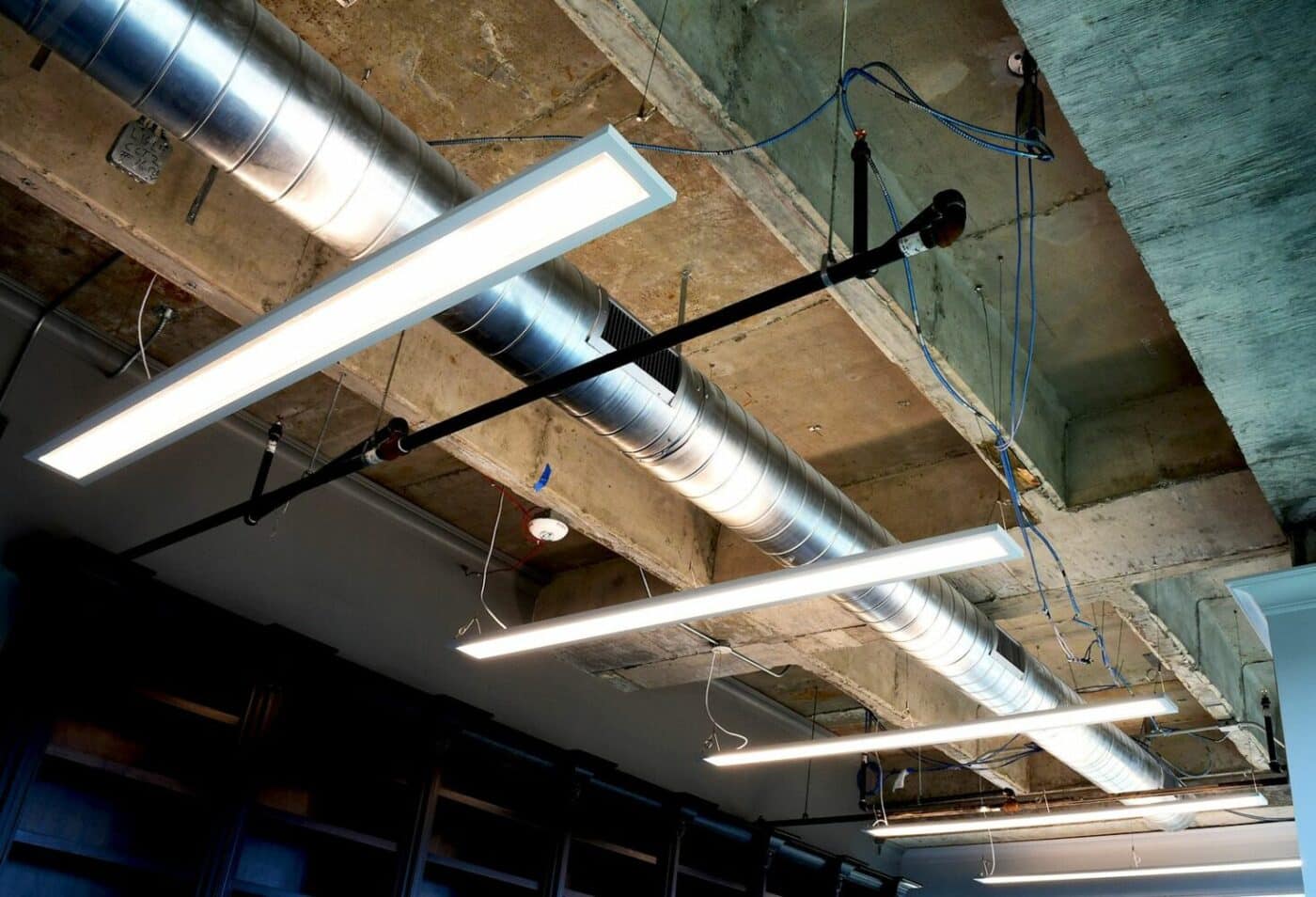

ssdg1_hanginginoffice

SSD G1

Suspending Semi-Direct Design Series Gen 1
ssd-2
ssd-3
ssdg1_hanginginoffice

SSD G1 National LEDSSD G1 Suspending Semi DirectSSD G1 National LEDSSD G1 National LED





SSD G1 Suspending Semi Direct

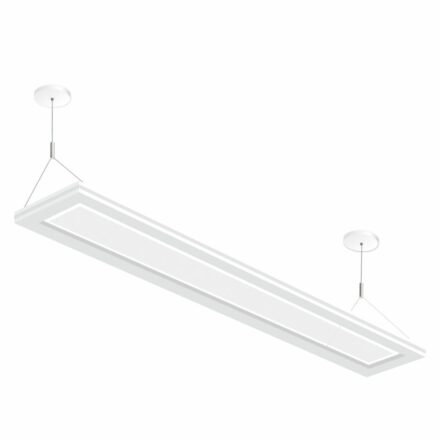

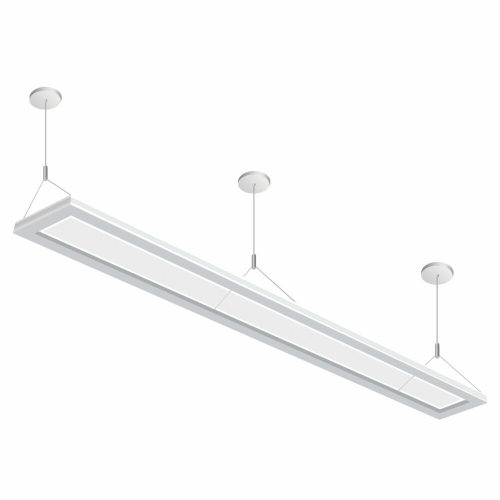

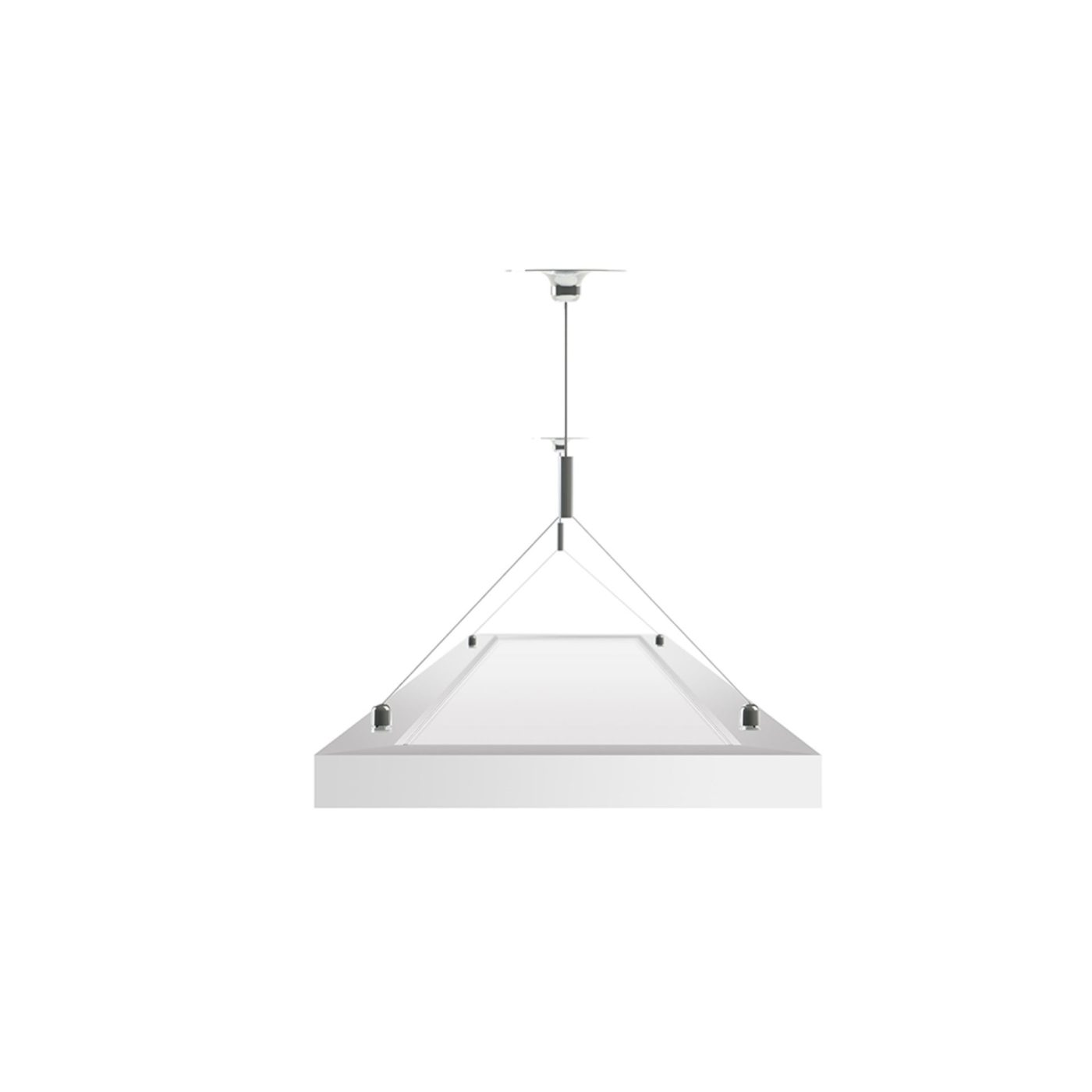

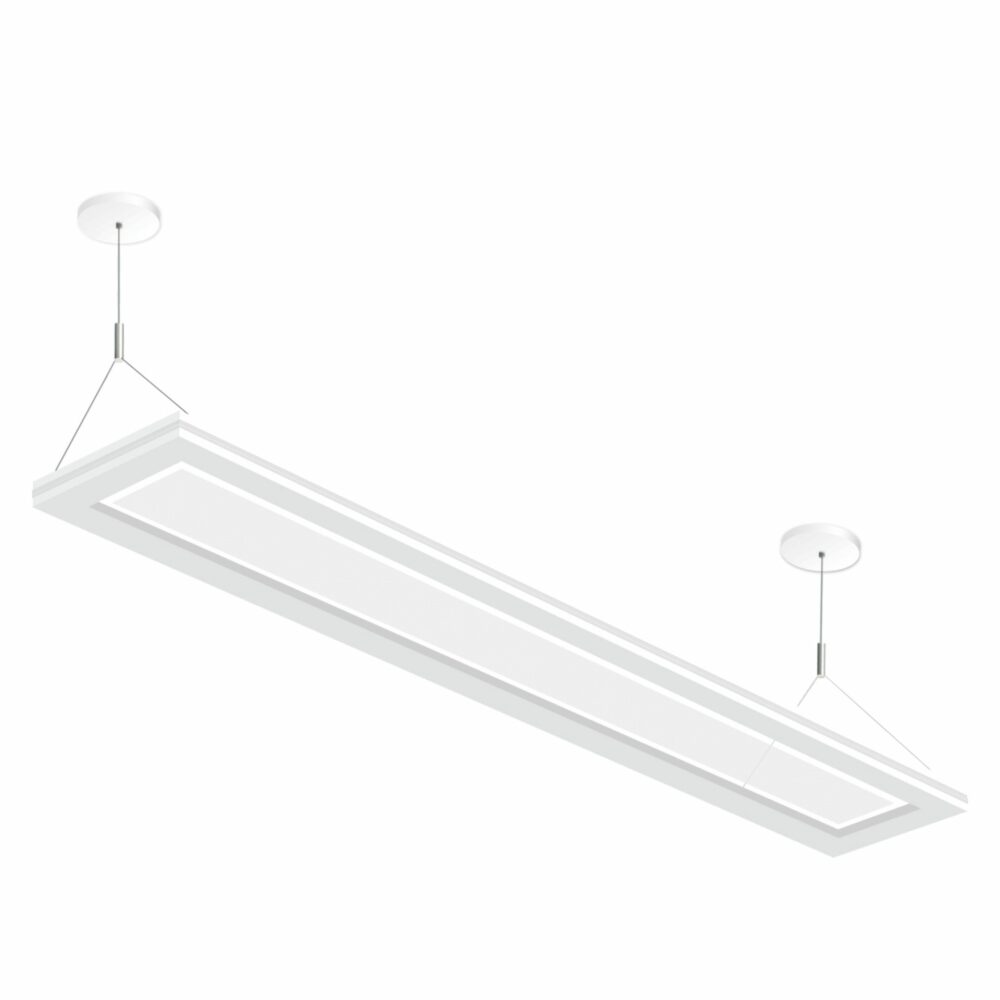

The SSD Suspending Semi-Direct Design Series Gen 1 is a commercial pendant architectural lighting with advanced LED optical system for superior performance.

This stunning design includes a transparent zone between the frame and light emitting edge to create an illusion of the light floating in mid-air. This luminaire is available in 4 ft and 8 ft and can be mounted individually or joined to create a continuous row for linear illumination.

Key features include 55% downlighting and 45% uplighting, step dimming, and selectable color temperatures in 3000K, 3500K and 4000K for SSD 4 only.

APPLICATIONS

Airport, Educational, Executive, Health, Hospitality, Hotels, Medical, Retail, and any open spaces that require a unique and elegant architectural lighting design.

REPLACEMENT

T8 fluorescent lamps with at least 100,000+ hours of virtually maintenance-free illumination

Request a Quote

Next Day Shipping

5 Year Minimum Warranty

Expert Installation

Get a data sheet

Download data sheet
Features
Ordering Information
Product Series Design Wattage 40W , 80W
Lumen Output 4216 LM , 4200 LM , 4254 LM , 8598 LM Correlated Color Temperature (CCT) 3000K , 3500K , 4000K
Mounting Type Pendant Mount Environment Indoor
Shape Rectangle Listings DLC Standard , ETL
Product Type Architectural Generation G1
Color & Finish White Polyester Powder Light Source LED – Static
Voltage Rating Standard 120-277V Warranty 5 Year
Labor Warranty No
TYPES LENGTH LUMENS GENERATION VOLTAGE CCT FINISH OPTIONS
Suspending Semi-Direct 4 ft
8 ft		 4254 Lm 40W
8598 Lm 80W		 Gen 1 3120-277V 3500K 80CRI
4000K 80CRI		 White No Options
Wireless Circuit Load Controller

Features

Product Series Design Wattage 40W , 80W
Lumen Output 4216 LM , 4200 LM , 4254 LM , 8598 LM Correlated Color Temperature (CCT) 3000K , 3500K , 4000K
Mounting Type Pendant Mount Environment Indoor
Shape Rectangle Listings DLC Standard , ETL
Product Type Architectural Generation G1
Color & Finish White Polyester Powder Light Source LED – Static
Voltage Rating Standard 120-277V Warranty 5 Year
Labor Warranty No

Ordering Information

TYPES LENGTH LUMENS GENERATION VOLTAGE CCT FINISH OPTIONS
Suspending Semi-Direct 4 ft
8 ft		 4254 Lm 40W
8598 Lm 80W		 Gen 1 3120-277V 3500K 80CRI
4000K 80CRI		 White No Options
Wireless Circuit Load Controller

Frequently Asked Questions

What is the difference between surface-mounted and suspended LED fixtures?

Surface-mounted fixtures attach directly to the ceiling or wall and are ideal for low ceilings, utility areas, corridors, and spaces where you cannot recess a fixture. Suspended fixtures hang from cables or rods and are used in offices, retail stores, showrooms, open-ceiling environments, and industrial spaces where a more architectural look is desired.

When should I choose suspended fixtures instead of surface-mounted?

Choose suspended lighting when you have:

  • Higher ceilings
  • Open-ceiling layouts
  • Offices or retail environments that need a clean, modern look
  • The need to bring light closer to a working surface Suspended fixtures also allow for continuous runs and more creative layouts.

Are surface and suspended LED lights easy to install?

Yes. Both styles are designed for simple installation.

  • Surface-mounted fixtures typically install to a junction box or directly to the ceiling surface.
  • Suspended fixtures include adjustable cables or rods, making leveling simple.

Many retrofit projects install these without altering the ceiling structure.

Do these fixtures support dimming and control systems?

Most surface and suspended LED lights are compatible with:

  • 0–10V dimming
  • Occupancy sensors
  • Daylight harvesting sensors
  • Wireless control systems
  • Building automation platforms

This provides flexibility for offices, schools, conference rooms, and open workspaces.

What types of spaces commonly use surface or suspended LED lights?

You’ll see these fixtures in:

  • Offices and conference rooms
  • Retail stores and showrooms
  • Hallways and corridors
  • Classrooms and libraries
  • Open-ceiling commercial spaces
  • Industrial areas that require architectural lighting

They’re popular because of their even light distribution and modern appearance.

How long do surface and suspended LED fixtures last, and what maintenance is needed?

Most fixtures last 50,000 to 100,000 hours, depending on the model. Because they are integrated LED systems, there are no bulbs or ballasts to replace. Routine cleaning of the lens and occasional inspection of mounting hardware is usually all that’s required.
