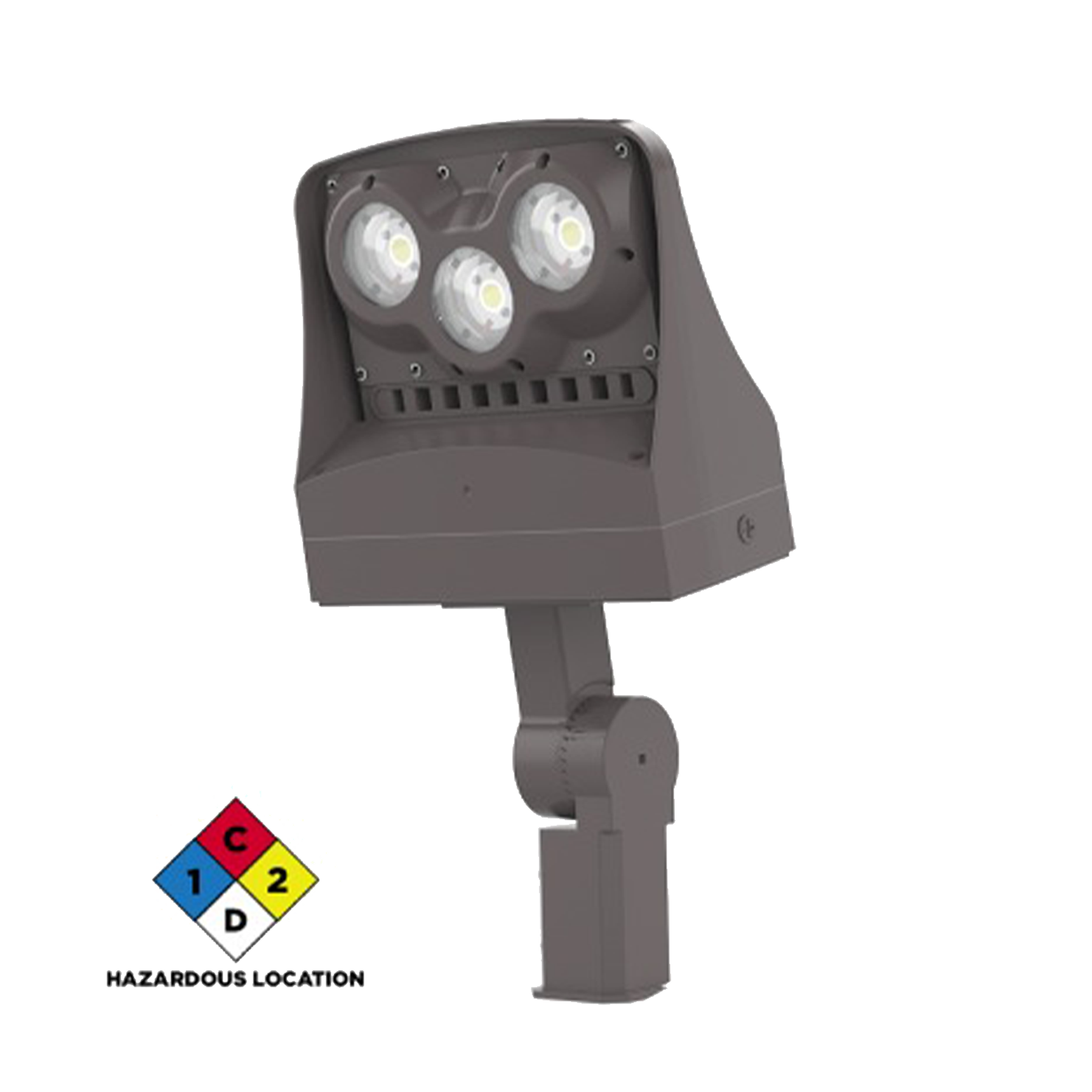

StormGuard Small

Hazardous Location Floodlight

StormGuard Small National LED

The StormGuard Small Hazardous Location Floodlight offers top-tier photometric performance, advanced thermal management, and durability. Its unique mounting options, including an optional NEMA twist-lock receptacle, ensure correct photocell orientation. With IP66-rated precision optics, it’s the perfect addition to the StormGuard outdoor product line.

Next Day Shipping

5 Year Minimum Warranty

Expert Installation

Get a data sheet

Features
Product Applications
Product Certifications/Approvals

Key Features

  • Lumens from 5500L  to 10000L
  • Combines superior photometric performance, advanced thermal management and an appealing architectural design.






Electrical

  • Universal 120-277 VAC input voltage.
  • 0-10V dimming standard for a dimming range of 100% to 10%.
  • Operating temperature is -40°F to +104°F






Mounting

  • Trunnion and adjustable slip fitter mounting options available (factory installed).






Construction

  • Thermal management achieved by a one-piece die-cast aluminum has integral heat sink fins.
  • Powder coat finish, available in bronze, white or custom colors (consult factory).
  • Optics are IP66 rated, precision molded, optical grade polymer, UV stabilized and impact resistant, available: 25°, 75°, or 100° (factory installed)






Warranty

  • Standard 5-year limited warranty.
  • 10-year Optional
  • Hazardous Locations
  • Petrochemical
  • Industrial & Manufacturing
  • Energy, Gas, & Oil Refineries
  • Waste Water Treatment Facilities
  • ETL Listed.
  • Complies with UL1598 and CSA C22.2
  • Class I Division II Group A/B/C/D
  • Suitable for wet locations.
  • IP66 Rated
  • BAA Compliant
  • RoHS Compliant
  • ATAL Tested

Features

Key Features

  • Lumens from 5500L  to 10000L
  • Combines superior photometric performance, advanced thermal management and an appealing architectural design.






Electrical

  • Universal 120-277 VAC input voltage.
  • 0-10V dimming standard for a dimming range of 100% to 10%.
  • Operating temperature is -40°F to +104°F






Mounting

  • Trunnion and adjustable slip fitter mounting options available (factory installed).






Construction

  • Thermal management achieved by a one-piece die-cast aluminum has integral heat sink fins.
  • Powder coat finish, available in bronze, white or custom colors (consult factory).
  • Optics are IP66 rated, precision molded, optical grade polymer, UV stabilized and impact resistant, available: 25°, 75°, or 100° (factory installed)






Warranty

  • Standard 5-year limited warranty.
  • 10-year Optional

Product Applications

  • Hazardous Locations
  • Petrochemical
  • Industrial & Manufacturing
  • Energy, Gas, & Oil Refineries
  • Waste Water Treatment Facilities

Product Certifications/Approvals

  • ETL Listed.
  • Complies with UL1598 and CSA C22.2
  • Class I Division II Group A/B/C/D
  • Suitable for wet locations.
  • IP66 Rated
  • BAA Compliant
  • RoHS Compliant
  • ATAL Tested

Frequently Asked Questions

What makes a light “hazardous-location rated”?

Hazardous-location LED fixtures are built to operate safely in environments where flammable gases, vapors, dust, or fibers may be present. They are engineered to contain sparks, withstand high-impact conditions, and prevent ignition. Ratings like Class I, II, III and Division 1 or 2 define which environments the fixture is safe for.

How do I know which hazardous-location rating I need?

It depends on what is present in your space.

  • Class I: flammable gases or vapors
  • Class II: combustible dusts
  • Class III: fibers or flyings Division 1 means the hazard is present during normal operations, while Division 2 means it is only present occasionally. If you are unsure, we can review your environment or drawings to match the right fixture with your area classification.

Are LED hazardous fixtures more reliable than traditional HID or fluorescent options?

Yes. LED hazardous fixtures offer longer lifespan, higher efficiency, and far less maintenance. They hold up to vibration, moisture, corrosion, extreme temperatures, and misuse. LEDs also eliminate warm-up times and reduce the need to enter dangerous areas for frequent re-lamp and ballast replacement.

What certifications should I look for when buying hazardous-location lighting?

You should look for UL, ETL, CSA, or IECEx certifications, depending on your facility’s requirements. Important markings include Class/Division ratings, Temperature Codes (T-Codes), IP66 or higher, and impact ratings like IK10. These ensure the fixture meets strict safety standards for your specific environment.

What is a Temperature Code (T-Code) and why does it matter?

The T-Code tells you how hot a fixture gets during operation. Every hazardous environment has a maximum allowed surface temperature. Choosing a fixture with the correct T-Code ensures it will not ignite the gases, vapors, or dust present in your facility.

Do hazardous-location LEDs require special installation or maintenance?

Yes, they must be installed following NEC, OSHA, and local code requirements. Hazardous fixtures cannot be opened or serviced while energized. The good news is that LED options significantly reduce maintenance because there are no lamps or ballasts to replace. Once installed, they provide long-term, trouble-free performance with minimal servicing.
