Suspending Vertical Linear Series Gen 2

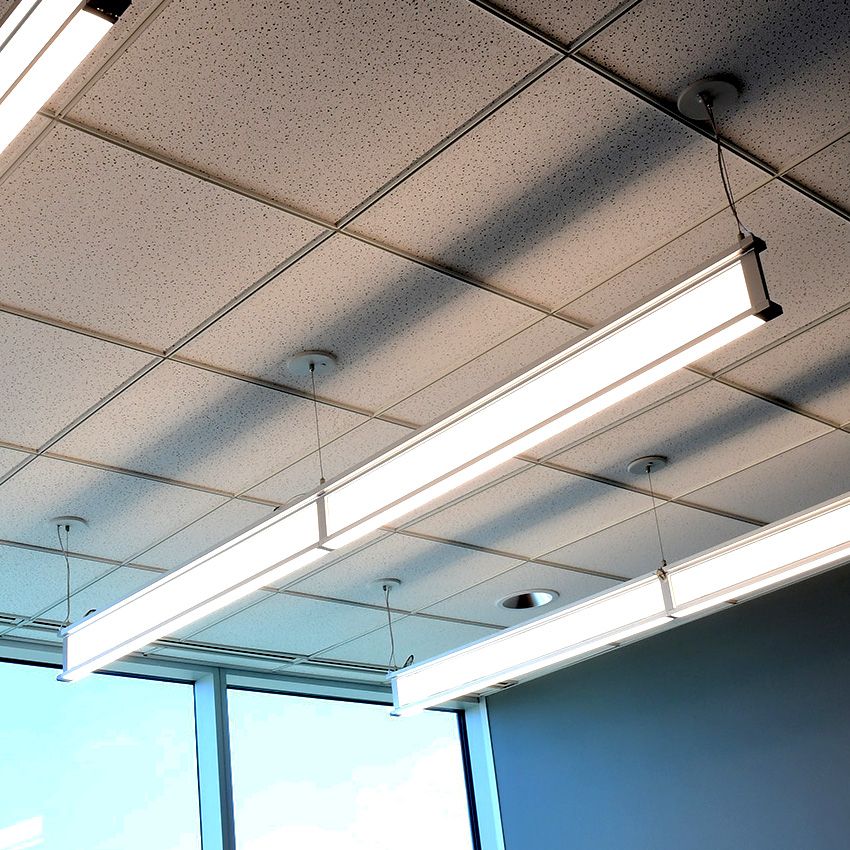

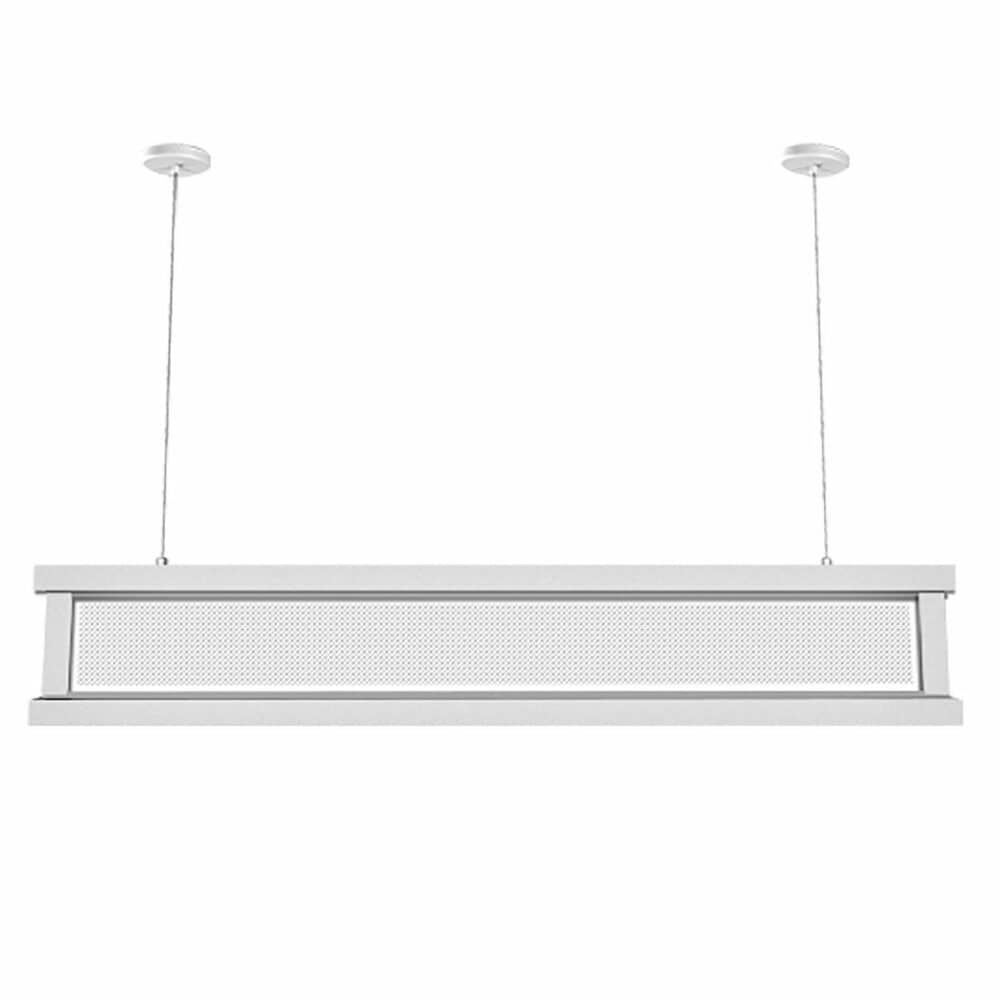

The SVI Suspending Vertical Linear Gen 2 is a beautifully designed LED luminaire that offers optimal distribution for low glare and a wide beam angle. This minimalist luminaire can be installed individually or combined to create a row of continuous illumination. This luminaire allows for step dimming and features selectable color temperatures 3000K, 3500K, and 4000K.
Applications:
Airport, Education, Healthcare, Hospitality, Retail, Executive Conference Rooms, Commercial Office Spaces, and any open spaces that require a unique and elegant architectural lighting design.
| Product Series | Design | Wattage | 40W |
| Lumen Output | 4000 LM | Correlated Color Temperature (CCT) | 3000K, 3500K , 4000K Field Selectable |
| Product Lens | High transmitting acrylic PMMA lens with bottom diffuser lens. | Mounting Type | Suspended Mount |
| Environment | Indoor | Shape | Rectangle |
| Listings | UL | Product Type | Architectural |
| Generation | G2 | Color & Finish | Aluminum Silver finish |
| Light Source | LED – Static | Voltage Rating | Standard 120-277V |
| Warranty | 5 Year | Labor Warranty | No |
| TYPES | LENGTH | LUMENS | GENERATION | VOLTAGE | CCT | FINISH | CEILING MOUNT | OPTIONS |
|---|---|---|---|---|---|---|---|---|
| Suspending Vertical Linear | 4′ | 4000 Lumens | Gen 2 | 120-277V | Selectable 3000K/3500K/4000K | Aluminum | Dry Wall J-box 9/16” and 15/16” Flat Drop Ceiling 9/16” Slot Drop Ceiling 15/16” Slot Drop Ceiling |
No Options Line Voltage Single Channel Bluetooth Controller 15A Relay Class I Line Voltage Single Channel Bluetooth Controller 15A Relay Class I PIR Sensor (Ceiling Mount Required) |
