T-Grid Linear Design Series Gen 1

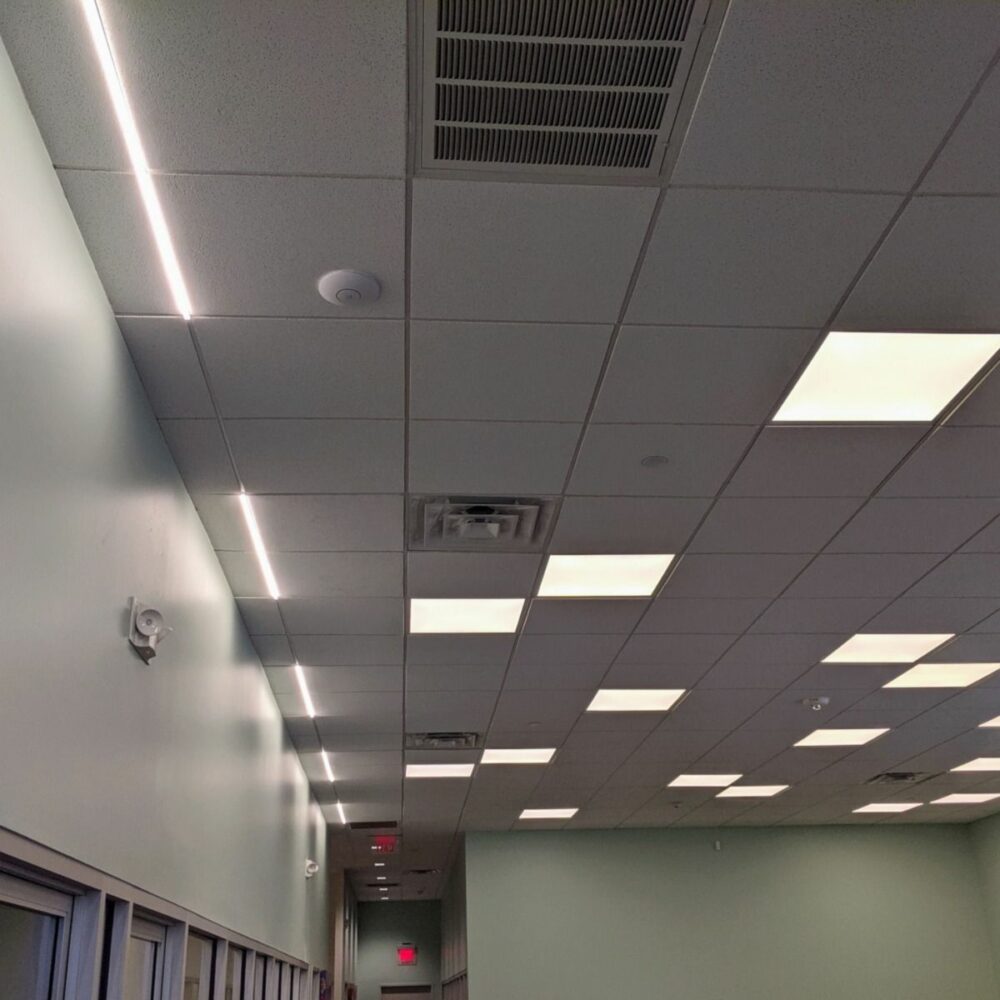

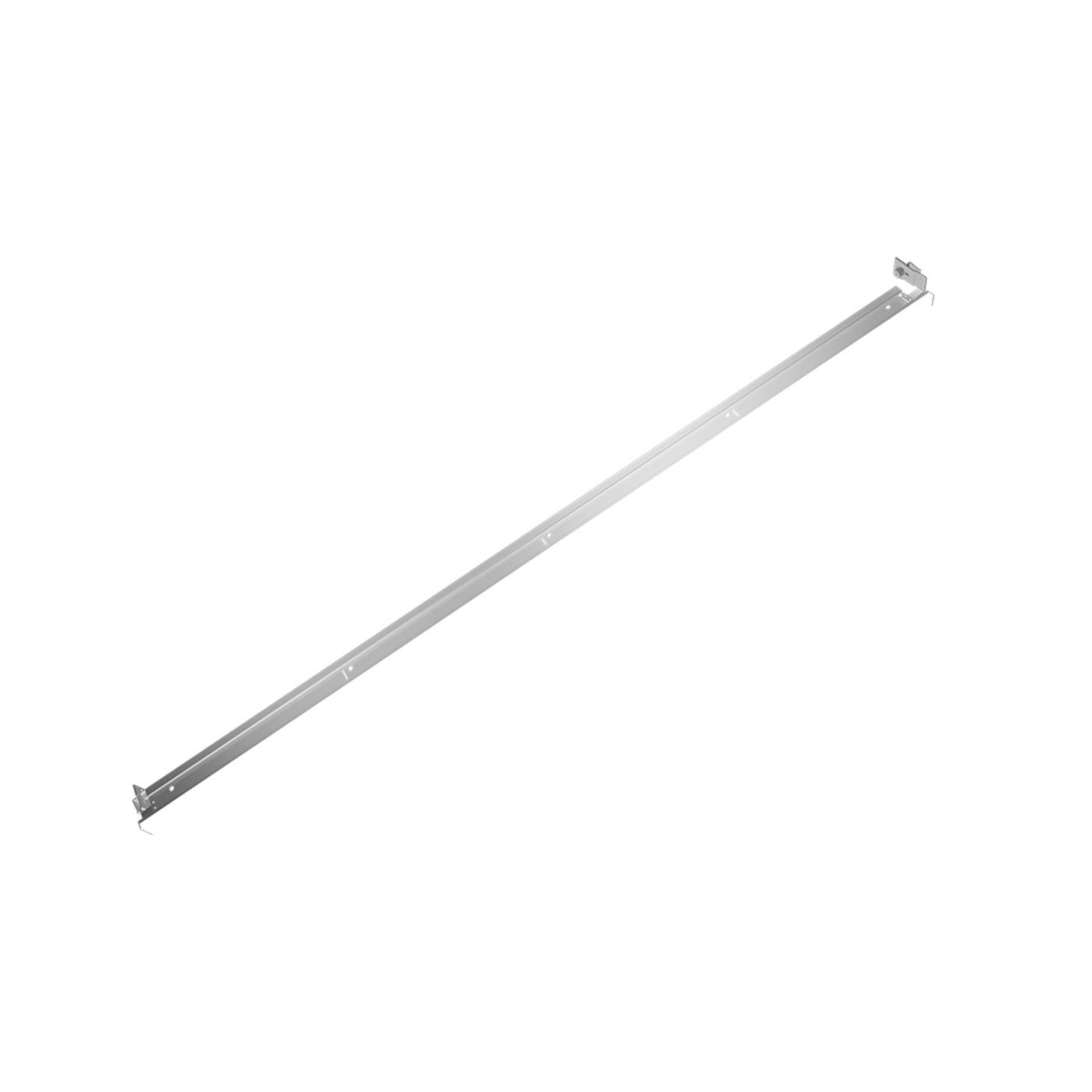

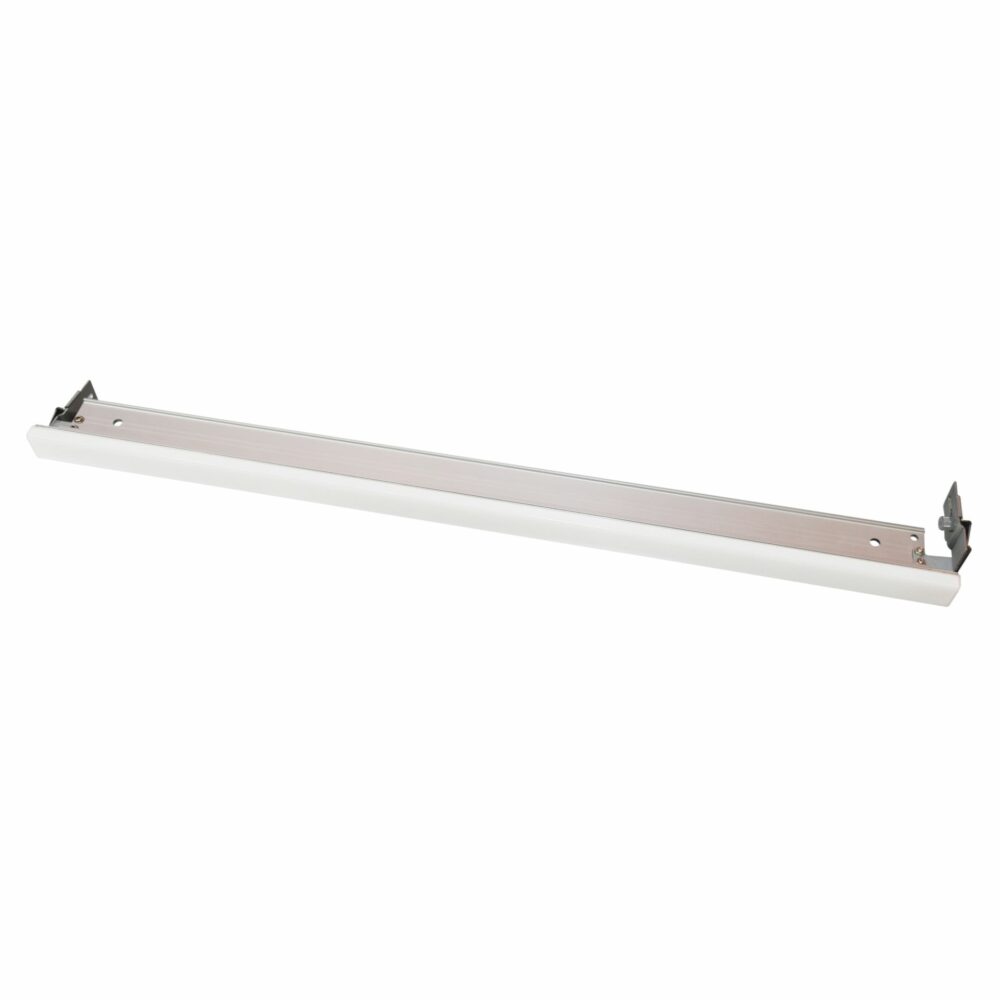

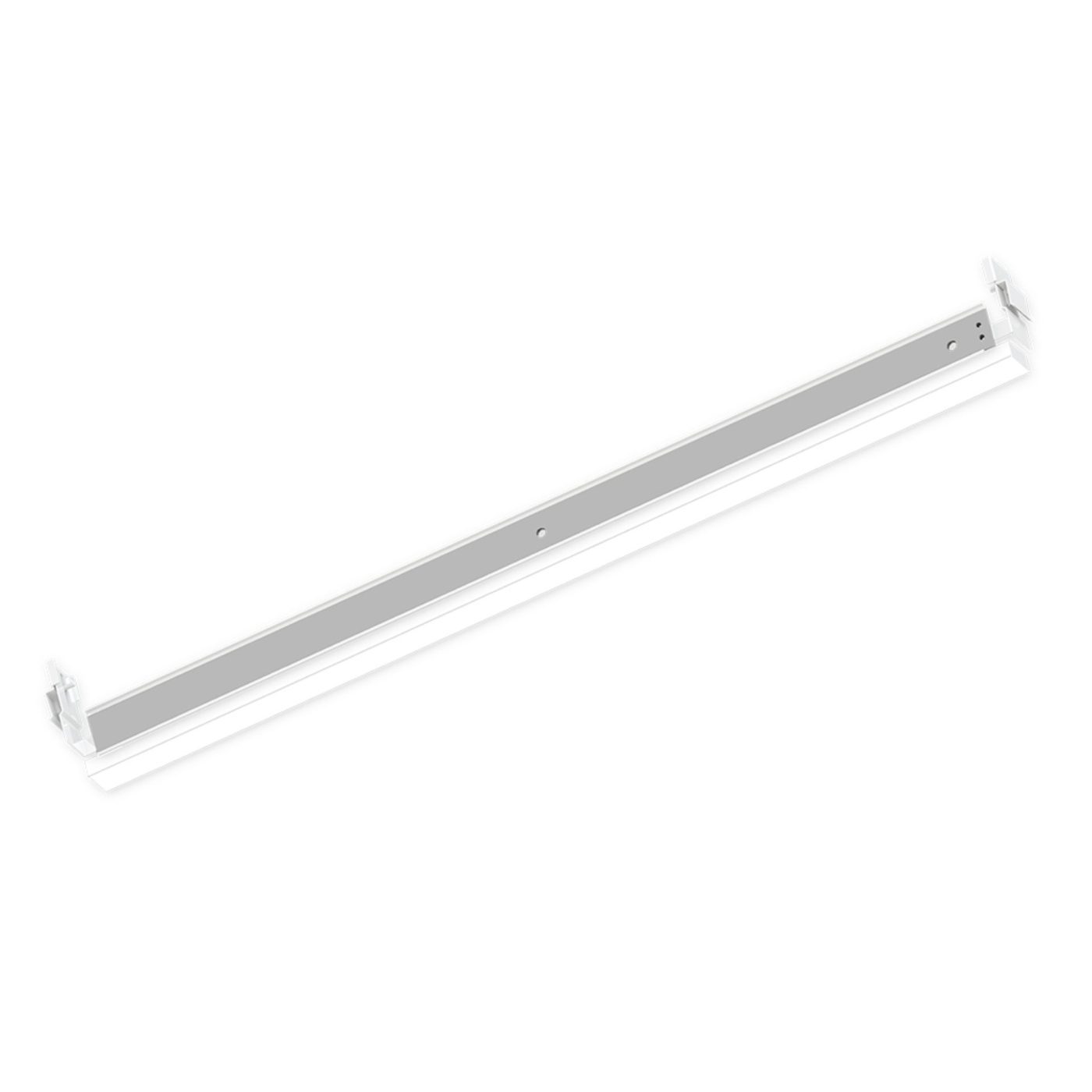

The TG T-Grid Linear Design Series Gen 1 is an elegant LED module with T-Grid
bracket that allows for ultimate flexibility. This versatile luminaire is compatible with any T-Grids. There are two sizes available in 2’ and 4’ with a width of 9/16” and 15/16” respectively. Capable of connecting up to 12 feet. Max distance from power supply to fixture is approximately 8 feet long. Longer distance is achievable if using higher gauge wire.
APPLICATIONS
Airport, Educational, Executive, Health, Hospitality, Hotels, Medical, Retail, and any open paces that require a unique and elegant architectural lighting design.
| Product Series | Design | Wattage | 10W , 20W |
| Lumen Output | 1258 LM , 1300 LM , 2533 LM , 2600 LM | Correlated Color Temperature (CCT) | 3500K , 4000K |
| Accessories | 30W Driver , 60W Driver | Mounting Type | T-Grid Mount |
| Environment | Indoor | Shape | Linear |
| Listings | DLC Premium , ETL | Product Type | Architectural |
| Generation | G1 | Color & Finish | Aluminum |
| Light Source | LED – Static | Voltage Rating | Standard 120-277V |
| Warranty | 5 Year | Labor Warranty | No |
| TYPES | LENGTH | LUMENS | CEILING | GENERATION | VOLTAGE | CCT | PATTERN | FINISH | OPTIONS |
|---|---|---|---|---|---|---|---|---|---|
| T-Grid Linear | 2′ 4′ |
1300 Lm 10W 2600 Lm 20W |
9/16in Fineline Grid 15/16in Standard Grid 9/16in Bolt Slot Grid |
Gen 1 | 120-277V | 3500K 4000K |
Linear Flexible |
White | No Options Emergency Driver 9W |
| Part Number | Description |
|---|---|
| TG 30W POE Driver |  |
| TG 60W POE Driver |  |
