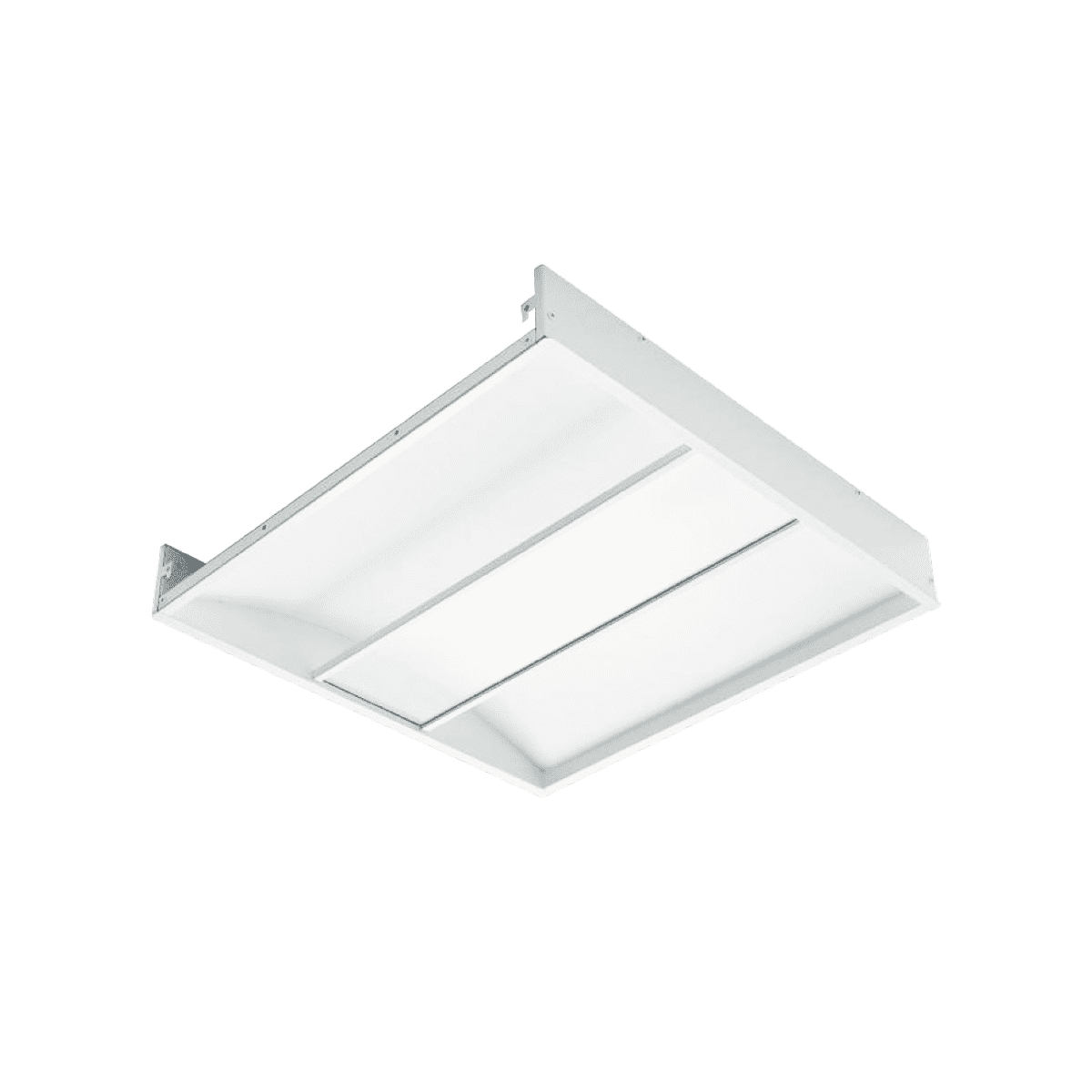

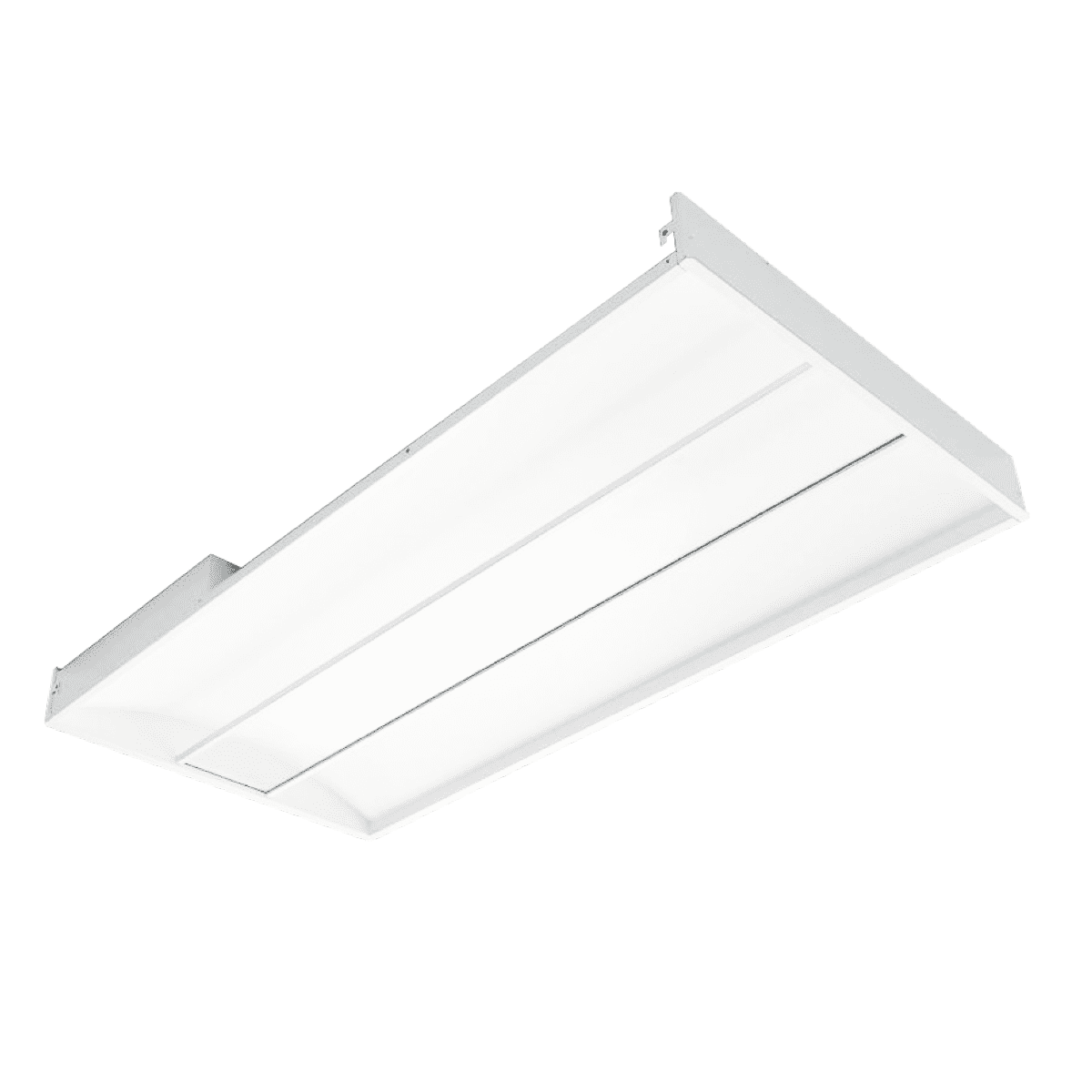

The LuxePanel G2 Luxe Troffer is the second generation of our modern approach to the traditional “center basket” design. Featuring a unique direct/indirect light distribution that spreads across the bottom and illuminates the curved reflector for optimized ambient lighting. Adjustable power/lumens AND CCT selectable switch delivers on a range of solutions, perfect for ANY project. Available in 2′ x 2′ and 2′ x 4′ sizes.
APPLICATIONS
Commercial, Educational, Medical and Retail applications, etc.
| Wattage | 20W/25W/30W, 34W/38W/45W Selectable | Lumen Output | 2340/3420/4420 Lm, 3510/4560/5550 Lm |
| Correlated Color Temperature (CCT) | 3500K/4000K/5000K Selectable | Color Rendering Index (CRI) | 9999 |
| Product Distribution Types | Wide Distribution | Product Lens | High transmitting acrylic PMMA lens |
| Control | Avi-On Bluetooth Controls | Accessories | Emergency Backup Kit, Surface Mount Kit, Flange |
| Mounting Type | Recessed mounting. Optional Flange and Surface Kits available | Environment | Indoor |
| Shape | Rectangle | Product Sizes | 2’ x 2’, 2’ x 4’ |
| Listings | DLC 5.1 Premium Pending, UL Damp Location , FCC, RoHs | Product Type | Troffer |
| Generation | G2 | Color & Finish | Standard Polyester Powder White finish |
| Housing | One-piece cold-rolled steel c | Light Source | LED – Selectable |
| Voltage Rating | 120-277V, 50/60Hz constant current | Warranty | 5 Year |
| Labor Warranty | No |
| TYPES | SIZE | LUMENS | GENERATION | VOLTAGE | CCT | FINISH | OPTIONS |
|---|---|---|---|---|---|---|---|
| Luxe Troffer | 2’ x 2’ 2’ x 4’ | Selectable 2360/3450/4480 Lumens 20/30/40 Watts Selectable 3540/4600/5600 Lumens 30/40/50 Watts | Gen 2 | 120-277V | Selectable 3500K/4000K/5000K | White | No Options Emergency Backup |
| Part Number | Description |
|---|---|
| EL UNV-8 Emergency Battery Kit |  |
| TL Surface Mount Kit |  |
| TL Flange Kit | |
| Wattage | 20W/25W/30W, 34W/38W/45W Selectable | Lumen Output | 2340/3420/4420 Lm, 3510/4560/5550 Lm |
| Correlated Color Temperature (CCT) | 3500K/4000K/5000K Selectable | Color Rendering Index (CRI) | 9999 |
| Product Distribution Types | Wide Distribution | Product Lens | High transmitting acrylic PMMA lens |
| Control | Avi-On Bluetooth Controls | Accessories | Emergency Backup Kit, Surface Mount Kit, Flange |
| Mounting Type | Recessed mounting. Optional Flange and Surface Kits available | Environment | Indoor |
| Shape | Rectangle | Product Sizes | 2’ x 2’, 2’ x 4’ |
| Listings | DLC 5.1 Premium Pending, UL Damp Location , FCC, RoHs | Product Type | Troffer |
| Generation | G2 | Color & Finish | Standard Polyester Powder White finish |
| Housing | One-piece cold-rolled steel c | Light Source | LED – Selectable |
| Voltage Rating | 120-277V, 50/60Hz constant current | Warranty | 5 Year |
| Labor Warranty | No |
| TYPES | SIZE | LUMENS | GENERATION | VOLTAGE | CCT | FINISH | OPTIONS |
|---|---|---|---|---|---|---|---|
| Luxe Troffer | 2’ x 2’ 2’ x 4’ | Selectable 2360/3450/4480 Lumens 20/30/40 Watts Selectable 3540/4600/5600 Lumens 30/40/50 Watts | Gen 2 | 120-277V | Selectable 3500K/4000K/5000K | White | No Options Emergency Backup |
| Part Number | Description |
|---|---|
| EL UNV-8 Emergency Battery Kit | |
| TL Surface Mount Kit | |
| TL Flange Kit | |
A troffer has a traditional recessed housing that fits into T-bar ceilings and usually replaces older fluorescent troffers. A flat panel is a slim, edge-lit or back-lit LED panel that offers a modern look with very even light distribution. Panels are thinner and lighter, while troffers maintain a more traditional fixture structure.
Yes. Both options are ideal for replacing 2×2, 1×4, and 2×4 fluorescent troffers. They improve efficiency, eliminate ballast maintenance, and provide brighter, flicker-free illumination. Many retrofit kits let you keep your existing housing if needed.
LED troffers and panels typically reduce energy use by 40 to 70 percent, depending on the model. They also last much longer, reducing service calls and eliminating ballast and lamp replacements.
Yes. Most models include 0–10V dimming and can connect to control options like:
Controls help meet modern energy codes and improve comfort in offices and schools.
They are some of the most common choices for these applications because they offer:
They also help reduce eye strain in long workday environments.
Most fixtures last 50,000 to 100,000 hours, depending on driver quality and heat management. Because they use integrated LEDs instead of tubes, there are no lamps or ballasts to replace. Occasional dusting or lens cleaning is usually all that’s needed.
