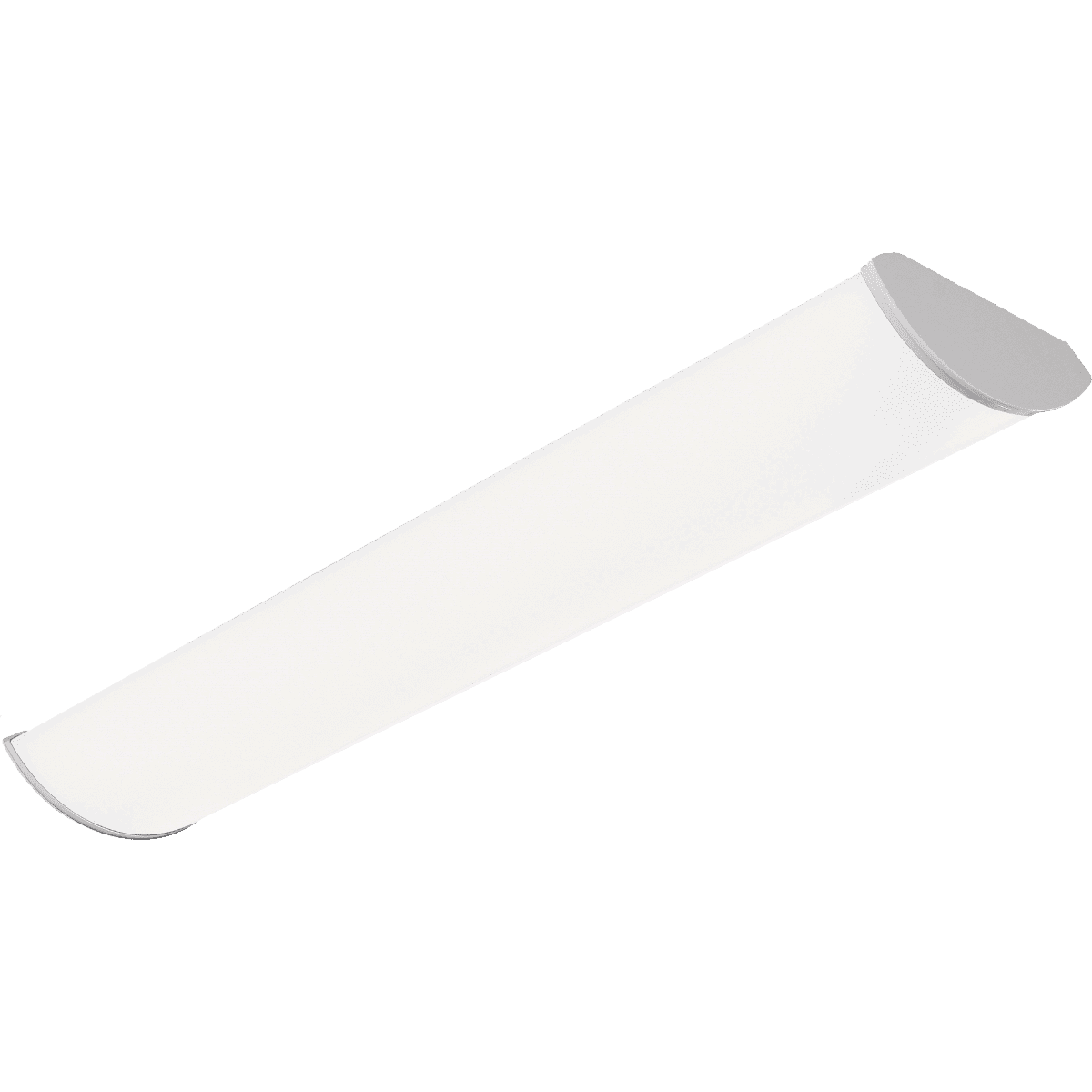

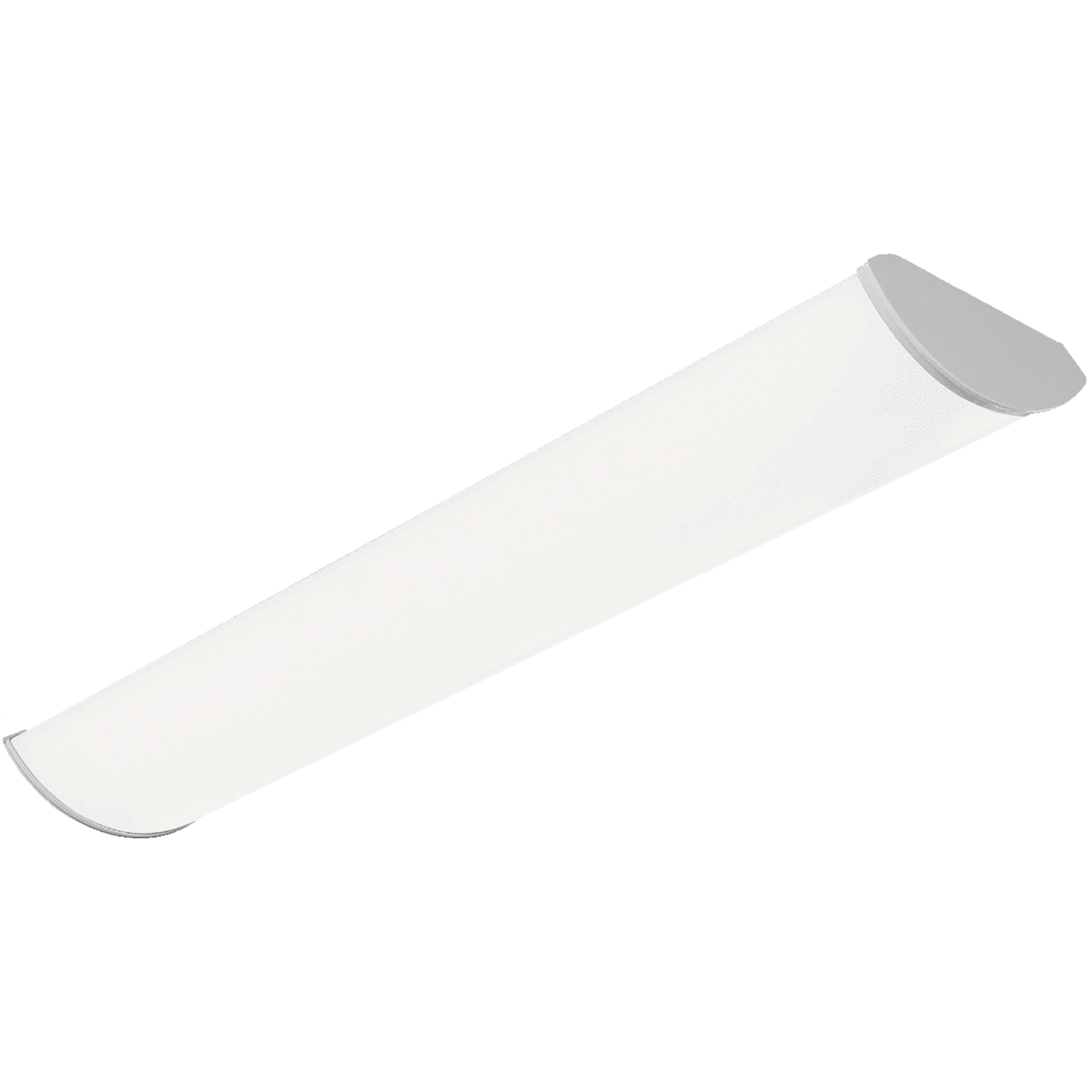

Surface Wraparound Gen 2
The TR Surface Wraparound Series Gen 2 delivers industry-leading performance with substantial energy savings compared to traditional fluorescent lighting. The curved diffuser provides even light distribution with minimum number of fixtures needed. This luminaire comes in lumen packages 3,900 to 5,280 lumens and color temperatures 3500K, 4000K and 5000K. Optional dimming and emergency battery backup available.
APPLICATIONS
Commercial and Retail spaces including Offices, Conference rooms, etc.
REPLACEMENT
2 Lamp T8 32W and 3 Lamp T8 32W
| Product Series | Performance | Wattage | 30W , 40W |
| Lumen Output | 3900 LM, 4050 LM, 5200 LM, 5280 LM | Correlated Color Temperature (CCT) | 3500K , 4000K , 5000K |
| Color Rendering Index (CRI) | 82 | Control | Motion Sensors |
| Accessories | Emergency Backup Kit | Mounting Type | Surface Mount , Chain Mount |
| Environment | Indoor | Shape | Linear |
| Listings | DLC Premium , UL , FCC | Product Type | Troffer |
| Generation | G2 | Color & Finish | Polyester Powder White Finish |
| Light Source | LED – Static | Voltage Rating | Standard 120-277V |
| Warranty | 10 Year | Labor Warranty | Yes |
| TYPES | SIZE | LUMENS | GENERATION | VOLTAGE | CCT | FINISH | OPTIONS |
|---|---|---|---|---|---|---|---|
| Surface Wraparound | 4 ft | 3900 Lm 30W 5200 Lm 40W |
Gen 2 | 120-277V | 3500K 4000K 5000K |
White | No Options PIR Dimming Motion/Photo Sensor w/L1 Lens PIR Dimming Motion/Photo Sensor w/L2 Lens PIR On/ Off Sensor No Options |
| Part Number | Description |
|---|---|
| HBP-112-L7-OEM High/Low-Bay PIR On/Off Sensor |  |
| HBP-212-L7-W High Bay Sensor, Cont Dimming |  |
| EL UNV 1 Emergency Battery Kit |  |
