Key Features
- RGB + 3000K White for vibrant, versatile lighting.
- 35° or 20°x45° optics for tailored illumination.
- Up to 2,255 lumens for powerful performance.
- IP66 aluminum housing for durable outdoor use.
- 180° adjustable brackets for precise aiming.

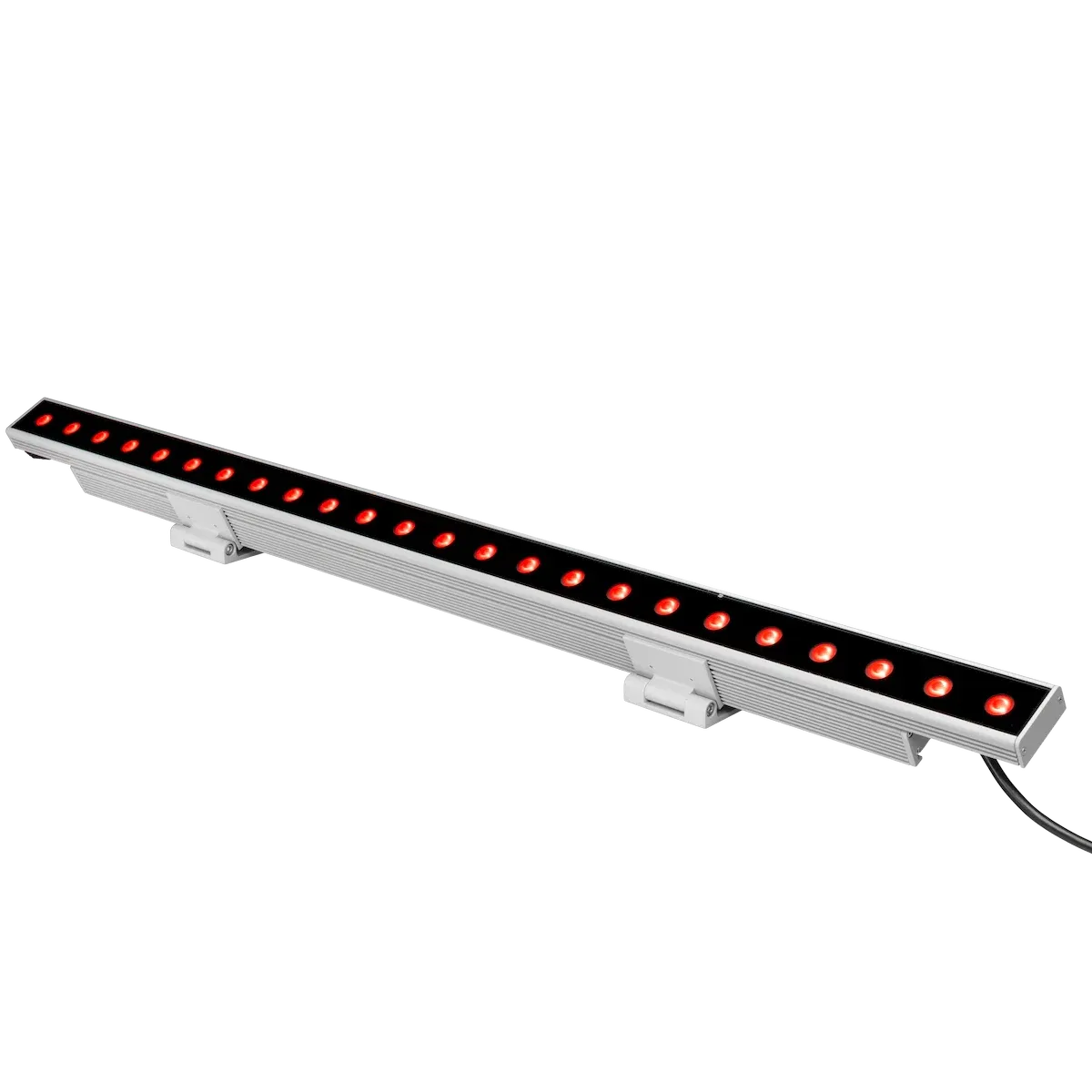

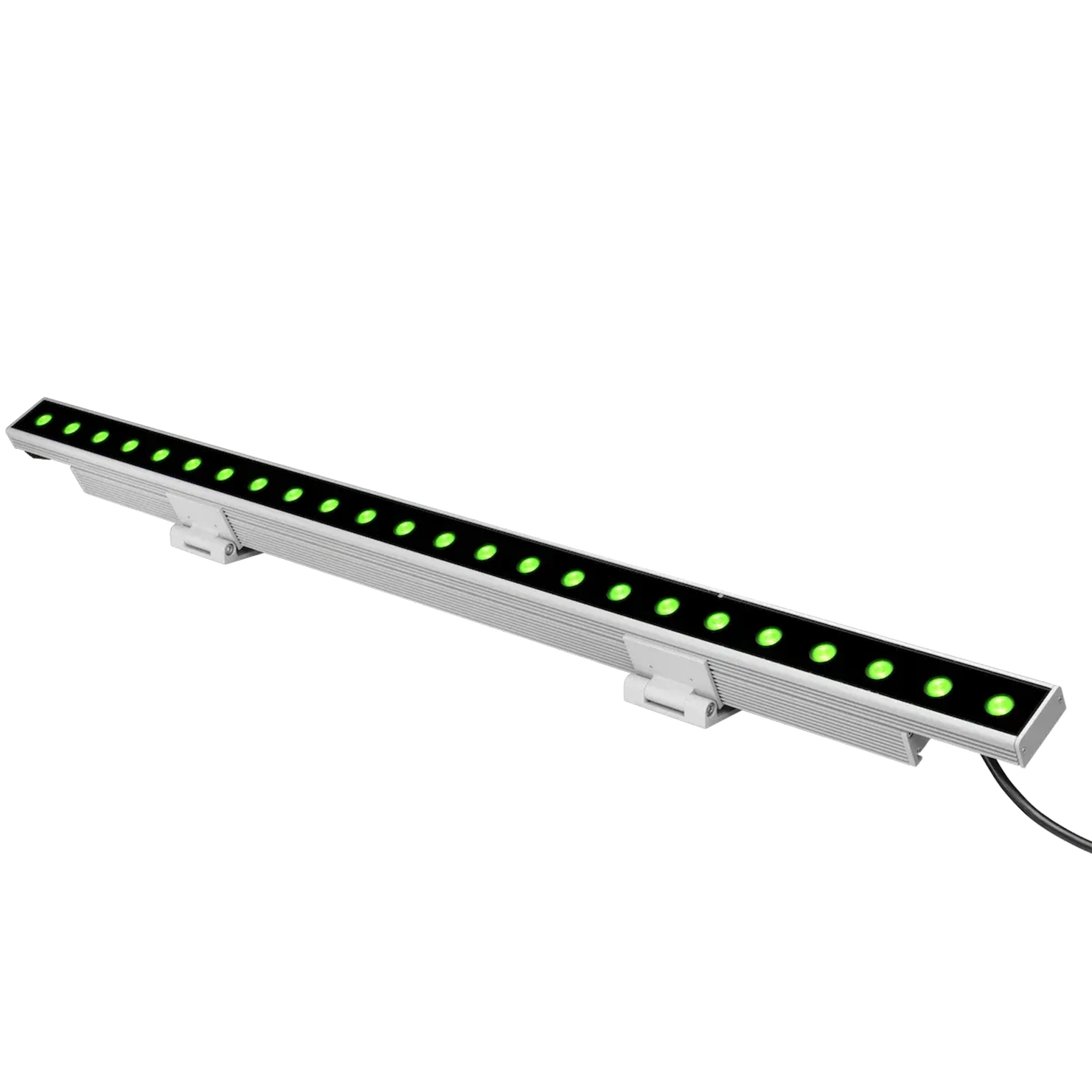

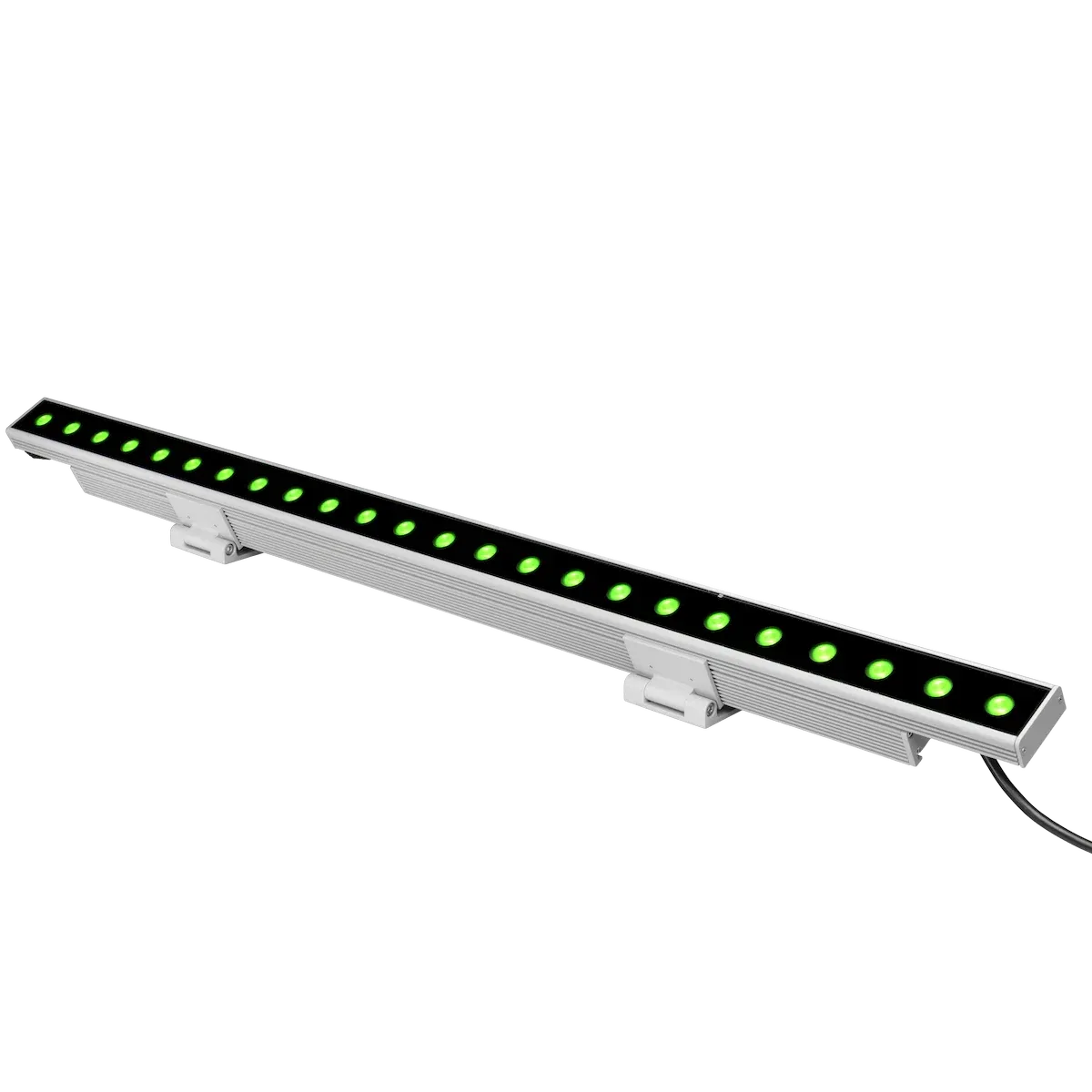

The VividEdge RGBW brings a modern approach to architectural graze lighting, combining performance and simplicity in one refined fixture. Designed with 180° adjustable mounting brackets pre-installed, it delivers over 1,200 lumens per foot with durable IK06 impact protection. The plug-and-play 6-pin connection streamlines installation for contractors, while optional visor accessories help control glare for a more comfortable visual experience. Sleek, efficient, and built for precision, VividEdge RGBW sets a new standard in architectural illumination.
Electrical
Construction
The VividEdge RGBW brings a modern approach to architectural graze lighting, combining performance and simplicity in one refined fixture. Designed with 180° adjustable mounting brackets pre-installed, it delivers over 1,200 lumens per foot with durable IK06 impact protection. The plug-and-play 6-pin connection streamlines installation for contractors, while optional visor accessories help control glare for a more comfortable visual experience. Sleek, efficient, and built for precision, VividEdge RGBW sets a new standard in architectural illumination.
Electrical
Construction
RGB includes red, green, and blue LEDs to create millions of colors, but it cannot produce true white light. RGBW adds a dedicated white LED, giving you clean white output along with full-spectrum color. This makes RGBW ideal for spaces that need both vibrant effects and usable white illumination.
RGBW is popular in retail, hospitality, restaurants, corporate lobbies, showrooms, gyms, entertainment venues, and architectural facades. It works for cove lighting, accent lines, wall washing, exterior building color, and creative branding applications.
They can be controlled through:
These platforms let you set scenes, change colors, schedule changes, and sync lighting with events or branding.
Yes. RGBW systems use high-efficiency diodes that consume far less power than traditional color-changing lighting. With LEDs, there is no warm-up time, no color fading, and drastically reduced maintenance, making them a strong long-term value.
Absolutely. Many RGBW products come in weather-rated options like IP65, IP66, or higher, making them ideal for building facades, signage, landscape lighting, and architectural features. Some options also include UV-resistant housings and flexible linear systems for curved surfaces.
It depends on the control method. Standard plug-and-play strips or Bluetooth options are simple, while DMX and architectural controls should be installed by an electrician or lighting integrator. If needed, we can supply wiring diagrams, assist with setup, or recommend installers for your area.
