VLB G1

VLB Versatile Low Bay Gen 1

VLB G1 National LEDVLB G1 National LEDVLB G1 National LEDVLB G1 National LEDVLB G1 National LEDVLB G1 National LED

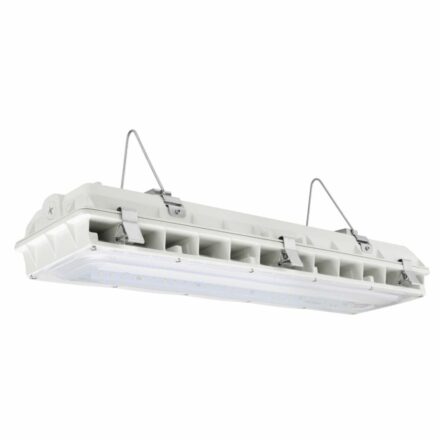

The VLB Versatile Low Bay Gen 1 Series is a low bay vapor tight designed with two-piece die-cast aluminum housing instead of traditional plastic and fiberglass. This great value and heavy-duty luminaire can be used for a wide range of applications from warehouses to factories. This luminaire features integral heat sink fins that uses conductive and convective cooling for optimal thermal management. Additionally, the LED driver is mounted to the casting for luminaire longevity and low operating temperature. Increase energy savings and reduce maintenance costs with the hassle-free VLB Series that is designed to last.

Next Day Shipping

10 Year Minimum Warranty

Expert Installation

Get a data sheet

Features
Ordering Information
Accessories
Product Series Performance Wattage 45W , 70W, 95W
Lumen Output 6000 LM, 9400 LM, 13000 LM Correlated Color Temperature (CCT) 4000K , 5000K
Color Rendering Index (CRI) 80 Control Bluetooth Wireless Control
Accessories Motion Sensor Mounting Type Surface Mount, V-Hook Chain Mount
Environment Outdoor Shape Linear
Listings DLC Pending , UL , FCC Product Type Low Bay
Generation G1 Color & Finish Polyester Powder White Finish
Light Source LED – Static Voltage Rating Standard 120-277V
Warranty 10 Year Labor Warranty Yes
TYPES SIZE LUMENS DISTRIBUTION GENERATION VOLTAGE CCT FINISH OPTIONS
Versatile Low Bay 2 ft 6000 Lm 45W
9000 Lm 70W
12400 Lm 95W
Low Bay Gen 1 120-277V 4000K
5000K
White No Options
PIR Motion/Photo Sensor w/L1 Lens
PIR Motion/Photo Sensor w/L2 Lens


No Options
Emergency Battery Backup


No Options
V-Hook

Part Number Description
HBP-212-L7-W High Bay Sensor, Cont Dimming
LOS-502S-E-C Motion Sensor On/Off
EL UNV-8 Emergency Battery Kit
SS450-02 On-Site Wireless Controller

Features

Product Series Performance Wattage 45W , 70W, 95W
Lumen Output 6000 LM, 9400 LM, 13000 LM Correlated Color Temperature (CCT) 4000K , 5000K
Color Rendering Index (CRI) 80 Control Bluetooth Wireless Control
Accessories Motion Sensor Mounting Type Surface Mount, V-Hook Chain Mount
Environment Outdoor Shape Linear
Listings DLC Pending , UL , FCC Product Type Low Bay
Generation G1 Color & Finish Polyester Powder White Finish
Light Source LED – Static Voltage Rating Standard 120-277V
Warranty 10 Year Labor Warranty Yes

Ordering Information

TYPES SIZE LUMENS DISTRIBUTION GENERATION VOLTAGE CCT FINISH OPTIONS
Versatile Low Bay 2 ft 6000 Lm 45W
9000 Lm 70W
12400 Lm 95W
Low Bay Gen 1 120-277V 4000K
5000K
White No Options
PIR Motion/Photo Sensor w/L1 Lens
PIR Motion/Photo Sensor w/L2 Lens


No Options
Emergency Battery Backup


No Options
V-Hook

Accessories

Part Number Description
HBP-212-L7-W High Bay Sensor, Cont Dimming
LOS-502S-E-C Motion Sensor On/Off
EL UNV-8 Emergency Battery Kit
SS450-02 On-Site Wireless Controller

Frequently Asked Questions

How do I know what wattage or lumen output I need for my facility?

It depends on your ceiling height and the type of work being done.

  • Lower ceilings (12–20 ft) usually need 10,000–15,000 lumens.
  • Medium ceilings (20–30 ft) often need 20,000–30,000 lumens.
  • Tall ceilings (30–50 ft) may require 30,000–60,000 lumens.

A photometric layout gives exact requirements so you don’t over-light or under-light your space.

What mounting options are available for high bay lights?

High bays can be installed using:

  • Pendant mounts
  • Hooks
  • Chains
  • Surface mounts
  • Conduit pendant kits

This gives flexibility for different building types, ceiling structures, and retrofit scenarios.

How much energy can I save by switching from metal halide or fluorescent high bays to LED?

Most facilities save 50 to 75 percent in energy use immediately. LEDs also eliminate ballast failures, lamp replacements, and warm-up times, which creates additional maintenance savings over the long term.

Can high bay lights work with sensors or lighting controls?

Yes. High bays are one of the best applications for control systems. Options include:

  • Motion sensors
  • Bi-level dimming
  • Daylight harvesting
  • Wireless scheduling
  • Networked lighting control systems

Sensors reduce energy waste in low-traffic areas like aisles or storage zones.

What color temperature is best for warehouses and industrial facilities?

Most customers choose:

  • 4000K for a softer, more neutral work environment
  • 5000K for maximum brightness and clarity in precision work areas

Higher color temperatures improve visibility for shipping, manufacturing, QA, and forklift operation.

How long do LED high bay lights last and what maintenance is required?

LED high bays typically last 50,000 to 100,000 hours, depending on the fixture. Unlike HID systems, LEDs don’t require lamp or ballast changes. Routine cleaning to remove dust is usually the only maintenance needed, which reduces downtime and lift-equipment costs.
