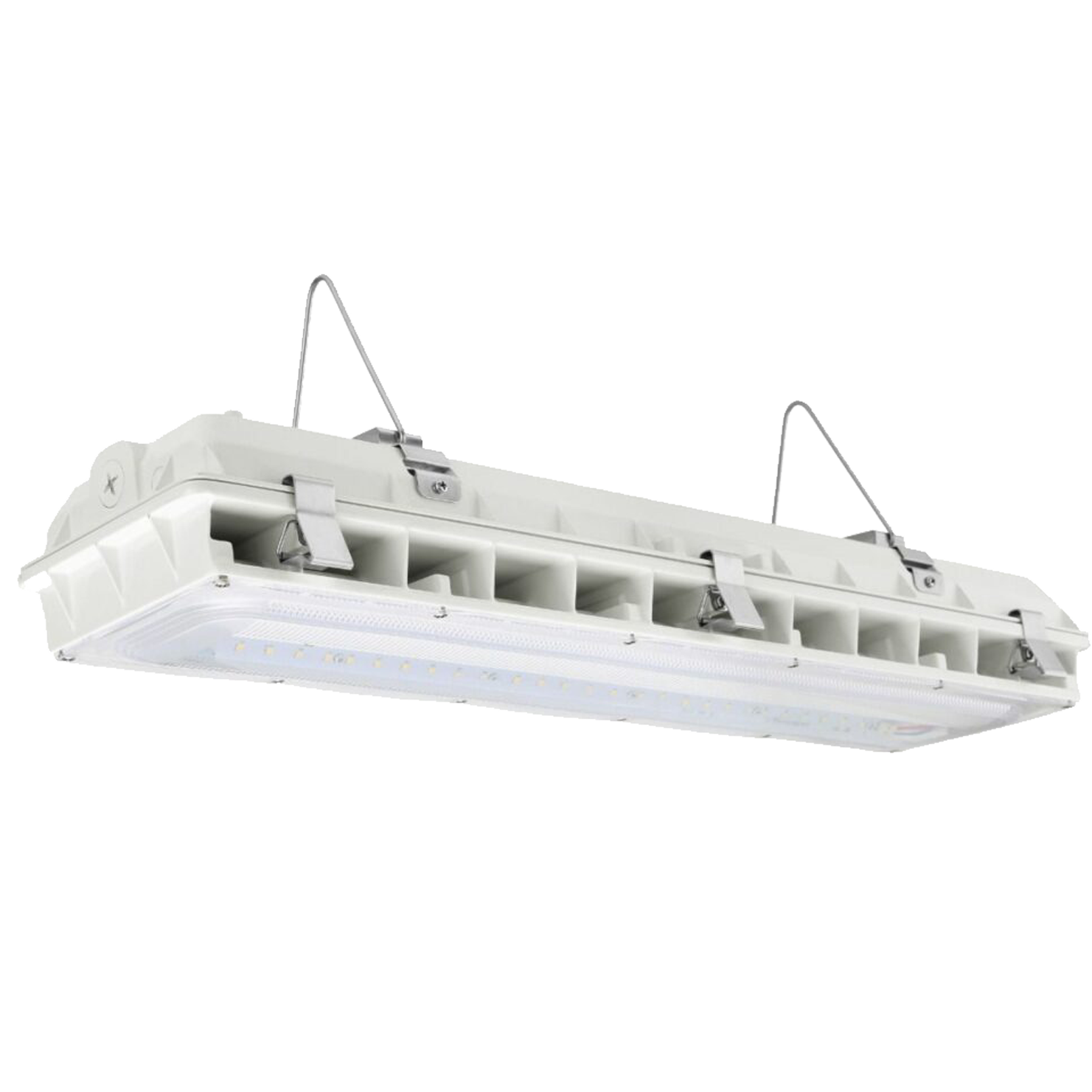

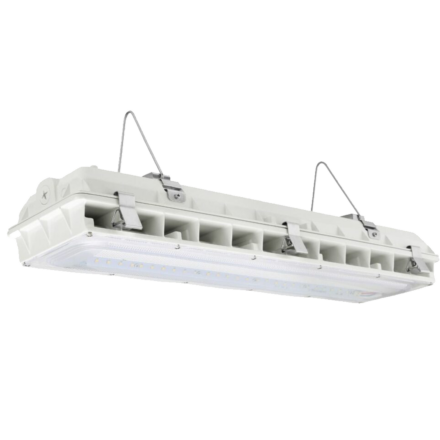

VPG Versatile Parking Garage Gen 1
The VPG Versatile Parking Garage Gen 1 Series is designed with two-piece die-cast aluminum housing instead of sheet metal and can be used for commercial and municipal garage applications. This industrial-strength and great value luminaire contains integral heat sink fins that uses conductive and convective cooling for optimal thermal management. This fixture is suitable for environments up to 45°C ambient temperature and is UL listed for wet location. Additionally, the LED driver is mounted to the casting for luminaire longevity and low operating temperature. Increase energy savings up to 80% with direct replacement to 175W MH with external motion sensor included.
| Product Series | Performance | Wattage | 45W , 70W, 95W |
| Lumen Output | 5600 LM, 8400 LM, 11584 LM | Correlated Color Temperature (CCT) | 4000K , 5000K |
| Color Rendering Index (CRI) | 80 | Control | Bluetooth Wireless Control |
| Accessories | Motion Sensor | Mounting Type | Surface Mount, V-Hook Chain Mount |
| Environment | Outdoor | Shape | Linear |
| Listings | DLC Premium , UL , FCC | Product Type | Garage Light |
| Generation | G1 | Color & Finish | Polyester Powder White Finish |
| Light Source | LED – Static | Voltage Rating | Standard 120-277V |
| Warranty | 10 Year | Labor Warranty | Yes |
| TYPES | SIZE | LUMENS | DISTRIBUTION | GENERATION | VOLTAGE | CCT | FINISH | OPTIONS |
|---|---|---|---|---|---|---|---|---|
| Versatile Parking Garage | 2 ft | 5500 Lm 45W 8500 Lm 70W 11584 Lm 95W |
Parking Garage | Gen 1 | 120-277V | 4000K 5000K |
White | No Options PIR Motion/Photo Sensor w/L1 Lens PIR Motion/Photo Sensor w/L2 Lens No Options No Options |
| Part Number | Description |
|---|---|
| HBP-212-L7-W High Bay Sensor, Cont Dimming |  |
| LOS-502S-E-C Motion Sensor On/Off |  |
| EL UNV-8 Emergency Battery Kit |  |
| SS450-02 On-Site Wireless Controller |  |
