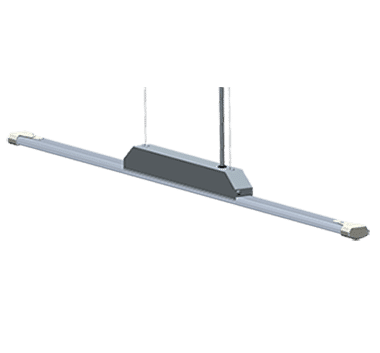

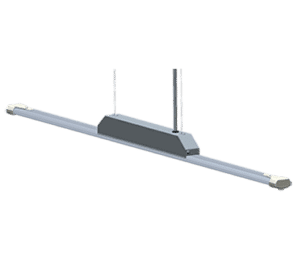

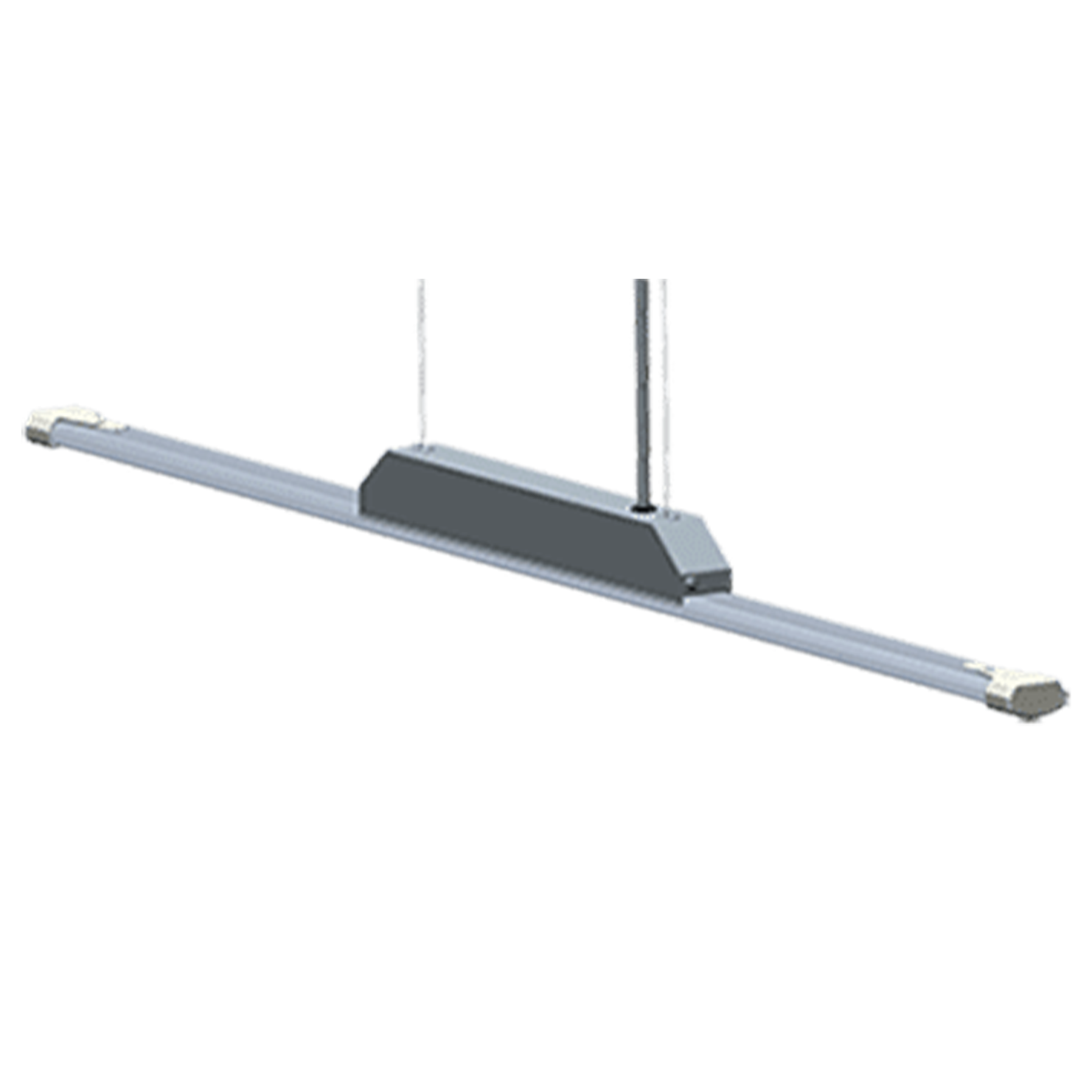

Suspended 4' Linear Fixture
VXF2-SR is a scalable linear led light for indoor use. There are multiple variants of the fixture – each variant is optimized for target applications, including but not limited to, general lighting, under-shelf, cove, accent, and linear and horizontal refrigeration lighting. Depending on the application and light requirements, the fixture can be interconnected to create a multi-fixture linear run of up to 32-feet on a single driver. The fixture is designed to have a smooth continuous light look is used in a multi-fixture configuration. The VXF2-SR is a stand alone 4′ LED fixture with an integrated driver.
| Series | Fixture Type | Variant | Fixture Length | CCT | CRI | Driver Current | Dimmable | Power Cable Length |
|---|---|---|---|---|---|---|---|---|
| VXF2 | SR – Single Run | 2 – Factory Mounted Driver | 4 – 4-ft | 35 – 3500K 40 – 4000K 50 – 5000K |
80 – 80 min | 750 – 750mA | N – No | Blank – 6-ft 20 – 20-ft |
Example: VXF2-SR-2-4-35-80-750-N-Blank
| Spec Type | Data |
|---|---|
| Dimensions | 45.86″ x 1.7″ x 2.5″ |
| Units/Carton | 1 |
| Net Weight | 1.75 lbs. |
| Environmental Rating | Damp |
| Spec Type | 3,500K Edition | 4,000K Version | 5,000K Version |
|---|---|---|---|
| Input Voltage (VAC) | 120-277 | 120-277 | 120-277 |
| System Level Power (W) | 35 | 35 | 35 |
| Delivered Lumens (Lm) | 4,740 | 4,800 | 4,815 |
| Efficacy (Lm/W) | 135 | 137 | 138 |
| Color Temperature (K) | 3,500 | 4,000 | 5,000 |
| Color Rendering Index (CRI) | 80 min | 80 min | 80 min |
| L70 Calculated Life (Hrs.)1 | 96,000 | 96,000 | 96,000 |
| L85 Calculated Life (Hrs.)1 | 43,000 | 43,000 | 43,000 |
| Operating Temperature (° C) | -40 to 35 | -40 to 35 | -40 to 35 |
| Part Number | Description |
|---|---|
| VXM2-SCXXX | Aircraft cable: XXX length in inches (96 or 240) |
| VXN2-CB02 | Crimpable 2-path gripper for aircraft cable |
| ILB-CP12-A | IOTA LED Emergency Driver | 120-277V | 12W |
