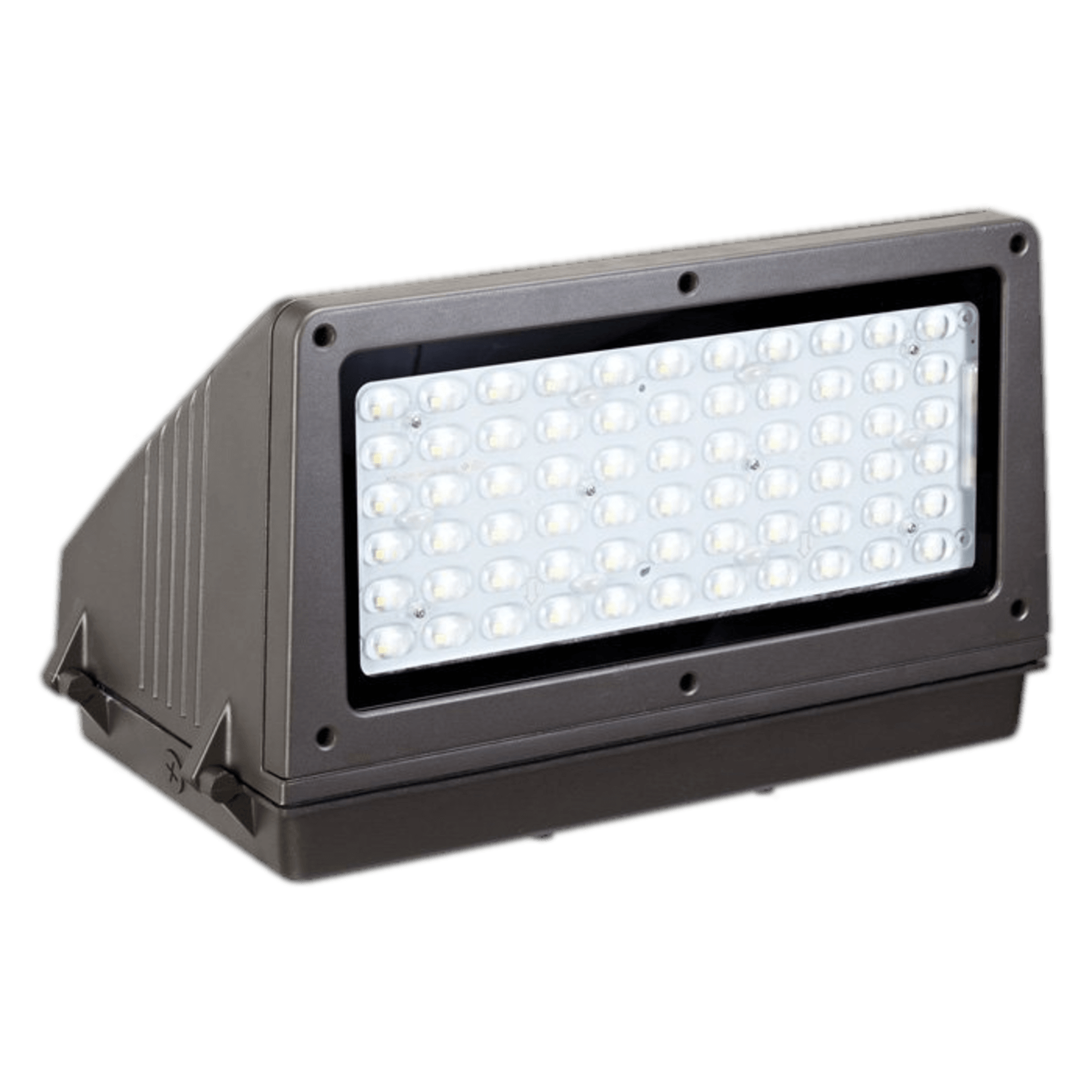

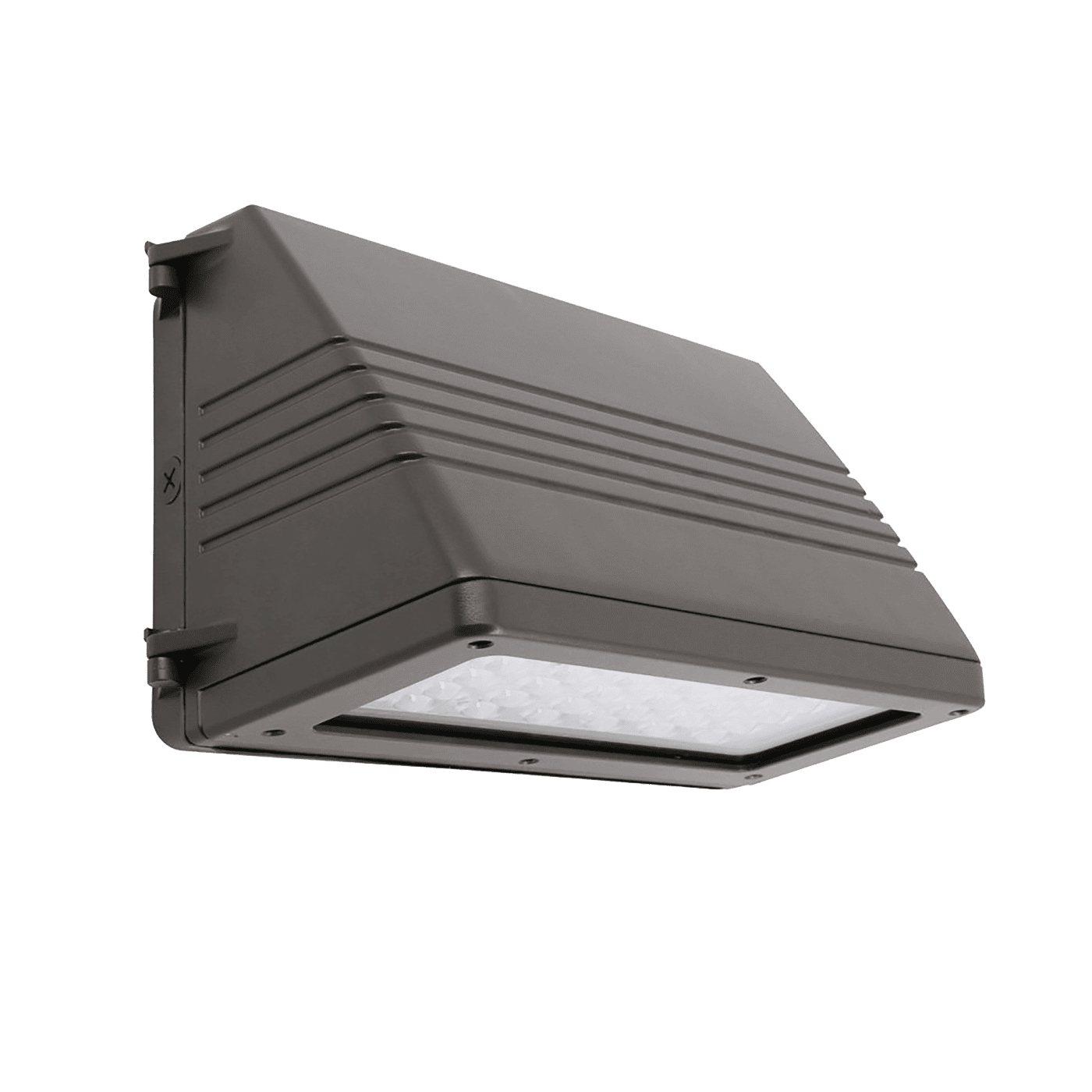

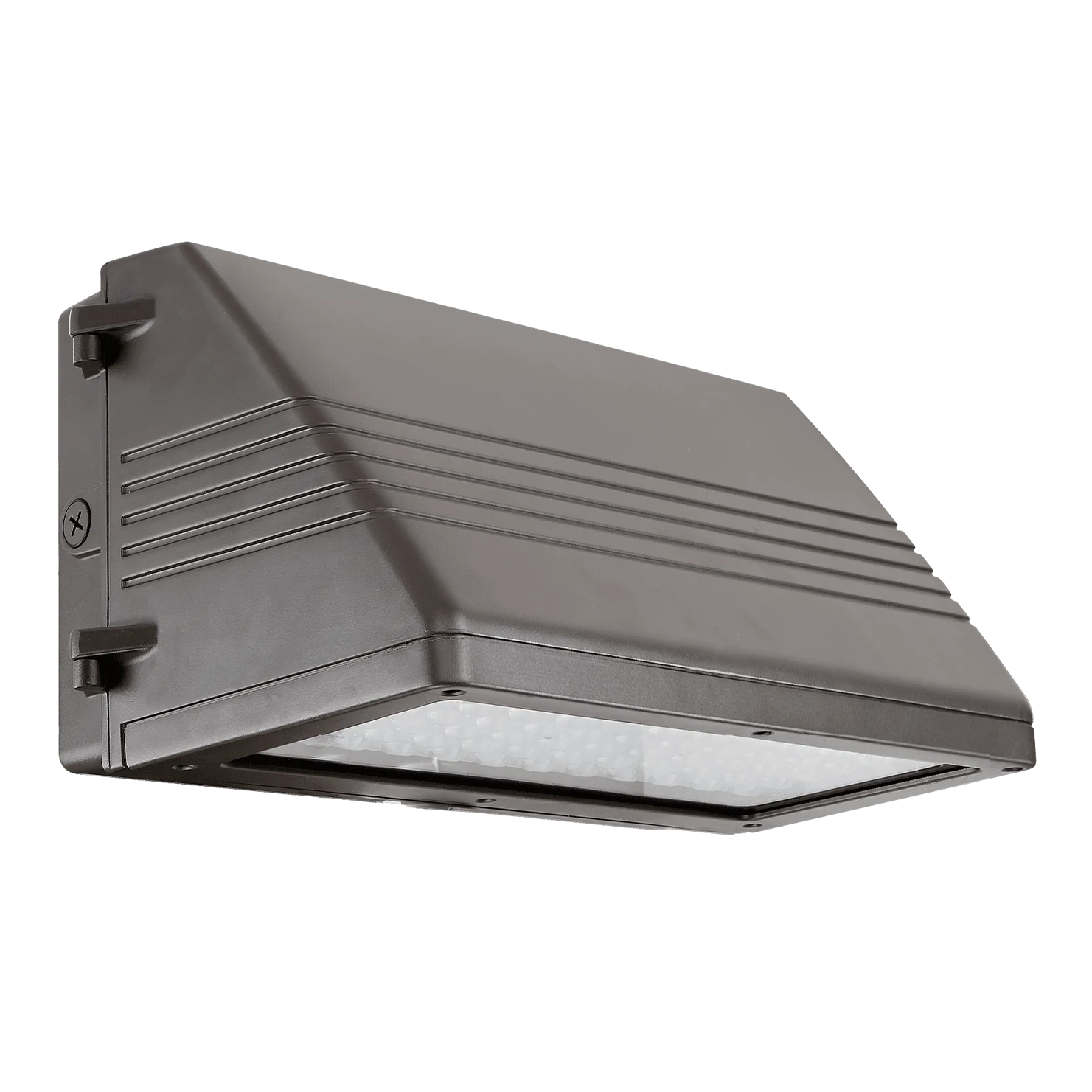

The CutoffEdge Wall Pack Series Gen 1 is available in two sizes medium and large. This versatile luminaire can be used in a variety of Commercial, Industrial, and Security applications.
APPLICATIONS
Security Lighting, Perimeter Lighting, Building Entrances, Walkways, etc.
REPLACEMENT
175W – 400W MH
| Product Series | Performance | Wattage | 45W , 70W , 90W , 135W |
| Lumen Output | 4900 LM , 7350 LM , 9500 LM , 14000 LM | Correlated Color Temperature (CCT) | 4000K , 5000K |
| Color Rendering Index (CRI) | 82 | Control | Motion Sensor , Photocell |
| Accessories | Motion Sensor , Button Photocell , Emergency Backup Kit | Mounting Type | Wall Mount |
| Environment | Outdoor | Shape | Rectangle |
| Listings | UL , FCC , RoHS | Product Type | Wall Pack |
| Generation | G1 | Color & Finish | Polyester Powder Dark Bronze Finish |
| Light Source | LED – Static | Voltage Rating | Standard 120-277V |
| Warranty | 10 Year | Labor Warranty | Yes |
| TYPES | LUMENS | GENERATION | VOLTAGE | CCT | FINISH | OPTIONS |
|---|---|---|---|---|---|---|
| Large Full Cutoff Wall Pack | 9500 Lm 90W 14000 Lm 135W | Gen 1 | 120-277V | 4000K 5000K | Dark Bronze Custom | No Options Button Photocell No Options |
| Part Number | Description |
|---|---|
| MS-FSP-212 Dimmable Motion Sensor |  |
| PC UNV B3 Button Photocell | |
| EL UNV-8 Emergency Battery Kit |  |
| SS450-02 On-Site Wireless Controller | |
| Product Series | Performance | Wattage | 45W , 70W , 90W , 135W |
| Lumen Output | 4900 LM , 7350 LM , 9500 LM , 14000 LM | Correlated Color Temperature (CCT) | 4000K , 5000K |
| Color Rendering Index (CRI) | 82 | Control | Motion Sensor , Photocell |
| Accessories | Motion Sensor , Button Photocell , Emergency Backup Kit | Mounting Type | Wall Mount |
| Environment | Outdoor | Shape | Rectangle |
| Listings | UL , FCC , RoHS | Product Type | Wall Pack |
| Generation | G1 | Color & Finish | Polyester Powder Dark Bronze Finish |
| Light Source | LED – Static | Voltage Rating | Standard 120-277V |
| Warranty | 10 Year | Labor Warranty | Yes |
| TYPES | LUMENS | GENERATION | VOLTAGE | CCT | FINISH | OPTIONS |
|---|---|---|---|---|---|---|
| Large Full Cutoff Wall Pack | 9500 Lm 90W 14000 Lm 135W | Gen 1 | 120-277V | 4000K 5000K | Dark Bronze Custom | No Options Button Photocell No Options |
| Part Number | Description |
|---|---|
| MS-FSP-212 Dimmable Motion Sensor | |
| PC UNV B3 Button Photocell | |
| EL UNV-8 Emergency Battery Kit | |
| SS450-02 On-Site Wireless Controller | |
Wall packs provide perimeter lighting around buildings to deter crime, improve safety, highlight entrances, and guide foot and vehicle traffic. They also help fill gaps between area lights.
Many cities now require full-cutoff models for dark-sky compliance.
50W to 70W LEDs typically replace 150W HPS or 175W metal halide.
80W to 120W LEDs replace older 250W to 400W HID fixtures.
LEDs match or exceed brightness with much lower energy usage.
Most are rated IP65 or higher, making them suitable for all exterior conditions.
Many models offer emergency backup that keeps lights on for 90 minutes to meet egress code requirements.

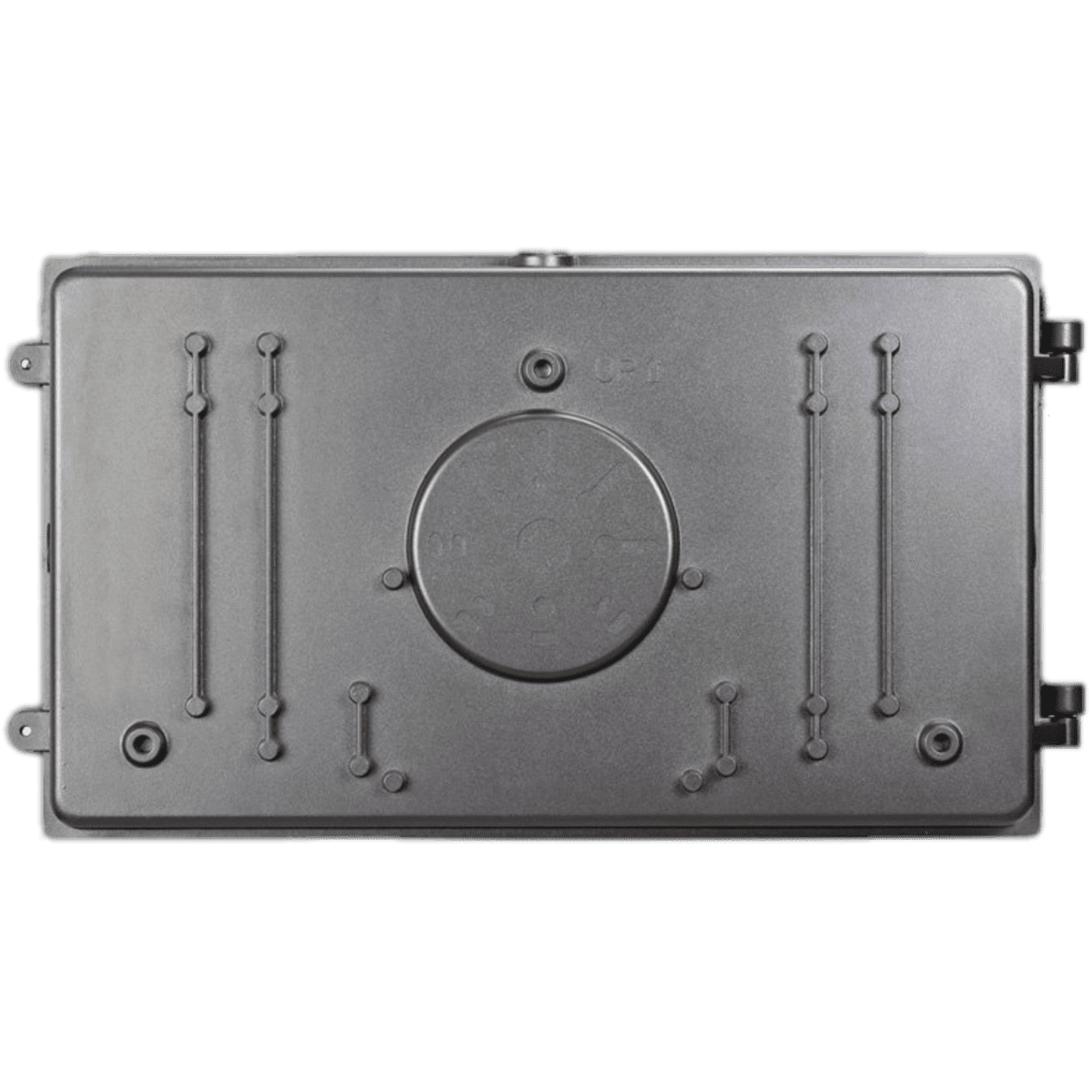

LED wall packs often mount directly to the existing backplate or junction box, making them one of the easiest upgrades in exterior lighting.
