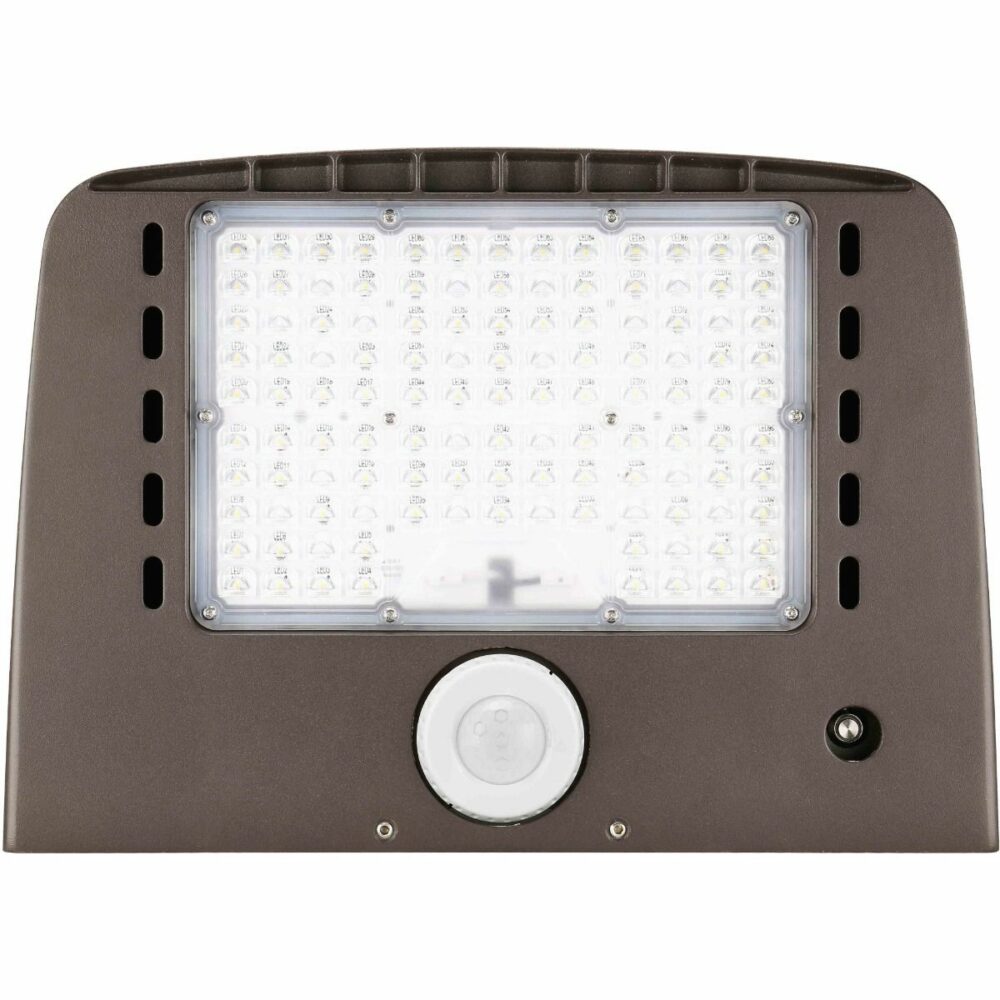

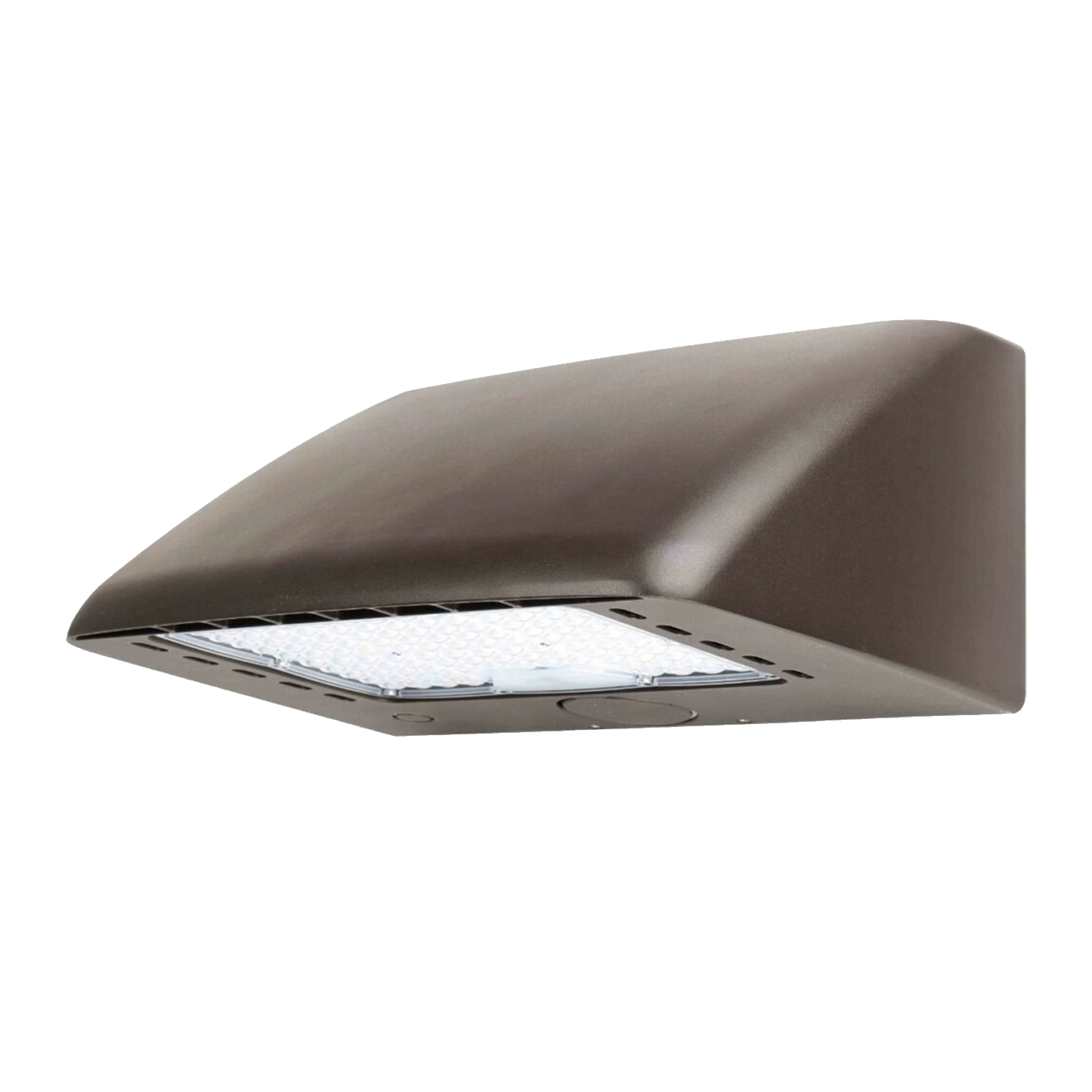

The AeroCut Architectural Full Cutoff Wall Pack Gen 1 is the perfect mix of architectural styling and energy savings. This wall pack has a modern, low-profile design that can be easily customized to fit every building’s design aesthetic. Available in small and medium sizes, this wall pack delivers 3,600 to 13,800 lumens with a wide, uniform distribution.
Applications:
Security Lighting, Perimeter Lighting, Building Entrances, Walkways, etc.
| Product Series | Performance | Wattage | 27W, 45W, 70W, 100W |
| Lumen Output | 3600 Lm, 5800 Lm, 9100 Lm, 13400 Lm | Correlated Color Temperature (CCT) | 4000K, 5000K |
| Color Rendering Index (CRI) | 80 | Product Lens | UV stabilized optical grade polymer refractor lenses |
| Control | Motion Sensor , Photocell, Avi-On Wireless | Accessories | Motion Sensor , Button Photocell , Wireless Controls, Surge Protector, Emergency Backup Kit |
| Mounting Type | Wall Mount | Environment | Indoor & Outdoor |
| Shape | Rectangle | Product Sizes | 8.8in x 7.2in x 4.6in, 14.2in x 7.4in x 4.6in |
| Listings | UL, DLC Premium | IP Rating | IP65 |
| Product Type | Wall Pack | Generation | G1 |
| Color & Finish | Dark Bronze | Housing | Sealed die-casting aluminum |
| Light Source | LED – Static | Voltage Rating | Standard 120-277V |
| Warranty | 10 Year | Labor Warranty | Yes |
| TYPES | LUMENS | GENERATION | VOLTAGE | CCT | FINISH | OPTIONS |
|---|---|---|---|---|---|---|
| Full Cutoff Wall Pack | 3600 Lm 27W 5800 Lm 45W 9100 Lm 70W 13400 Lm 100W | Gen 1 | 120-277V | 4000K 5000K | Dark Bronze Custom | No Options 8W Emergency Backup No Options No Options No Options |
| Part Number | Description |
|---|---|
| MS-FSP-212 Dimmable Motion Sensor |  |
| PC UNV B3 Button Photocell | |
| EL UNV-8 Emergency Battery Kit |  |
| AVI-XPPG1 | |
| Product Series | Performance | Wattage | 27W, 45W, 70W, 100W |
| Lumen Output | 3600 Lm, 5800 Lm, 9100 Lm, 13400 Lm | Correlated Color Temperature (CCT) | 4000K, 5000K |
| Color Rendering Index (CRI) | 80 | Product Lens | UV stabilized optical grade polymer refractor lenses |
| Control | Motion Sensor , Photocell, Avi-On Wireless | Accessories | Motion Sensor , Button Photocell , Wireless Controls, Surge Protector, Emergency Backup Kit |
| Mounting Type | Wall Mount | Environment | Indoor & Outdoor |
| Shape | Rectangle | Product Sizes | 8.8in x 7.2in x 4.6in, 14.2in x 7.4in x 4.6in |
| Listings | UL, DLC Premium | IP Rating | IP65 |
| Product Type | Wall Pack | Generation | G1 |
| Color & Finish | Dark Bronze | Housing | Sealed die-casting aluminum |
| Light Source | LED – Static | Voltage Rating | Standard 120-277V |
| Warranty | 10 Year | Labor Warranty | Yes |
| TYPES | LUMENS | GENERATION | VOLTAGE | CCT | FINISH | OPTIONS |
|---|---|---|---|---|---|---|
| Full Cutoff Wall Pack | 3600 Lm 27W 5800 Lm 45W 9100 Lm 70W 13400 Lm 100W | Gen 1 | 120-277V | 4000K 5000K | Dark Bronze Custom | No Options 8W Emergency Backup No Options No Options No Options |
| Part Number | Description |
|---|---|
| MS-FSP-212 Dimmable Motion Sensor | |
| PC UNV B3 Button Photocell | |
| EL UNV-8 Emergency Battery Kit | |
| AVI-XPPG1 | |
Wall packs provide perimeter lighting around buildings to deter crime, improve safety, highlight entrances, and guide foot and vehicle traffic. They also help fill gaps between area lights.
Many cities now require full-cutoff models for dark-sky compliance.
50W to 70W LEDs typically replace 150W HPS or 175W metal halide.
80W to 120W LEDs replace older 250W to 400W HID fixtures.
LEDs match or exceed brightness with much lower energy usage.
Most are rated IP65 or higher, making them suitable for all exterior conditions.
Many models offer emergency backup that keeps lights on for 90 minutes to meet egress code requirements.
LED wall packs often mount directly to the existing backplate or junction box, making them one of the easiest upgrades in exterior lighting.
