Bright Line

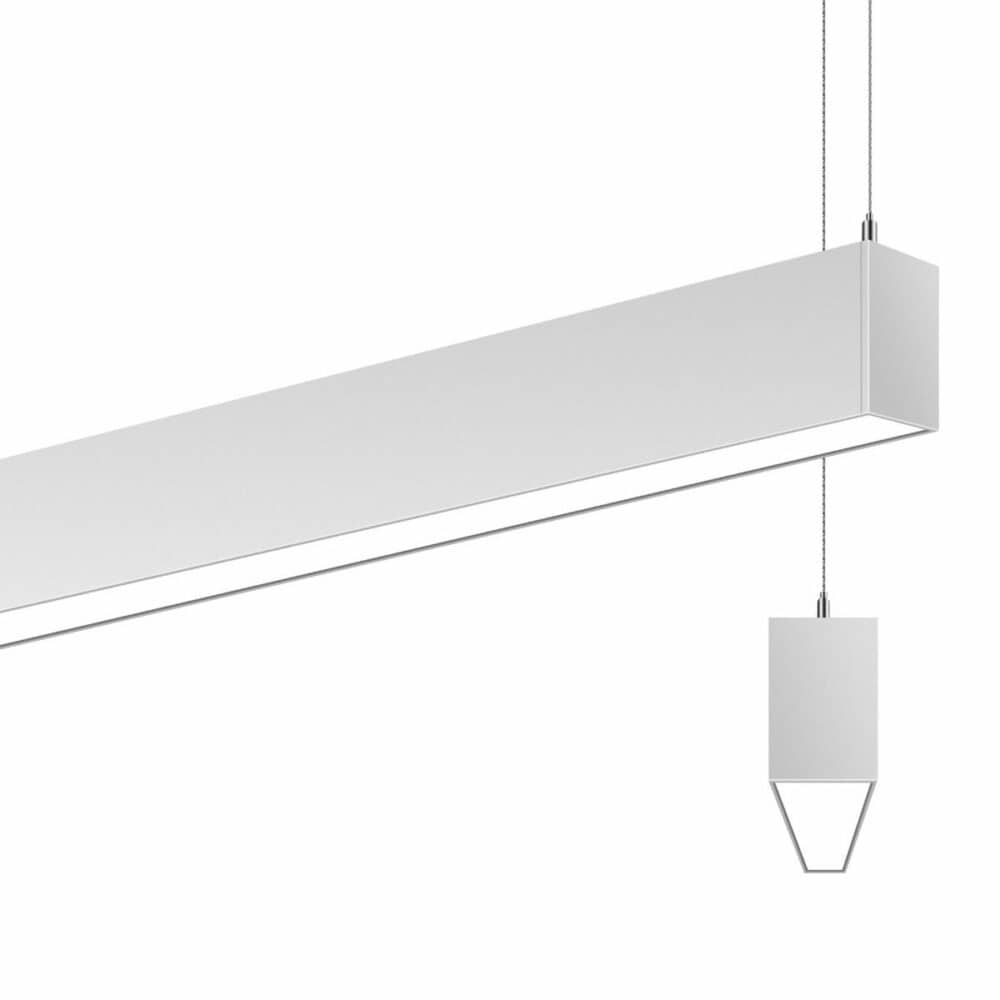

Bright Line 1.8” Slim Architectural Linear Pendant Mount
products-saln1g1_2
products-saln1g1_3
products-saln1g1_4
products-saln1g1_5
products-saln1g1_6

Bright Line National LEDBright Line National LEDBright Line National LED





Bright Line Slim Architectural Linear Pendant Mount

The Bright Line 1.8” Slim Architectural Linear Pendant Mount is an ultra-sleek lighting solution that is fully customizable to meet the unique needs of each application.

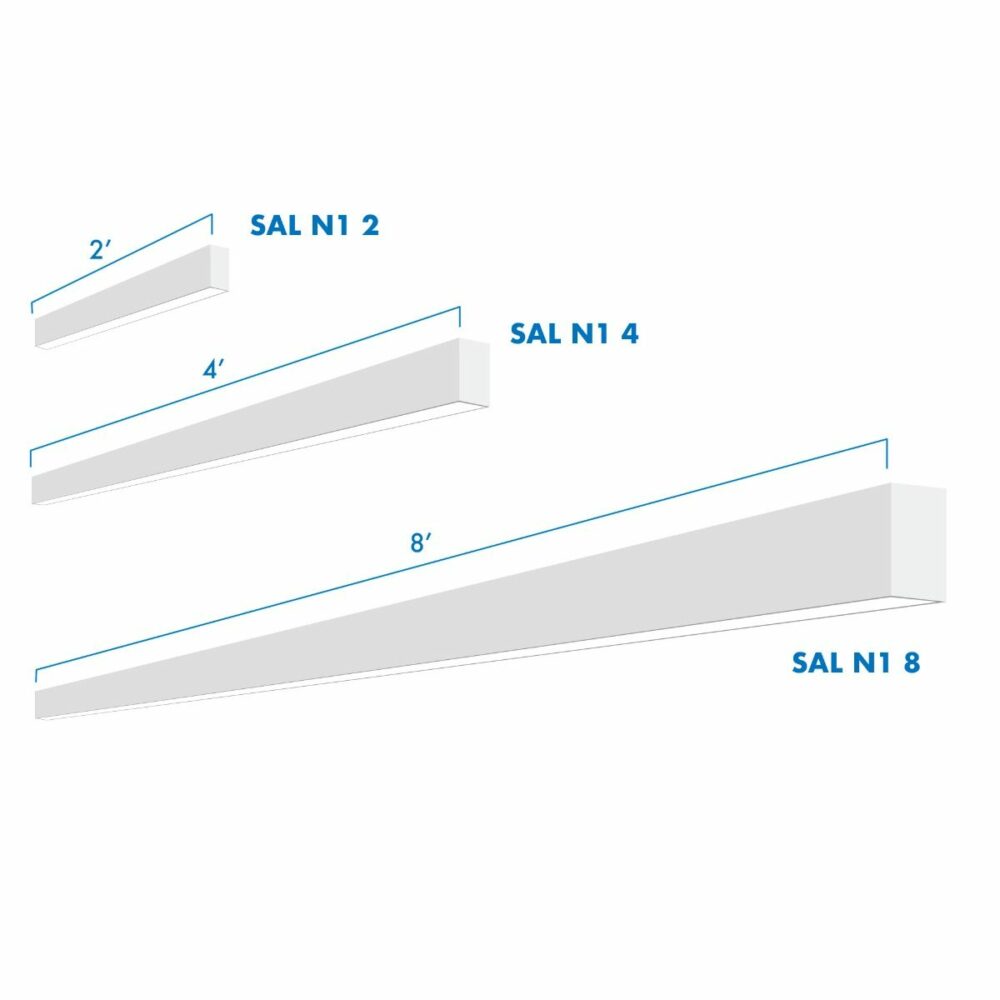

The lengths come in 2 ft, 4 ft, and 8 ft with selectable color temperature, wattage, and distributions. The minimalist and elegant aesthetic paired with brilliant illumination and even distribution will elevate your space in a range of applications, including offices, lobbies, and retail spaces.

This versatile architectural luminaire possesses unlimited design potential for endless design pattern possibilities.

Applications:

Commercial, Retail, Hospitality, Education, Airport, Medical, and any open spaces that require a unique and elegant architectural lighting design.

Request a Quote

Next Day Shipping

5 Year Minimum Warranty

Expert Installation

Get a data sheet

Download data sheet
Features
Ordering Information
Accessories
Product Series Design Shape Linear
Wattage 5W/7.5W/10W per ft selectable Product Sizes 2ft, 4ft, 8ft and custom lengths in increments of 2ft
Lumen Output 500Lm/750Lm/1000lm per ft Listings UL Listed for damp locations
Correlated Color Temperature (CCT) 3000K, 3500K, 4000K Selectable Product Type Architectural
Color Rendering Index (CRI) 90 Generation G1

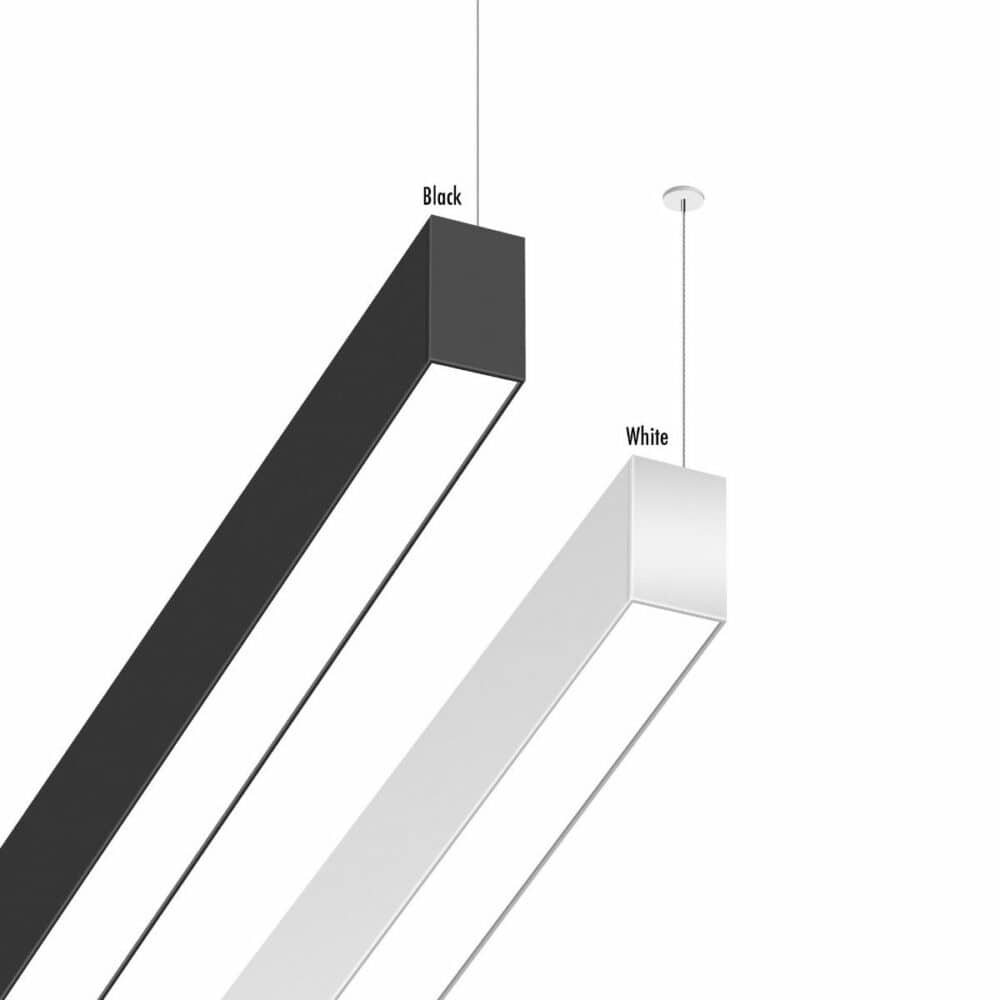

Product Distribution Types 100% Down Color & Finish Standard White and Black in stock. Custom finishes available.
Product Lens Flat lens Housing Anodized Aluminum
Control Wireless Zone Controller available Light Source LED – Selectable
Accessories Emergency Backup Kit Voltage Rating 120V for connections up to 40ft, 277V for connections up to 100ft
Mounting Type Pendant Mount, with optional Drywall Ceiling or T-Grid mounting hardware. Cable lengths of 60″, 144″ available. Warranty 5 Year
Environment Indoor Labor Warranty No
TYPES WIDTH LENGTH LUMENS GENERATION CCT FINISH
Slim Architectural Linear Narrow 1.8 2′ Fixture
4′ Fixture
8′ Fixture		 High 1000 Lm/Ft 10W/Ft
Medium 750 Lm/Ft 7.5W/Ft
Low 500 Lm/Ft 5W/Ft		 Gen 1 3000K
3500K
4000K		 White
Black
Part Number Description
EMH-8W
AVI-XPPG1
DW-WP-KIT
DW-WP-KIT-T1
DC-W-KIT-T1
SC-KIT

Features

Product Series Design Shape Linear
Wattage 5W/7.5W/10W per ft selectable Product Sizes 2ft, 4ft, 8ft and custom lengths in increments of 2ft
Lumen Output 500Lm/750Lm/1000lm per ft Listings UL Listed for damp locations
Correlated Color Temperature (CCT) 3000K, 3500K, 4000K Selectable Product Type Architectural
Color Rendering Index (CRI) 90 Generation G1
Product Distribution Types 100% Down Color & Finish Standard White and Black in stock. Custom finishes available.
Product Lens Flat lens Housing Anodized Aluminum
Control Wireless Zone Controller available Light Source LED – Selectable
Accessories Emergency Backup Kit Voltage Rating 120V for connections up to 40ft, 277V for connections up to 100ft
Mounting Type Pendant Mount, with optional Drywall Ceiling or T-Grid mounting hardware. Cable lengths of 60″, 144″ available. Warranty 5 Year
Environment Indoor Labor Warranty No

Ordering Information

TYPES WIDTH LENGTH LUMENS GENERATION CCT FINISH
Slim Architectural Linear Narrow 1.8 2′ Fixture
4′ Fixture
8′ Fixture		 High 1000 Lm/Ft 10W/Ft
Medium 750 Lm/Ft 7.5W/Ft
Low 500 Lm/Ft 5W/Ft		 Gen 1 3000K
3500K
4000K		 White
Black

Accessories

Part Number Description
EMH-8W
AVI-XPPG1
DW-WP-KIT
DW-WP-KIT-T1
DC-W-KIT-T1
SC-KIT

Frequently Asked Questions

What are linear LED lights used for in commercial spaces?

Linear fixtures are used for offices, hallways, open-ceiling designs, retail stores, conference rooms, schools, warehouses, and architectural features. They provide clean, modern illumination with smooth lines of light that work in both functional and decorative applications.

What lengths and configurations are available for linear lighting?

Linear LEDs come in 2 ft, 4 ft, and 8 ft lengths, and can be connected end-to-end to create continuous rows of seamless light. They can also be built into shapes, corners, L-patterns, U-shapes, and custom runs for architectural design.

What mounting options can linear fixtures use?

They support multiple mounting styles, including:

  • Suspended or cable-hung
  • Surface mount
  • Recessed (T-grid and hard ceiling)
  • Wall mount

This makes them suitable for everything from modern offices to industrial aisles and retail displays.

Are linear LED fixtures dimmable or compatible with control systems?

Yes. Most linear lights support 0–10V dimming, and many can integrate with:

  • Occupancy sensors
  • Daylight harvesting
  • Wireless control and scheduling
  • Building automation systems

This improves energy savings and gives full control over brightness and ambiance.

Can linear LED lights replace fluorescent strip or troffer lighting?

Absolutely. Linear LEDs are one of the best replacements for old T8 or T12 fluorescent fixtures. They offer:

  • Better efficiency
  • Higher-quality light
  • Sleeker appearance
  • Silent, flicker-free performance
  • No ballast or lamp replacements

They also give more flexibility for modern layouts.

How long do linear LED lights last and what maintenance is required?

Linear LEDs typically last 50,000 to 100,000 hours with minimal maintenance. Unlike fluorescent systems, there are no lamps or ballasts to replace. Occasional lens cleaning is usually all that’s required to maintain brightness.
