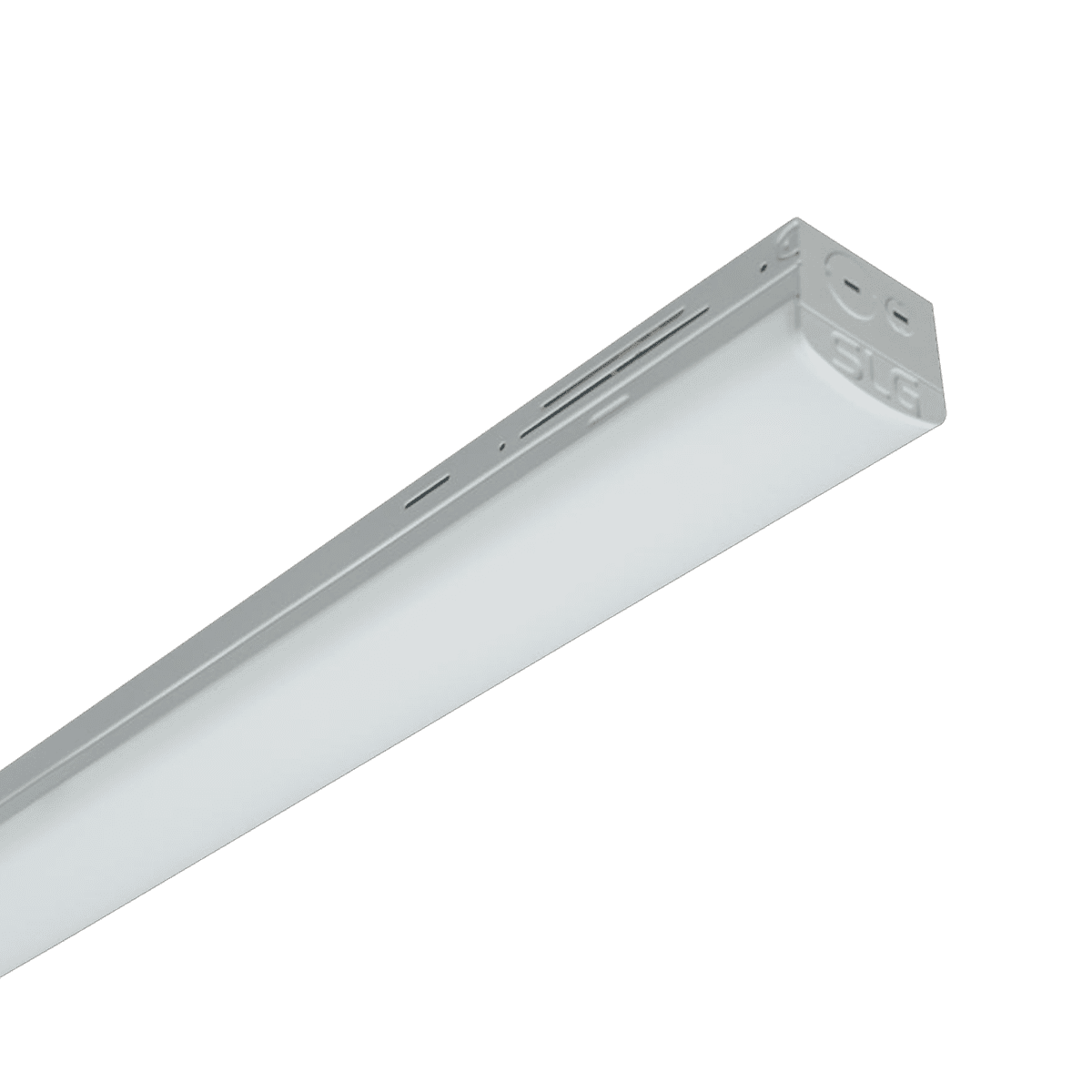

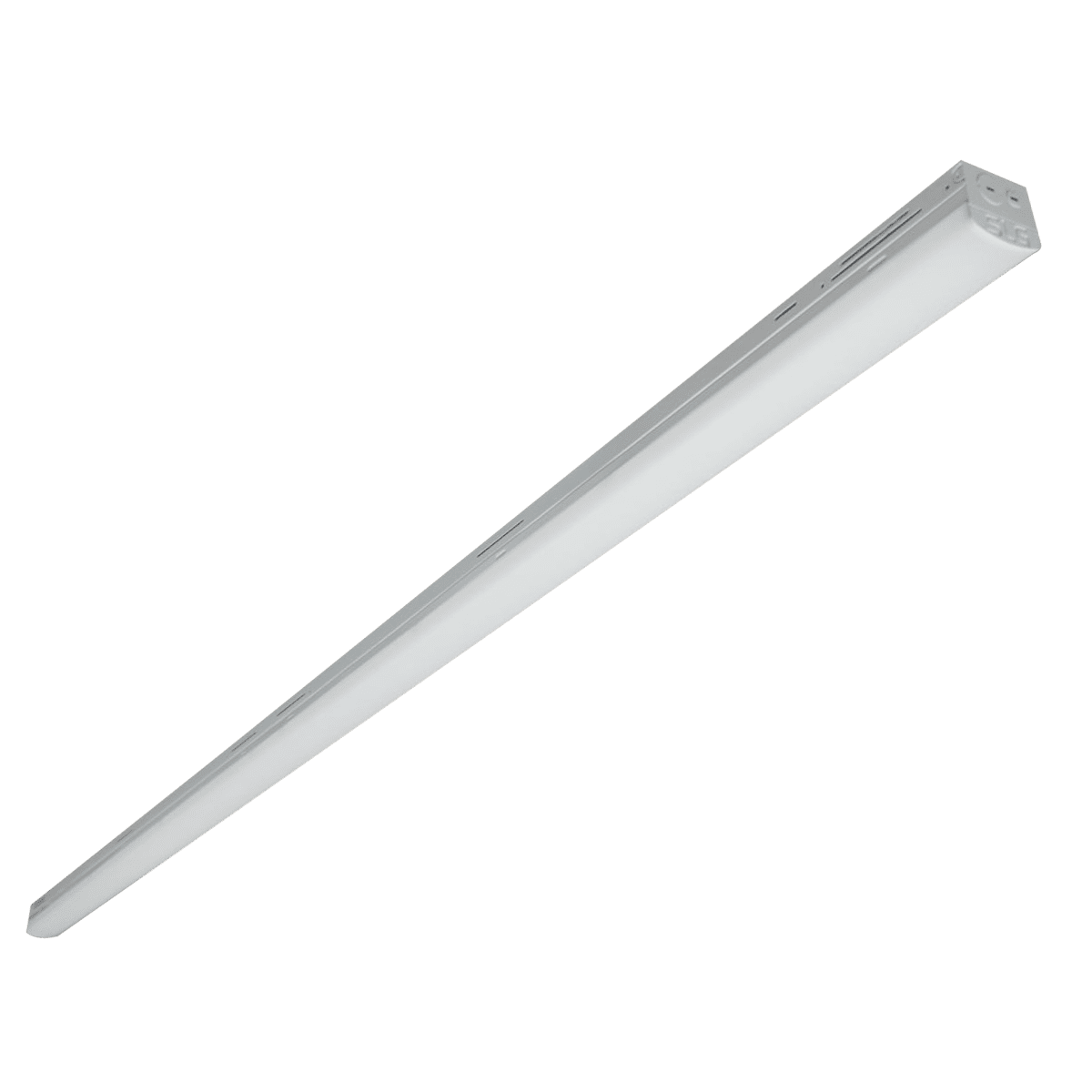

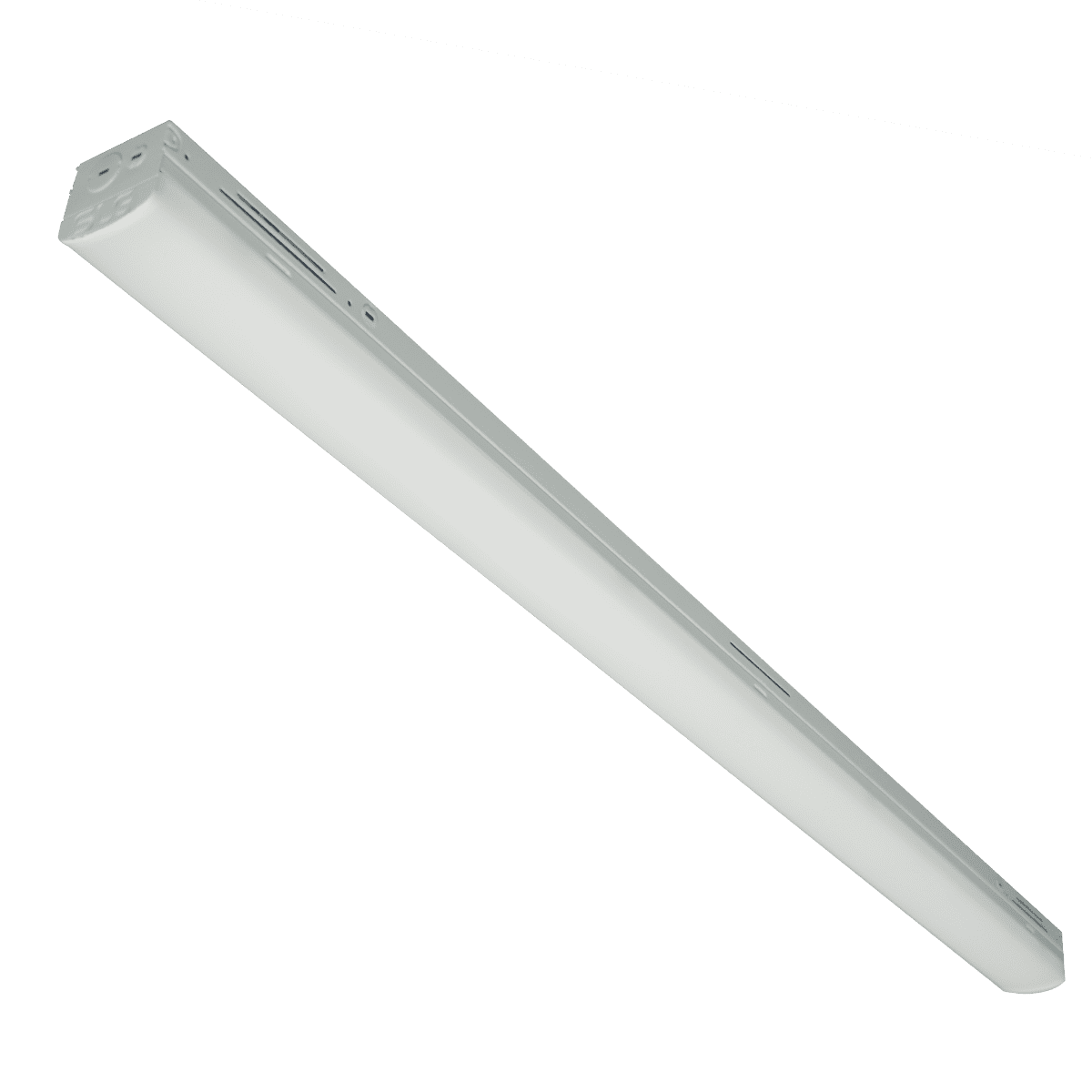

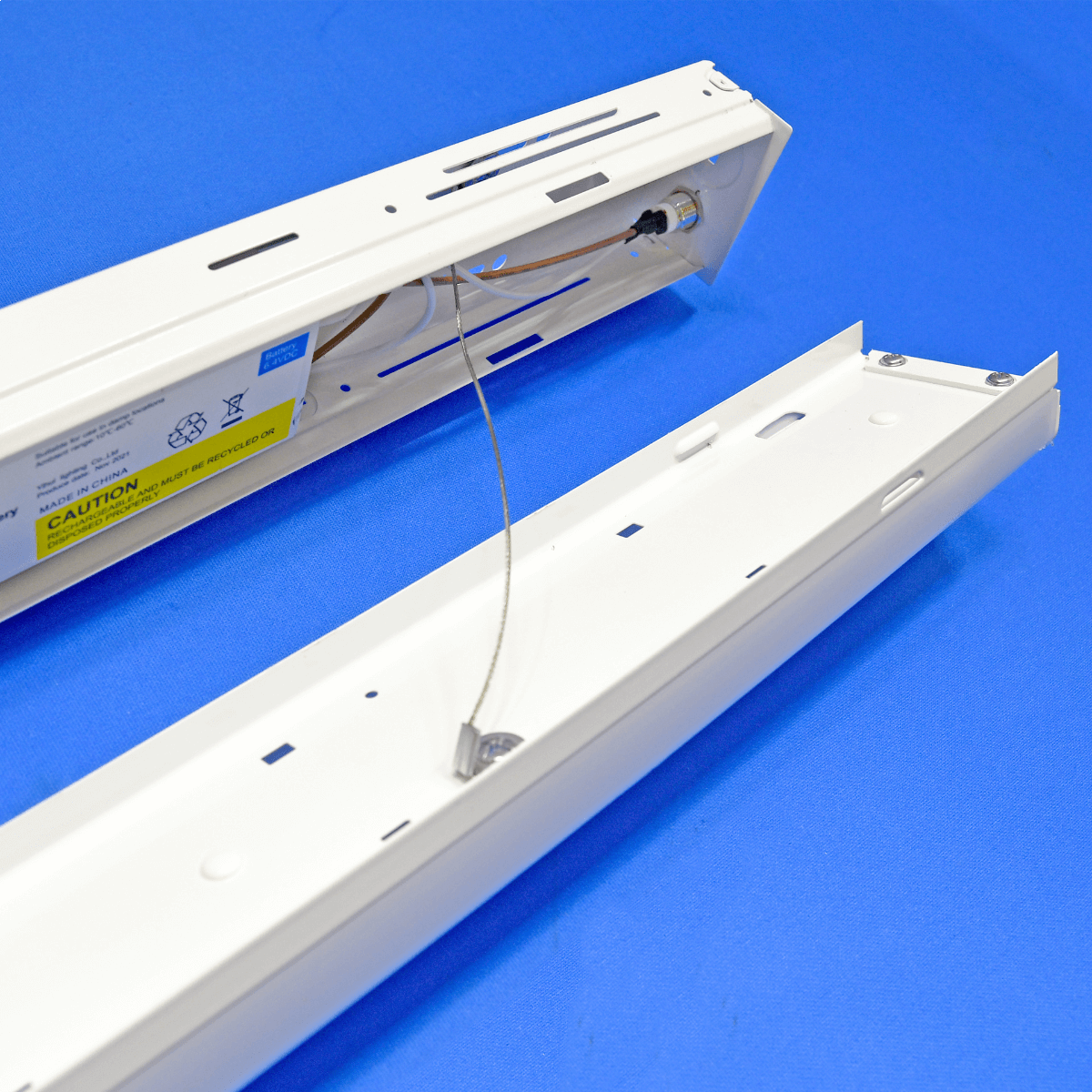

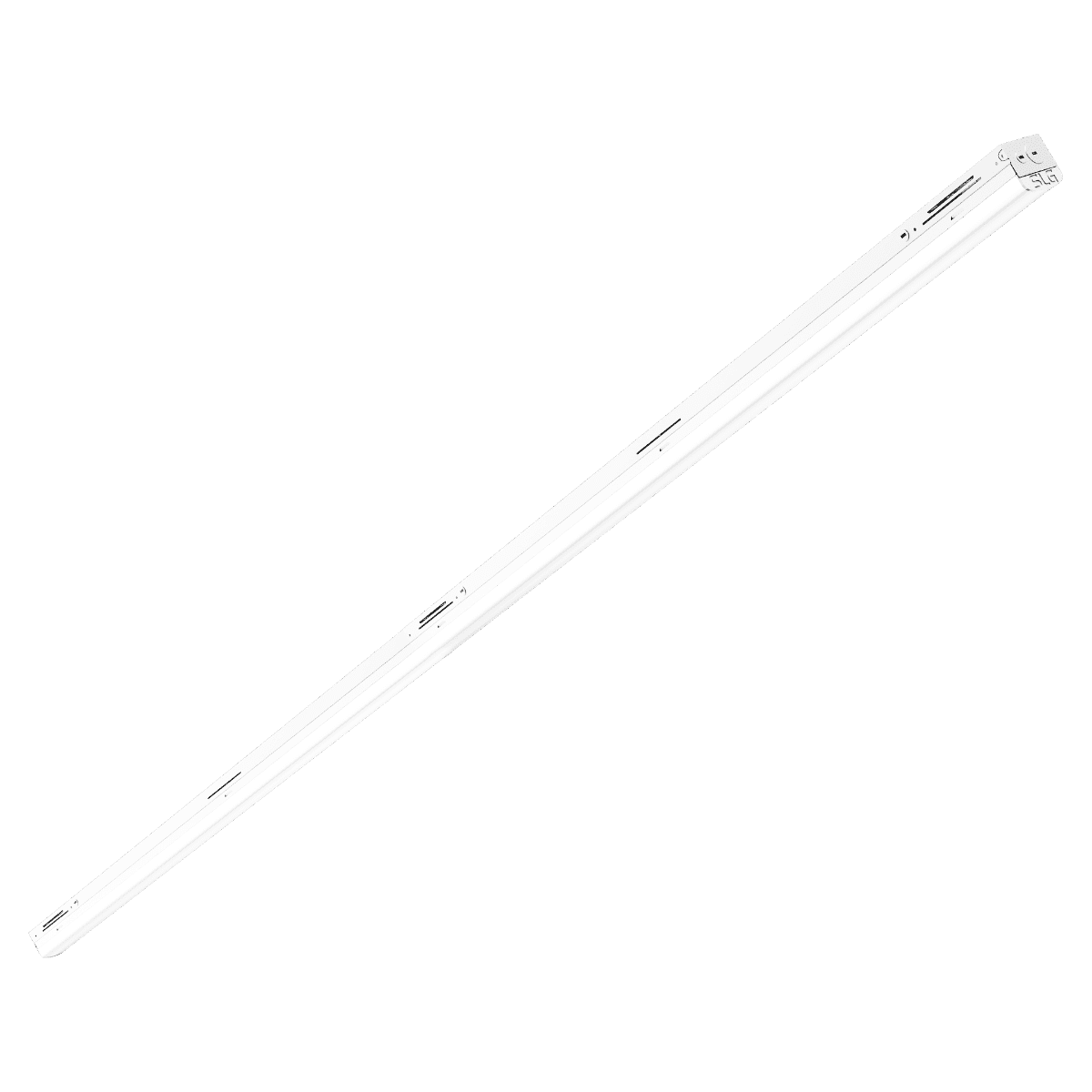

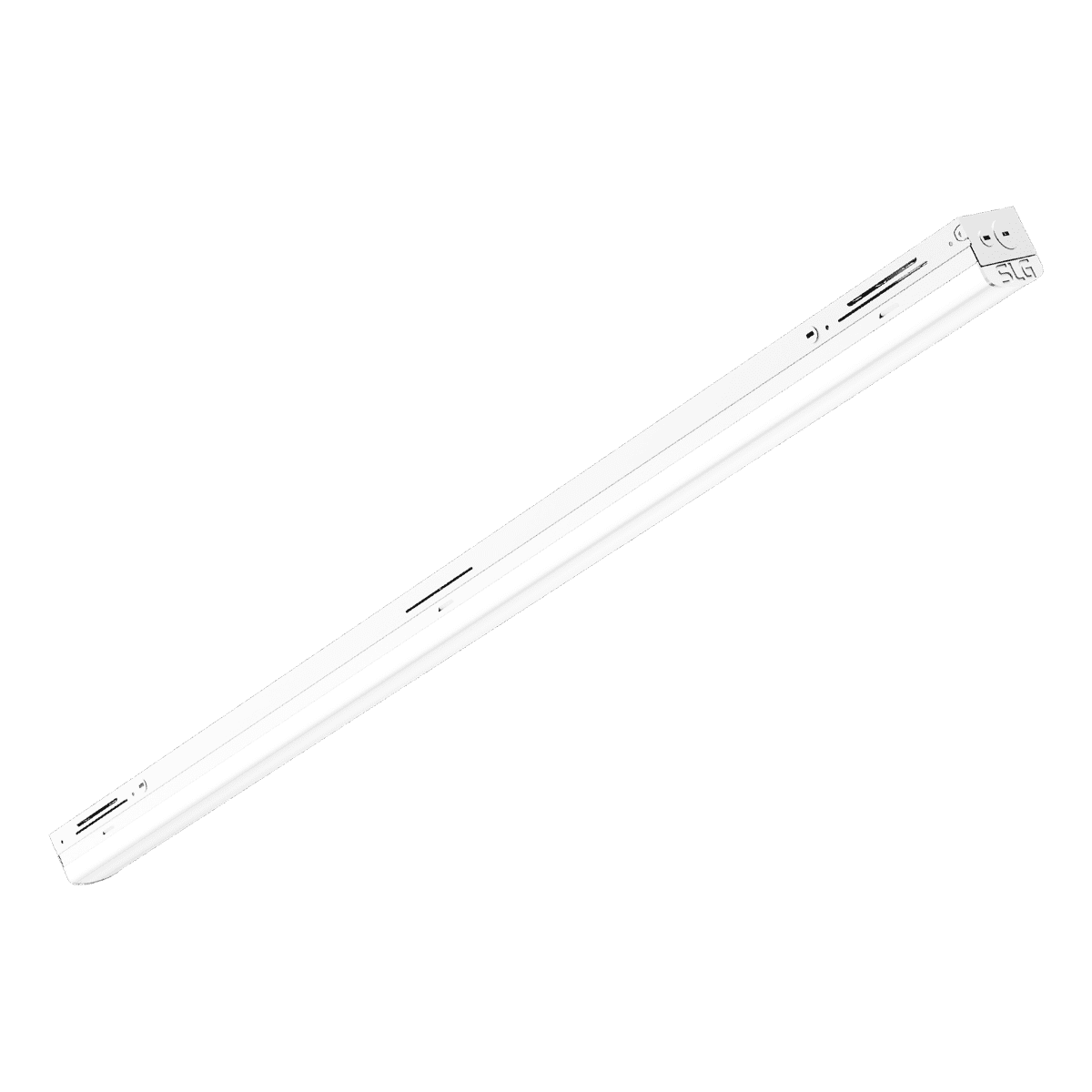

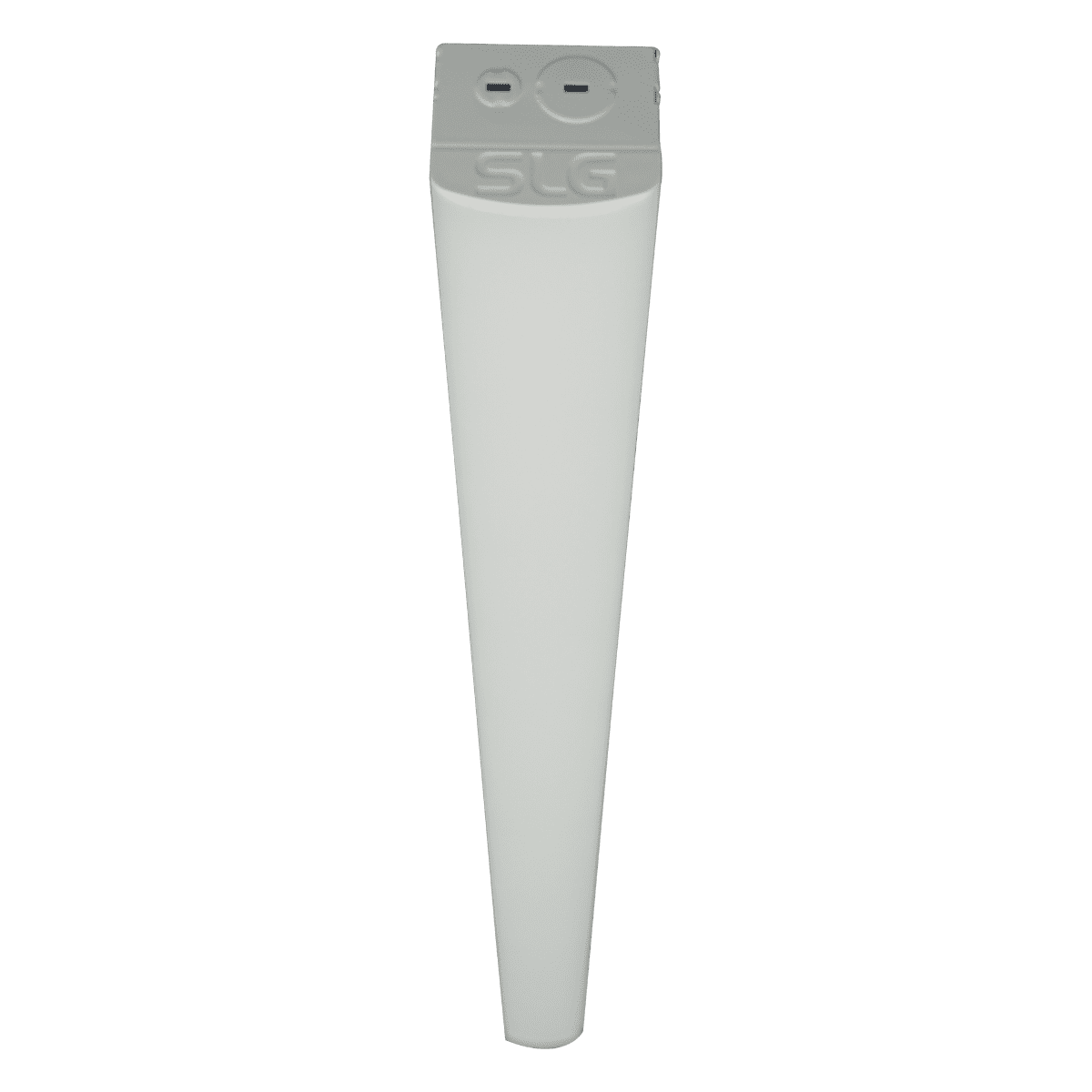

The TSS LED Slim Industrial Strip is a contractor series LED strip light that offers lumen and CCT selectable options in 4’ and 8’ sizes. The two-part housing design makes installation 70% faster and reduces accidents/damages. Emergency backup kit and multiple mounting options make the TSS your new “have-you-seen-this” option for strip lighting solutions.
| Product Series | Contractor | Wattage | 24W , 32W , 40W , 48W, 64W ,80W Selectable, 35W, 65W Static |
| Lumen Output | 3120/4160/5200 or 6240/8320/10400 LM Selectable models, 4550 LM or 8450 LM Standard models | Correlated Color Temperature (CCT) | 4000K Static, 3500/4000/5000 FSK models |
| Color Rendering Index (CRI) | 80 | Product Lens | Frosted acrylic lens. |
| Control | Motion Sensors | Accessories | Motion Sensor , Emergency Backup Kit , Row Connector , Wire Guards |
| Mounting Type | Surface Mount , Hook Mount | Environment | Indoor |
| Shape | Linear | Product Sizes | 4ft and 8ft |
| Listings | DLC , UL | Product Type | Troffer |
| Generation | G1 | Color & Finish | Polyester Powder White Finish |
| Housing | Aluminum body with custom “SLG” molded plastic end caps | Light Source | LED – Selectable |
| Voltage Rating | Standard 120-277V | Warranty | 5 Year |
| Labor Warranty | No |
| TYPES | LENGTH | LUMENS | GENERATION | VOLTAGE | CCT | FINISH | OPTIONS |
|---|---|---|---|---|---|---|---|
| Selectable Slim Industrial Strip | 4 ft 8 ft | 3120 Lm / 24W 4160 Lm / 32W 5200 Lm / 40W Selectable 6240 Lm / 48W 8320 Lm / 64W 10400 Lm / 80W Selectable 4550 Lm / 35W Static 8450 Lm / 65W Static | Gen 1 | 120-277V | 3500K/ 4000K/ 5000K Selectable 4000K | White | No Options High/Low-Bay PIR On/Off sensor PIR Motion/Photo sensor 120/277V AC 1-10V Dimming No Options |
| Part Number | Description |
|---|---|
| HBP-212-L7-W High Bay Sensor, Cont Dimming |  |
| HBP-112-L7-OEM High/Low-Bay PIR On/Off Sensor |  |
| WG-TS4 |  |
| EL UNV 1 Emergency Battery Kit |  |
| WG-TSS 4 G1 |  |
| TSS-SPAC-KIT |  |
| TSS-SPCN-KIT |  |
| TSS-JBCVR |  |

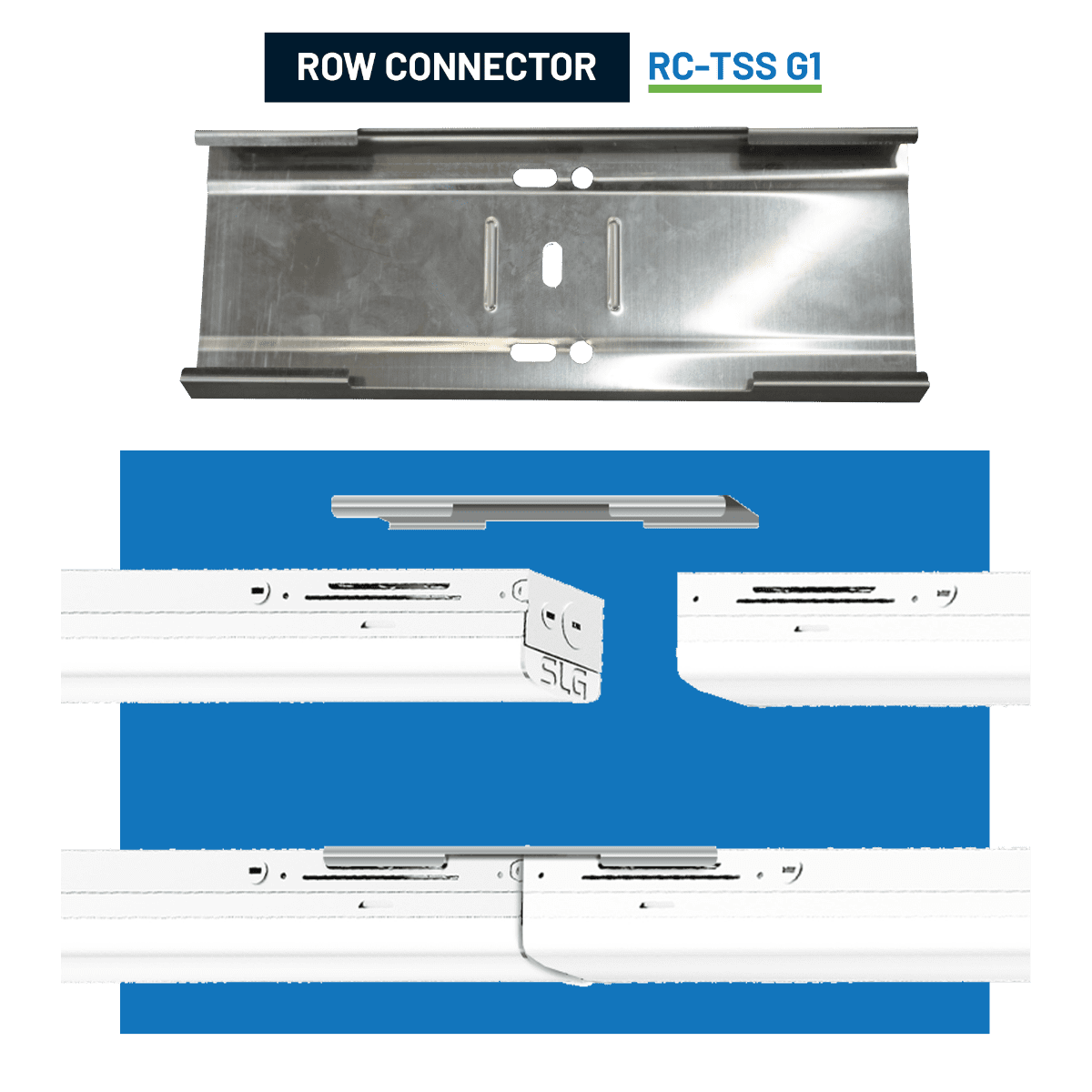

| RC-TSS G1 |  |
| Product Series | Contractor | Wattage | 24W , 32W , 40W , 48W, 64W ,80W Selectable, 35W, 65W Static |
| Lumen Output | 3120/4160/5200 or 6240/8320/10400 LM Selectable models, 4550 LM or 8450 LM Standard models | Correlated Color Temperature (CCT) | 4000K Static, 3500/4000/5000 FSK models |
| Color Rendering Index (CRI) | 80 | Product Lens | Frosted acrylic lens. |
| Control | Motion Sensors | Accessories | Motion Sensor , Emergency Backup Kit , Row Connector , Wire Guards |
| Mounting Type | Surface Mount , Hook Mount | Environment | Indoor |
| Shape | Linear | Product Sizes | 4ft and 8ft |
| Listings | DLC , UL | Product Type | Troffer |
| Generation | G1 | Color & Finish | Polyester Powder White Finish |
| Housing | Aluminum body with custom “SLG” molded plastic end caps | Light Source | LED – Selectable |
| Voltage Rating | Standard 120-277V | Warranty | 5 Year |
| Labor Warranty | No |
| TYPES | LENGTH | LUMENS | GENERATION | VOLTAGE | CCT | FINISH | OPTIONS |
|---|---|---|---|---|---|---|---|
| Selectable Slim Industrial Strip | 4 ft 8 ft | 3120 Lm / 24W 4160 Lm / 32W 5200 Lm / 40W Selectable 6240 Lm / 48W 8320 Lm / 64W 10400 Lm / 80W Selectable 4550 Lm / 35W Static 8450 Lm / 65W Static | Gen 1 | 120-277V | 3500K/ 4000K/ 5000K Selectable 4000K | White | No Options High/Low-Bay PIR On/Off sensor PIR Motion/Photo sensor 120/277V AC 1-10V Dimming No Options |
| Part Number | Description |
|---|---|
| HBP-212-L7-W High Bay Sensor, Cont Dimming |  |
| HBP-112-L7-OEM High/Low-Bay PIR On/Off Sensor |  |
| WG-TS4 |  |
| EL UNV 1 Emergency Battery Kit |  |
| WG-TSS 4 G1 |  |
| TSS-SPAC-KIT |  |
| TSS-SPCN-KIT |  |
| TSS-JBCVR |  |
| RC-TSS G1 |  |
LEDs can be programmed to create dynamic lighting effects that enhance the game-day experience for everyone involved and can provide superior lighting for playing fields and arenas, improving visibility for athletes and spectators alike.
One of the biggest benefits of commercial LED lighting is the decrease in energy costs. Traditional incandescent and metal-halide lights can use up to four times as much energy as commercial LED lights. This decrease in energy consumption not only saves money, but also helps reduce your facility’s carbon footprint.
Commercial LED lights also last much longer than traditional lighting options. While incandescent bulbs typically only last around 1,000 hours, commercial LED lights can last up to 100,000 hours. This not only reduces maintenance and replacement costs, but also reduces the amount of time your facility needs to be dark while lights are being replaced.
Another key benefit of commercial LED lighting is increased safety. Because commercial LED lights produce ve ry little heat, there is less risk of fire hazards. Additionally, commercial LED lights can be designed with specific light patterns that can help improve visibility for athletes and spectators alike. This improved visibility can help prevent accidents and injuries on the playing field or in the stands.
