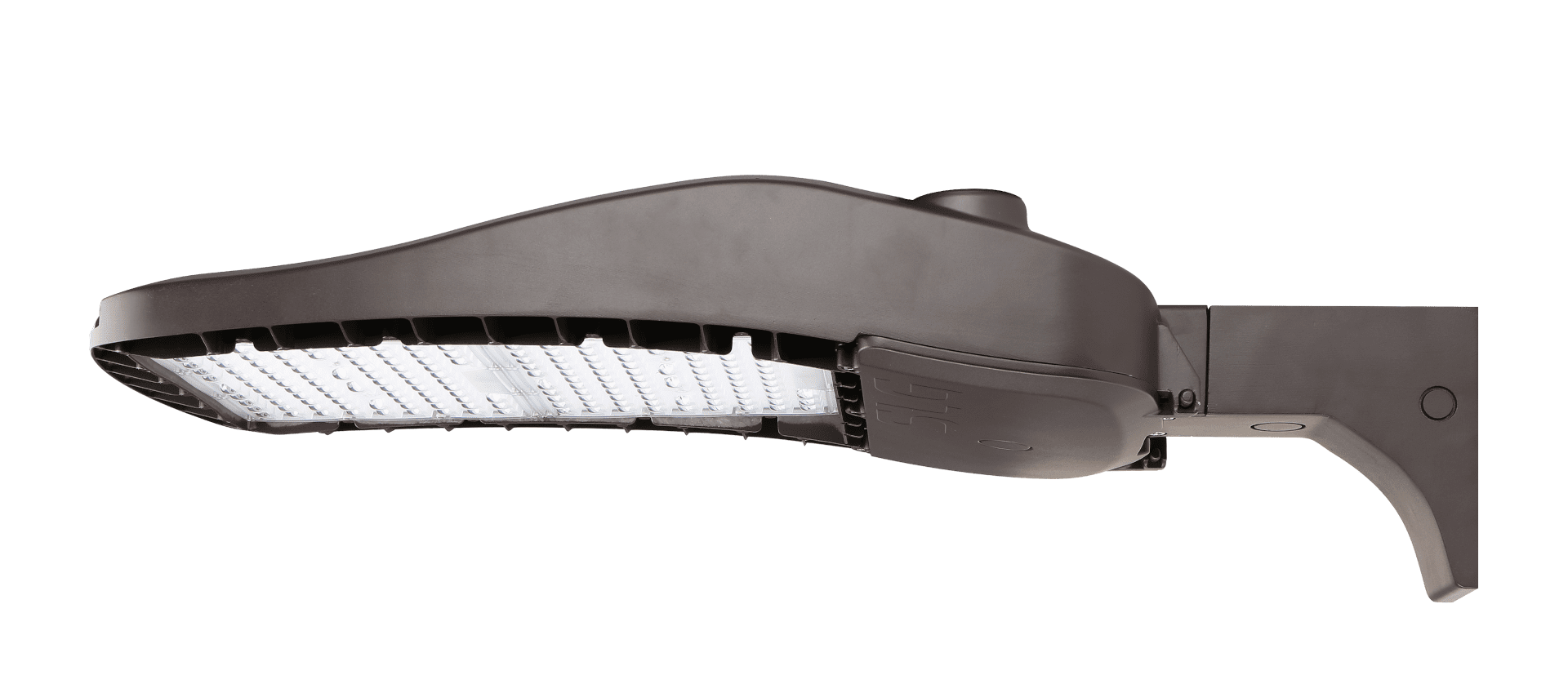

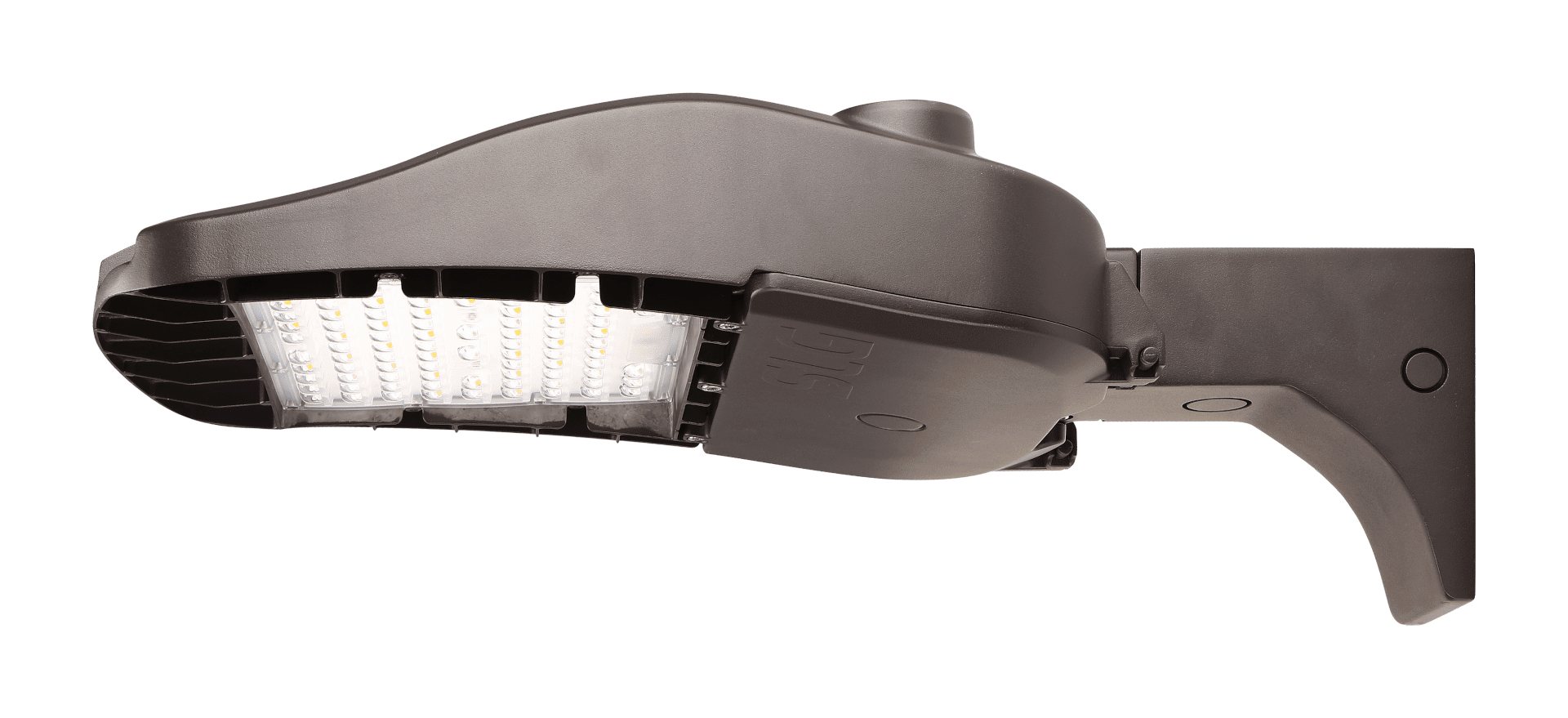

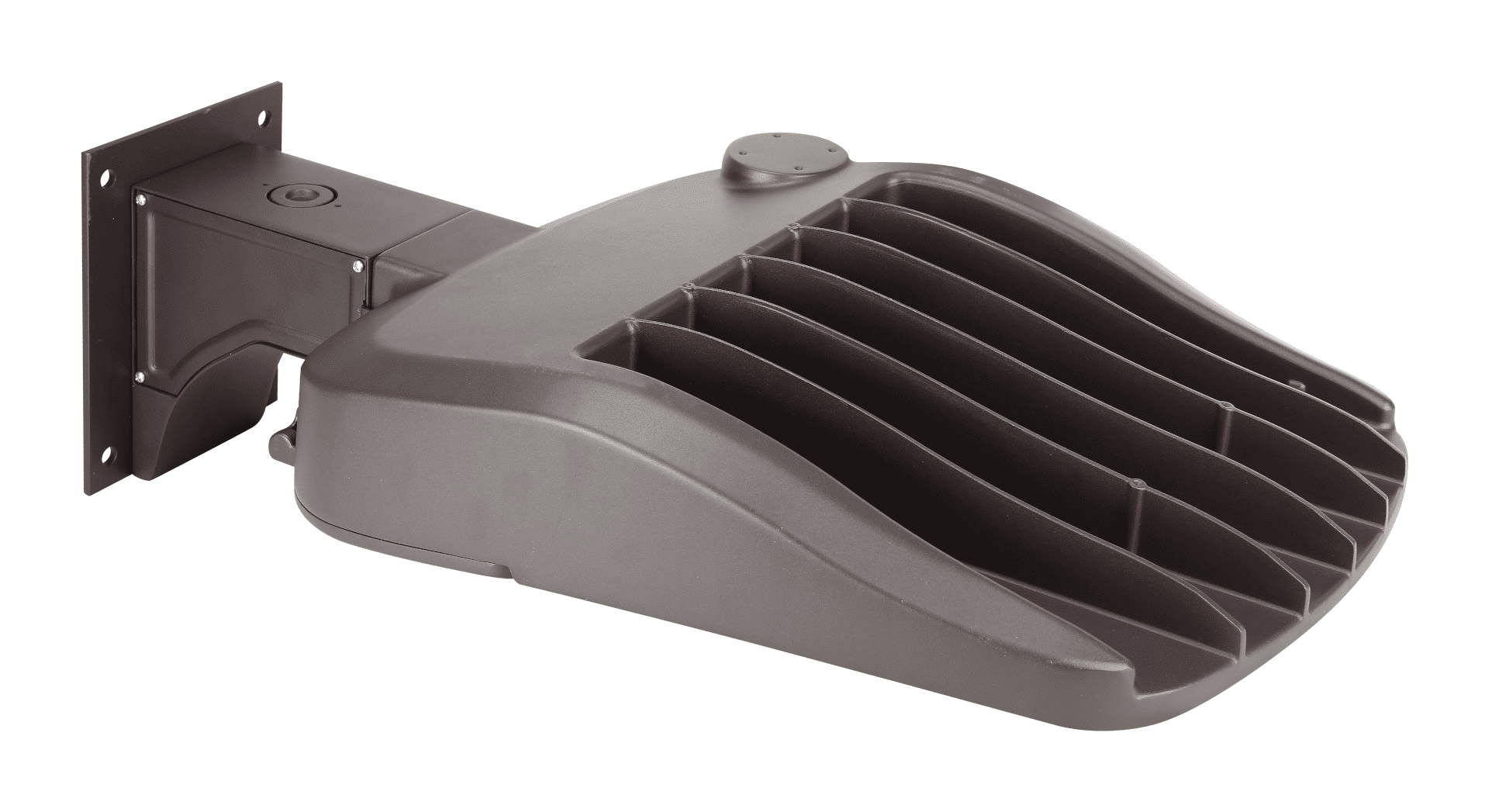

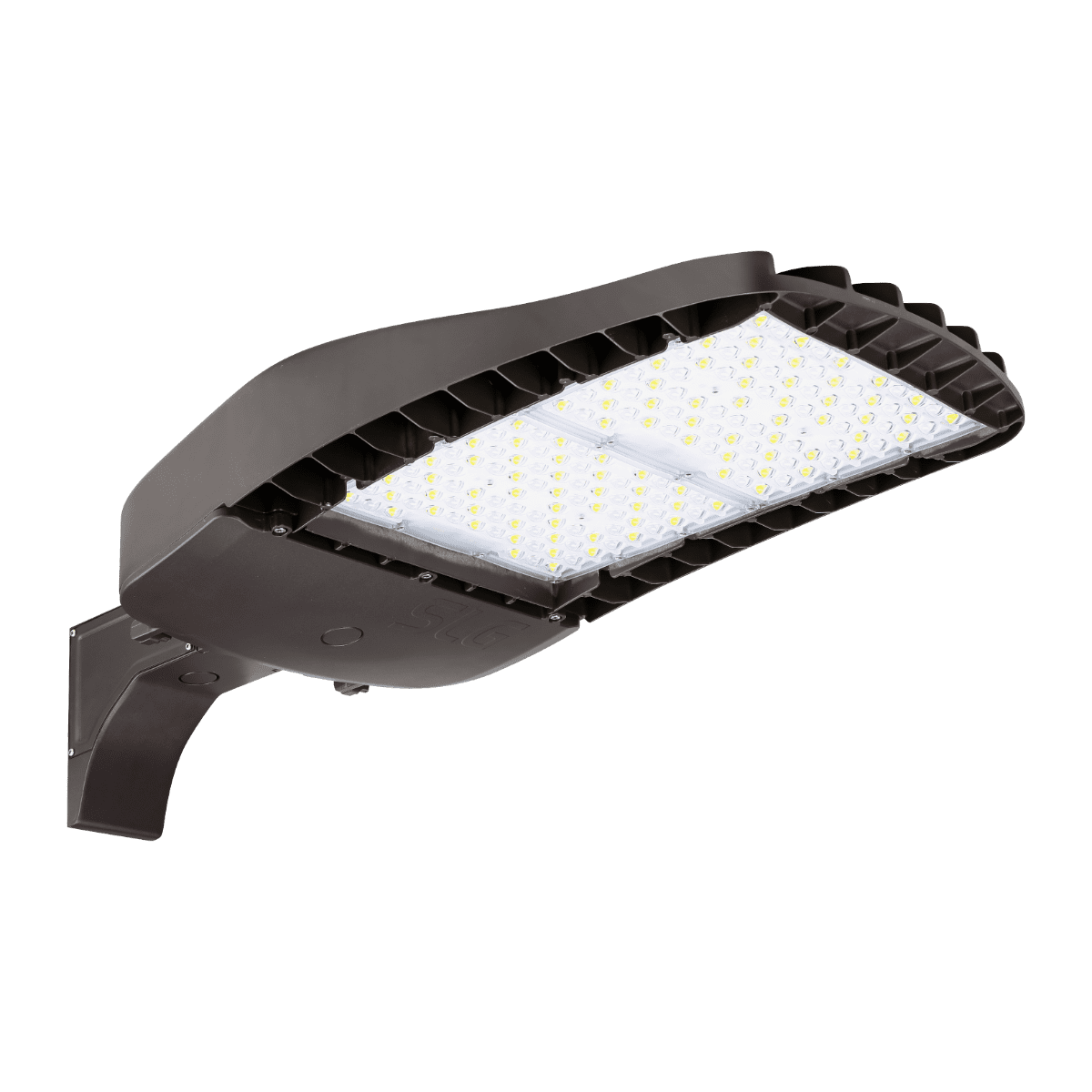

Area Light Wave Series Gen 1
The ALW Area Light Wave Series Gen 1 features an exclusive housing design that complements each environment. This modern luminaire is offered in medium and large sizes with lumen packages between 10,400 to 56,000 lumens. Boasting an advanced heatsink and leading surge protection, this luminaire also provides superior light distribution, visual comfort, and uniformity in its optical design.
Spec-grade optics coming soon.
Applications:
Auto Dealerships, Parking Lots, Walkways, Roadways, and other Public Areas, etc.
| Product Series | Performance | Wattage | 70W , 100W , 150W , 200W , 240W , 300W, 350W, 380W |
| Lumen Output | 10400 LM , 14200 LM , 21200 LM , 28000 LM , 34000 LM , 42500 LM ,53000 LM | Correlated Color Temperature (CCT) | 3000K, 4000K , 5000K |
| Color Rendering Index (CRI) | 70 | Product Distribution Types | T3, T4, T5 |
| Product Lens | Precision molded optics provides superior distribution, minimal light trespass, and application spacing. | Control | Dimmable Motion Sensor, Synapse Wireless, Avi-On |
| Accessories | Twist-lock Photocell | Mounting Type | Square and Round Pole , Wall Mount , Slipfitter Mount , Trunnion Mount |
| Environment | Outdoor | Shape | Rectangle |
| Product Sizes | Medium and Large sizes | Listings | UL , DLC Premium , FCC |
| IP Rating | IP65 | Product Type | Area Light |
| Generation | G1 | Color & Finish | Standard Polyester Powder Dark Bronze finish. Optional Black and White finishes available. |
| Light Source | LED – Static | Voltage Rating | Standard 120-277V, HVU 347-480V |
| Warranty | 10 Year | Labor Warranty | Yes |
| TYPES | LUMENS | DISTRIBUTION | GENERATION | VOLTAGE | CCT | FINISH | MOUNT | OPTIONS |
|---|---|---|---|---|---|---|---|---|
| Wave Area Light | Medium 10400 Lm 70W Medium 14200 Lm 100W Medium 21200 Lm 150W Medium 28000 Lm 200W Large 34000 Lm 240W Large 42500 Lm 300W Large 53000 Lm 350W UNV 380W HVU |
NEMA Type III NEMA Type IV NEMA Type V |
Gen 1 | 120-277V 347-480V |
3000K 4000K 5000K |
Dark Bronze Silver Gray White Custom |
Square and Round Pole Wall Slipfitter Slipfitter w/Photocell Trunnion |
No Options Twist-lock Photocell 120-277V Twist-lock Photocell 480V 7-Pin Receptacle No Options No Options No Options |
| Part Number | Description |
|---|---|
| PC- 2 NEMA Twist-lock Photocell 377V-480V |  |
| PC- 1 NEMA Twist-lock Photocell 120V-277V | |
| PC- 3 7-Pin NEMA Twist-lock Receptacle |  |
| MS-FSP-212 Dimmable Motion Sensor |  |
| MS-FSP-221B Dimmable Motion Sensor |  |
| Square and Round Pole Mount |  |
| Wall Mount |  |
| SPS Pole Accessories |  |
| SS450-02 On-Site Wireless Controller |  |
| SSSK |  |
