LED Down Lights

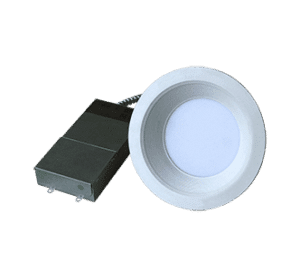

For down light applications, US LED offers the L-Trim SOL XL in four different diameters, ranging from 4″ to 10″ profiles. With the versatility of the fit, the L-Trim SOL XL is of a durable construction and includes an integrated trim ring in a singular assembled piece.
Series | Variant | Voltage | CCT | Wattage | Size | Mount | Color |
---|---|---|---|---|---|---|---|
LTR3 | 1 | UNV – 120-277V | 35 – 3500K 40 – 4000K 50 – 5000K |
8 – 8W 18 – 18W 28 – 28W 37 – 37W |
4R – 4″ Round 6R – 6″ Round 8R – 8″ Round 10R – 10″ Round |
C – Clamp (New Build) | WH – White |
Example: LTR3-1-UNV-35-8-4R-C-WH
Spec Type | 4″ Round | 8W | 6″ Round | 18W | 8″ Round | 28W | 10″ Round | 37W |
---|---|---|---|---|
Units/Carton | 1 | 1 | 1 | 1 |
Net Weight | 0.5 lbs. | 3 lbs. | 3.5 lbs. | 5 lbs. |
Environmental Rating | Dry | Dry | Dry | Dry |
Spec Type | 4″ Round | 8W | 6″ Round | 18W | 8″ Round | 28W | 10″ Round | 37W |
---|---|---|---|---|
Input Voltage (VAC) | 120-277 | 120-277 | 120-277 | 120-277 |
System Level Power (W) | 8 | 18.3 | 29.4 | 39.2 |
Delivered Lumens (Lm) | 750 | 760 | 780 | 1,610 | 1,710 | 1,730 | 2,900 | 2,960 | 3,100 | 3,760 | 3,780 | 3,800 |
System Efficacy (Lm/W) | 93 | 95 | 98 | 88 | 93 | 95 | 99 | 101 | 105 | 95 | 96 | 97 |
Color Temperature (K) | 3500 | 4000 | 5000 | 3500 | 4000 | 5000 | 3500 | 4000 | 5000 | 3500 | 4000 | 5000 |
Color Rendering Index (CRI) | 80 min | 80 min | 80 min | 80 min |
L70 Calculated Life (Hrs.)1 | 87,000 | 163,000 | 144,000 | 150,000 |
L85 Calculated Life (Hrs.)1 | 40,000 | 75,000 | 67,000 | 69,000 |
Operating Temperature (°C) | -30 to 30 | -30 to 30 | -30 to 30 | -30 to 30 |
Side | A | B | C | D |
---|---|---|---|---|
4-inch | N/A2 | 5.125″ | 3.25″ | 3.5″ |
6-inch | 20″ | 7.5″ | 6″ | 6″ |
8-inch | 21″ | 8.75″ | 6.5″ | 8″ |
10-inch | 23″ | 11″ | 7″ | 10″ |
Part Number | Description |
---|---|
IP710-LFZ | Leviton Dimmer | 120-277VAC | 0-10V | Single-Pole & 3-Way |
EM-H25170-XX | Emergency LED Battery Pack | 25W | 100-277VAC | Compatible with 8W & 18W |
ILB-CP12-A | Iota Battery Back-Up | 120-277V | 12W | Dual Flex Mounting Option | Compatible with 18W, 28W, & 37W |
