Economical and scalable wall pack solution to replace existing fluorescent, high-pressure solium and metal halide technologies.

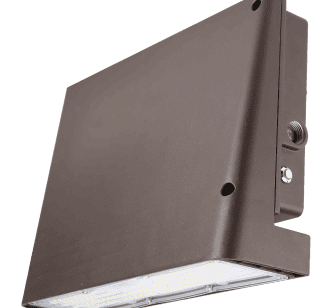

QubePAK Regal XL
Description
For exterior wall lighting applications in new construction or retrofit opportunities, US LED reveals the new QubePAK Regal XL. The QubePAK Regal XL family is an economical and scalable wall pack solution to replace existing fluorescent, high-pressure sodium and metal halide technologies. The QubePAK Regal XL is designed specifically for versatility, providing a variety of lumen packages ranging from 3,760 to 8,550 lumens.
Features
- Outdoor downlight wall pack (down facing mount only)
- Integrated dimming photocell offers daylight harvesting with on/off control
- J-box or conduit wiring
- Energy savings up to 85%
- Easy installation with secure lock hinge design
- Low profile design
- 5-year warranty
Certifications
- UL Listed for US and Canada (# E338791)
- DesignLights Consortium Listed
- DesignLights Consortium Listed - Premium (50W Only)
Specifications Average Value for Family Products
| Spec Type | Series 30, 40 & 50 | Series 80 |
|---|---|---|
| Dimensions | 8" x 7.8" x 3.9" | 10.38" x 8.66" x 5.81" |
| Units/Carton | 1 | 1 |
| Net Weight | 5.1 lbs. | 8.35 lbs. |
| Environmental Rating | Wet | Wet |
Ordering Information
| Series | Variant | CCT | Fixture Color |
|---|---|---|---|
| WPR2 | 30 - Series 30 40 - Series 40 50 - Series 50 80 - Series 80 | 50 - 5000K | WT - White BZ - Bronze |
Energy Data
| Spec Type | Series 30 | Series 40 | Series 50 | Series 80 |
|---|---|---|---|---|
| Input Voltage (VAC) | 120-277 | 120-277 | 120-277 | 120-277 |
| System Level Power (W) | 30 | 37.8 | 43 | 75 |
| Delivered Lumens (Lm) | 3,760 | 4,550 | 4,900 | 8,550 |
| Efficacy (Lm/W) | 125 | 120 | 114 | 121 |
| Color Temperature (K) | 5,000 | 5,000 | 5,000 | 5,000 |
| Color Rendering Index (CRI) | 80 min | 80 min | 80 min | 80 min |
| L70 Calculated Life (Hrs.)1 | 200,000 | 200,000 | 200,000 | 108,000 |
| L85 Calculated Life (Hrs.)1 | 124,000 | 115,000 | 99,000 | 49,000 |
| Operating Temperature (° C) | -40 to 40 | -40 to 40 | -40 to 40 | -40 to 40 |
| Daylight Harvesting Sensor Method | Dimming | Dimming | Dimming | Dimming |
