ExsaBay XLE – Led High Bay Luminaire

High Bay LED Luminaire

ExsaBay XLE - Led High Bay Luminaire National LEDExsaBay XLE - Led High Bay Luminaire National LEDExsaBay XLE - Led High Bay Luminaire National LEDExsaBay XLE - Led High Bay Luminaire National LED





For industrial /  new construction and or retrofit applications, National LED’s newest fixture is the ExsaBay®XLE family Led High Bay Luminaire. With available lumen packages ranging from 15,150 to 72,150 lumens. The ExsaBay XLE is available to be mounted with adjustable cable hangers in a typical mounting height range of 20-70’.

  • LED replacement for conventional fluorescent or HID systems

  • Up to 72,150 lumens and efficacy of 150 LPW

  • Two optical distributions to choose from

  • Suspended, surface or pendant mounted

  • >172,000 hours L70 Calculated Life

Get a data sheet

Unfortunately, we haven't attached data sheet yet. We'll be in contact with you.
Features
Certifications
Ordering Information
Specifications
Energy Data
Accessories
  • Capable of being surface, suspended, or pendant mounted. Ships with (2) 40″ chains and V-hooks for suspended mount
  • Class 2 compliant design (low voltage, limited power)
  • Fixture dimmable via Mark 7 (0-10V) dimming interface
  • 10-year warranty
  • ETL Listed for US and Canada
  • DesignLights Consortium Qualified (Premium)

Series Variant Voltage Lens CCT Power Sensor Battery Backup
EBXLE1 1 UNVL – 120-277VAC 90 – 90°
45 – 45°
50 – 5000K C – 101W
E – 161W
F – 201W
H – 321W
J – 401W
K – 481W
Y – Yes3 Y – Yes3

Example: EBXLE1-1-UNVL-90-50-C-Y-Y

Power C E F H J K
Dimensions 26″ x 15″ x 2.5″ 26″ x 18″ x 2.5″ 26″ x 18″ x 2.5″ 49″ x 18″ x 2.5″ 49″ x 18″ x 2.5″ 49″ x 24″ x 2.5″
Units/Carton 1 1 1 1 1 1
Net Weight 9 lbs. 13 lbs. 13 lbs. 23 lbs. 26 lbs. 32 lbs.
Maximum Mounting Height 20′ 30′ 40′ 50′ 60′ 70′
Environmental Rating Damp Damp Damp Damp Damp Damp
Power C E F H J K
Input Voltage (VAC) 120-277 120-277 120-277 120-277 120-277 120-277
System Level Power (W)1 101 161 201 321 401 481
Delivered Lumens (Lm) 15,150 24,150 30,150 48,150 58,150 72,150
System Efficacy (L/W)1 150 150 150 150 145 150
Color Temperature (K) 5000 5000 5000 5000 5000 5000
Color Rendering Index (CRI) 80 min 80 min 80 min 80 min 80 min 80 min
L70 Calculated Life (Hrs.)2 200,000 200,000 200,000 198,000 190,000 190,000
L85 Calculated Life (Hrs.)2 95,000 93,000 92,000 91,000 88,000 88,000
Operating Temperature (°C) -30 to 50 -30 to 50 -30 to 50 -30 to 50 -30 to 50 -30 to 50
Part Number Description
IP710-LFZ Leviton Wall Control Dimmer
30200 20′ Aircraft Cable Mounting Kit
30202 10′ Aircraft Cable Mounting Kit
EBXLE1-PM Pendant Mount Kit
EBXLE1-WG-1 Type C Wire Guard
EBXLE1-WG-2 Type E & F Wire Guard
EBXLE1-WG-3 Type H & J Wire Guard
EBXLE1-WG-4 Type K Wire Guard

The many benefits of LED lights in industrial and construction settings

There are many benefits to using commercial LED lighting in industrial and construction settings.LED lights are more energy efficient than traditional incandescent bulbs, which can help to lower energy costs. They also emit less heat, which can be beneficial in warehouse or factory settings where high temperatures are a concern. In addition, LED lights have a longer lifespan than traditional bulbs, so they may need to be replaced less often.

One of the key benefits of commercial LED lighting is that it can help to improve safety in the workplace. Well-lit areas are easier for employees to navigate and can help to prevent accidents. In addition, LED lights can make it easier for workers to see small objects or details that they might otherwise miss.

Overall, commercial LED lighting can provide many benefits for industrial and construction settings. Energy efficiency, long lifespan, and improved safety are just a few of the advantages that LED lights have to offer. When making decisions about commercial lighting, LED lights should be considered as a top option.

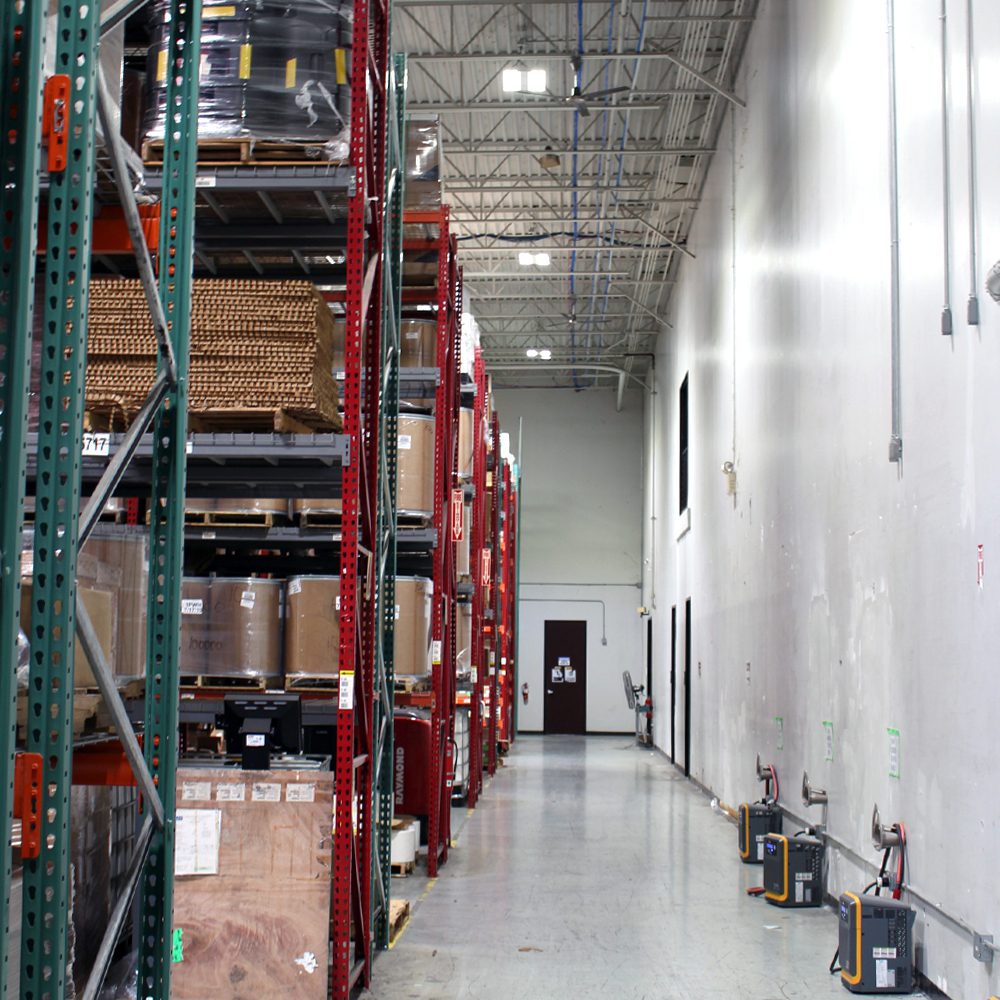

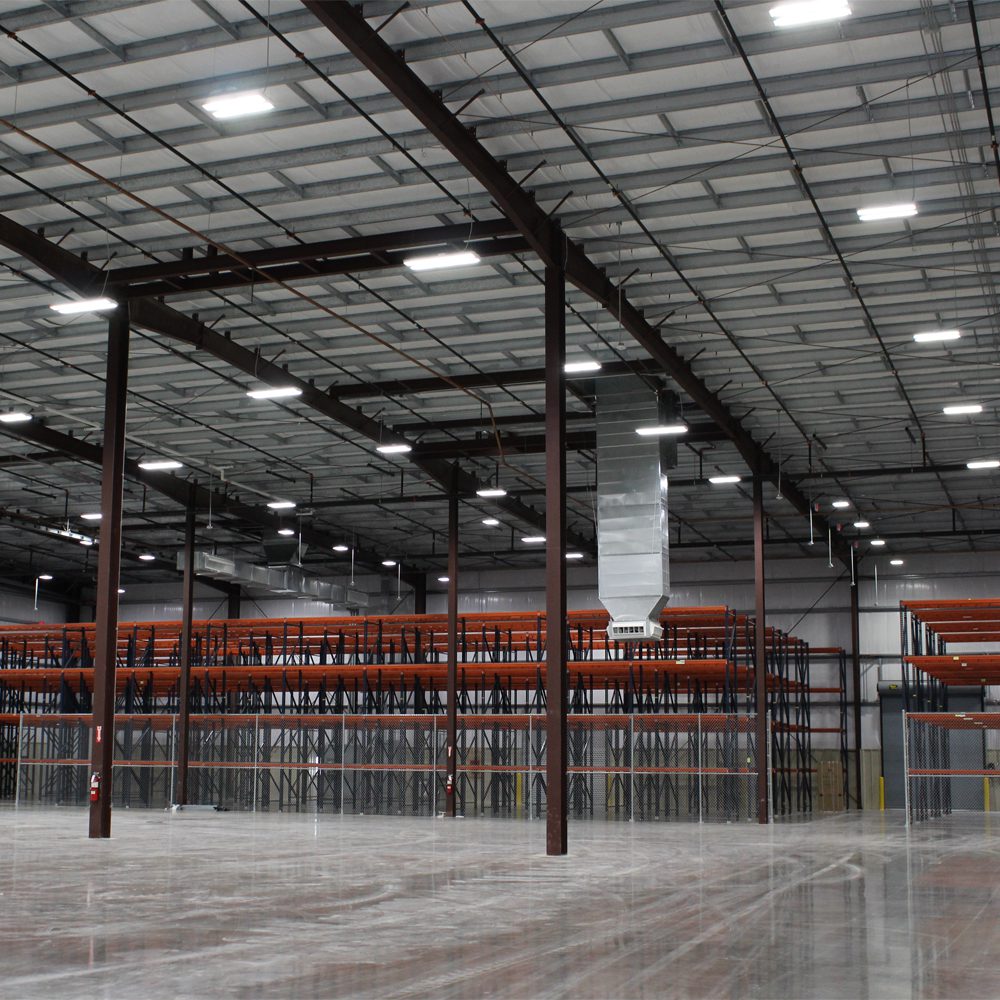

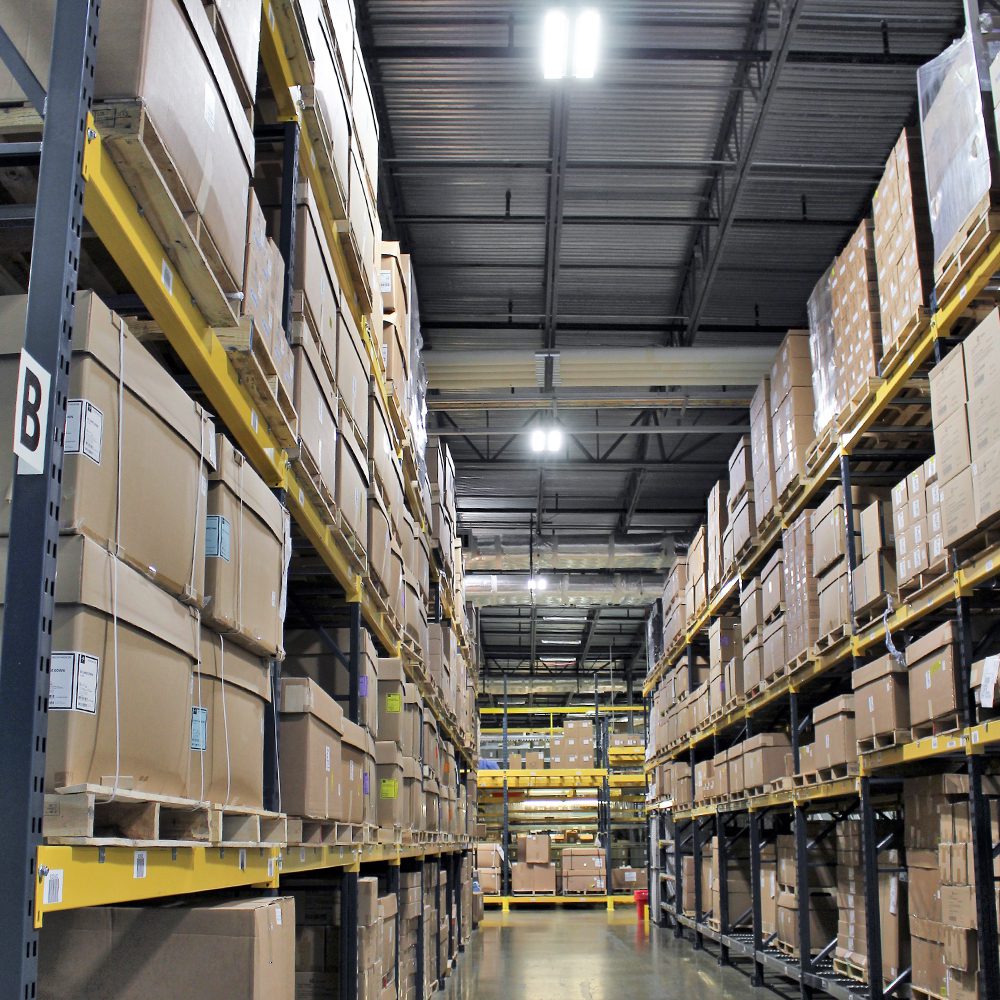

Warehouses are large commercial buildings where stock or products are stored. They can be used for a variety of purposes, such as manufacturing, assembly, or distribution. Warehouses typically have high ceilings and are not always well-lit, which can make them difficult to work in.

LED lights are a good option for warehouses because they are very bright and can illuminate even the darkest areas. This can make it easier for employees to find items or see details that they might otherwise miss. In addition, LED lights emit very little heat, which can be beneficial in warehouse settings where high temperatures are a concern, and they also have a long lifespan.

Overall, LED lights can provide many benefits for warehouse settings.



What is a Led High Bay Luminaire?

Led High Bay Luminaires are a type of light fixture that is typically used in industrial and commercial settings. They are designed to provide high levels of illumination while also being energy efficient and available in a variety of different sizes and configurations to meet the needs of any application.

Led High Bay Luminaires use light-emitting diodes (LEDs) as their source of light. LEDs are much more energy-efficient than traditional incandescent or fluorescent bulbs, and they also last much longer. This makes Led High Bay Luminaires a more cost-effective option over time. They are also more durable and can withstand harsher conditions than traditional light fixtures.

Led High Bay Luminaires are an ideal solution for any application that requires high levels of illumination and come in a variety of different sizes and configurations to meet the needs of any application.
