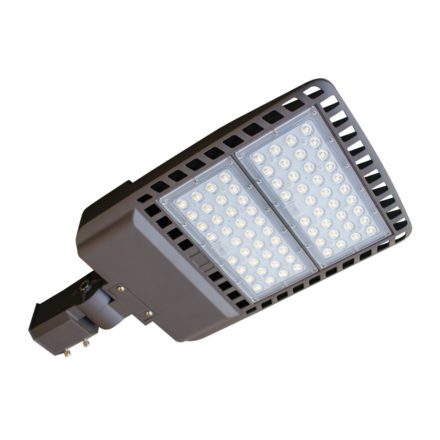

DoradoXLE

COMING MAY 2019! Exterior LED area light

Category:

Description

For exterior pole and area lighting applications in new construction or retrofit opportunities, US LED brings the DoradoXLE. The DoradoXLE offers an array of options to accommodate any pole or area lighting requirement, including an assortment of light distributions, mounting methods and luminaire finishes. The DoradoXLE is designed to be oriented either vertical or horizontal, thus increasing its adaptability and functionality on any project.

Features

  • Slip-fitter, pole mount and trunnion mount options available3
  • Light distribution patterns: Type 3 & Type 5
  • Option for use as an area light or on a pole in parking lot applications
  • Flux options ranging from 13,000 to 39,000 lumens
  • Easy, one man installation
  • 10-year warranty

Certifications

  • ETL Listed for US and Canada
  • DLC Premium Listed

Ordering Information

SeriesPowerCCTVoltageColorLensSensorProduct Code
QDXLE1100 - 100W
120 - 120W
150 - 150W
200 - 200W
250 - 250W
300 - 300W
30 - 3000K
40 - 4000K
50 - 5000K
UNVL - 120-277VAC
UNVH - 277-480VAC
1 -Bronze2
2 - White2
3 - Type 3
5 - Type 5
N - No Sensor
D1 - Photocell
Z5
Example: QDXLE1-100-30-UNVL-1-3-N-Z5

Specifications

Spec Type1-Light Engine2-Light Engines
Dimensions13" x 12.25" x 2.7"20.9" x 12.7" x 3.7"
Units/Carton11
Net Weight (lbs.) 10.513
Environmental RatingWetWet
EPA Rating1.702.24

Mount Ordering Information

Series3

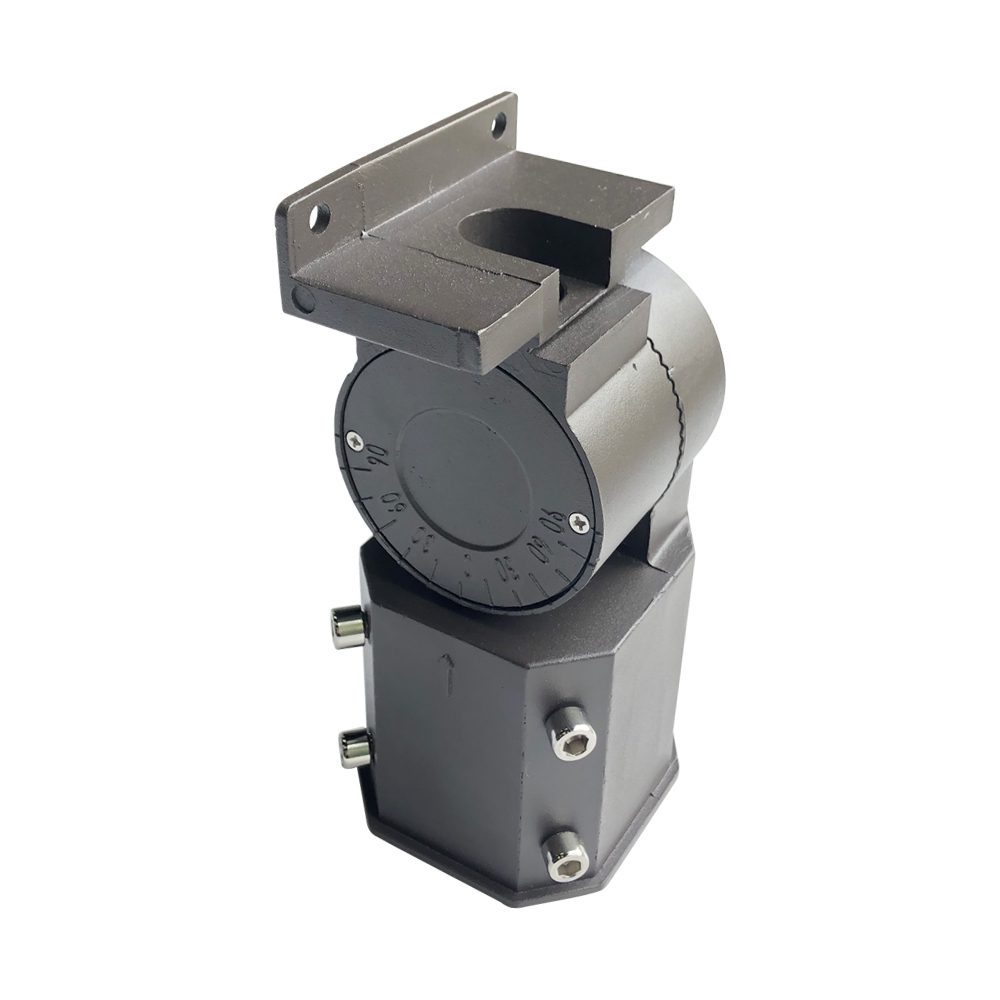

DYS1 - Slip-fitter Mount for 2 ⅜" Round Tenon

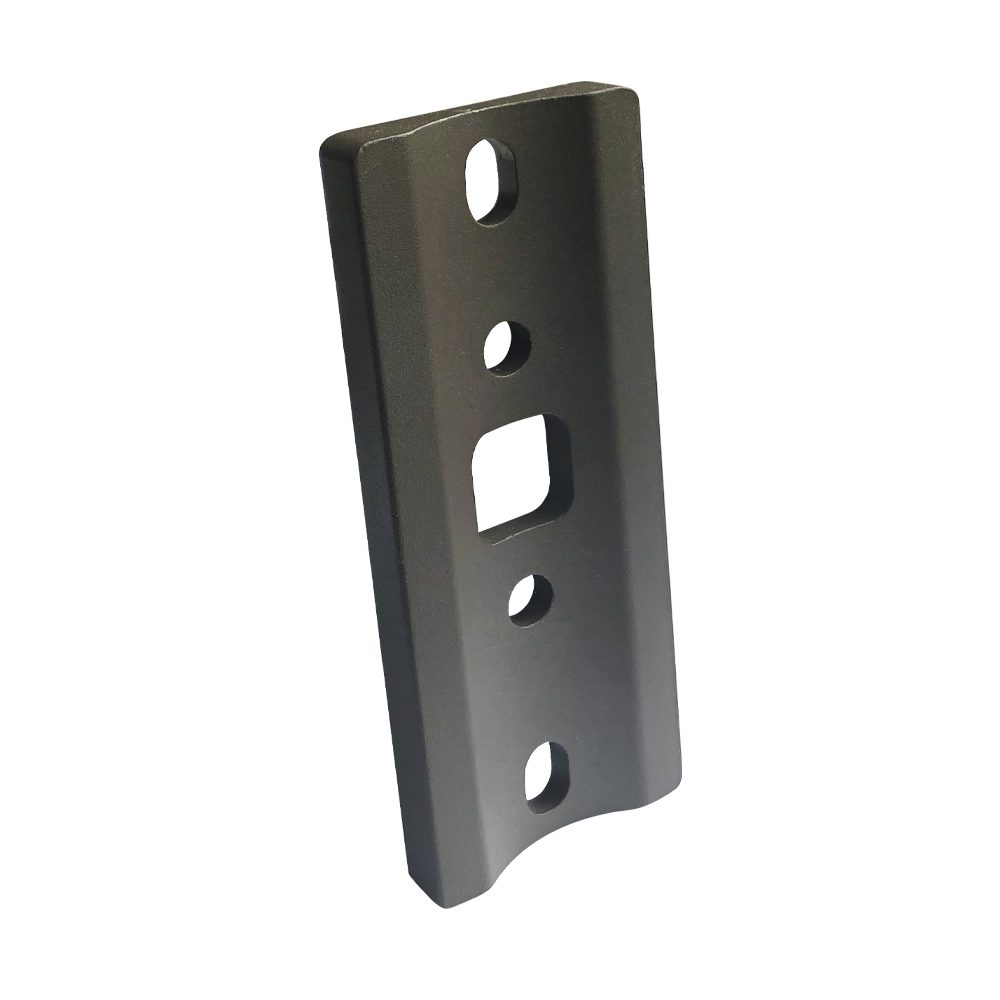

DYF1 - Arm Mount - Flat

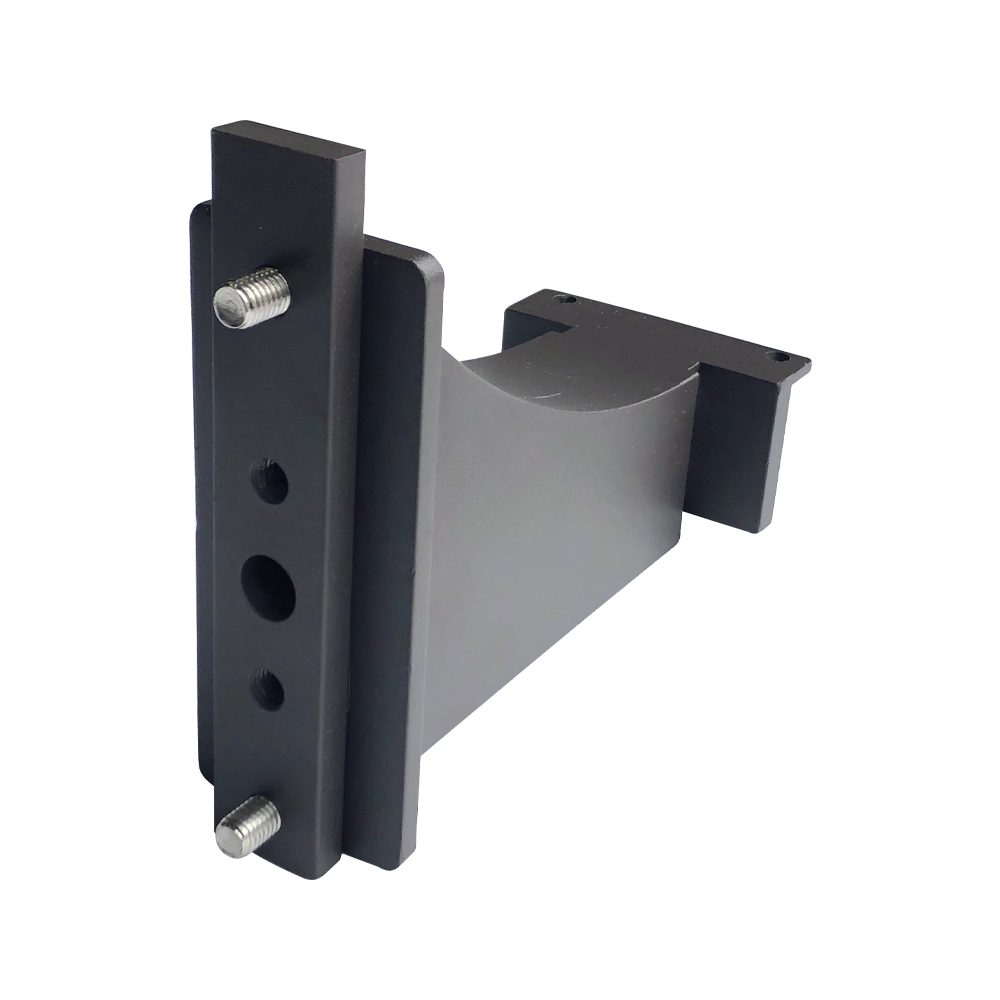

DYRA4 - Round Pole Adapter for 4" Pole

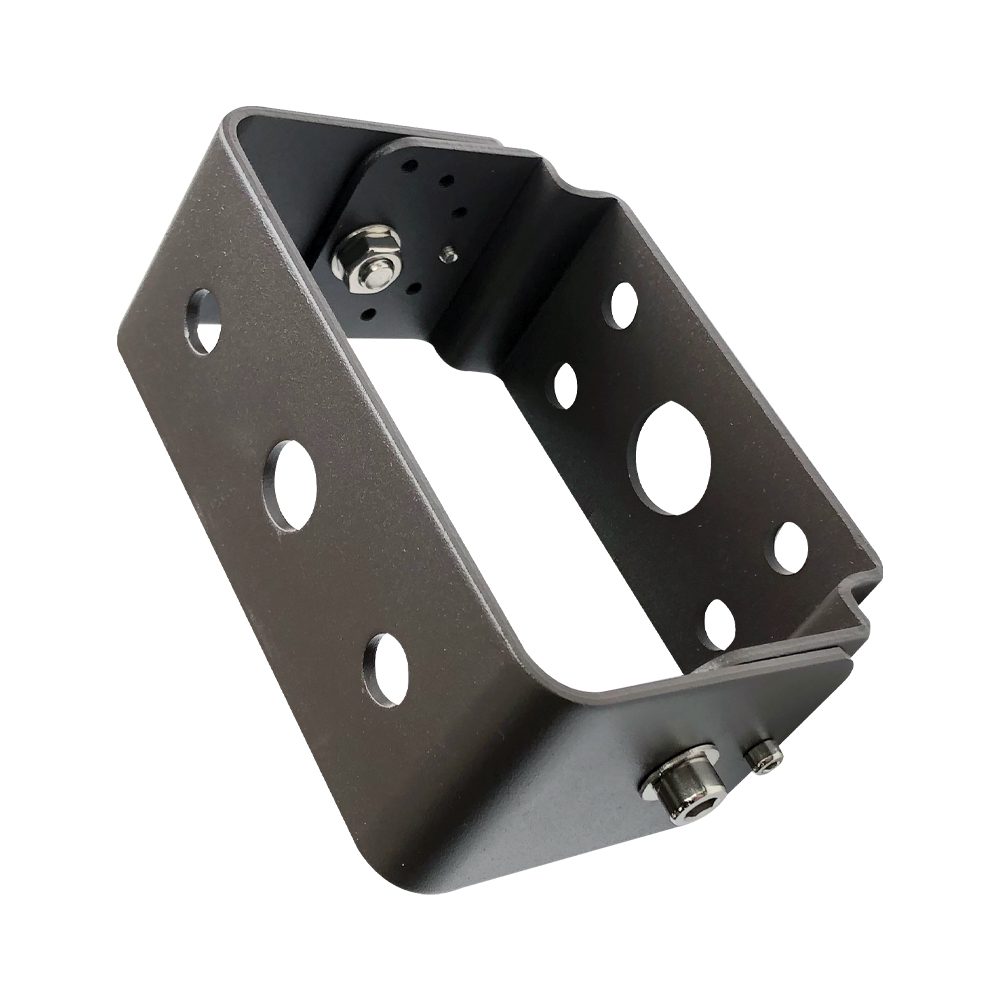

DYT1 - Trunnion Mount
1 - Bronze2
2 - White2
Example: DYS1-1

Energy Data

Power Options100W120W150W200W250W300W
Input Voltage (VAC)120-277 / 277-480120-277 / 277-480120-277 / 277-480120-277 / 277-480120-277 / 277-480120-277 / 277-480
System Level Power (W)100115138200235292
Delivered Lumens (Lm)13,00015,00018,00026,00030,50038,000
Efficacy (Lm/W)130130130130130130
Number of Light Engines111222
Color Temperature (K)3000 | 4000 | 50003000 | 4000 | 50003000 | 4000 | 50003000 | 4000 | 50003000 | 4000 | 50003000 | 4000 | 5000
Color Rendering Index (CRI)70 min70 min70 min70 min70 min70 min
L70 Calculated Life (Hrs.)1153,000152,000153,000128,000153,000128,000
L85 Calculated Life (Hrs.)71,00070,00071,00059,00071,00059,000
Operating Temperature (°C)-30 to 40-30 to 40-30 to 40-30 to 40-30 to 40-30 to 40
