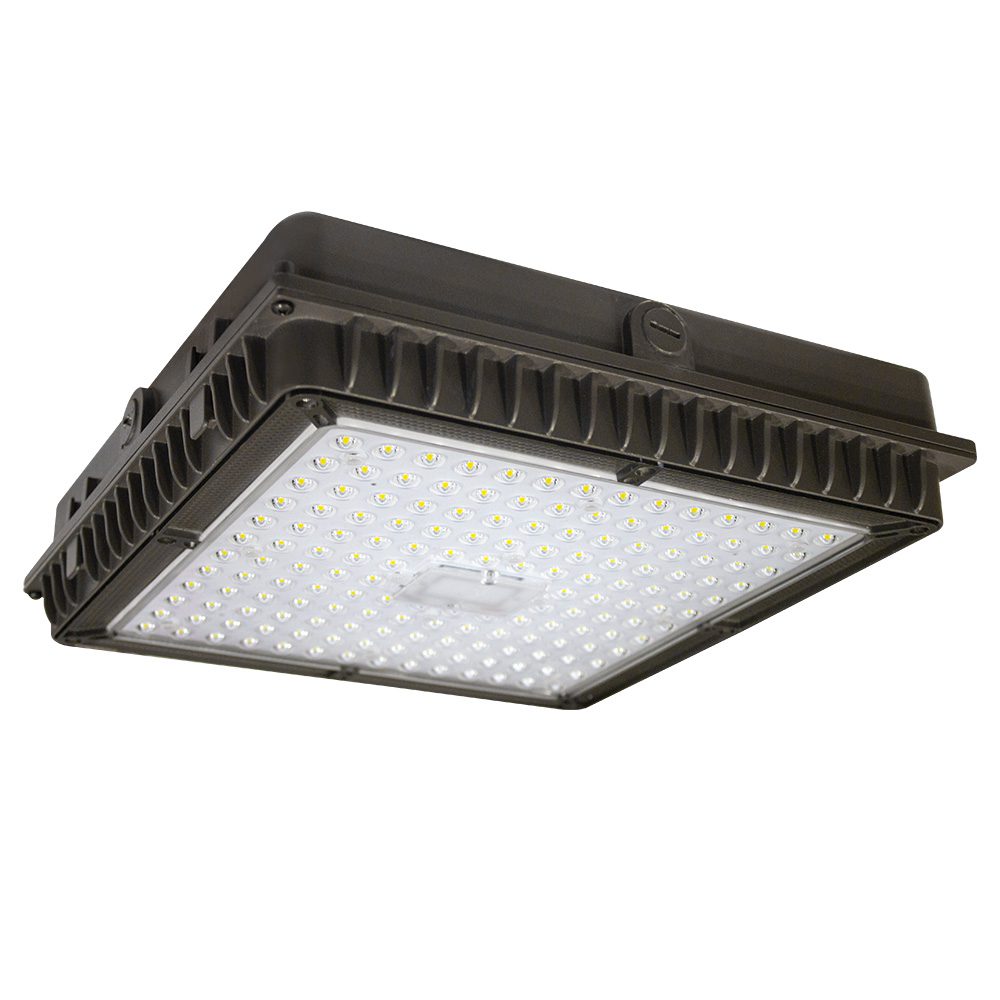

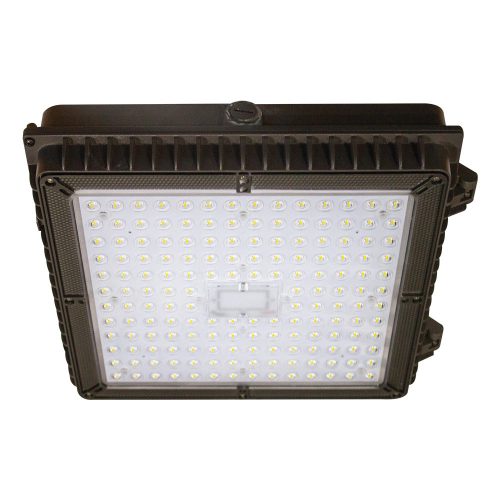

QubePark XL – LED Lighting Canopy

Outdoor LED Parking Garage Canopy

QubePark XL - <em>LED Lighting Canopy</em> National LEDQubePark XL - <em>LED Lighting Canopy</em> National LEDQubePark XL - <em>LED Lighting Canopy</em> National LEDQubePark XL - <em>LED Lighting Canopy</em> National LED





The QubePark slim Low profile LED lighting canopy is aesthetically pleasing and easily mounts under your canopy. Built with robust yet elegant design this luminaire can blend into existing architectural plans making it ideal for wide range of installations including CFL or metal halide systems! The two sizes available ensure compatibility across many types introduced over time by other manufacturers

  • Energy-efficient LED luminaire designed for parking garage or canopy applications.

  • Housing is hinged for easier mounting and access out in the field.

  • Low profile design, only 2.7 inches high.
    Surface mounted or pendant mounted.

  • Symmetrical Type V distribution.

Get a data sheet

Unfortunately, we haven't attached data sheet yet. We'll be in contact with you.
Features
Ordering Information
Dimensions
Performance Data
Accessories
Specifications

Key Features

  • Energy-efficient LED luminaire designed for parking garage or canopy applications.
  • Housing is hinged for easier mounting and access out in the field.
  • Low profile design, only 2.7 inches high.
  • Surface mounted or pendant mounted.
  • Symmetrical Type V distribution.
  • Industry leading Ten-Year Warranty.

Electrical

  • 120-277VAC. 0-10V dimming standard.
  • Smaller model has (3) conduit entries and larger model has (4) conduit entries. Side conduit entries are 1/2”; back entry is 3/4”.
  • Integrated microwave motion sensor with multi-step dimming available.
  • Operating temperature: -40°C to +45°C (-40°F to +113°F)

Mounting

  • Standard luminaire is designed to be surface mounted or pendant mounted.

Construction

  • Robust die-cast aluminum protects integral components from harsh environments and optimizes thermal management.
  • Housing is protected by a corrosion-resistant powder coat finish.
  • Standard bronze finish. Custom colors available by request.
  • IP65 rated enclosure prevents intrusion from environmental elements that could degrade performance.

Optics

  • Precision molded acrylic lens with Type V optic offer symmetrical distribution.
  • Industry-leading LEDs with 4000K and 5000K CCT (minimum 70 CRI).
  • Lumen Maintenance <200,000 hours (L70) 1

Warranty

  • Backed by National LED’s industry-leading Ten-Year warranty.
Series Variant Power Input Voltage CCT CRI Sensor Finish Color
QPXL1 1 – Standard 25 – 25W
40 – 40W
75 – 75W
UNVL – 120-277V 40 – 4000K
50 – 5000K
70 – 70 CRI N – No Sensor
S2 – Microwave
Motion Sensor
BZ – Bronze 2
Model Net Weight
25W/40W 4.7 lbs. (2.1kg)
75W 7.6 lbs. (3.4kg)
Model System Level Power Delivered Lumens Efficacy CCT L70 Calculate Life L85 Calculate Life
QPXL1-1-25-UNVL-40-70-X-X 27.0W 4,180L 155 LPW 4000K 200,000 Hours 150,000 Hours
QPXL1-1-25-UNVL-50-70-X-X 27.0W 4,270L 158 LPW 5000K 200,000 Hours 150,000 Hours
QPXL1-1-40-UNVL-40-70-X-X 43.1W 6,160L 143 LPW 4000K 189,000 Hours 86,000 Hours
QPXL1-1-40-UNVL-50-70-X-X 43.1W 6,270L 146 LPW 5000K 189,000 Hours 86,000 Hours
QPXL1-1-75-UNVL-40-70-X-X 77.2W 11,290L 147 LPW 4000K 189,000 Hours 86,000 Hours
QPXL1-1-75-UNVL-50-70-X-X 77.2W 11,440L 148 LPW 5000K 189,000 Hours 86,000 Hours

HD407V-CR – Microwave Motion Sensor With Multi-Step Dimming

Spec Type Data
Operating voltage 120~277 VAC 50/60Hz
Switching capacity Max.3.0A@120Vac,Max.2.0A@277Vac
Stand-by power <1W
Detection area 50%/100%
Hold time 5s/30s/1min/10min
Daylight threshold 2Lux/10Lux/50Lux/Disable
Stand-by period 0s/30s/20min/+∞
Stand-by dimming level 10%/20%/30%/50%
Microwave frequency 5.8GHz ± 75MHz
Microwave power <0.3mW
Interfaces 6-pole pluggable clamp terminal (L,N,N,L’,1-10v+,1-10v-) for 0.75- 1.5mm2 cable
Mounting height Max.6m(ceiling mounted);Max.3m(wall mounted)
Detection range Max.ø14m(ceiling mounted);Max.10m(wall mounted)
Detection angle 30°-150°
Operating temperature -20°C~+60°C
IP rating IP20

Frequently Asked Questions

LEDs can be programmed to create dynamic lighting effects that enhance the game-day experience for everyone involved and can provide superior lighting for playing fields and arenas, improving visibility for athletes and spectators alike.

One of the biggest benefits of commercial LED lighting is the decrease in energy costs. Traditional incandescent and metal-halide lights can use up to four times as much energy as commercial LED lights. This decrease in energy consumption not only saves money, but also helps reduce your facility’s carbon footprint.

Commercial LED lights also last much longer than traditional lighting options. While incandescent bulbs typically only last around 1,000 hours, commercial LED lights can last up to 100,000 hours. This not only reduces maintenance and replacement costs, but also reduces the amount of time your facility needs to be dark while lights are being replaced.

Another key benefit of commercial LED lighting is increased safety. Because commercial LED lights produce ve ry little heat, there is less risk of fire hazards. Additionally, commercial LED lights can be designed with specific light patterns that can help improve visibility for athletes and spectators alike. This improved visibility can help prevent accidents and injuries on the playing field or in the stands.
