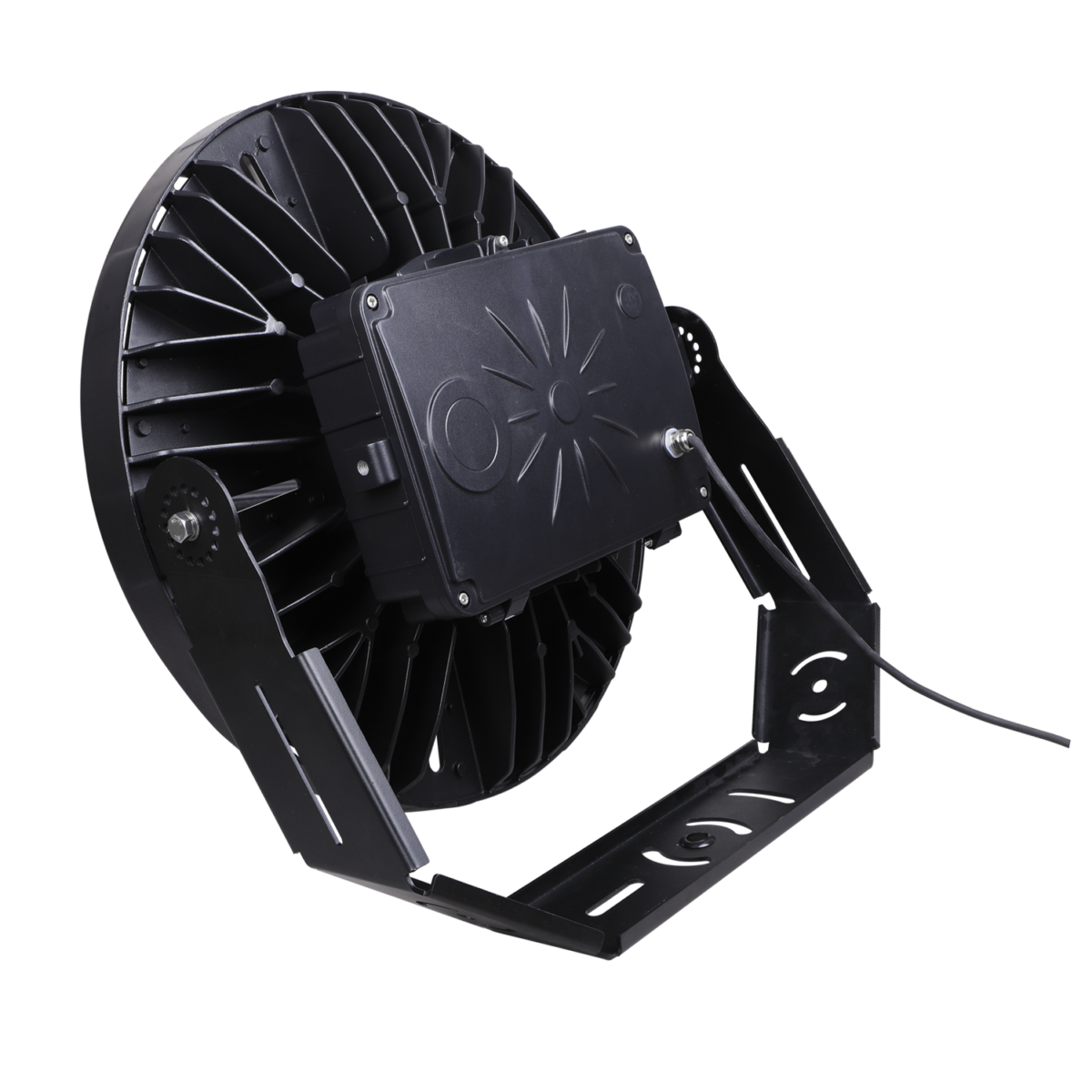

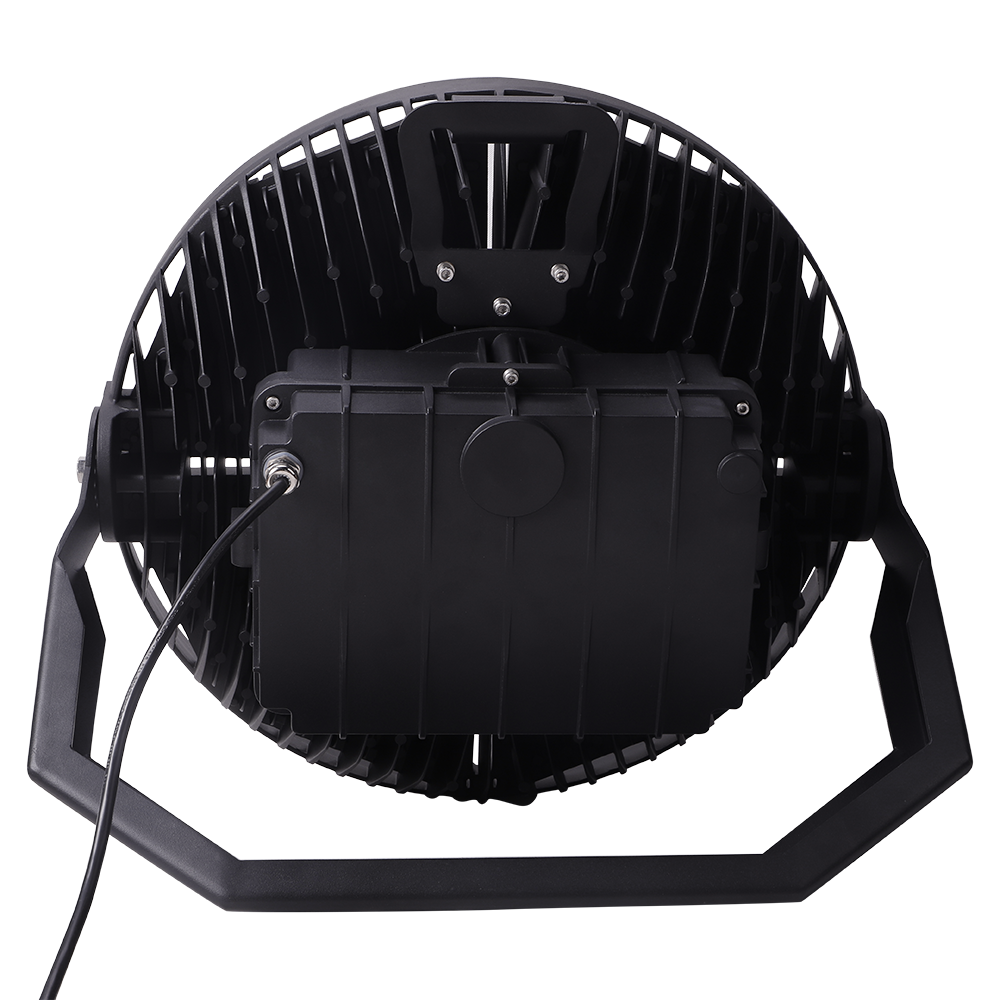

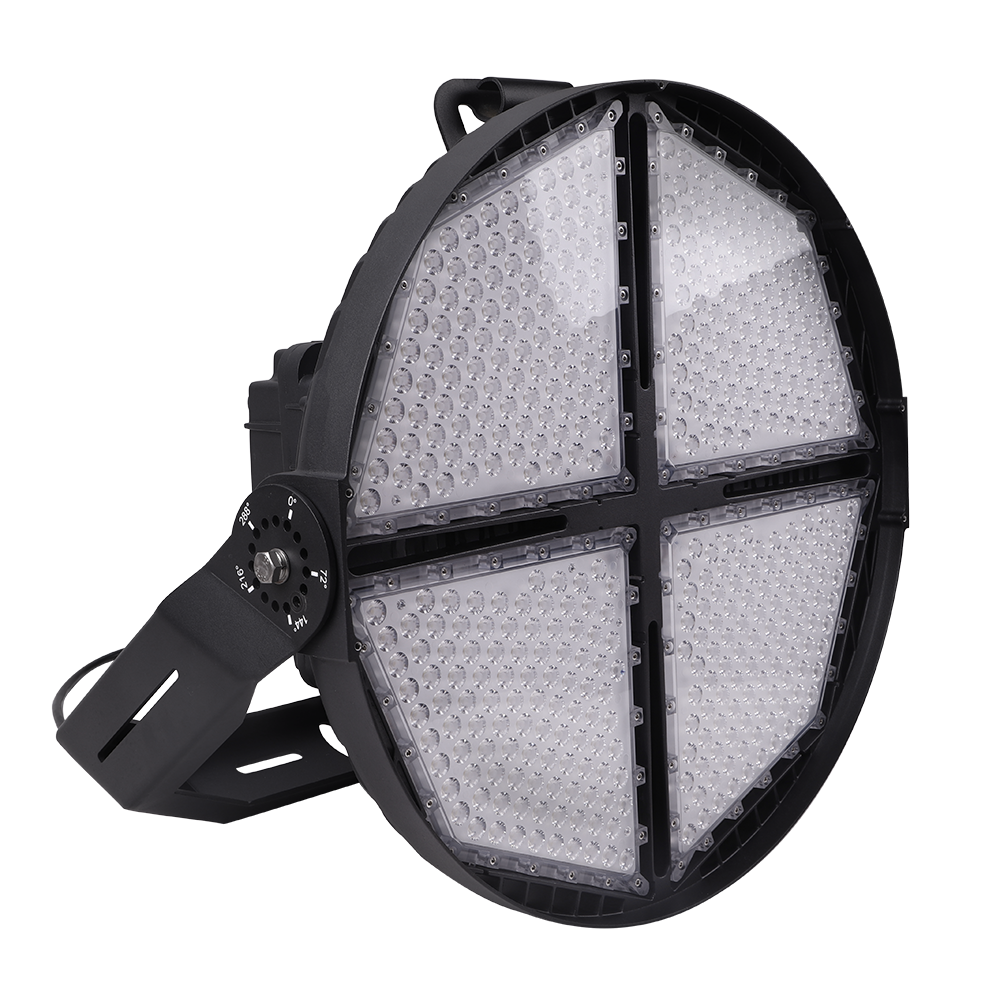

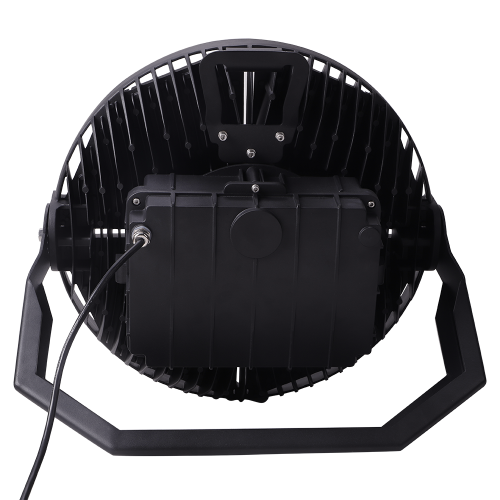

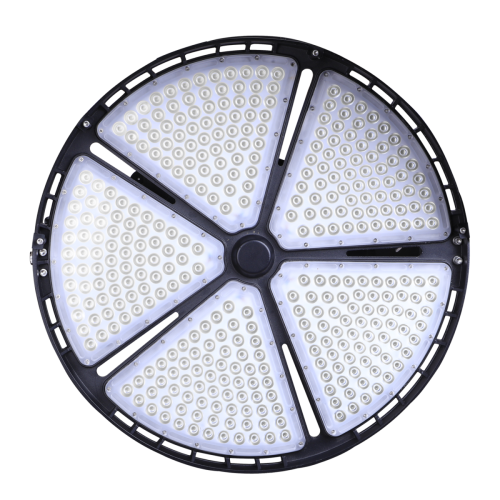

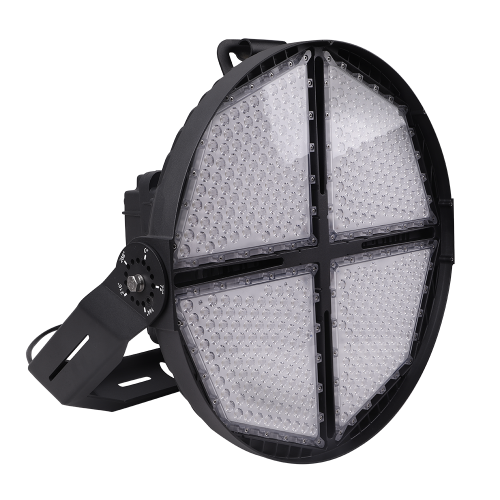

OFS LED Stadium Light

Sports & Flood Lighting

OFS LED Stadium Light National LEDOFS LED Stadium Light National LEDOFS LED Stadium Light National LEDOFS LED Stadium Light National LED

The OFS series is specifically engineered for outdoor sports lighting, offering exceptional performance and high-output illumination. This superior LED flood light boasts remarkable efficiency and showcases a distinctive optical design that effectively eliminates glare while minimizing any negative effects on performance.

Next Day Shipping

5 + 5 Years Minimum Warranty

Expert Installation

Get a data sheet

Features
Ordering Information
Product Applications
Product Certifications/Approvals
Performance Data

OFS LED Stadium Light

Key Features

  • Up to 165lm/W, power range: 300W-960W.
  • UV stabilized polyester powder paint finish for durability and corrosion resistance.
  • Saving maintenance budget and operating costs.

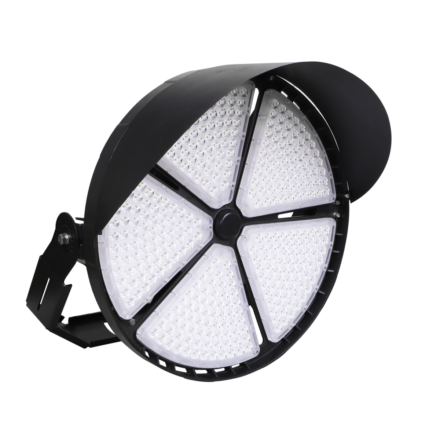

  • Visor (light shield).

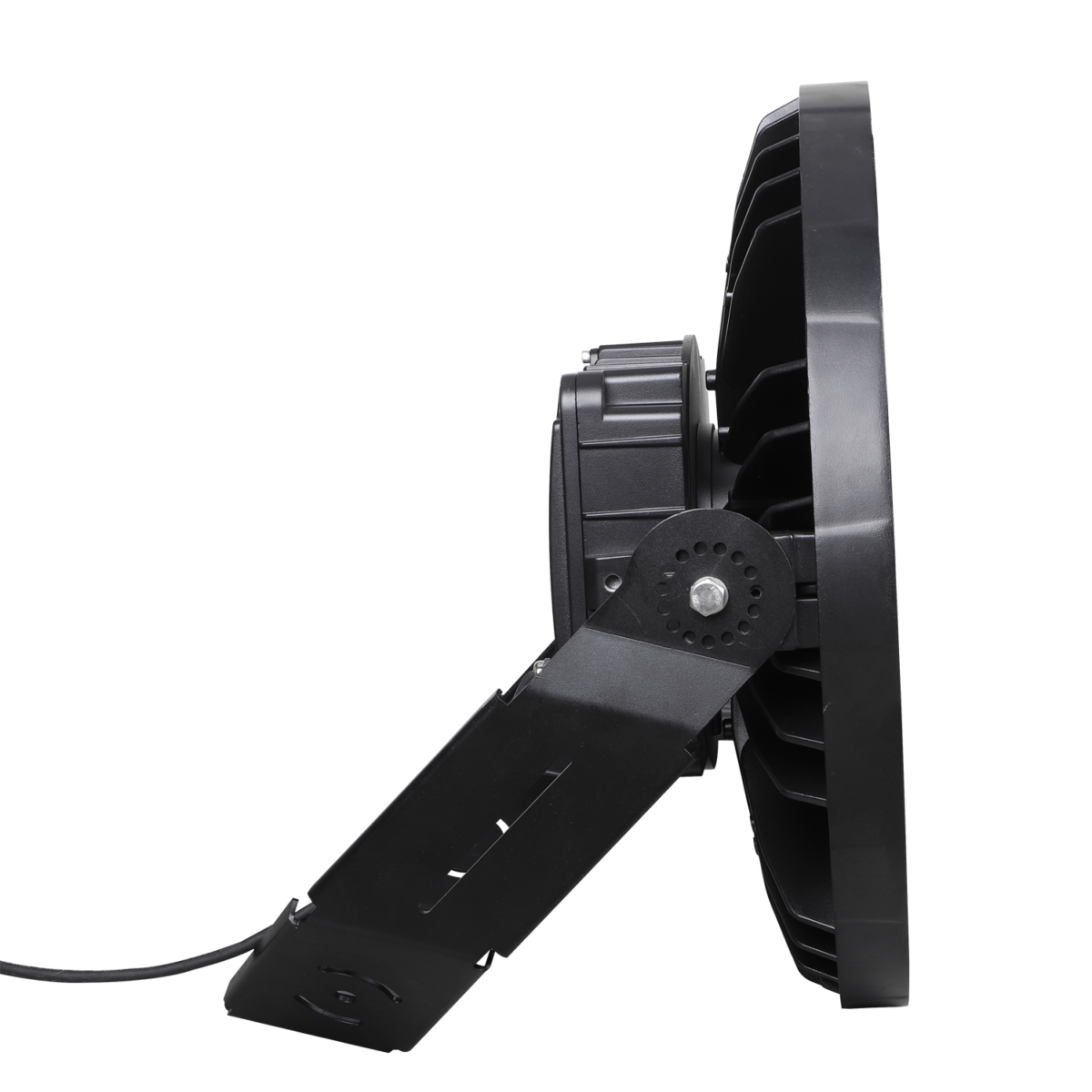

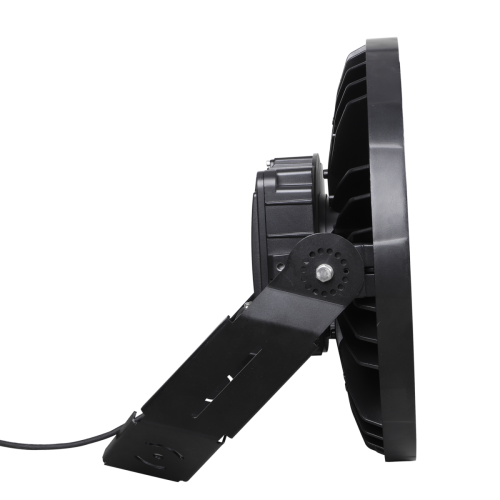

  • Tiltable arm.
  • Die casting fixture body.
  • Driver box cover.
  • 0 – ±90° Rotatable bracket.






Electrical

  • 0-10V dimming driver device standard.
  • Working temperature: -40°C to 50°C (-40°F to 122°F).
  • Voltage option: 100-277VAC, 50/60HZ standard; 347V-480V, 50/60Hz optional.
  • 10KV or 20KV SPD (surge protection device) optional.






Mounting

  • Under Mount Yoke (with or without driver box)

Construction

  • Heavy duty die-cast aluminum housing.
  • Driver compartment can be separated from the light fixture, reduced on the gross weight.
  • Light engine is thermally isolated from the driver compartment.
  • UV stabilized polyester powder paint finish.






Optics

  • Professional light distributions to maximize performance: 15°, 30°, 60°, 90° (only for 300W-460W).
  • Lens optics are designed to output a specialized light distribution for optimal performance in specific applications






Warranty

  • Backed by National LED’s industry leading 5 -year warranty (Warranty extension up to 10 years on request)

  • Truck loading bay
  • Train Station & Port
  • Large outdoor industrial operation area
  • Stadium
  • UL Listed for damp locations
  • FCC compliant
  • RoHs compliant
  • Design Lights Consortium® (DLC) Premium 5.1 qualified product
  • Not all versions of this product may be DLC qualified.
Model System Power Delivered Lumens Efficacy Available CCT
AOK-300WoFS 300.0W 49,500 lm 165 lm/W 4000K/5000K/5700K
AOK-400WoFS 400.0W 65,200 lm 163 lm/W 4000K/5000K/5700K
AOK-460WoFS 460.0W 73,600 lm 160 lm/W 4000K/5000K/5700K
AOK-750WoFS 750.0W 108,750 lm 145 lm/W 4000K/5000K/5700K
AOK-960WoFS 960.0W 124,800 lm 130 lm/W 4000K/5000K/5700K

Features

OFS LED Stadium Light

Key Features

  • Up to 165lm/W, power range: 300W-960W.
  • UV stabilized polyester powder paint finish for durability and corrosion resistance.
  • Saving maintenance budget and operating costs.
  • Visor (light shield).
  • Tiltable arm.
  • Die casting fixture body.
  • Driver box cover.
  • 0 – ±90° Rotatable bracket.






Electrical

  • 0-10V dimming driver device standard.
  • Working temperature: -40°C to 50°C (-40°F to 122°F).
  • Voltage option: 100-277VAC, 50/60HZ standard; 347V-480V, 50/60Hz optional.
  • 10KV or 20KV SPD (surge protection device) optional.






Mounting

  • Under Mount Yoke (with or without driver box)

Construction

  • Heavy duty die-cast aluminum housing.
  • Driver compartment can be separated from the light fixture, reduced on the gross weight.
  • Light engine is thermally isolated from the driver compartment.
  • UV stabilized polyester powder paint finish.






Optics

  • Professional light distributions to maximize performance: 15°, 30°, 60°, 90° (only for 300W-460W).
  • Lens optics are designed to output a specialized light distribution for optimal performance in specific applications






Warranty

  • Backed by National LED’s industry leading 5 -year warranty (Warranty extension up to 10 years on request)

Ordering Information

Product Applications

  • Truck loading bay
  • Train Station & Port
  • Large outdoor industrial operation area
  • Stadium

Product Certifications/Approvals

  • UL Listed for damp locations
  • FCC compliant
  • RoHs compliant
  • Design Lights Consortium® (DLC) Premium 5.1 qualified product
  • Not all versions of this product may be DLC qualified.

Performance Data

Model System Power Delivered Lumens Efficacy Available CCT
AOK-300WoFS 300.0W 49,500 lm 165 lm/W 4000K/5000K/5700K
AOK-400WoFS 400.0W 65,200 lm 163 lm/W 4000K/5000K/5700K
AOK-460WoFS 460.0W 73,600 lm 160 lm/W 4000K/5000K/5700K
AOK-750WoFS 750.0W 108,750 lm 145 lm/W 4000K/5000K/5700K
AOK-960WoFS 960.0W 124,800 lm 130 lm/W 4000K/5000K/5700K
