HX G1

High Bay Extreme Gen 1

HX G1 National LEDHX G1 National LEDHX G1 National LEDHX G1 National LEDHX G1 National LEDHX G1 National LEDHX G1 National LED

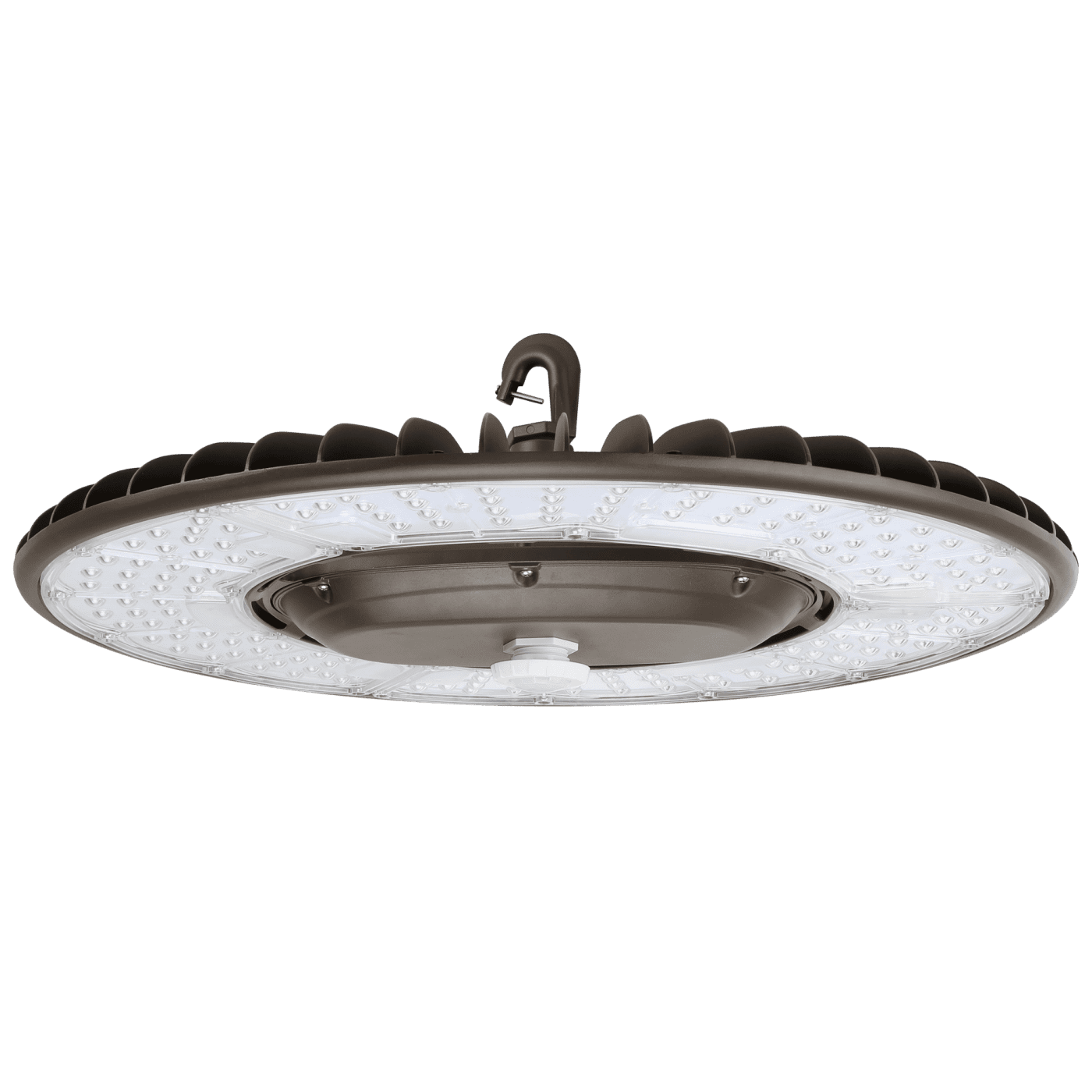

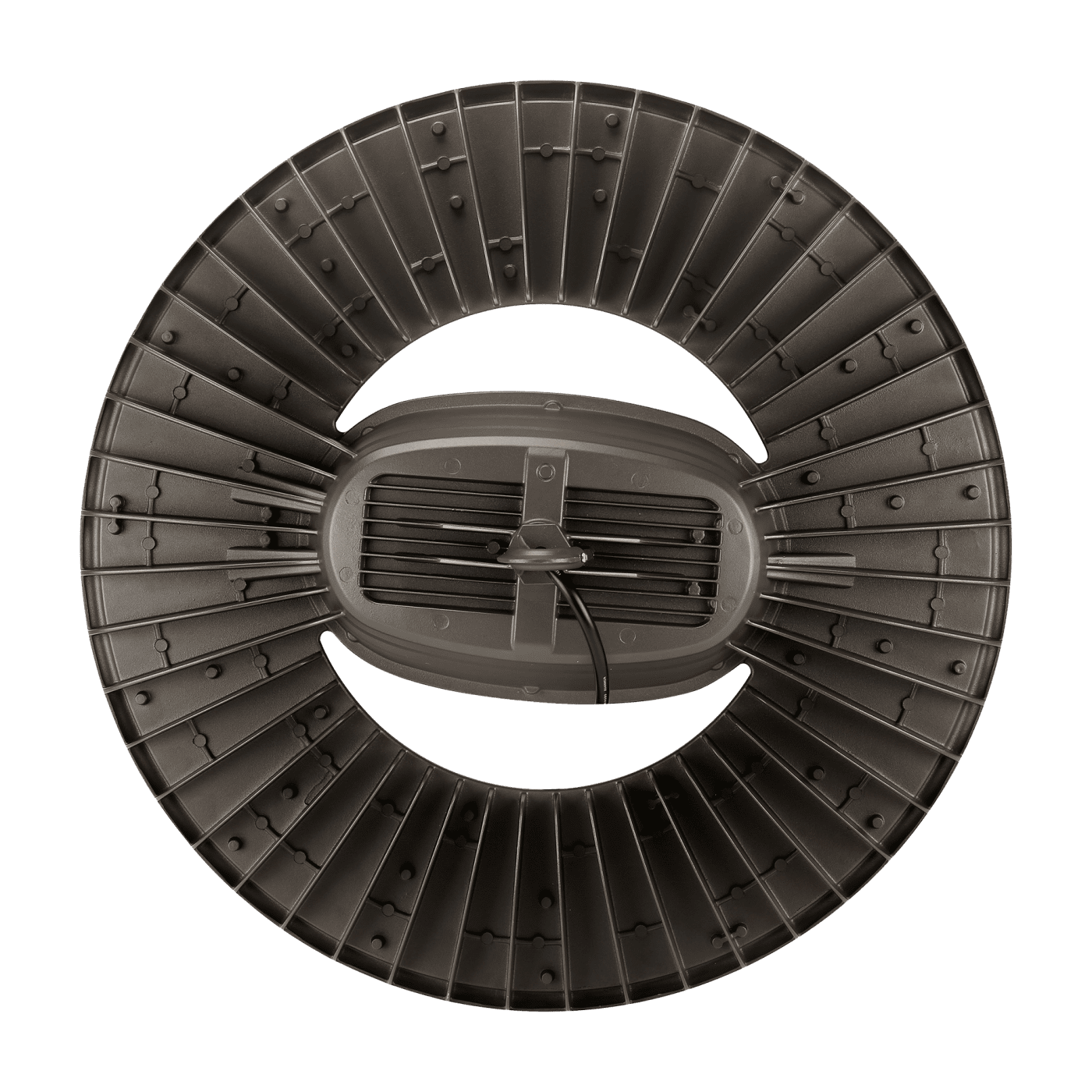

The industrial strength High Bay Extreme Series Gen 1 has the highest lumen output of all SLG’s round high bays. This innovative luminaire with precise optical control and heat radiating fins for superior thermal management is ideally suited for the most challenging applications. More precision can be added with the Field Adjustable Output, an accessory to set the default lumen output and wattage to meet specific project needs and increase the lifespan of each luminaire. Motion sensors can be added for greater energy savings and intelligent control for motion detection and daylight harvesting. Additional options include SLG’s Bluetooth wireless control system for improved user experience and control.

APPLICATIONS
Commercial, Retail and Institutional Applications, etc.

REPLACEMENT
250W – 400W MH

Get a data sheet

Download data sheet
Unfortunately, we haven't attached data sheet yet. We'll be in contact with you.
Features
Ordering Information
Accessories
Product Series Performance Wattage 200W , 250W , 300W , 340W
Lumen Output 32000 LM , 39000 LM , 48000 LM , 54000 LM Correlated Color Temperature (CCT) 4000K , 5000K
Color Rendering Index (CRI) 70 Control Motion Sensor On/Off
Accessories Emergency Battery Kit Mounting Type Pendent Mount , Hook Mount
Environment Indoor Shape Round
Listings UL , DLC Premium , FCC Product Type High Bay
Generation G1 Color & Finish Dark Bronze Polyester Powder
Light Source LED – Static Voltage Rating Standard 120-277V, HVU 347-480V
Warranty 10 Year Labor Warranty Yes
TYPES LUMENS OPTICS GENERATION VOLTAGE CCT FINISH OPTIONS
High Bay Extreme 32000 Lm 200W
39000 Lm 250W
48000 Lm 300W
54000 Lm 340W
Wide Lens 120° Gen 1 120-277V
347-480V
4000K
5000K
Dark Bronze No Options
Integrated PIR Motion/Photo sensor w/L3 Lens
Integrated PIR Motion/Photo sensor w/L7 Lens
No Options
Emergency Battery Kit 120-277V
Standard 3ft power cord 18 gauge with 3 conductors
6 ft power cord Straight Cord 18 gauge 3 conductors Black Voltage will match fixture
6 ft power cord Twist-Lock Plug Type 3 conductors Black Optional with L5-15P L5-20P L6-15P L7-15P L7-20P L8-20P. Gauge and voltage will match fixture.
6 ft power cord 12 Gauge 3 conductors MC Solid Cable No Plug Voltage will match fixture
6 ft power cord 16 Gauge 3 conductors SO Black Cord No Plug Voltage will match fixture
6 ft power cord 18 Gauge 5 conductors (Bring dimming leads out of fixture) Black cord No Plug Voltage will match fixture
Part Number Description
MS-FSP-212 Dimmable Motion Sensor
EL UNV-16
SS450-02 On-Site Wireless Controller
