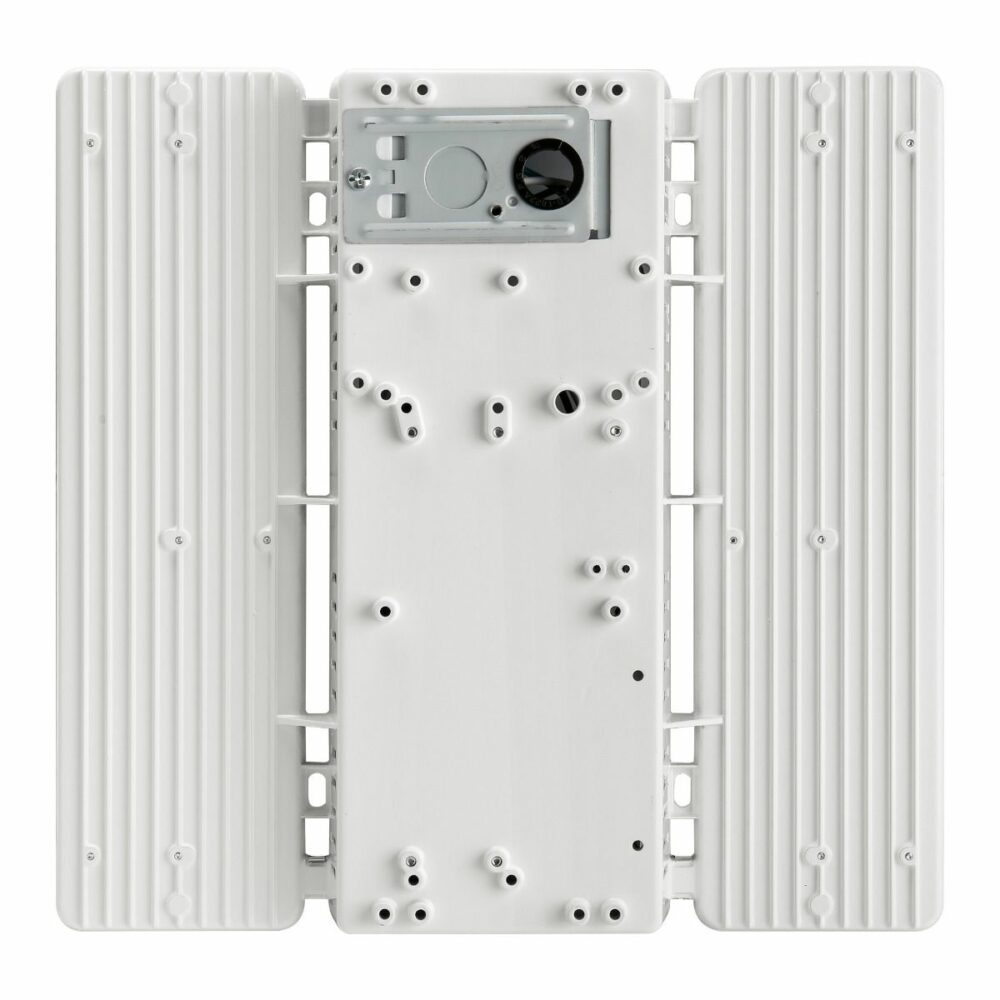

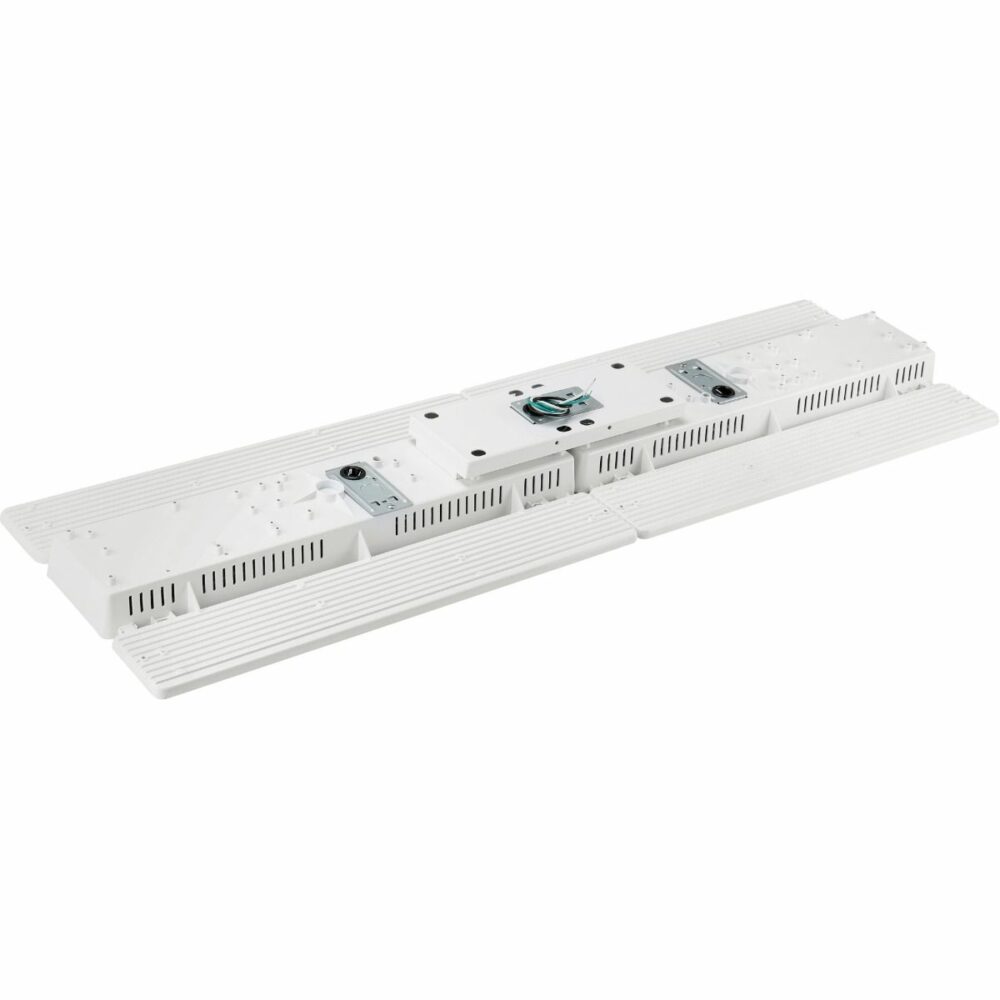

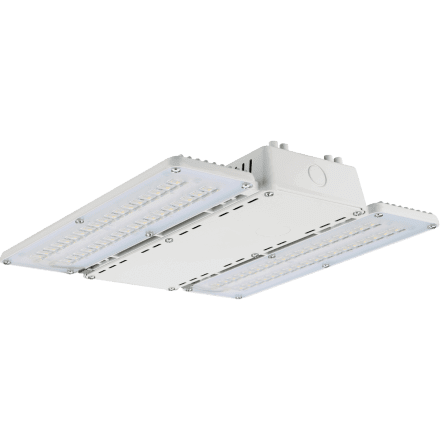

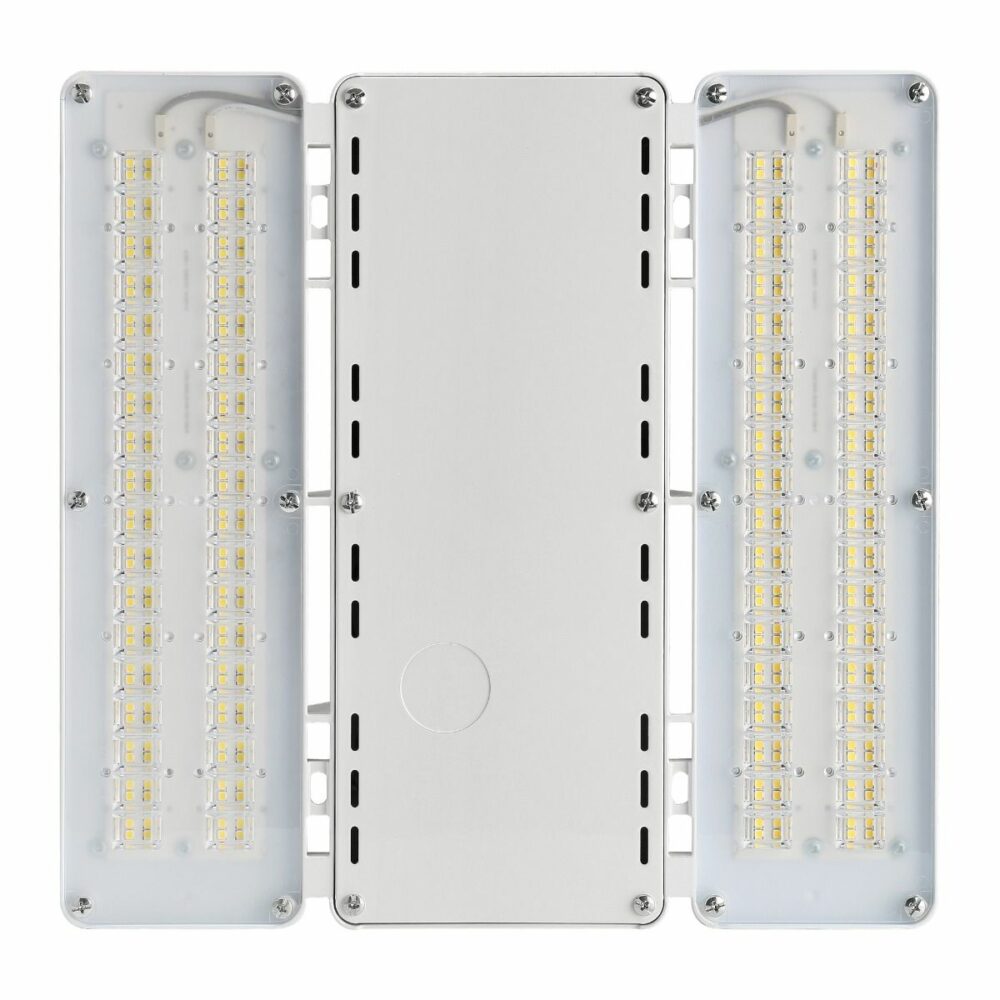

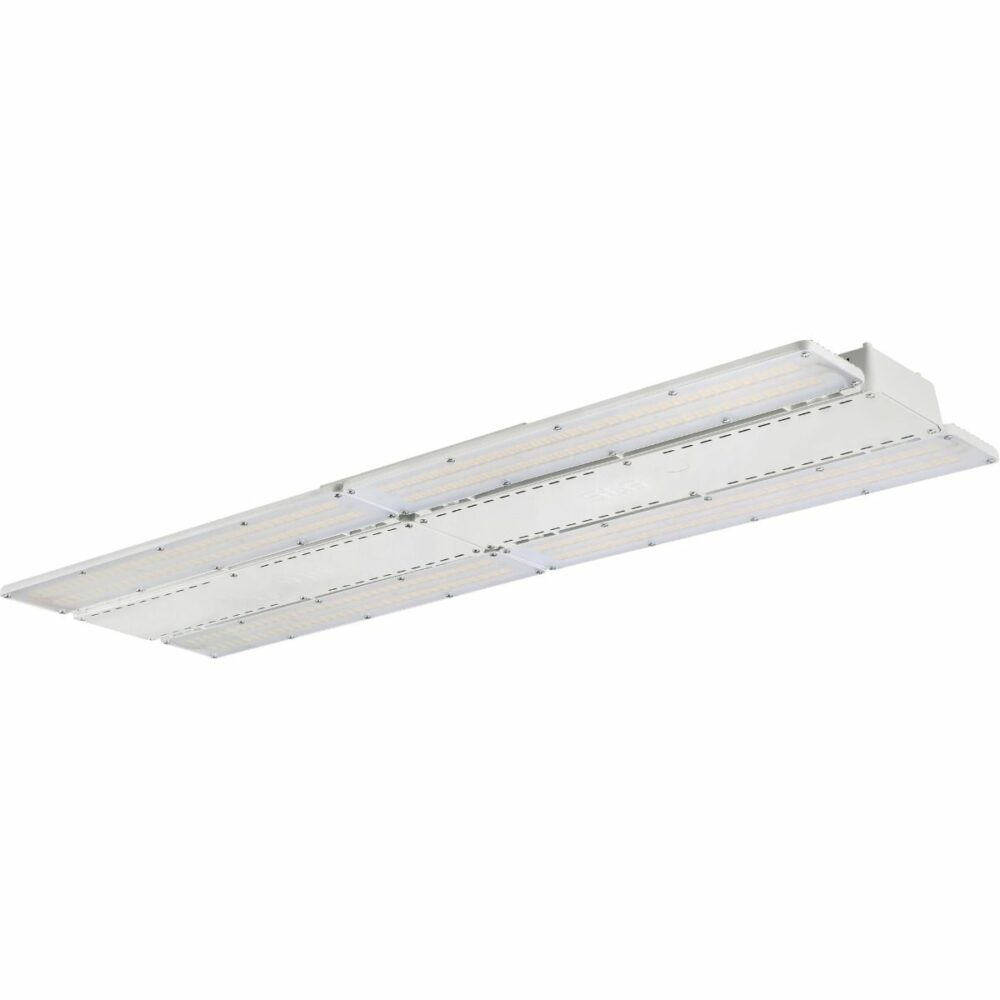

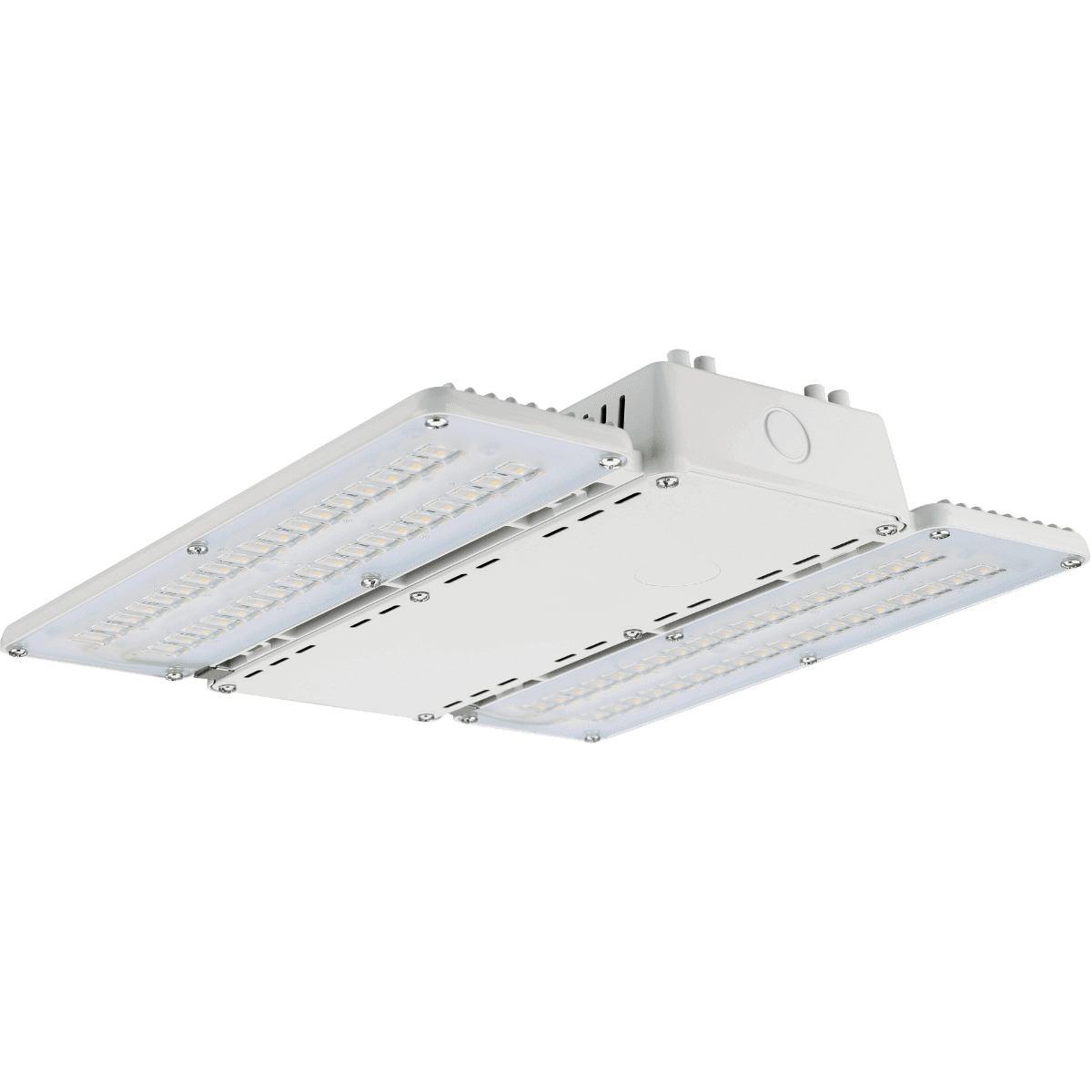

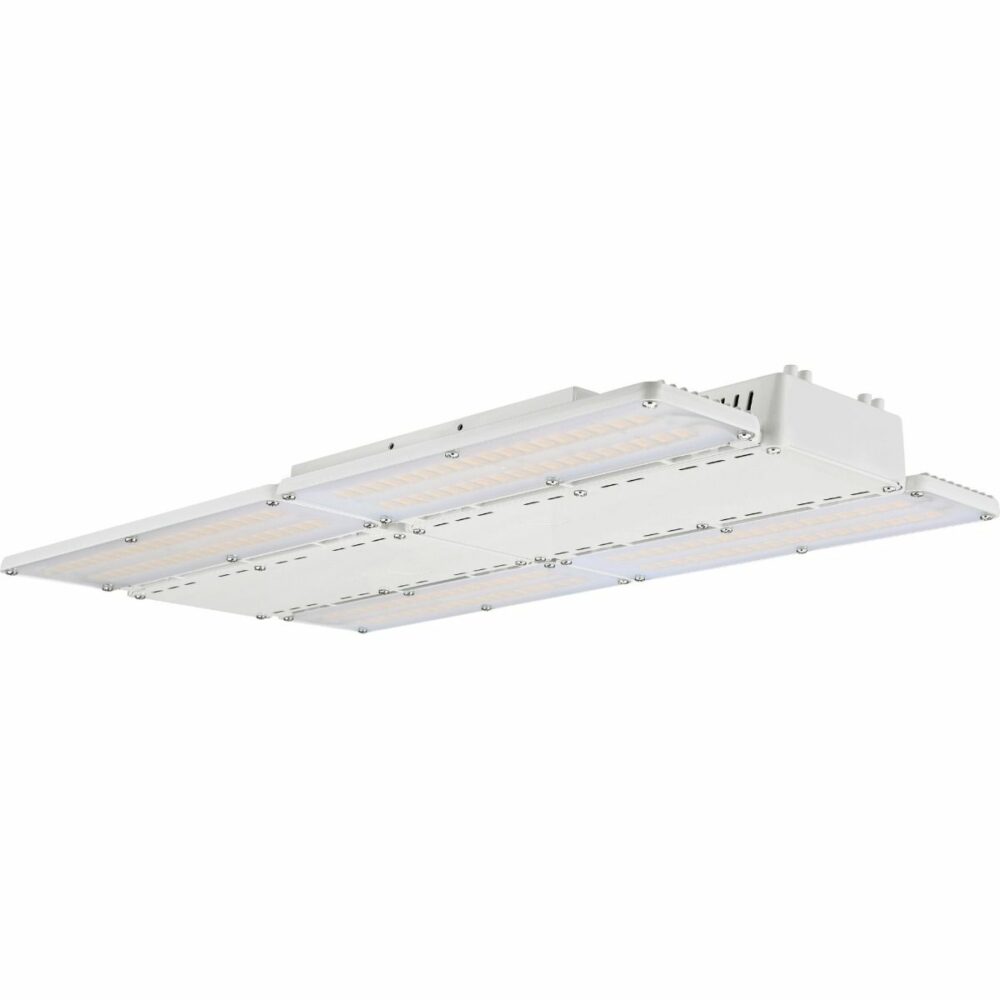

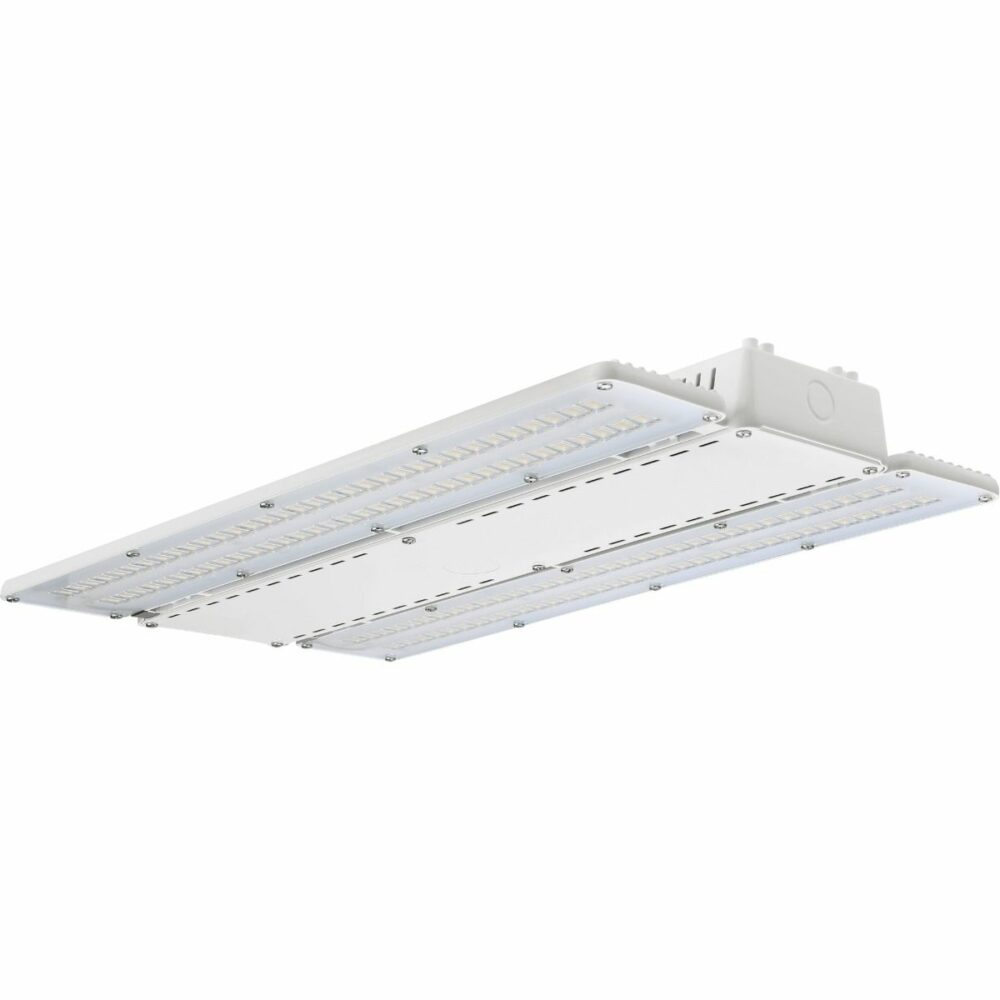

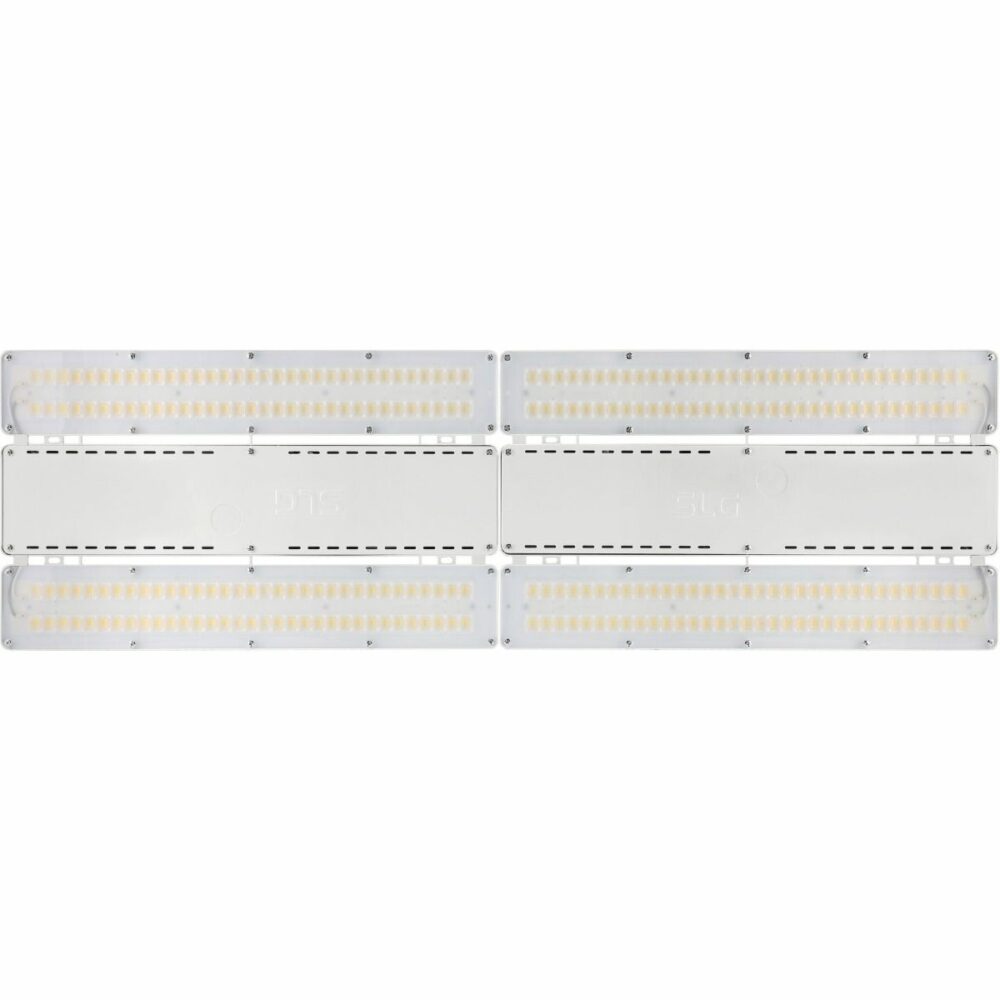

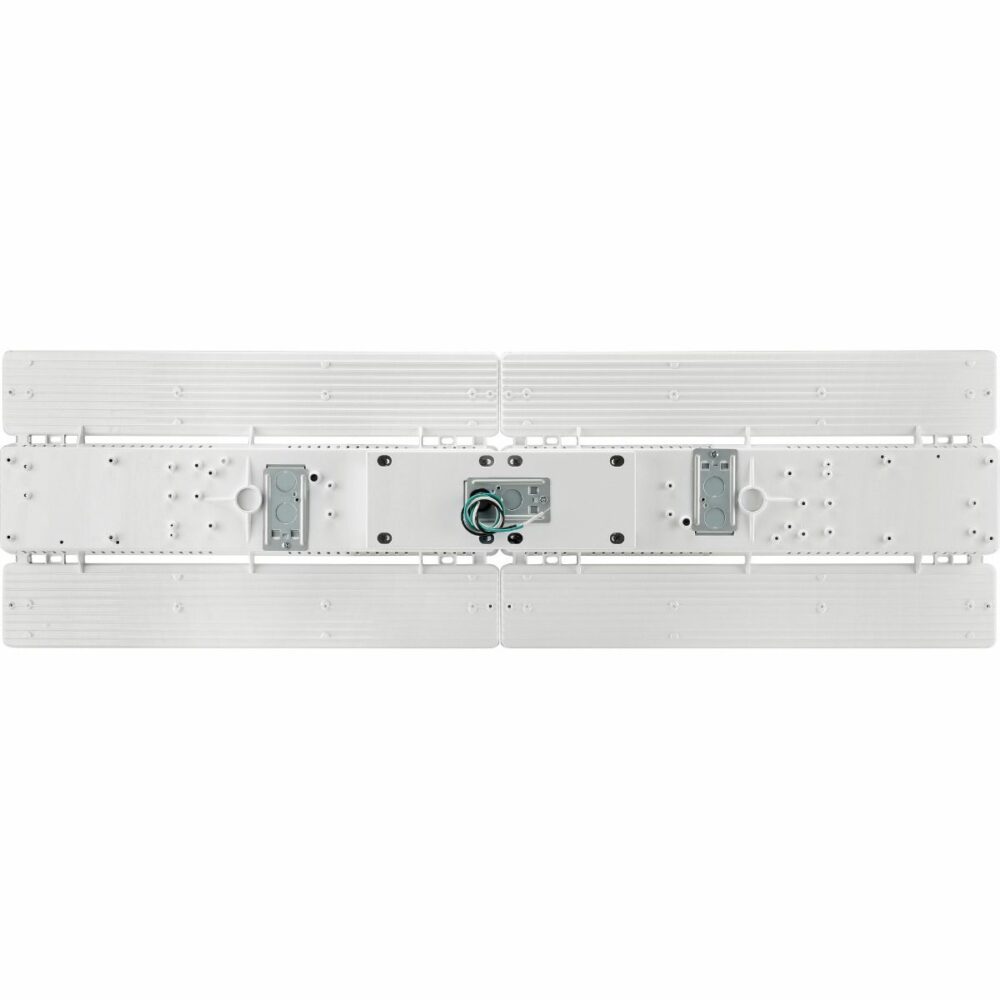

Compact Linear High Bay Gen 1
The HCL Compact Linear High Bay gives full performance in half the size. This compact high bay weighs less than the competition and lasts twice as long, while providing the same high lumen output as a full-sized linear high bay. The small but sturdy HCL offers superior thermal performance and glare control. Eco-friendly contractor packaging makes installation even faster while reducing packaging waste and labor. Coming in lumen packages ranging from 12,200 to 60,500 lumens, the HCL is suitable for several commercial, retail, and institutional applications.
APPLICATIONS
Commercial, retail, and institutional applications
| Product Series | Performance | Wattage | 90W, 105W, 130W, 180W, 210W, 260W, 360W, 420W |
| Lumen Output | 12200 LM , 14000 LM , 18200 LM , 24300 LM , 30600 LM , 36400 LM, 49600 Lm, 60500 Lm | Correlated Color Temperature (CCT) | 4000K , 5000K |
| Color Rendering Index (CRI) | 80 | Product Distribution Types | Medium Beam |
| Product Lens | Glare reducing acrylic lens | Control | Motion Sensor On/Off , High/Low Bay PIR On/ Off Sensor, Avi-On |

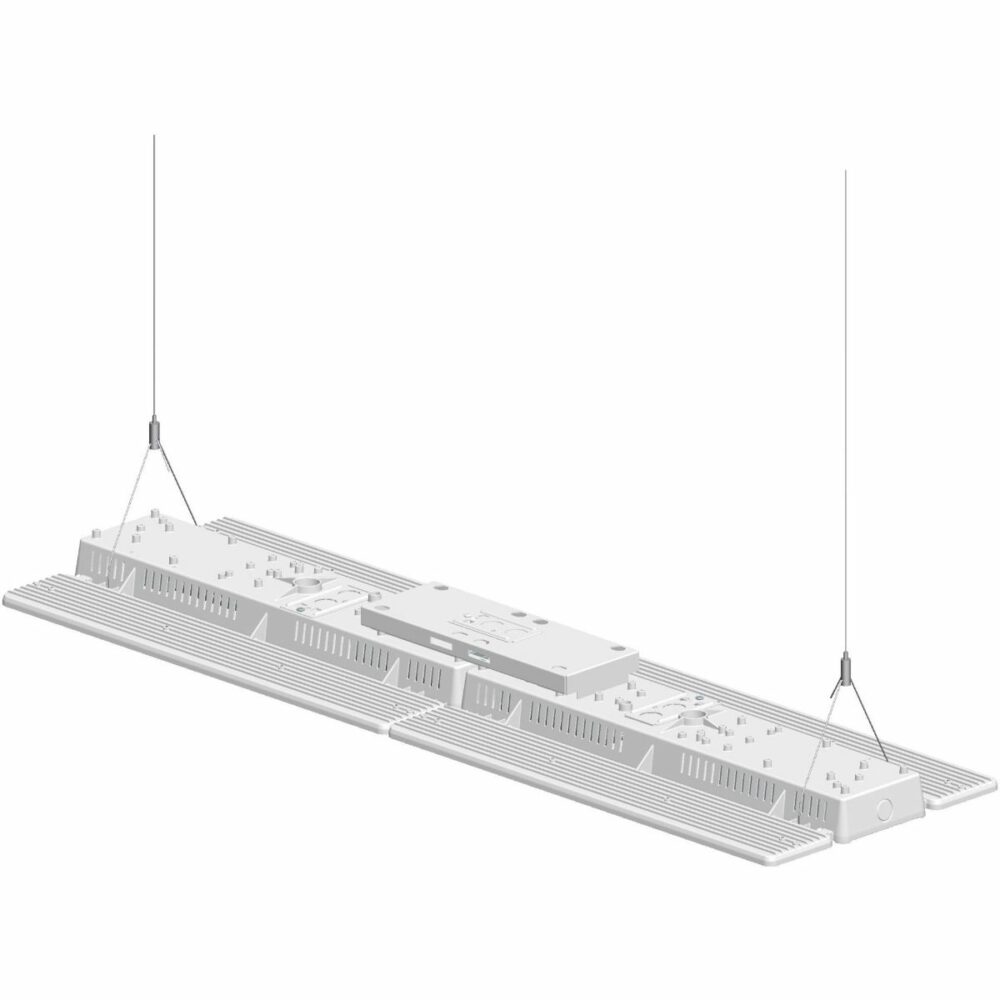

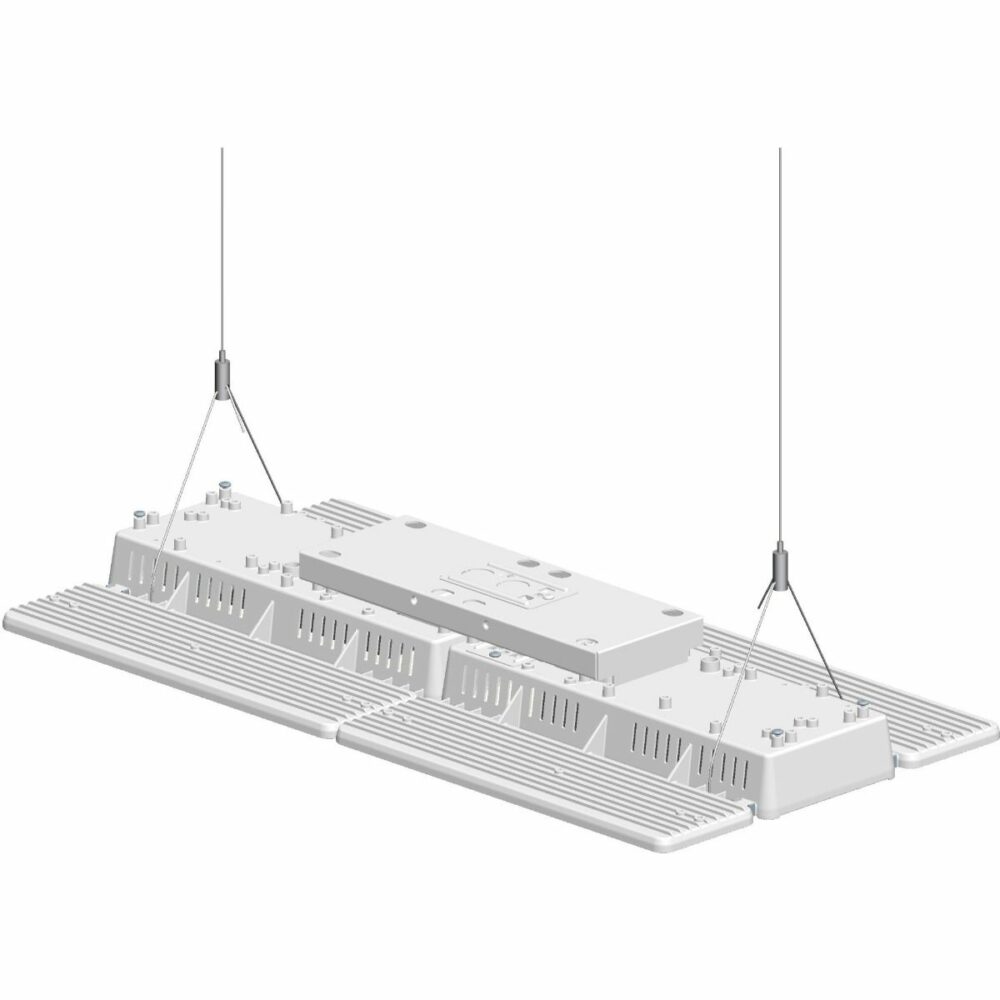

| Accessories | Emergency Battery Kit, Surge Protection | Mounting Type | Chain mount standard, optional Pendant or Surface mount available |
| Environment | Indoor | Shape | Rectangle |
| Product Sizes | 12.3in x 12.6in x 2in (90W,105W,130W), 20.7in x 12.4in x 2in (180W,210W), 41.3in x 12.4in x 3in (360W,420W), 24.6in x 12.6in x 3in (260W) | Listings | UL , DLC Standard & Premium |
| Product Type | High Bay | Generation | G1 |
| Color & Finish | White Polyester Powder | Light Source | LED – Static |
| Voltage Rating | Standard 120-277V, HVU 347-480V | Warranty | 10 Year |
| Labor Warranty | Yes |
| TYPES | LUMENS/WATTS | OPTICS | GENERATION | VOLTAGE | CCT | FINISH | OPTIONS |
|---|---|---|---|---|---|---|---|
| Compact Linear | 12200 Lm 90W 14000 Lm 100W 18200 Lm 130W 24300 Lm 180W 30600 Lm 210W 36400 Lm 260W 49600 Lm 360W 60500 Lm 420W |
Medium Beam Acrylic Lens | Gen 1 | 120-277V 347-480V |
4000K 5000K |
White | No Options External On/Off Sensor Remote Configurable Dimming Sensor w/L3 Lens Remote Configurable Dimming Sensor w/L7 Lens Standard Dimming Sensor w/L3 Lens Standard Dimming Sensor w/L7 Lens Economic Dimming Sensor with L3 Lens Standard Dimming Sensor w/L3 Lens Standard Dimming Sensor w/L7 Lens Bluetooth Controller Bluetooth Controller with Occupancy and Daylight Sensor No Options Wireless commissioning tool for MS-FSP-211 and MS-FSP-221B No Options 8W Emergency Battery Kit 8W Emergency Battery Kit No Options 5KA/10KV Surge Protection device single phase 10KA/20KV Surge Protection device single phase No Options 6 ft Power Cord Straight Cord 18 Gauge 3 Conductors Black 6 ft Power Cord Twist-lock Plug Type 3 Conductors Black 6 ft Power Cord 12 Gauge 3 Conductors MC Solid Cable No Plug 6 ft Power Cord 16 Gauge 3 Conductors SO Black Cord No Plug 6 ft Power Cord 18 Gauge 5 Conductors Black Cord No Plug |
| Part Number | Description |
|---|---|
| EL UNV-25W Emergency Battery Kit |  |
| MS-ANT-6-4T |  |
| RC-100 |  |
