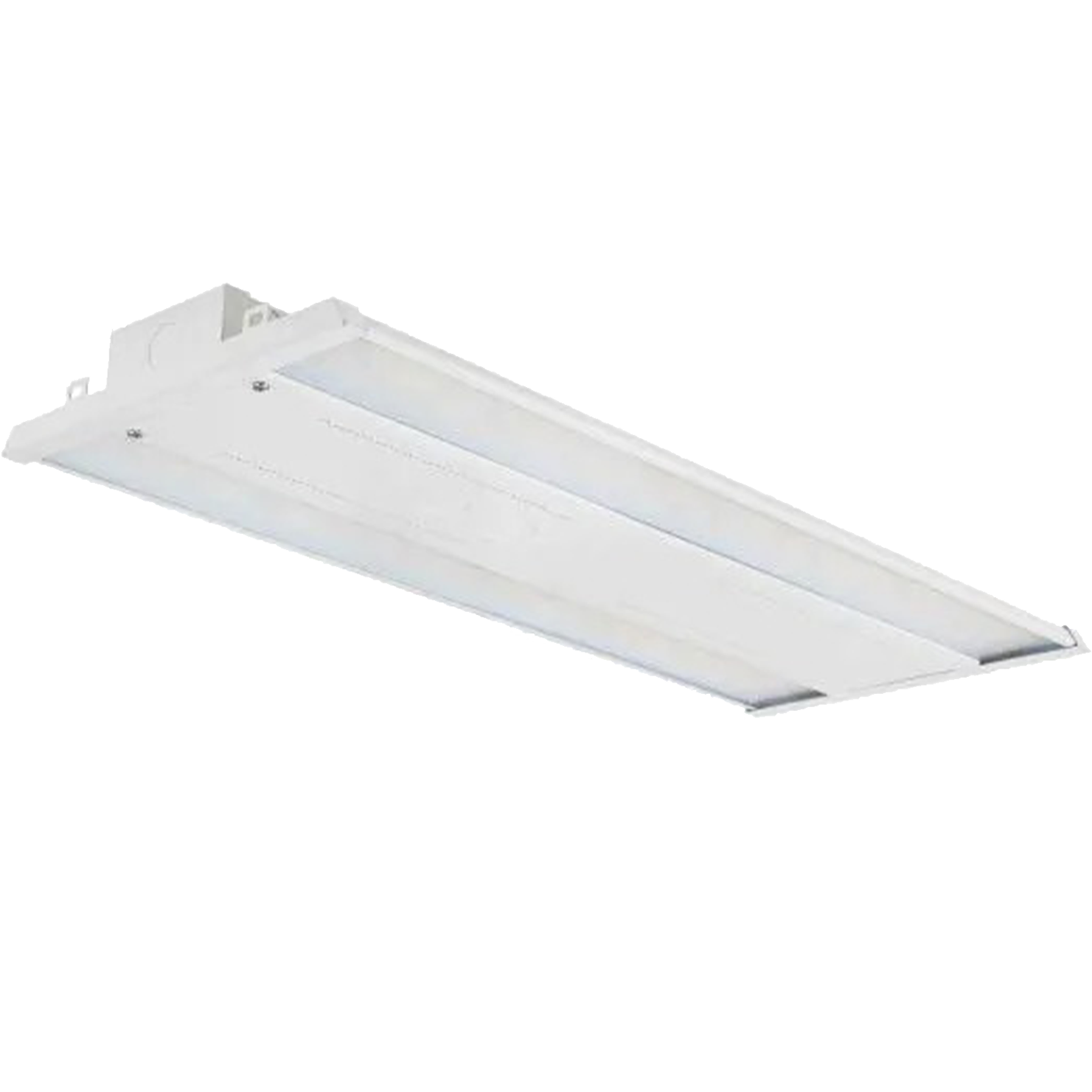

Sky Max

Linear High Bay Light

Sky Max National LEDSky Max National LEDSky Max National LED Sky Max National LED

The Sky Max Linear High Bay Light provides cost-effective, efficient warehouse and high-bay lighting. Its sleek design combines aesthetics with durability and offers up to 66% energy savings over traditional lighting. Enhanced thermal management extends its lifespan, making it ideal for warehouses, large indoor spaces, and retail or commercial environments.

Next Day Shipping

5 Minimum Warranty

Expert Installation

Get a data sheet

Features
Product Applications
Product Certification/Approvals

Key Features

  • Efficiencies from 116 to 146 LM/W
  • Lumens from 12000 to 42800
  • Color selectable – 4000K or 5000K and 11 level power adjustable.
  • Comes with up to a 10-year warranty, an estimated 100,000+ hour lifespan, and is recognized for its quality with UL cUL damp location listing and DesignLights Consortium™ qualified

Electrical

  • 120-277 VAC input voltage
  • 0-10V dimming standard for a dimming range of 100% to 10%.
  • Operating temperature is -40°F to 104°F

Construction

  • Standard with 4ft and can be extended by row connector and occlusion block.
  • Surface mounting or chain mounting for different applications

Warranty

  • Standard 5-year limited warranty.
  • 10-year Optional
  • Warehouses
  • Manufacturing facilities
  • Distribution centers
  • Gymnasiums and sports halls
  • Retail stores and supermarkets
  • Airplane hangars
  • Workshops and assembly areas
  • Cold storage facilities
  • Industrial production lines
  • Convention centers and exhibition halls
  • UL cUL damp location listed.

Features

Key Features

  • Efficiencies from 116 to 146 LM/W
  • Lumens from 12000 to 42800
  • Color selectable – 4000K or 5000K and 11 level power adjustable.
  • Comes with up to a 10-year warranty, an estimated 100,000+ hour lifespan, and is recognized for its quality with UL cUL damp location listing and DesignLights Consortium™ qualified

Electrical

  • 120-277 VAC input voltage
  • 0-10V dimming standard for a dimming range of 100% to 10%.
  • Operating temperature is -40°F to 104°F

Construction

  • Standard with 4ft and can be extended by row connector and occlusion block.
  • Surface mounting or chain mounting for different applications

Warranty

  • Standard 5-year limited warranty.
  • 10-year Optional

Product Applications

  • Warehouses
  • Manufacturing facilities
  • Distribution centers
  • Gymnasiums and sports halls
  • Retail stores and supermarkets
  • Airplane hangars
  • Workshops and assembly areas
  • Cold storage facilities
  • Industrial production lines
  • Convention centers and exhibition halls

Product Certification/Approvals

  • UL cUL damp location listed.

Frequently Asked Questions

How do I know what wattage or lumen output I need for my facility?

It depends on your ceiling height and the type of work being done.

  • Lower ceilings (12–20 ft) usually need 10,000–15,000 lumens.
  • Medium ceilings (20–30 ft) often need 20,000–30,000 lumens.
  • Tall ceilings (30–50 ft) may require 30,000–60,000 lumens.

A photometric layout gives exact requirements so you don’t over-light or under-light your space.

What mounting options are available for high bay lights?

High bays can be installed using:

  • Pendant mounts
  • Hooks
  • Chains
  • Surface mounts
  • Conduit pendant kits

This gives flexibility for different building types, ceiling structures, and retrofit scenarios.

How much energy can I save by switching from metal halide or fluorescent high bays to LED?

Most facilities save 50 to 75 percent in energy use immediately. LEDs also eliminate ballast failures, lamp replacements, and warm-up times, which creates additional maintenance savings over the long term.

Can high bay lights work with sensors or lighting controls?

Yes. High bays are one of the best applications for control systems. Options include:

  • Motion sensors
  • Bi-level dimming
  • Daylight harvesting
  • Wireless scheduling
  • Networked lighting control systems

Sensors reduce energy waste in low-traffic areas like aisles or storage zones.

What color temperature is best for warehouses and industrial facilities?

Most customers choose:

  • 4000K for a softer, more neutral work environment
  • 5000K for maximum brightness and clarity in precision work areas

Higher color temperatures improve visibility for shipping, manufacturing, QA, and forklift operation.

How long do LED high bay lights last and what maintenance is required?

LED high bays typically last 50,000 to 100,000 hours, depending on the fixture. Unlike HID systems, LEDs don’t require lamp or ballast changes. Routine cleaning to remove dust is usually the only maintenance needed, which reduces downtime and lift-equipment costs.
